Overview
Features and Benefits
- Low offset voltage: 65 μV maximum
- Low input bias currents: 1 pA maximum
- Low noise: 8 nV/√Hz
- Wide bandwidth: 10 MHz
- High open-loop gain: 1000 V/mV
- Unity gain stable
- Single-supply operation: 2.7 V to 5.5 V
- 5-ball WLCSP for single (AD8605), and 8-ball WLCSP for dual (AD8606)
- Download AD8608-KGD-CHIPS Data Sheet (pdf)
- Available as Known Good Die and fully guaranteed to data sheet specifications
Product Details
The AD8605, AD8606, and AD8608 are single, dual, and quad rail-to-rail input and output, single-supply amplifiers. They feature very low offset voltage, low input voltage and current noise, and wide signal bandwidth. They use the Analog Devices, Inc. patented DigiTrim® trimming technique, which achieves superior precision without laser trimming.
The combination of low offsets, low noise, very low input bias currents, and high speed makes these amplifiers useful in a wide variety of applications. Filters, integrators, photodiode amplifiers, and high impedance sensors all benefit from the combination of performance features. Audio and other ac applications benefit from the wide bandwidth and low distortion. Applications for these amplifiers include optical control loops, portable and loop-powered instrumentation, and audio amplification for portable devices.

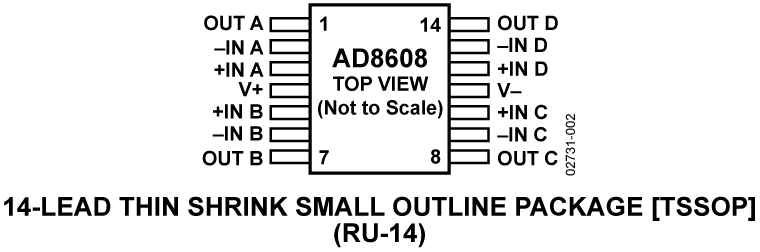

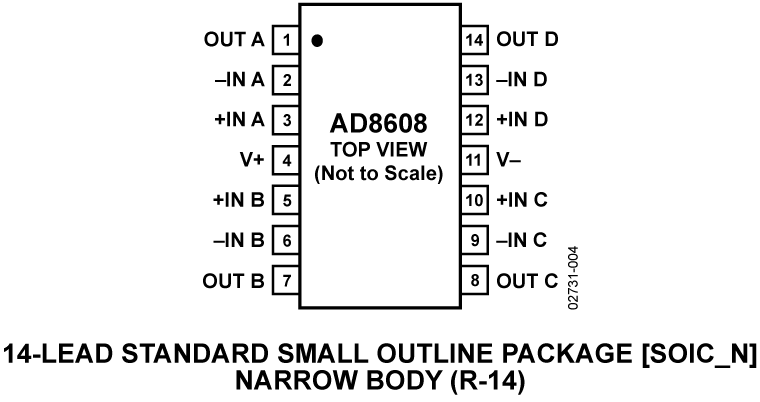

The AD8605, AD8606, and AD8608 are specified over the extended industrial temperature range (−40°C to +125°C). The AD8605 single is available in 5-lead SOT-23 and 5-ball WLCSP packages. The AD8606 dual is available in an 8-lead MSOP, an 8-ball WLSCP, and a narrow SOIC surface-mounted package. The AD8608 quad is available in a 14-lead TSSOP package and a narrow 14-lead SOIC package. The 5-ball and 8-ball WLCSP offer the smallest available footprint for any surface-mounted operational amplifier. The WLCSP, SOT-23, MSOP, and TSSOP versions are available in tape-and-reel only.
Applications
- Photodiode amplification
- Battery-powered instrumentation
- Multipole filters
- Sensors
- Barcode scanners
- Audio
Product Categories
Markets and Technologies
Product Lifecycle
Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
Evaluation Kits (1)
Documentation & Resources
-
NEW
AN-581: Biasing and Decoupling Op Amps in Single Supply Applications9/14/2023
-
AN-106: A Collection of Amp Applications2/14/2015
-
AN-256: Accurately Testing Op Amp Settling Times2/14/2015
-
AN-358: Noise and Operational Amplifier Circuits2/14/2015
-
AN-617: Wafer Level Chip Scale Package (WLCSP)8/25/2003
-
• 6-Ball Wafer Level Chip Scale Package [WLCSP] (CB-6)
PDF -
• Tape and Reel Dimensions (WLCSP)
PDF
-
CN0350: 12-Bit, 1 MSPS, Single-Supply, Two-Chip Data Acquisition System for Piezoelectric Sensors3/20/2018
-
CN0337: 12-Bit, 300 kSPS, Single-Supply, Fully Isolated RTD Temperature Measurement System with 3-Wire Compensation3/20/2014
-
CN-0254: Low Cost, 16-Bit, 250 kSPS, 8-Channel, Isolated Data Acquisition System12/30/2013
-
CN-0189: Tilt Measurement Using a Dual Axis Accelerometer4/11/2012
Tools & Simulations
LTspice
LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
Models for the following parts are available in LTspice:
AD8608
SPICE Models
CIR
AD8608 SPICE Macro Model
2.55 K
Design Tools
Analog Filter Wizard
Use the Analog Filter Wizard to design low-pass, high-pass, or band-pass filters with actual op amps in minutes. As you progress through the design process, you can observe the characteristics of your filter design from ideal specifications to real world circuit behavior. Quickly evaluate the tradeoffs in op amp specifications - including gain-bandwidth, noise, and supply current – to determine the best filter design for your requirements.
Analog Photodiode Wizard
Use Photodiode Wizard to design a transimpedance amplifier circuit to interface with a photodiode. Select a photodiode from the library included in the tool, or enter custom photodiode specifications. Quickly observe tradeoffs between Bandwidth, Peaking (Q), and ENOB/SNR. Modify circuit parameters, and immediately see results in plots for pulse response, frequency response, and noise gain.
Reference Designs (4)
Design Resources
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
| Part Number | Material Declaration | Reliability Data | Pin/Package Drawing | CAD Symbols, Footprints & 3D Models |
|---|---|---|---|---|
| AD8608-KGD-CHIP | Material Declaration | Reliability Data | CHIPS OR DIE | |
| AD8608ARUZ | Material Declaration | Reliability Data | 14-Lead TSSOP | |
| AD8608ARUZ-REEL | Material Declaration | Reliability Data | 14-Lead TSSOP | |
| AD8608ARZ | Material Declaration | Reliability Data | 14-Lead SOIC | |
| AD8608ARZ-REEL | Material Declaration | Reliability Data | 14-Lead SOIC | |
| AD8608ARZ-REEL7 | Material Declaration | Reliability Data | 14-Lead SOIC | |
| Wafer Fabrication Data |
