AD8657
Operating at 5V offering lower offset, input bias current, and voltage noise with higher bandwidth, slew rate, and output drive
Overview
Features and Benefits
- Low offset voltage: 50 µV max
- Low input bias current: 1 pA max
- Single-supply operation: 1.8 V to 5 V
- Low noise: 22 nV/vHz
- Micropower: 50 µA max
- Low distortion
- No phase reversal
- Unity gain stable
Product Details
The AD8603/AD8607/AD8609 are single/dual/quad micro-power rail-to-rail input and output amplifiers, respectively, that feature very low offset voltage as well as low input voltage and current noise.
These amplifiers use a patented trimming technique that achieves superior precision without laser trimming. The parts are fully specified to operate from 1.8 V to 5.0 V single supply or from ±0.9 V to ±2.5 V dual supply. The combination of low offsets, low noise, very low input bias currents, and low power consumption makes the AD8603/AD8607/AD8609 especially useful in portable and loop-powered instrumentation.
The ability to swing rail to rail at both the input and output enables designers to buffer CMOS ADCs, DACs, ASICs, and other wide output swing devices in low power, single-supply systems.
The AD8603 is available in a tiny 5-lead TSOT package. The AD8607 is available in 8-lead MSOP and 8-lead SOIC packages. The AD8609 is available in 14-lead TSSOP and 14-lead SOIC packages.
APPLICATIONS
- Battery-powered instrumentation
- Multipole filters
- Sensors
- Low power ASIC input or output amplifiers
Product Categories
Markets and Technologies
Product Lifecycle
Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
Evaluation Kits (1)
Documentation & Resources
-
AN-1531: Measuring −48 V High-Side Current Using the AD629 Difference Amplifier, AD8603 Op Amp, AD780 Reference, and AD7453 12-Bit ADC Single-Supply Components (Rev. a)12/18/2017
-
AN-1530: High Precision, Low Cost Current Sources Using the AD8276 Difference Amplifier and the AD8603 Op Amp (Rev. B)11/14/2017
-
AN-692: Universal Precision Op Amp Evaluation Board (Rev. A)12/4/2003
-
Isolated pH Monitor with Temperature Compensation7/1/2019
-
High-Side Current Sensing with Wide Dynamic Range: Three Solutions12/1/2010 Analog Dialogue
-
Dual Difference Amplifier with On-Chip Resistors Implements Precision ADC Driver8/1/2010 Analog Dialogue
-
Difference Amplifier Forms Heart of Precision Current Source9/1/2009 Analog Dialogue
-
Sensors and How to Use Them2/29/2016
Tools & Simulations
SPICE Model
CIR
AD8603 SPICE Macro-Model
2.43 K
Design Tool
Analog Filter Wizard
Use the Analog Filter Wizard to design low-pass, high-pass, or band-pass filters with actual op amps in minutes. As you progress through the design process, you can observe the characteristics of your filter design from ideal specifications to real world circuit behavior. Quickly evaluate the tradeoffs in op amp specifications - including gain-bandwidth, noise, and supply current – to determine the best filter design for your requirements.
Analog Photodiode Wizard
Use Photodiode Wizard to design a transimpedance amplifier circuit to interface with a photodiode. Select a photodiode from the library included in the tool, or enter custom photodiode specifications. Quickly observe tradeoffs between Bandwidth, Peaking (Q), and ENOB/SNR. Modify circuit parameters, and immediately see results in plots for pulse response, frequency response, and noise gain.

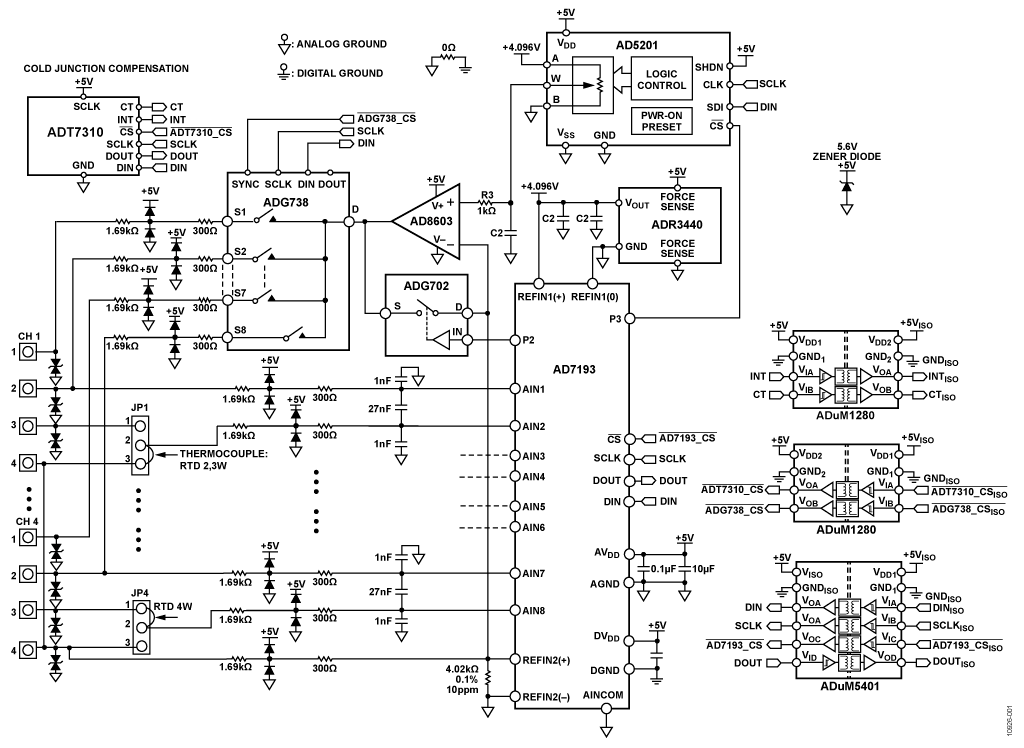

Reference Designs (2)
