ADG702

PRODUCTION

CMOS Low Voltage 2 Ω SPST Switch

Data Sheet (Rev. C) Product Selection Table

Part Models: 5
1ku List Price: Starting From $1.17

Viewing:

Overview

1.8 V to 5.5 V Single Supply
2O (Typ) On Resistance
Low On-Resistance Flatness
-3 dB Bandwidth >200 MHz
Rail-to-Rail Operation
Tiny 6-Lead SOT23 and 8-Lead µSOIC packages

Fast Switching Times
t_ON 18 ns
t_OFF12 ns
Typical Power Consumption
(<0.01 µW)
TTL/CMOS Compatible

The ADG702 is a monolithic CMOS SPST switch. It is designed on an advanced submicron process that provides low power dissipation yet high switching speed, low on resistance, low leakage currents and -3 dB bandwidths of greater than 200 MHz can be achieved.

The ADG701 / ADG702 can operate from a single 1.8 V to 5.5 V supply, making it ideal for use in battery-powered instruments and with Analog Devices' new generation of DACs and ADCs.

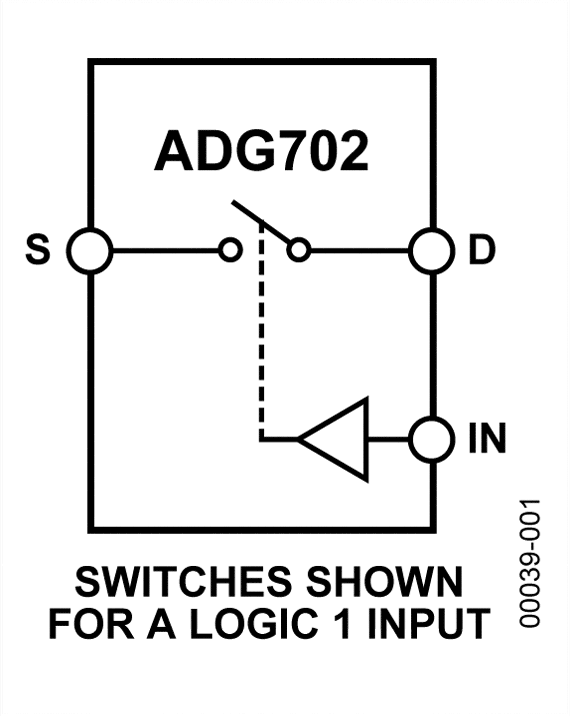

ADG702 Functional Block Diagram shows that with a logic input of 1, the switch of the ADG701 is closed and that of the ADG702 is open. Each switch conducts equally well in both directions when on.

The ADG702 are available in 5-lead SOT-23, 6-lead SOT-23, and 8-lead MSOP packages.

PRODUCT HIGHLIGHTS

1.8 V to 5.5 V Single-Supply Operation. ADG702 offer high performance, including low on resistance and fast switching times, and are fully specified and guaranteed with 3 V and 5 V supply rails.
Very Low R_ON (3 Ω Maximum at 5 V, 5 Ω Maximum at 3 V). At 1.8 V operation, R_ON is typically 40 Ω over the temperature range.
On Resistance Flatness R_FLAT(ON) (1 Ω Maximum).
−3 dB Bandwidth > 200 MHz
Low Power Dissipation. CMOS construction ensures low power dissipation.
Fast t_ON/t_OFF.

Part Models: 5
1ku List Price: Starting From $1.17

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
ADG702BRJZ-500RL7	5-Lead SOT-23	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
ADG702BRJZ-REEL7	5-Lead SOT-23	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
ADG702BRMZ	8-Lead MSOP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
ADG702BRMZ-REEL7	8-Lead MSOP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
ADG702BRTZ-REEL7	6-Lead SOT-23	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Feb 22, 2016 - 16_0021 Addition of Amkor Philippines as Alternate Assembly Site for 5L,6L and 8L SOT23 Packages
		PCN16_0021_Form Material_Report Detailed Change Description Qualification Results Summary
ADG702BRJZ-500RL7	PRODUCTION
ADG702BRJZ-REEL7	PRODUCTION
ADG702BRTZ-REEL7	PRODUCTION
Feb 4, 2010 - 10_0009 Halogen Free Material Change for SOT_23 Products
		Material_Report PCN10_0009_Form SOT23 Qualification Data
ADG702BRJZ-500RL7	PRODUCTION
ADG702BRJZ-REEL7	PRODUCTION
ADG702BRTZ-REEL7	PRODUCTION
Oct 26, 2015 - 15_0176 Assembly Transfer of Select 8/10L MSOP Products to Amkor Philippines
		PCN15_0176_Form Material_Report Detailed Change Description Qualification Results Summary Qualification Results Summary
ADG702BRMZ	PRODUCTION
ADG702BRMZ-REEL7	PRODUCTION
May 15, 2012 - 10_0006 Halogen Free Material Change for mini SOIC Products
		PCN10_0006_Form Material_Report Qualification Report Summary Qualification Report Summary
ADG702BRMZ	PRODUCTION
ADG702BRMZ-REEL7	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Tools & Simulations

LTspice

Models for the following parts are available in LTspice:

ADG702

SPICE Model 1

ADG702 SPICE Macro Model

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

Evaluation Kits

Evaluation Board for 6 lead SOT23 Devices in the Switches/Multiplexers Portfolio

Buy Now View Details

Features and Benefits

6 lead SOT-23 evaluation board
Clamp to allow the main device to be changed easily
Gold pin connectors to allow the addition of passive components
SMB connectors for the input/output of signals
Additional space on board to allow for prototypin

Product Details

The EVAL-6SOT23EBZ evaluation board evaluates 6-lead SOT-23 devices in the Switches and Multiplexers Portfolio that are purchased separately. A clamp is supplied with the EVAL-6SOT23EBZ to secure a 6-lead SOT-23 device to the evaluation board without the need for soldering, making the board reusable for multiple devices.

A device can be clamped or soldered to the center of the evaluation board. Each pin of the device has a corresponding link from K1 to K6 that can be set to either VDD or GND. A wire screw terminal supplies VDD and GND. SMB connectors on the board allow additional external signals to be supplied to the device. In addition, there is space available at the top of the board for prototyping.

Full specifications of the device under test (DUT) are available in the corresponding product data sheet, which should be consulted in conjunction with user guide UG- 948 when using the evaluation board.

Resources

UG-948: Evaluation Board for 6-Lead SOT-23 Devices in the Switches and Multiplexers Portfolio (Rev.0)
4/7/2016

Evaluation Board for 8 lead MSOP Devices in the Switch/Mux Portfolio

Buy Now View Details

Features and Benefits

8 lead MSOP evaluation board
Clamp to allow the main device to be changed easily
Gold pin connectors to allow the addition of passive components
SMB connectors for the input/output of signals
Additional space on board to allow for prototyping

Product Details

The EVAL-8MSOPEBZ is the evaluation board for the 8 lead MSOP devices in the switch/mux portfolio which are to be purchased separately. A clamp is supplied with the board so that the device can be secured to the board without the need for soldering. This makes the board reusable for multiple devices.

The device can be clamped or soldered to the center of the evaluation board. Each pin of the device is broke out to a link that can be set to either V_DD or GND and a wire screw terminal is provided to supply V_DD and GND. SMB connectors are on the board allow for additional external signals to be supplied to the device. In addition, there is space at the top of the board available for prototyping.

Full specifications of the device under test are available in the product data sheet, which should be consulted in conjunction with this user guide when using the evaluation board.
