AD8251

PRODUCTION

10 MHz, G = 1, 2, 4, 8 iCMOS® Programmable Gain Instrumentation Amplifier

Data Sheet (Rev. B) Product Selection Table
Viewing:

Overview

  • Small package: 10-lead MSOP
  • Programmable gains: 1, 2, 4, 8
  • Digital or pin-programmable gain setting
  • Wide supply: ±5 V to ±15 V
  • Excellent dc performance
    High CMRR: 98 dB (minimum), G = 8
    Low gain drift: 10 ppm/°C (maximum)
    Low offset drift: 1.8 μV/°C (maximum), G = 8

EXCELLENT AC PERFORMANCE

  • Fast settling time: 785 ns to 0.001% (maximum)
  • High slew rate: 20 V/μs (minimum)
  • Low distortion: −110 dB THD at 1 kHz,10 V swing
  • High CMRR over frequency: 80 dB to 50 kHz (minimum)
  • Low noise: 18 nV/√Hz, G = 10 (maximum)
  • Low power: 4 mA

The AD8251 is an instrumentation amplifier with digitally programmable gains that has GΩ input impedance, low output noise, and low distortion, making it suitable for interfacing with sensors and driving high sample rate analog-to-digital converters (ADCs). It has high bandwidth of 10 MHz, low THD of −110 dB, and fast settling time of 785 ns (maximum) to 0.001%. Offset drift and gain drift are guaranteed to 1.8 μV/°C and 10 ppm/°C, respectively, for G = 8. In addition to its wide input common voltage range, it boasts a high common-mode rejection of 80 dB at G = 1 from dc to 50 kHz. The combination of precision dc performance coupled with high speed capabilities makes the AD8251 an excellent candidate for data acquisition. Furthermore, this monolithic solution simplifies design and manufacturing and boosts performance of instrumentation by maintaining a tight match of internal resistors and amplifiers.

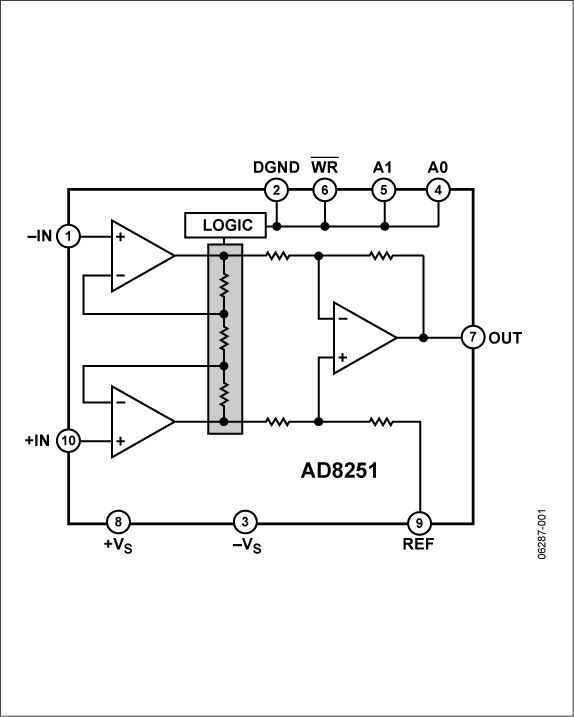

The AD8251 user interface consists of a parallel port that allows users to set the gain in one of two different ways (see Figure 1 in data sheet for the functional block diagram). A 2-bit word sent via a bus can be latched using the WR input. An alternative is to use transparent gain mode where the state of logic levels at the gain port determines the gain.

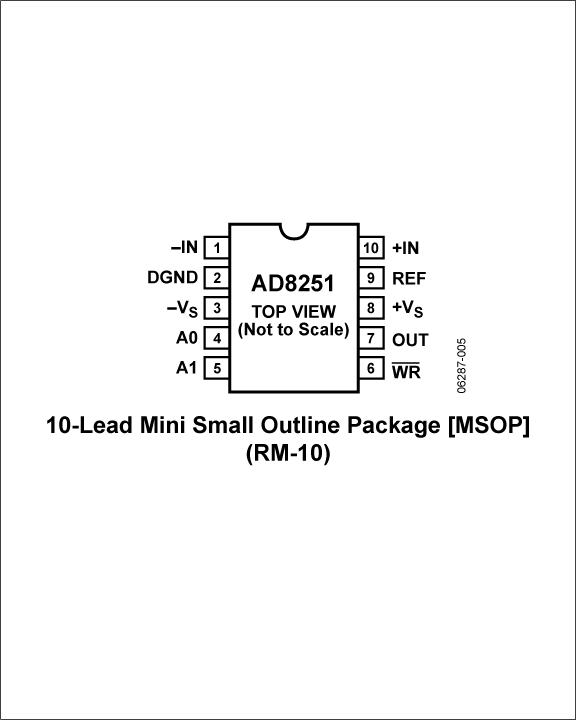

The AD8251 is available in a 10-lead MSOP package and is specified over the −40°C to +85°C temperature range, making it an excellent solution for applications where size and packing density are important considerations.

Applications

  • Data acquisition
  • Biomedical analysis
  • Test and measurement

    • AD8251
    10 MHz, G = 1, 2, 4, 8 iCMOS® Programmable Gain Instrumentation Amplifier
    AD8251-fbl 30043660AD8251-pc
    Add to myAnalog

    Add product to the Products section of myAnalog (to receive notifications), to an existing project or to a new project.

    Create New Project
    Ask a Question

    Documentation

    Data Sheet 1

    User Guide 1

    Application Note 1

    Technical Articles 2

    Learn More
    Add to myAnalog

    Add media to the Resources section of myAnalog, to an existing project or to a new project.

    Create New Project

    Software Resources

    Can't find the software or driver you need?

    Request a Driver/Software

    Tools & Simulations

    In-Amp Diamond Plot Tool

    The Diamond Plot Tool is a web application that generates a configuration-specific Output Voltage Range vs. Input Common-Mode Voltage graph, also known as the Diamond Plot, for Analog Devices Instrumentation Amplifiers. Based on user inputs such as supply voltage, gain, and input signal range, the tool detects saturation and recommends in-amps for which the input signal is in-range and the configuration is valid. Avoid saturation, find the best in-amp for your design, and save time.

    Open Tool

    SPICE Model 1

    Signal Chain Designer

    Signal Chain Designer is a web-based tool designed to create and simulate complex precision signal chains. See your circuit’s performance before you commit to your PCB: transfer function, noise, power consumption, input range, and DC error. Quickly experiment with different parts and architectures. Signal chains can be exported to LTspice for further analysis.

    Open Tool

    Evaluation Kits

    eval board
    schematic 1
    EVAL-AD8251

    AD8251 Evaluation Board

    Buy Now View Details

    Features and Benefits

    • Does not require software to operate
    • Runs from dual supply (±7 to ±15 V)
    • Gain selection through DIP switches
    • Numerous test points for external stimulus
    • Signal paths use SMA connectors

    Product Details

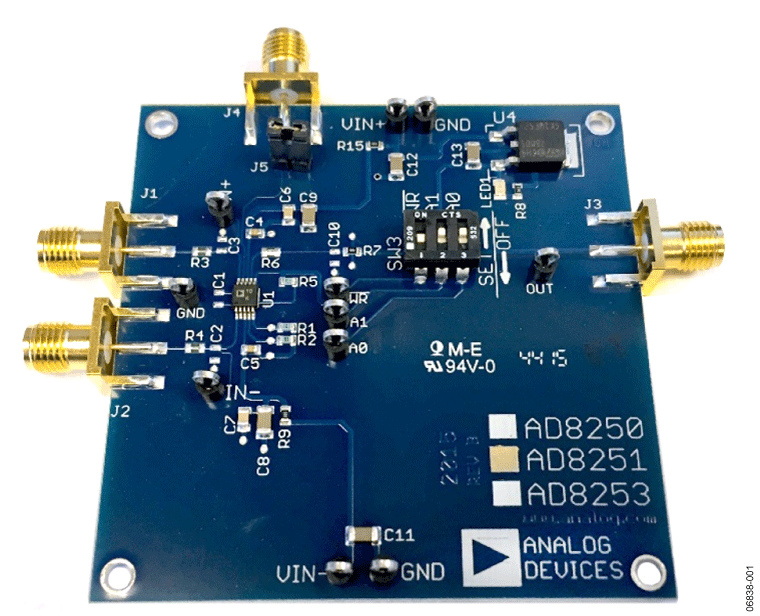

    The AD8251-EVALZ user guide details how the AD8251- EVALZ evaluation board evaluates the AD8251. The user guide outlines the basic connections required to evaluate the AD8251 and describes the switch settings available to obtain desired outputs.
