AD4113

RECOMMENDED FOR NEW DESIGNS

4-/8-Channel, 125kSPS, 16-Bit, Sigma Delta ADC with ±10V Inputs, Open-Wire Detection

Viewing:

Overview

  • ±10V inputs, 4 differential or 8 single-ended
    • Absolute input pin voltage up to ±20V
    • Minimum 1MΩ impedance
  • Fully integrated solution
    • 16-bit ADC with integrated AFE
    • Fast and flexible output rate: 2.5SPS to 125,000SPS
    • Channel scan data rate 24.845kSPS/channel (40.25μs settling)
      • 14.4 noise free bits at 24.845kSPS per channel
      • 16 noise free bits at 4.994kSPS per channel
    • Simultaneous 50Hz and 60Hz rejection
    • On-chip, 2.5V reference and reference buffers
      • ±5ppm/°C drift (typical)
    • Internal clock oscillator
  • Power supplies
    • AVDD = 4.5V to 5.5V or ±2.5V
    • IOVDD = 2V to 5.5V
    • Total current consumption AVDD + IOVDD (IDD) = 10.8mA
    • Temperature range: −40°C to +105°C
    • 40-lead, 6mm × 6mm LFCSP
    • 3-wire or 4-wire serial digital interface
      • SPI, QSPI, MICROWIRE, and DSP-compatible
      • Schmitt trigger on SCLK
AD4113
4-/8-Channel, 125kSPS, 16-Bit, Sigma Delta ADC with ±10V Inputs, Open-Wire Detection
AD4113 Functional Block Diagram AD4113 Pin Configuration AD4113 Chip Illustration
Add to myAnalog

Add product to the Products section of myAnalog (to receive notifications), to an existing project or to a new project.

Create New Project
Ask a Question

Documentation

Learn More
Add to myAnalog

Add media to the Resources section of myAnalog, to an existing project or to a new project.

Create New Project

Software Resources


Tools & Simulations


Evaluation Kits

eval board
EVAL-AD4113

Evaluating the AD4113, 4-/8-Channel, 125kSPS, 16-Bit, Sigma Delta ADC with ±10V Inputs, Open-Wire Detection

Features and Benefits

  • Fully-featured evaluation board for the AD4113
  • PC control in conjunction with the system demonstration platform (EVAL-SDP-CK1Z)
  • PC software control and data analysis
  • Standalone capability

Product Details

The EVAL-AD4113ARDZ is a fully-featured evaluation board that can be used to evaluate all the features of the AD4113. The AD4113 is a 16-bit, 125kSPS analog-to-digital converter (ADC) with a ±10V input voltage range with eight single-ended or four differential channels. All channels have on-board overvoltage protection.

The EVAL-AD4113ARDZ board includes voltage references and power and data insulation and can be connected to EVAL-SDPCK1Z system demonstration platform. The SDP board provides the connection to a PC via a universal serial bus (USB) port and can provide power to the EVAL-AD4113ARDZ board from the PC USB port. The ACE software configures the AD4113 device functionality and provides DC time domain analysis in the form of waveform graphs, histograms, and associated noise analysis for ADC performance evaluation.

Full specifications on the AD4113 are available in the AD4113 data sheet available from Analog Devices, Inc., and must be consulted with this user guide when using the EVAL-AD4113ARDZ evaluation board.

EVAL-AD4113
Evaluating the AD4113, 4-/8-Channel, 125kSPS, 16-Bit, Sigma Delta ADC with ±10V Inputs, Open-Wire Detection

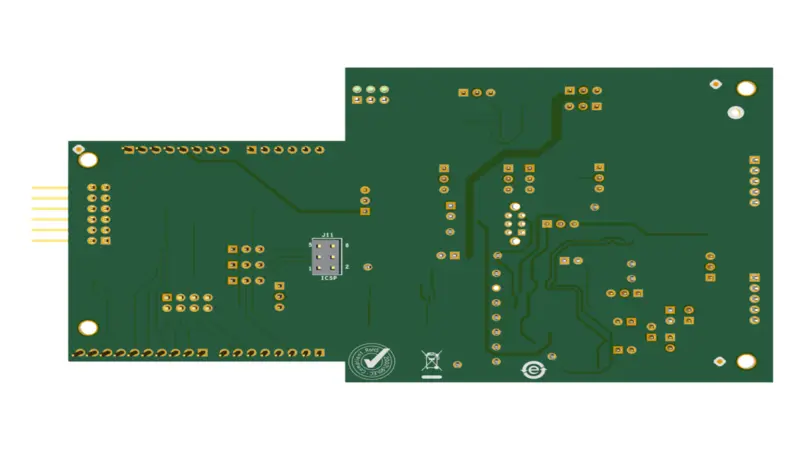

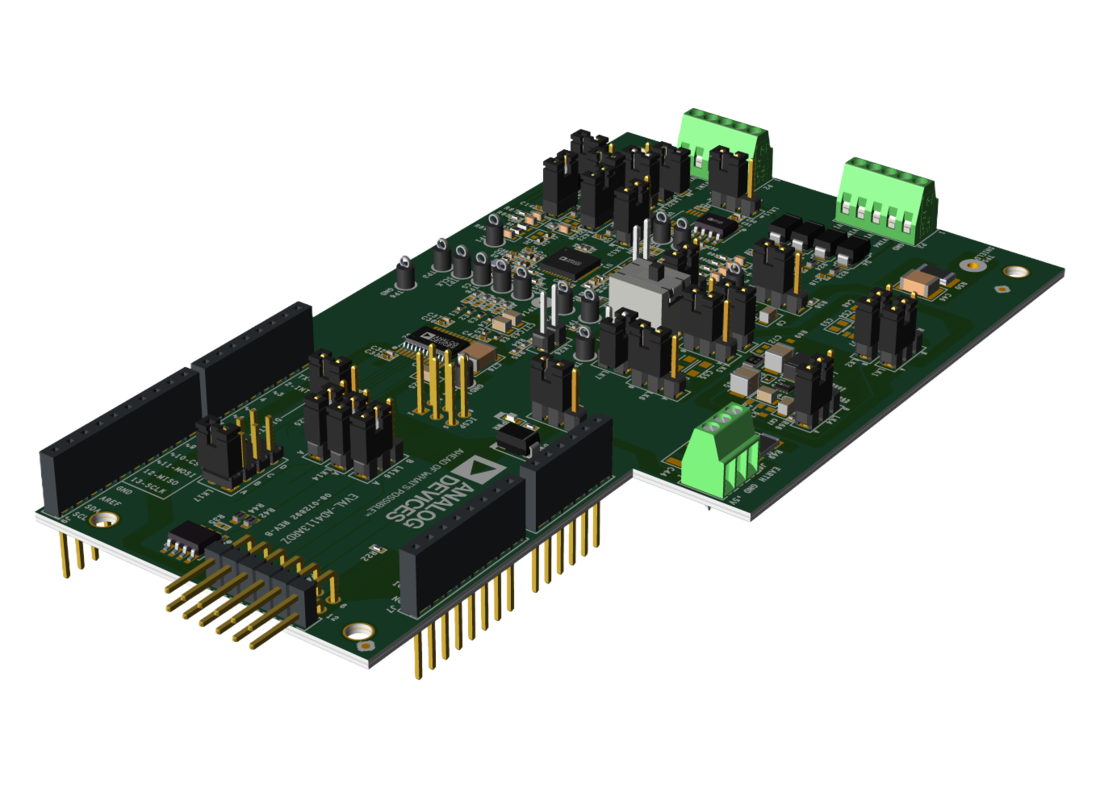

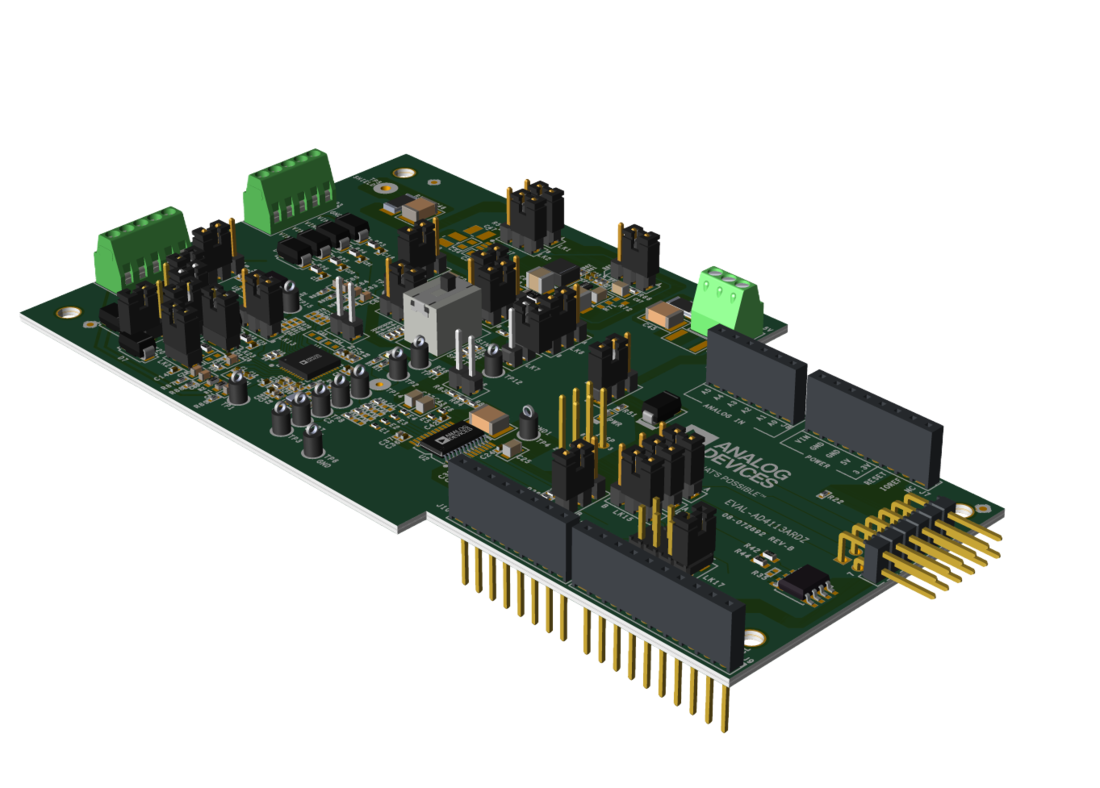

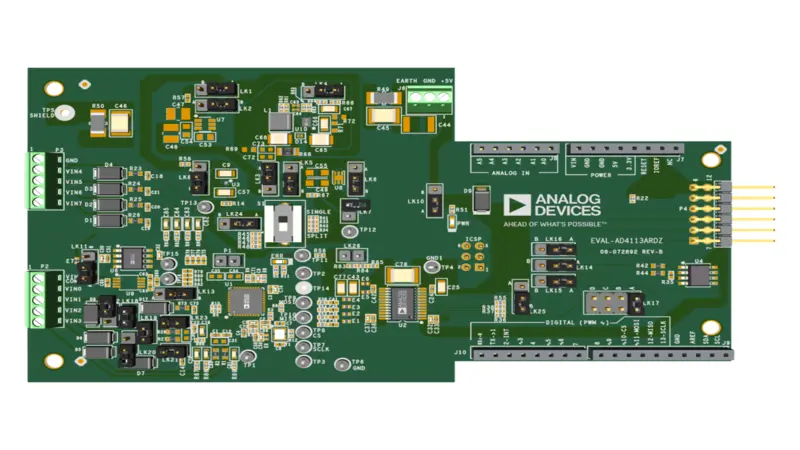

EVAL-AD4113ARDZ Evaluation Board Angle 2 View EVAL-AD4113ARDZ Evaluation Board Angle 1 View EVAL-AD4113ARDZ Evaluation Board Top View EVAL-AD4113ARDZ Evaluation Board Bottom View
