特性
- Standard compliant EtherCAT® Slave Controller
- 2x Integrated 100-MBit Ethernet PHY
- SPI Process Data Interface (PDI)
- Auxiliary IO Block with 24 configurable
- Multi-Function I/Os
- 4.75V to 35V Supply Voltage range
- 2x Integrated 3.3V and 5V-24V buck regulators
- 8 High Voltage I/Os (up to 35V, 100mA),
- -40°C to +85°C Temperature Range
- 9x9mm 121pin BGA package
.svg?rev=fd385c90e2cf4716ae9a8c8d20e6b8e3&la=zh&h=24&w=24&hash=7CDDC996281D9E966D391D97E93C6727){kind=icon}

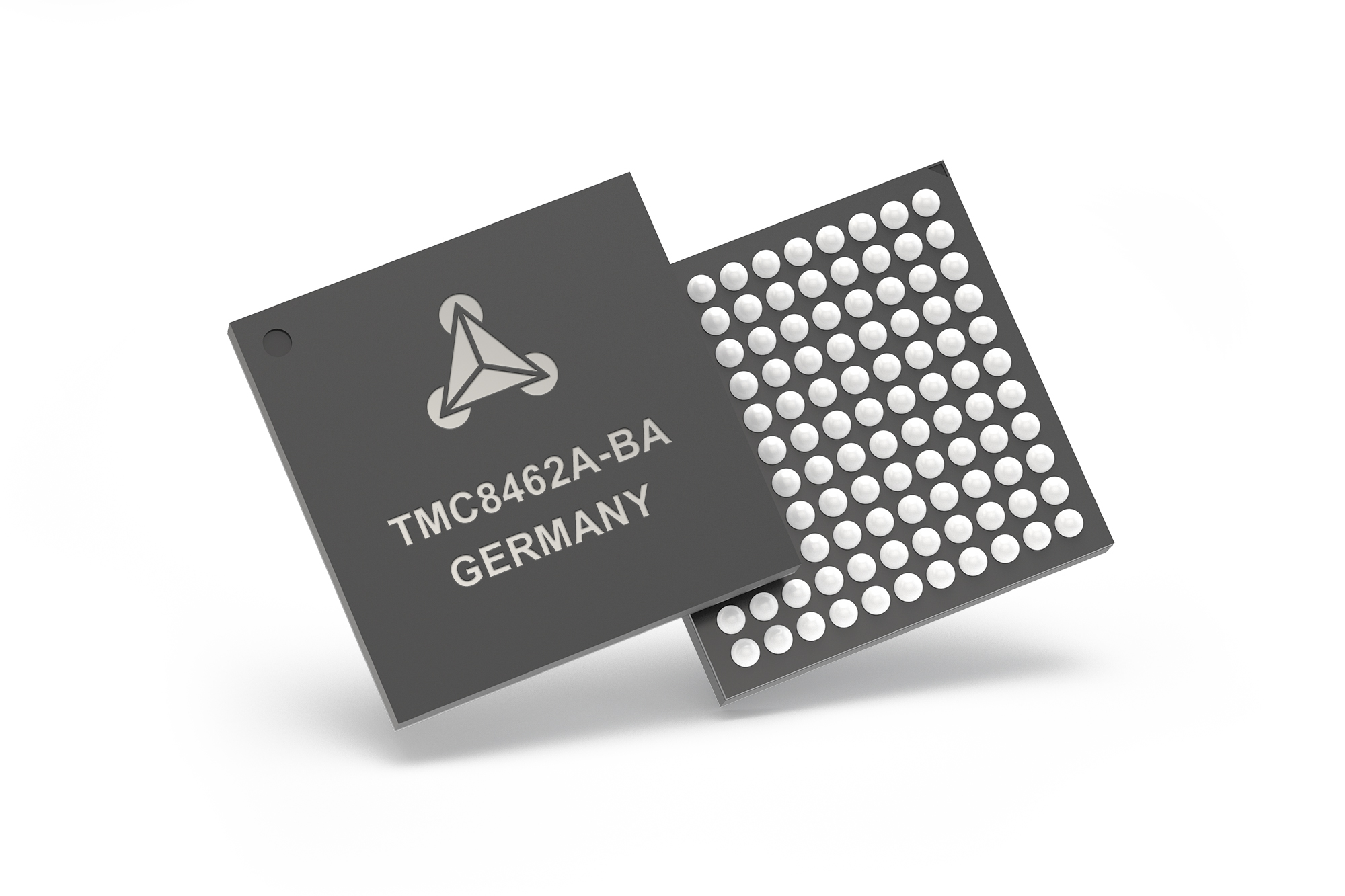

The TMC8462A is a complete EtherCAT® Slave Controller optimized for real time. It comprises all blocks required for an EtherCAT slave including two 100-MBit PHYs, a dual switch regulator power supply and 24V capable high voltage I/Os for industrial environments. Timer, watchdog, PWM and SPI/IIC master units allow for enhanced capabilities either in device emulation mode or in combination with an external CPU.
The TMC8462A can also be used in combination with EtherCAT P, allowing for both data and power to be supplied using one single cable.
TMC8462A-BA is the follow-up product for TMC8462-BA.
APPLICATIONS:
- Motor Drives
- Industrial Automation
- Communication Modules
- Industry 4.0
- Sensors & Encoders
- Robotics
- Building Automation
- Real-time control
- Connected Motion
提问
在下面提交您的问题，我们将从 ADI 的知识库中给出最佳答案:
搜索
您可以在其他地方找到帮助
{{modalTitle}}
{{modalDescription}}
{{dropdownTitle}}
- {{defaultSelectedText}} {{#each projectNames}}
- {{name}} {{/each}} {{#if newProjectText}}
-
{{newProjectText}}
{{/if}}
{{newProjectTitle}}
{{projectNameErrorText}}
参考资料
数据手册 1
ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。
| 产品型号 | 引脚/封装图-中文版 | 文档 | CAD 符号，脚注和 3D模型 |
|---|---|---|---|
| TMC8462A-BA | 121-CSP_BGA-9X9X1.4 |
|
- TMC8462A-BA
- 引脚/封装图-中文版
- 121-CSP_BGA-9X9X1.4
- 文档
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD 符号，脚注和 3D模型
-
Ultra Librarian
-
SamacSys
软件和型号相关生态系统
评估套件 2

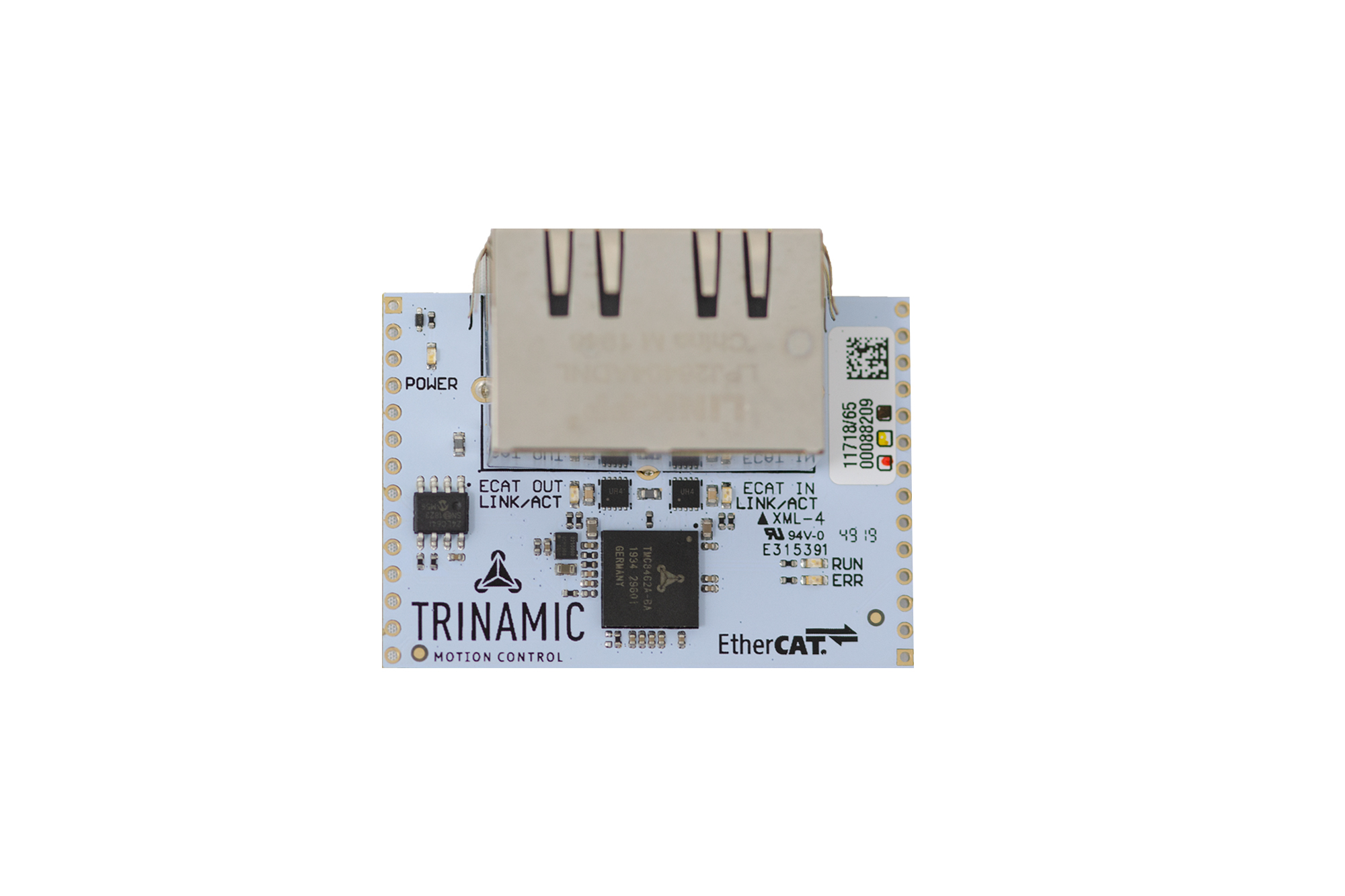

TMC8462A-BOB-ETH
Evaluation Board for TMC8462A
特性和优点
- TMC8462A-BA Advanced EtherCAT Slave Controller
- Supply and I/O voltage 3.3V (with blue LED indicator)
- 2x RJ45 TPC connector
- EtherCAT link activity, run, and error LEDs
- Configuration and control via Process Data Interface (PDI) SPI, ECAT, and SII-EEPROM
- Device emulation mode or controller mode via solder option (R5/R6)
- Board width 2.0", board height 1.5"
- 2x14 pin 0.1" header rows for pins/connectors, distance of rows 1.9"
产品详情
The TMC8462A breakout board is a development board with the dedicated TMC8462A-BA chip. It is designed to give users the chance to rapidly prototype their applications - making it possible to immediately check how the motor performs with TMC chips while developing the application's software.
资料

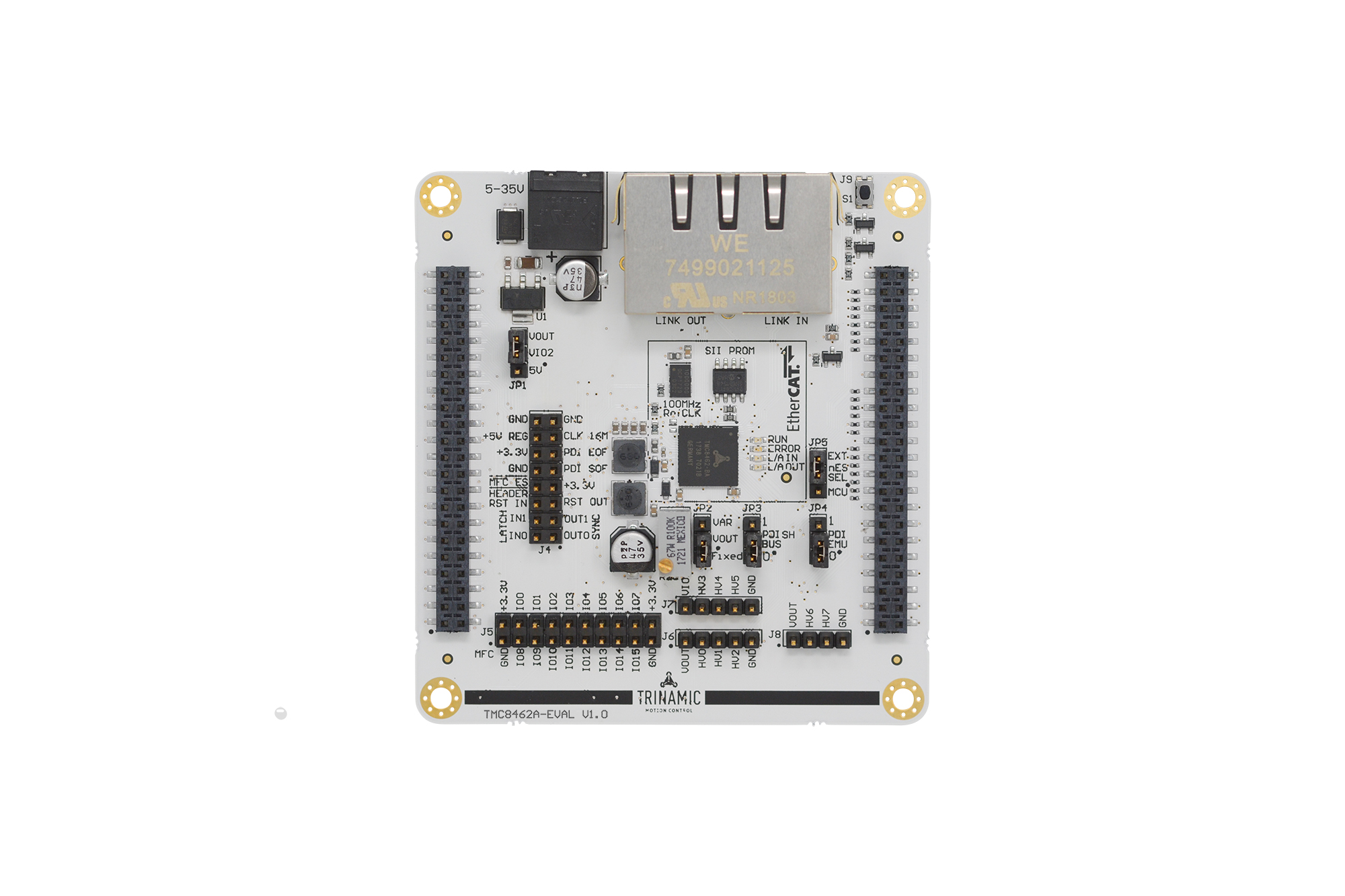

TMC8462A-EVAL
Evaluation Board for TMC8462A
特性和优点
- TMC8462A-BA EtherCAT Slave Controller
- Board supply voltage: 5V to 35V
- Dual RJ45 TPC connector
- SPI PDI interface
- SPI interface for ADI TRINAMIC’s MultiFunction and Control IO Block (MFC IO)
- Access to all chip functions via pin headers and connectors
- Interface to ADI TRINAMIC’s evaluation board concept
- CAD design files available for download
产品详情
The TMC8462A-EVAL allows you to explore all functions of the TMC8462A-BA.
The TMC8462A-EVAL board allows for a quick and simple start within only minutes to make your motor turning, while still providing full access to all registers and full functionality and diagnostics.
For diagnosis, all signals between MCU and TMC8462A are accessible with probes on the Eselsbruecke bridge board.
All you need to get started is a power supply and ADI Trinamic's free and easy to use TMCL-IDE. This graphical user interface allows quick setup and supports the use of commands in direct mode, monitors real-time behavior visualized in graphs, and logs and stores data. All settings can simply be exported for your own firmware project.
