TMC8100

量产

Universal Encoder Bus Controller

The TMC8100 is a dedicated serial protocol converter IC, especially for absolute encoder bus protocols. It can delivering the extracted and adjusted encoder position information via SPI or UART.

数据手册 (Rev. 0) 产品选型表
产品技术资料帮助

ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许，也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。
Viewing:

产品详情

  • Synchronous serial bus protocols supported, example, SSI, SPI, BiSS C, EnDat 2.x
  • Asynchronous serial bus protocols supported, example, Nikon A-format® to the SPI
  • Support for incremental A/B/Z encoder interface
  • High speed 25MHz SPI system interface for configuration, control, and position
  • High speed 2x UART 16Mbit/s system interface for configuration, control, and position
  • Crystal oscillator or external clock with PLL
  • Up to 128MHz internal system clock
  • 2.5V to 5V single supply
  • -40°C to +125°C operating temperature range
  • TQFN24, 4mm x 4mm
TMC8100
Universal Encoder Bus Controller
TMC8100 Functional Block Diagram TMC8100 Pin Configuration
添加至 myAnalog

将产品添加到myAnalog 的现有项目或新项目中（接收通知）。

创建新项目
提问

参考资料

数据手册 1

应用笔记 2

了解更多
添加至 myAnalog

Add media to the Resources section of myAnalog, to an existing project or to a new project.

创建新项目

软件资源

找不到您所需的软件或驱动?

申请驱动/软件

评估套件

eval board
schematic 1
schematic 2
schematic 3
TMC8100-EVAL-KIT

立即购买 更多内容

特性和优点

  • Synchronous Serial Bus Protocols Support
    • SSI, SPI, BiSS-C, EnDat 2.X
  • Asynchronous Serial Bus Protocols Support
  • Incremental A/B/Z Encoder Interface
  • High-Speed 25MHz SPI System Interface
  • High-Speed 16Mbps UART System Interface
  • I2C Programming Interface
  • Crystal Oscillator or External Clock with PLL
  • Up to 128MHz Internal System Clock
  • 3V to 5.5V Single Supply
  • -40°C to +125°C Operating Temperature Range

产品详情

The TMC8100-EVAL is an evaluation board for the TMC8100 universal encoder bus controller. Connecting the TMC8100-EVAL to the Landungsbruecke PC interface board gives access to the graphical user interface TMCL-IDE and its fast development tools.

The TMC8100 acts as a peripheral interface block to deliver the extracted and adjusted encoder position information to the microcontroller or the motion controller over SPI or UART. This is achieved by the programmable high-performance serial communication engine for synchronous and asynchronous data.

The TMC8100-EVAL supports both absolute and incremental encoders. The encoder interfaces are supplied by the external supply of the TMC8100-EVAL. The TMC8100 is provided with a 16MHz clock source and an EEPROM for application code storage.
TMC8100-EVAL-KIT

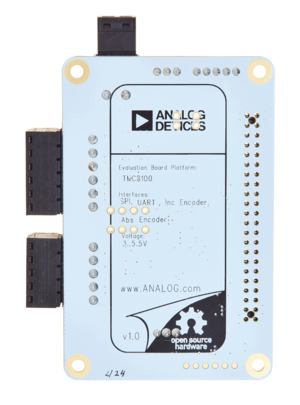

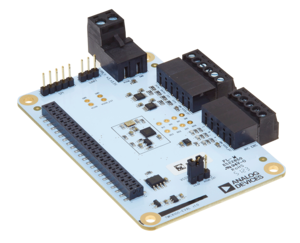

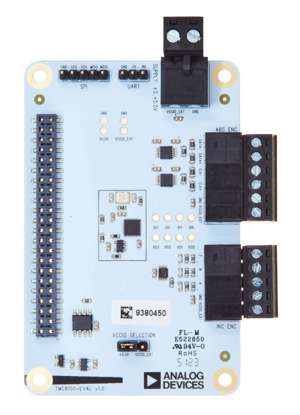

TMC8100-EVAL-KIT Angle View TMC8100-EVAL-KIT Bottom View TMC8100-EVAL-KIT Top View
