TMC5272

推荐用于新设计

2.1V to 20V, 2 × 0.8ARMS Two-Axis Stepper Driver and Controller

数据手册 (Rev. 1) 产品选型表

产品模型: 2

Viewing:

概述

2.1V to 20V DC Voltage Range
Four 20V H-Bridges
Low R_DS(ON) (HS Plus LS): 0.31Ω Typical (T_A = +25°C)
Current Ratings per H-Bridge (Typical at +25°C):

Bridge Peak Current I_MAX = 1.5A_MAX
Full-Scale Current IFS = 0.8A_RMS (1.12A Sine-Wave Peak)

Fully Integrated Lossless Current Sensing (ICS)
Eight-Point Motion Controller for Minimum Jerk
Automatic 2D-Line Trajectory with Axis Interpolation
Step/Direction Interface with MicroPlyer™ Step Interpolation
SPI or Single-Wire UART Interface
Two Quadrature Encoder Interfaces

Two Reference Switch Inputs
TriCoder Sensorless Standstill Steploss Detection and Full-Step Encoder
Highest Resolution with 256 Microsteps per Full Step
StealthChop2 Silent Motor Operation
SpreadCycle^™ Highly Dynamic Chopper Mode
StallGuard2^™ and StallGuard4™ Sensorless Motor Load Detection
CoolStep^® Current Control for Energy Savings up to 75%
Passive Braking and Freewheeling Mode
Bridge Disable, Reset, and Low-Power Mode
Motor Phase and Chip Temperature Measurement
Full Protection and Diagnostics
2.97mm × 3.13mm, 36-Pin WLCSP

The TMC5272 is a miniaturized, smart, high-performance dual-axis stepper motor controller and driver IC with serial communication interfaces (SPI and UART) and extensive diagnostic capabilities. Highest integration, high energy efficiency, and a small form factor enable miniaturized and scalable systems for cost-effective solutions.

StealthChop2™ ensures absolutely noiseless operation combined with maximum efficiency and the optimal motor torque control.

The TMC5272 combines two flexible 8-point ramp generators with reduced jerk for automatic positioning with two smart stepper motor drivers based on a 256-microstep built-in indexer and four fully integrated 20V, 1.1A_MAX H-bridges plus non-dissipative integrated current sensing (ICS), which eliminates bulky external sense resistors resulting in space and power savings.

The integrated power MOSFETs' low impedance results in high driving efficiency and minimal heat generation. The typical total R_DS(ON) (high side plus low side) is 0.31Ω with a maximum RMS current per H-bridge of I_RMS = 0.8A_RMS and a maximum output current per H-Bridge at I_MAX = 1.5A_MAX (limited by overcurrent protection).

The TMC5272 features abundant diagnostics and protection functions such as short-circuit protection/overcurrent protection, thermal shutdown, and undervoltage lockout.

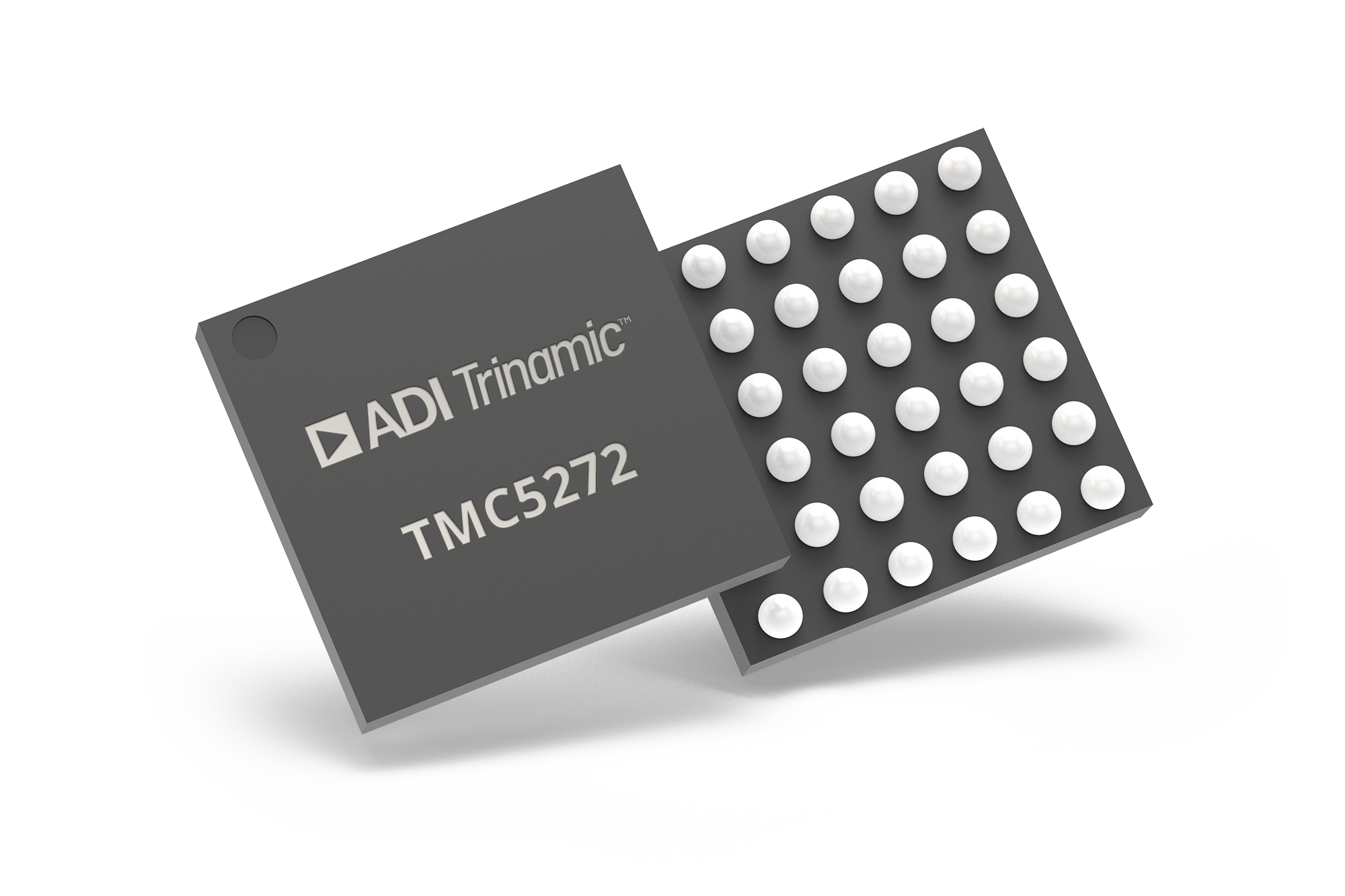

The TMC5272 is available in a tiny 2.97mm × 3.13mm, 36-pin WLCSP package.

Applications

Wearables
Personal Portable Devices
Optical Systems, Lens Control
CCTV, Surveillance, Conference Systems Focus/Zoom and Pan/Tilt Control
Patch and Insulin Pumps
Pipettes and Liquid Handling
Small Printing and Scanning Devices
Lab and Office Automation
Space-Constrained Stepper Motor Applications

产品模型: 2

参考资料

数据手册 1

TMC5272: 2.1V to 20V, 2 x 0.8ARMS Two-Axis Stepper Driver and Controller Data Sheet (Rev.1) 05/10/2024

用户手册 1

TMC5272 Datasheet (Rev.0) 06/23/2023

ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。

产品型号	引脚/封装图-中文版	文档	CAD 符号，脚注和 3D模型
TMC5272AWX+	Wafer-Level Package 6x6 Bump, Full Array	Material Declaration Reliablity Data 资料包	Ultra Librarian SamacSys
TMC5272AWX+T	Wafer-Level Package 6x6 Bump, Full Array	Material Declaration Reliablity Data 资料包	Ultra Librarian SamacSys

这是最新版本的数据手册

软件资源

找不到您所需的软件或驱动?

申请驱动/软件

工具及仿真模型

设计工具 1

TMC5272 Calculations

评估套件

Evaluation Board for TMC5272

立即购买更多内容

特性和优点

CoolStep™
Passive Braking
Short Detection
Slope Control
StallGuard2™
MicroPlyer™
DcStep™
Position Mode
Velocity Mode
Dual Encoder
2x 2-phase stepper motor up to 0.8 A (RMS) coil current (1.12 A (PEAK))
Supply Voltage 2.1 to 20 V DC
SPI and Single Wire UART
Encoder Interface with alt. functions
1 to 256 microsteps
StealthChop2 silent PWM mode
StallGuard4 sensorless motor load detection
TriCoder Sensorless Standstill Steploss Detection and Full Step Encoder

产品详情

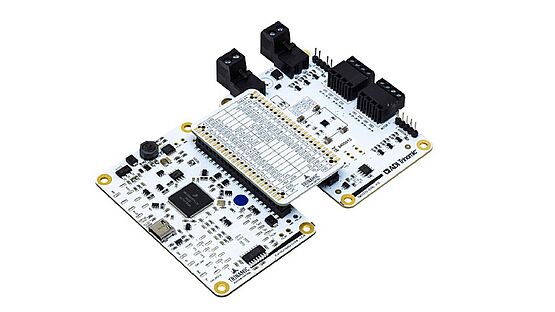

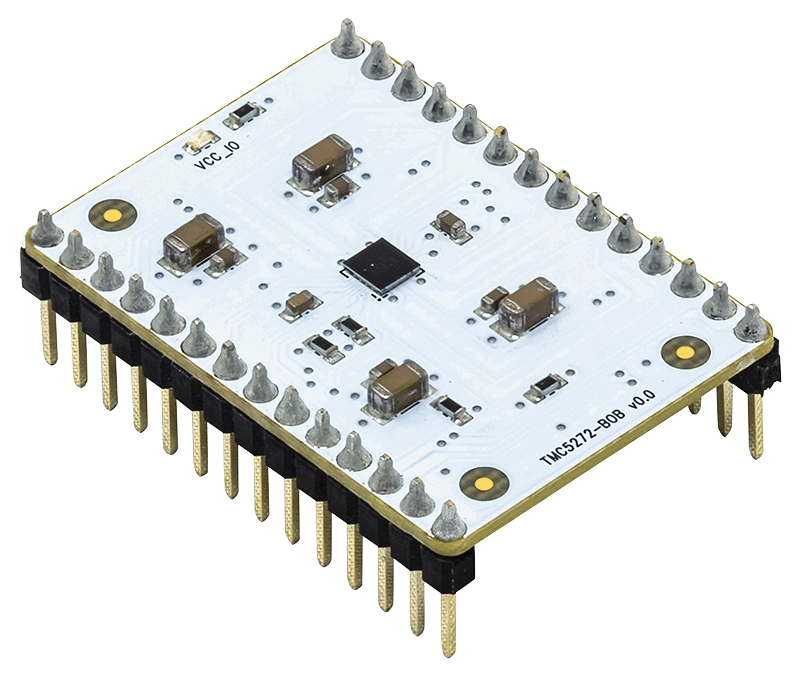

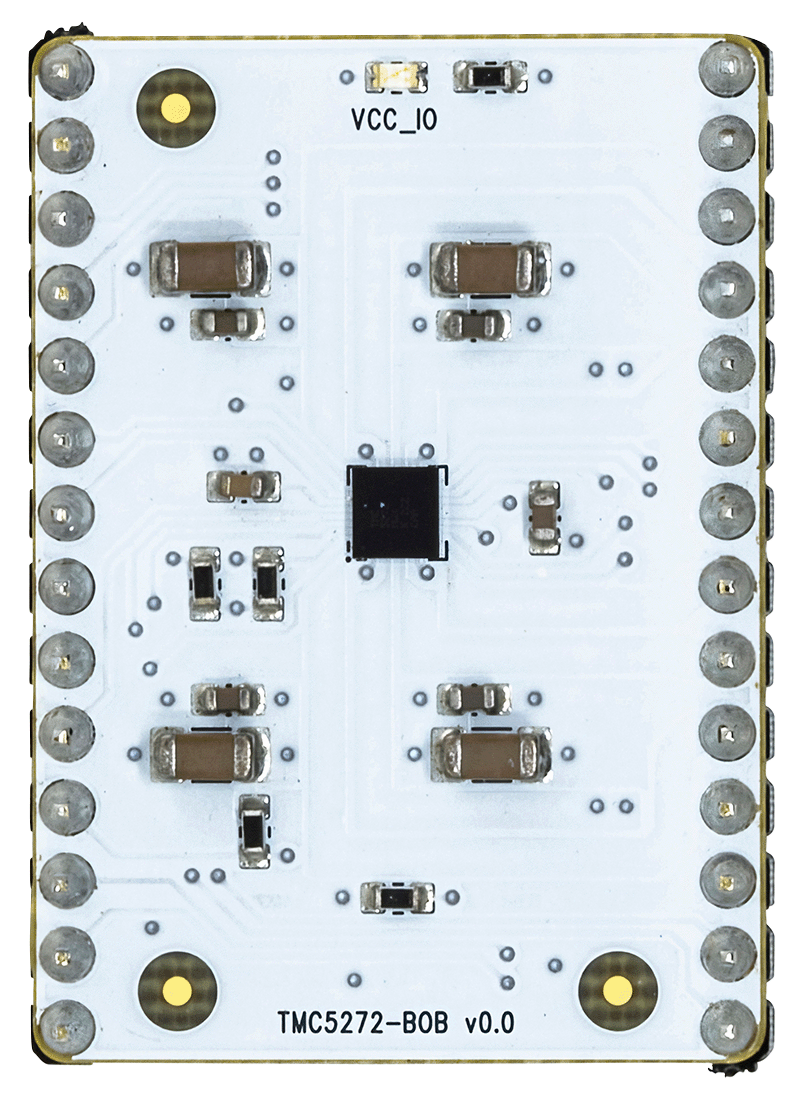

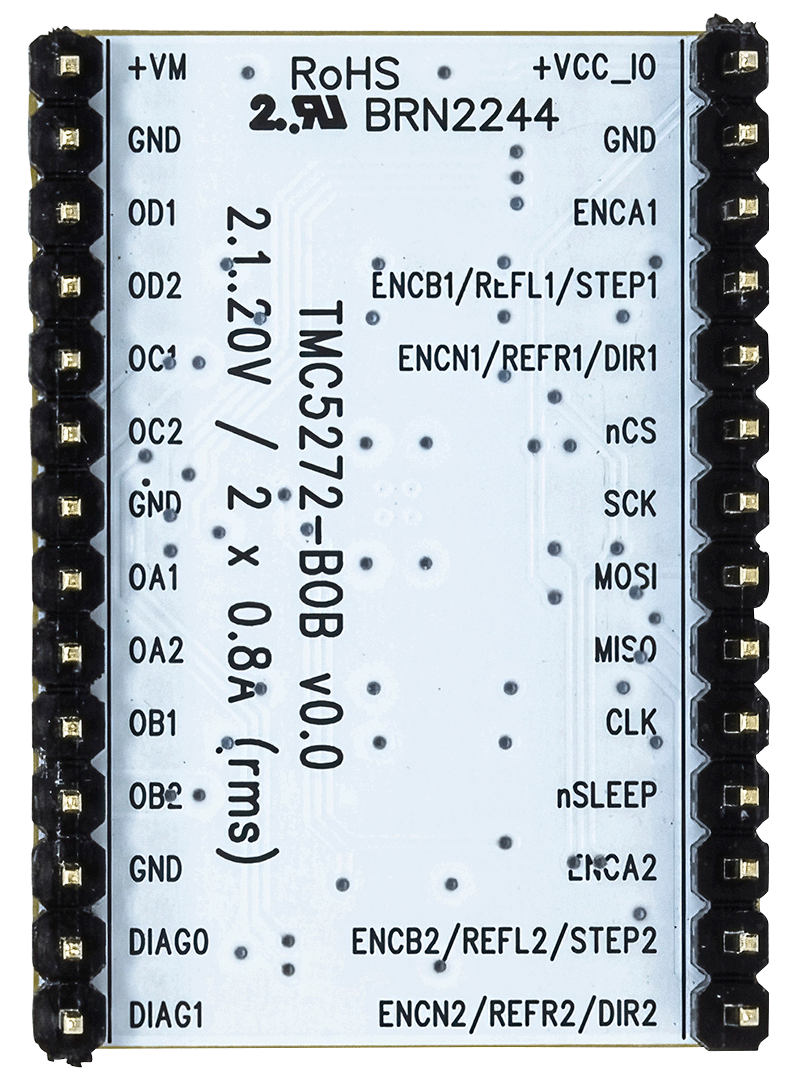

The TMC5272-EVAL allows evaluation of the TMC5272 in combination with the ADI TRINAMIC evaluation board system, or as a stand-alone board. It uses the standard schematic and offers several options in order to test different modes of operation. The TMC5272 is a Step/Dir Driver for Two-Phase Bipolar Stepper Motors up to 0.8 A RMS (1.5 A peak).
