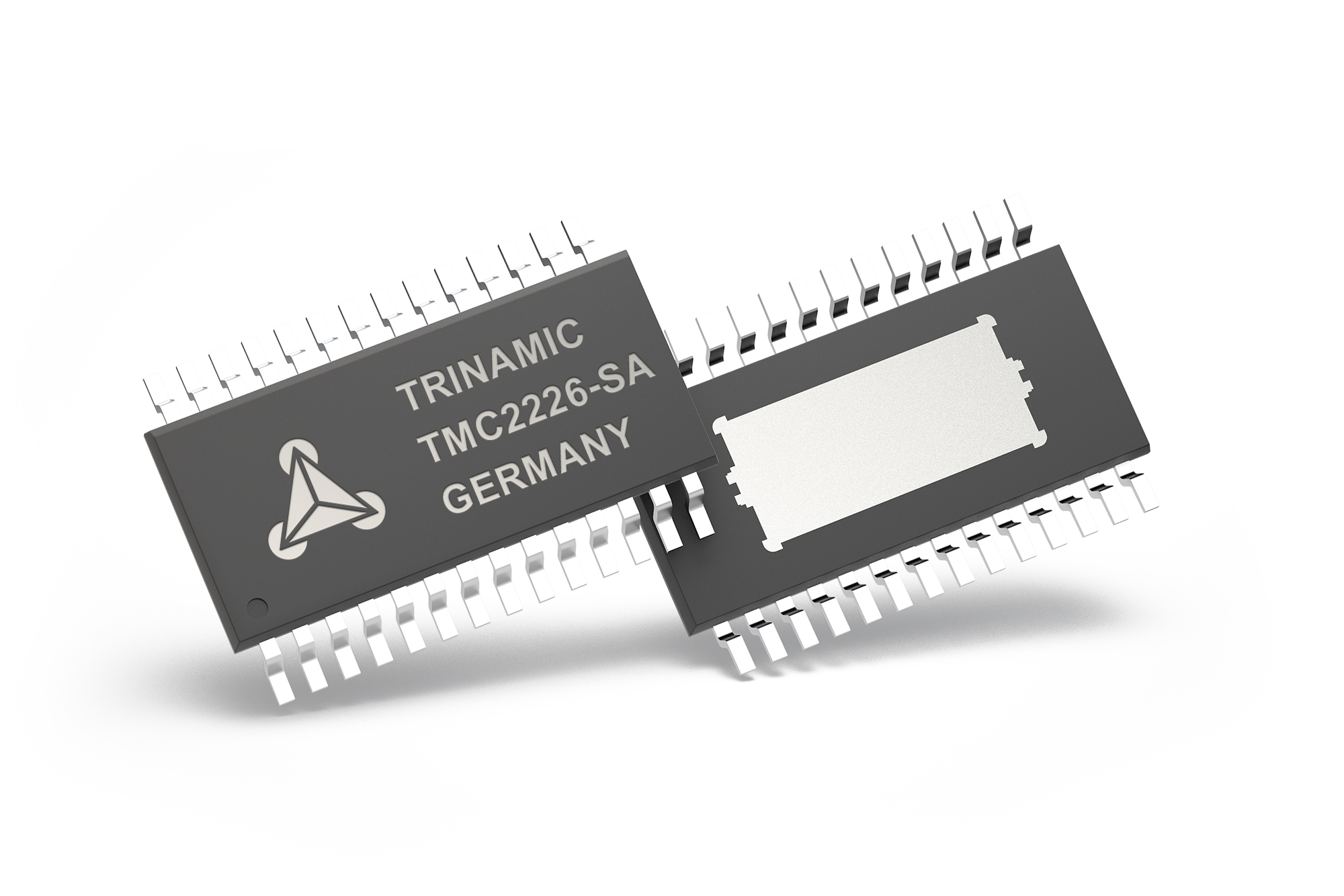

TMC2226

Silent stepper motor driver 5 to 36V, up to 1.4A with S/D and UART Interface, 256 µSteps, SpreadCycle and Stealthchop2

更多 showmore-icon

Info : 推荐新设计使用 tooltip
Info : 推荐新设计使用 tooltip
产品详情
特性
  • 2-phase stepper motors up to 2.8A coil current (peak), 2A RMS
  • STEP/DIR Interface with 8, 16, 32 or 64 microstep pin setting
  • Smooth Running 256 microsteps by MicroPlyer interpolation
  • StealthChop2 silent motor operation
  • SpreadCycle highly dynamic motor control chopper
  • StallGuard4 load and stall detection for StealthChop
  • CoolStep current control for energy savings up to 75%
  • Low RDSon, Low Heat-Up LS 170mΩ & HS 170mΩ (typ. at 25°C)
  • Voltage Range 4.75 to 29V DC
  • Low Power Standby to fit standby energy regulations
  • Internal Sense Resistor option (no sense resistors required)
  • Passive Braking, Freewheeling, and automatic power down
  • Single Wire UART & OTP for advanced configuration options
  • Integrated Pulse Generator for standalone motion
  • Full Protection & Diagnostics
  • Thermally optimized HTSSOP package for optical inspection
更多细节
show more Icon

The TMC2226 is an ultra-silent motor driver IC for two phase stepper motors. ADI TRINAMIC's sophisticated StealthChop2 chopper ensures noiseless operation, maximum efficiency and best motor torque. Its fast current regulation and optional combination with SpreadCycle allow highly dynamic motion while adding. StallGuard4 provides sensorless homing. The integrated power MOSFETs handle motor currents up to 2A RMS with protection and diagnostic features for robust and reliable operation. A simple to use UART interface opens up tuning and control options. Industries’ most advanced Step/Dir stepper motor driver family upgrades designs to noiseless and most precise operation for cost-effective and highly competitive solutions.

APPLICATIONS

  • Compatible Design Upgrade
  • 3D Printers
  • Printers, POS
  • Office and home automation
  • Textile, Sewing Machines
  • CCTV, Security
  • ATM, Cash recycler
  • HVAC
  • Battery Operated Equipment

产品技术资料帮助

close icon

ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许,也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。

参考资料

参考资料

产品型号 引脚/封装图-中文版 文档 CAD 符号,脚注和 3D模型
TMC2226-SA
  • HTML
  • HTML
TMC2226-SA-T
  • HTML
  • HTML
软件和型号相关生态系统

软件和型号相关生态系统

评估套件

评估套件 2

reference details image

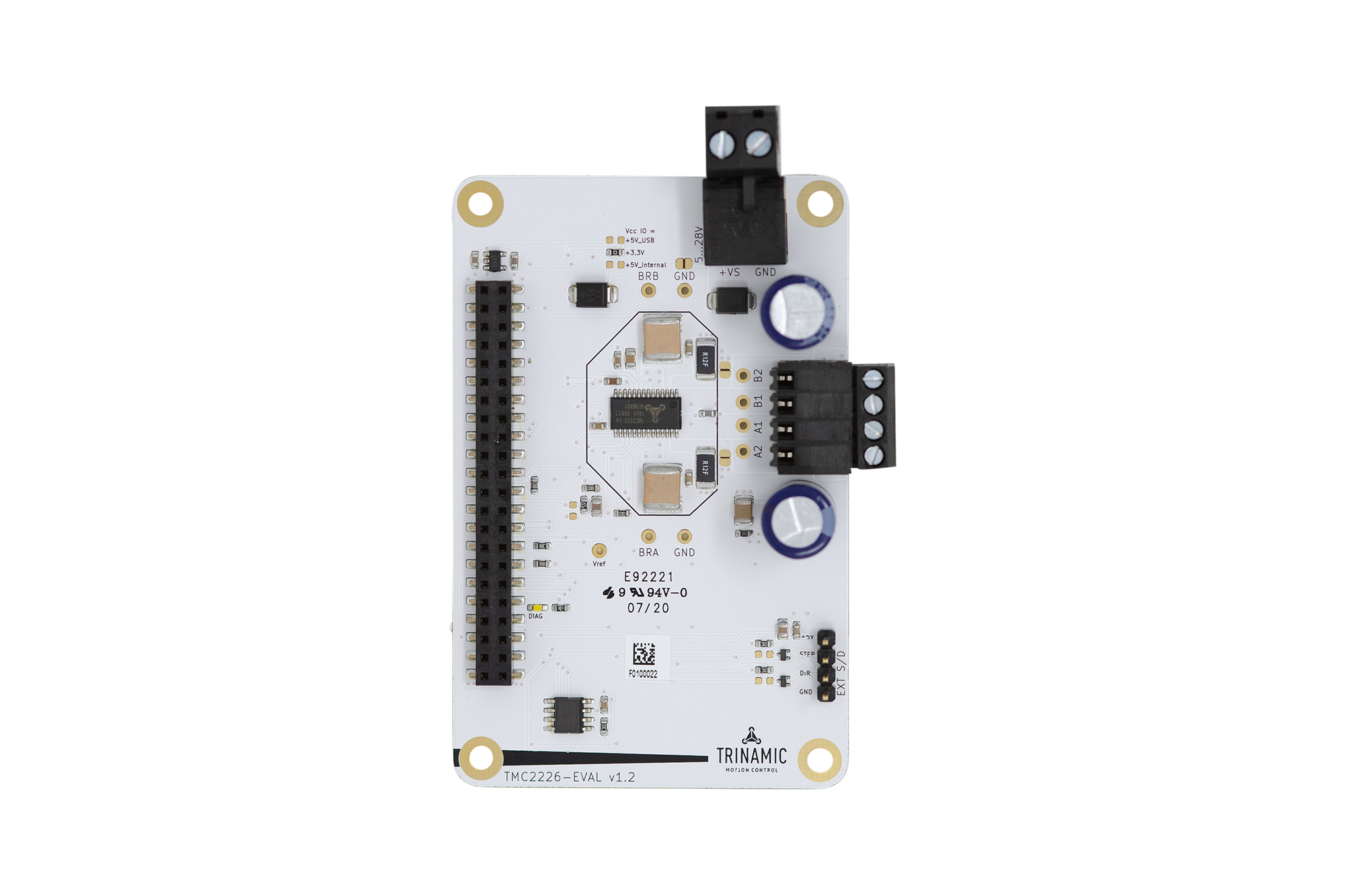

TMC2226-EVAL

Evaluation Board for TMC2226

zoom

TMC2226-EVAL

Evaluation Board for TMC2226

Evaluation Board for TMC2226

特性和优点

  • 2-phase stepper motor up to 2A RMS coil current
  • Supply Voltage 5 to 28V DC
  • UART
  • 1 to 256 microsteps
  • Step/Dir interface
  • StealthChop2 silent PWM mode
  • SpreadCycle smart mixed decay
  • StallGuard4 smart current control
  • CoolStep smart current control
  • 2A RMS, 28V

产品详情

The TMC2226-EVAL allows you to explore all functions of the TMC2226-SA.

The TMC2226-EVAL-KIT is a set of one MCU board Landungsbruecke, one Eselsbruecke bridge board and one TMC2226-EVAL driver board. It allows for a quick and simple start within only minutes to make your motor turning, while still providing full access to all registers and full functionality and diagnostics.

For diagnosis, all signals between MCU and TMC2226 are accessible with probes on the bridge board. TMC2226-EVAL can be used with or without the Landungsbruecke MCU board.

All you need to get started is a power supply and ADI Trinamic's free and easy to use TMCL-IDE. This graphical user interface allows quick setup and supports the use of commands in direct mode, monitors real-time behavior visualized in graphs, and logs and stores data. All settings can simply be exported for your own firmware project.

More about the TMCL-IDE

reference details image

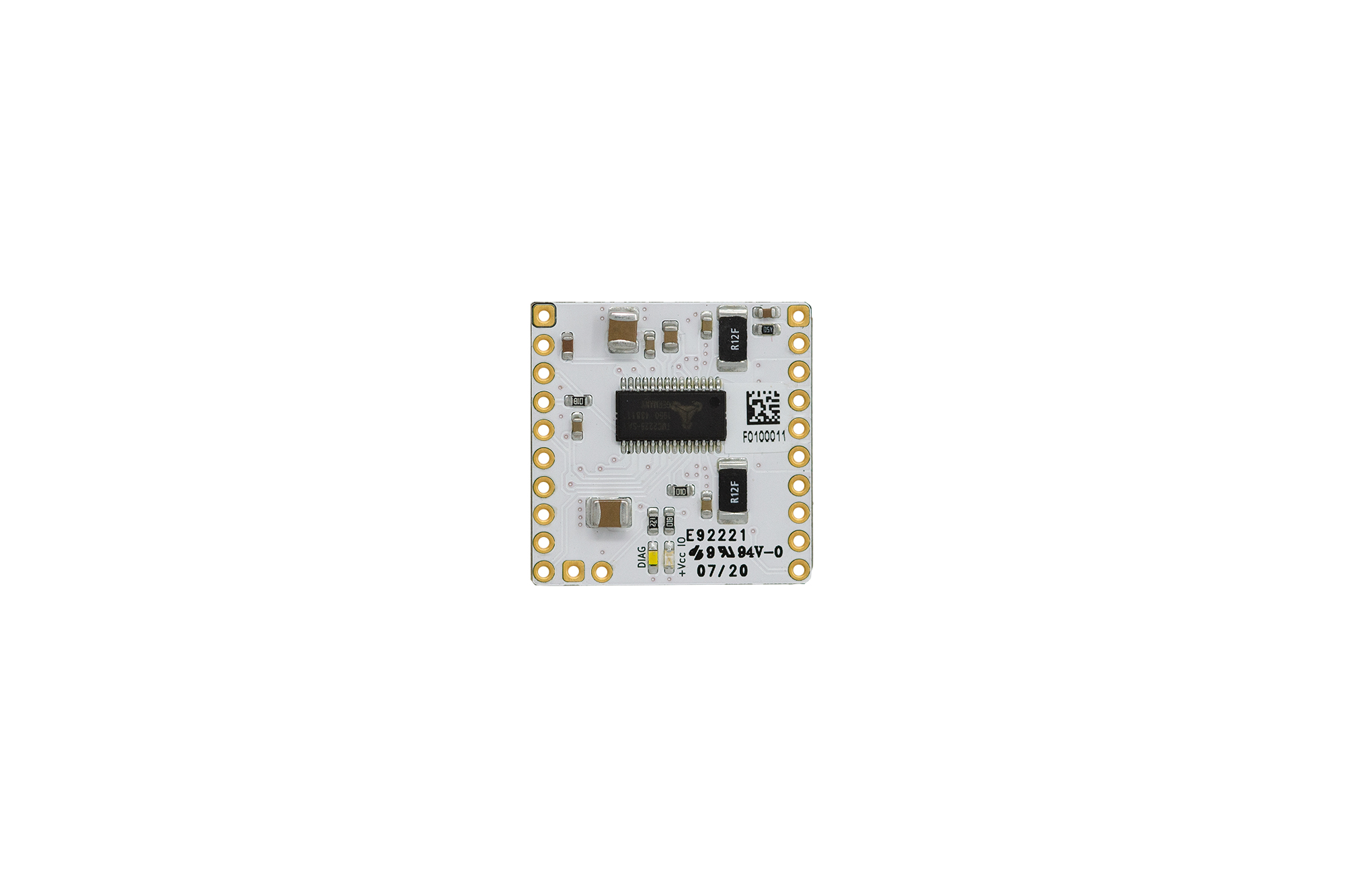

TMC2226-BOB

Evaluation Board for TMC2226

zoom

TMC2226-BOB

Evaluation Board for TMC2226

Evaluation Board for TMC2226

特性和优点

  • CoolStep™
  • SpreadCycle™
  • StealthChop2™
  • StallGuard4™
  • MicroPlyer™
  • 1 to 256 Microsteps
  • 2ARMS, 28V

产品详情

The TMC2226 breakout board is a development board with the dedicated TMC2226-SA chip. It is designed to give users the chance to rapidly prototype their applications - making it possible to immediately check how the motor performs with TMC chips while developing the application's software.
