PM108S

量产

航空航天用低输入电流运算放大器

数据手册产品选型表

产品模型: 6

Viewing:

产品详情

低失调电流：200pA（最大值）
低偏置电流：2nA（最大值）
低功耗
宽电源电压范围：±3V至±20V

高电源抑制比
低失调电压漂移：5µV/°C（最大值）
高共模输入范围
高共模抑制比：96dB（最小值）

产品模型: 6

参考资料

数据手册 3

PM108S: Military Data Sheets 05/14/2008

PM108S: Space Qualified Die Document (Rev.I) 06/23/2021

PM108S: Military JM38510/ (JAN) Specification 05/14/2008

交叉参考指南 1

JAN to Generic Cross Reference 01/22/2009

ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。

产品型号	引脚/封装图-中文版	文档	CAD 符号，脚注和 3D模型

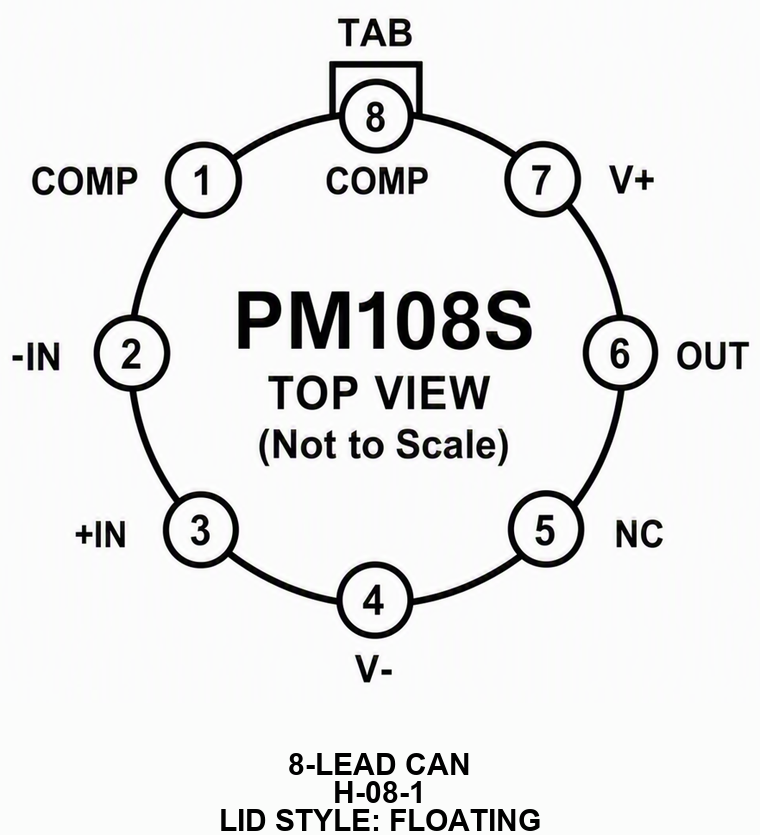

5962R9863703VGA	ROUND HEADER/METAL CAN	Material Declaration Reliablity Data 资料包	Ultra Librarian SamacSys

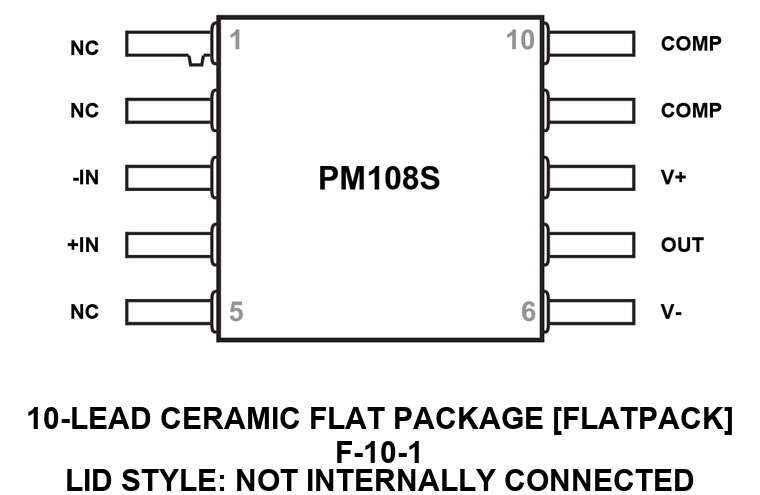

5962R9863703VHA	10-Lead FlatPack	Material Declaration Reliablity Data 资料包	Ultra Librarian SamacSys
5962R9863703VPA	8-Lead CerDIP	Material Declaration Reliablity Data 资料包	Ultra Librarian SamacSys
JM38510/10104SGA	ROUND HEADER/METAL CAN	Material Declaration Reliablity Data 资料包	Ultra Librarian SamacSys
PM1080000C	CHIPS OR DIE	Material Declaration Reliablity Data 资料包	Ultra Librarian SamacSys
PM108R000C	CHIPS OR DIE	Material Declaration Reliablity Data 资料包	Ultra Librarian SamacSys

产品型号	产品生命周期	PCN

9月 29, 2022 - 22_0195 Shipment Carrier Change for TO-99 Header Package
		PCN22_0195_Form Material_Report Qualification Results Summary
5962R9863703VGA	量产
JM38510/10104SGA	量产
7月 30, 2018 - 16_0026 Qualify TeamQuest Technology, Inc. for Burn-in and Life Test of Military and Aerospace Devices
		PCN16_0026_Form Material_Report Qualification Results Summary
JM38510/10104SGA	量产
PM1080000C	量产
PM108R000C	量产
11月 18, 2015 - 15_0219 Laser Marking Standardization for Aerospace Packages
		PCN15_0219_Form Material_Report Qualification Results Summary
JM38510/10104SGA	量产
PM1080000C	量产
PM108R000C	量产
10月 2, 2013 - 13_0163 Qualify TSSI Cavite, Phils for Burn-in and Life Test of MIL-PRF-38535 QMLV Aerospace Devices
		PCN13_0163_Form Material_Report Qualification Plan Summary
JM38510/10104SGA	量产
11月 9, 2011 - 11_0050 Transfer of ADI Hermetics Assembly location from Paranaque, Manila to General Trias, Cavite Philippines
		PCN11_0050_Form Material_Report
JM38510/10104SGA	量产	PCN11_0050_Form Material_Report
11月 9, 2011 - 11_0182 Test Site Transfer from Analog Devices Philippines Inc in Paranaque to Analog Devices General Trias in Cavite, Philippines
		PCN11_0182_Form Material_Report
JM38510/10104SGA	量产	PCN11_0182_Form Material_Report
2月 1, 2010 - 09_0196 Change In Location of Q Compliance Indicator Location for JAN/38510 Product
		Material_Report PCN09_0196_Form QMarkSupportingInfo
JM38510/10104SGA	量产	Material_Report PCN09_0196_Form QMarkSupportingInfo
