PD-1260
量产NEMA 23 smart stepper motor 12 to 52V, 55Ncm, 256 µSteps, SixPoint ramp controller with USB, S/D RS485 and CAN interface, SensOstep, StallGuard2 and CoolStep, StealthChop
- 产品模型
- 10
概述
- Stepper Motor NEMA23 / 57mm or NEMA24 / 60mm or NEMA34 / 86mm
- 0.55 - 7.0Nm
- With controller / driver
- Linear and sixPoint™ ramps
- +24V and +48V DC supply voltage
- Up to 5.5A RMS motor current
- RS485, CAN & USB interface
- Integrated SensOstep™ encoder and support for external encoder
- S/D interface
- Multi-purpose inputs and outputs

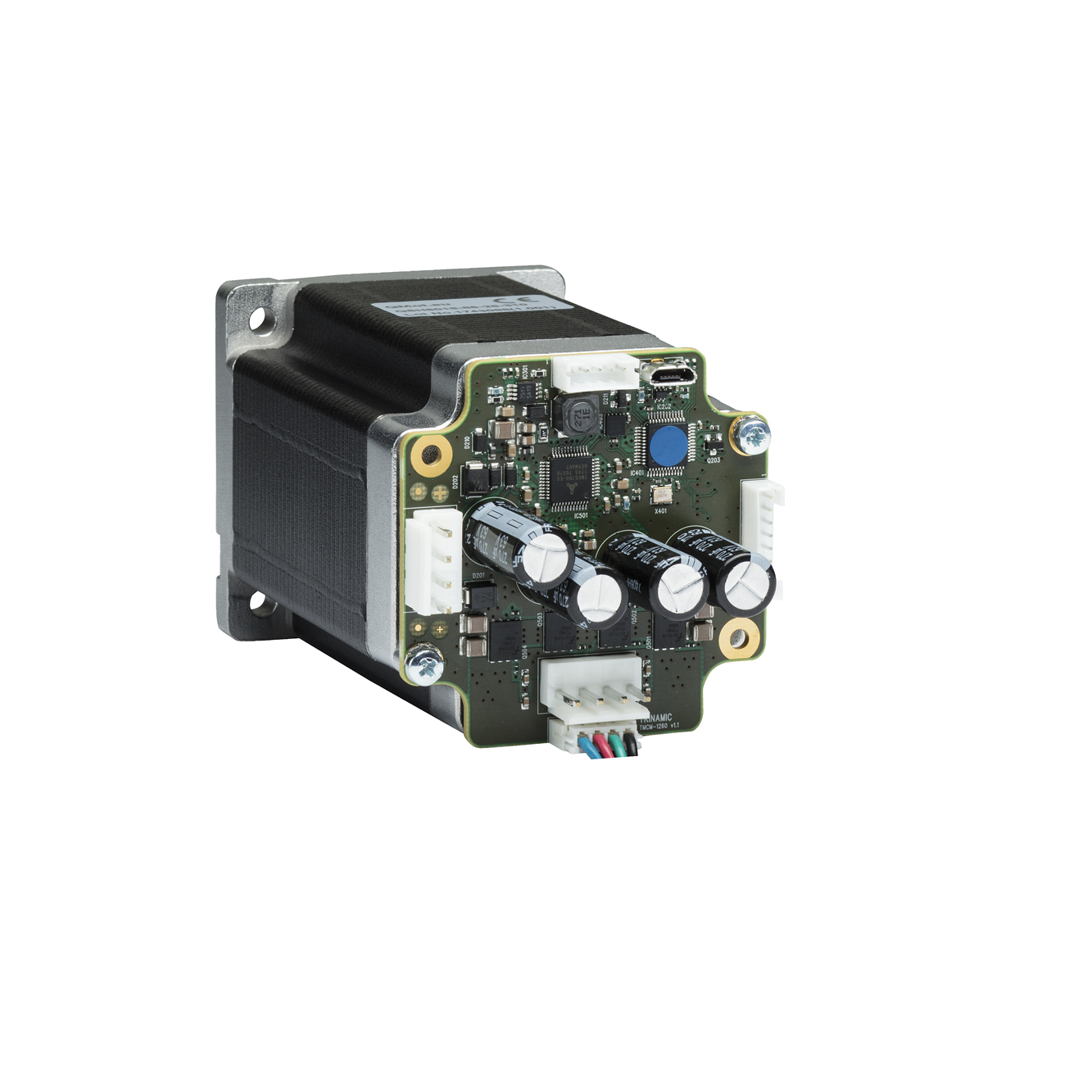

The PD57/60/86-1260 is a powerful and compact full mechatronic solution, made up of a TMCM-1260 stepper control module and a NEMA 23, NEMA 24 or NEMA 34 (57mm, 60mm or 86mm flange size) motor. Dynamic current control and quiet, smooth and efficient operation are combined with StealthChop™, DcStep™, StallGuard™ and CoolStep™ features.
All you need to get started is a power supply and ADI Trinamic's free and easy to use TMCL-IDE. This graphical user interface allows quick setup and supports the use of commands in direct mode, monitors real-time behavior visualized in graphs, and logs and stores data.
APPLICATIONS
- Laboratory Automation
- Manufacturing
- Semiconductor Handling
- Robotics
- Factory Automation
- Test & Measurement
- Life Science
- Biotechnology
- Liquid Handling
Technical Details
To see a comparison table of the models for the PD-1260, please click the button below.
参考资料
用户手册 1
软件手册 4
器件驱动器 2
