特性
- HDMI v1.4b/v2.0a Input Interface
- 3Gbps or 6Gbps Forward-Link Rates
- 187.5Mbps Reverse-Link Rate
- Full-Duplex Capability Over a Single Wire
- Ideal for High-Definition Video Applications
- Up to 215MHz PCLK per Link
- Up to 430MHz PCLK in Dual-Link Mode
- Uses Low-Cost 50Ω Coax or 100Ω STP Cables
- Forward and Reverse I2S or 7.1 TDM Audio
- Video Pattern Generator Provides Fast Link Validation
- Line-Fault Monitor Detects Serial I/O Shorted Together, to Ground, to Battery or Open
- ASIL-Relevant Functional Safety Features
- ASIL B Compliant
- 16-Bit CRC Protection of Control-Channel Data (I2C, UART, SPI, GPIO, Audio)
- Retransmission on Error of all Control-Channel Data and Audio Data Upon Error Detection
- Optional 32-Bit Video-Line CRC
- Selectable Interrupts for Fault Detection
- Video Watermark Generation
- Performance Tools Ensure High Link Margin
- Continuous Adaptive Equalization on GMSL Links
- Built-In Forward- and Reverse-Channel PRBS Generator for BER Testing of Serial I/O Links
- Eye-Opening Monitor for Link Diagnosis
- Concurrent Control Channel for Device Configuration and Communication with Remote Peripherals
- Primary and Pass-Through I2C/UART, SPI, and Tunneled or Register-Programmable GPIO
- Settable Priority Levels
- Eight Hardware Programmable Device Addresses
- Up to 20 Programmable GPIO
- Sleep Mode with Register State Retention
- Operation Specified Over the -40°C to +105°C Automotive Temperature Range
- AEC-Q100 Qualified
- Compact 8mm x 8mm TQFN with an Exposed Pad
.svg?rev=fd385c90e2cf4716ae9a8c8d20e6b8e3&la=zh&h=24&w=24&hash=7CDDC996281D9E966D391D97E93C6727){kind=icon}
The MAX96751 serializer converts HDMI® to single or dual GMSL™ serial protocol. It also sends and receives side-channel and peripheral control data, enabling full-duplex, single-wire, transmission of video and bidirectional data. Each GMSL2 link operates at a fixed rate of 3Gbps or 6Gbps in the forward direction and 187.5Mbps in the reverse direction.
The MAX96751 supports RGB888 video at up to 215MHz PCLK per GMSL2 link.
For designs supporting two displays, see the New Designs Supporting Two Displays section of Detailed Descriptions for more information.
The GMSL2 concurrent control channel operates in I2C or UART mode. Two additional pass-through I2C or UART channels and a pass-through SPI channel are provided for peripheral control. The bidirectional audio channel supports I2S stereo and up to 8 channels in Time-Division Multiplexing (TDM) mode.
Data can be transmitted over low-cost 50Ω coax or 100Ω STP cables that meet the GMSL2 Channel Specification. Contact the factory to receive the GMSL2 Channel Specification document.
APPLICATIONS
- Navigation and Touch-Panel Displays
- Digital Instrument Clusters and Heads-Up Displays
- Rear-Seat and Passenger Infotainment Displays
- Consumer HDMI Port Applications
提问
在下面提交您的问题，我们将从 ADI 的知识库中给出最佳答案:
搜索
您可以在其他地方找到帮助
{{modalTitle}}
{{modalDescription}}
{{dropdownTitle}}
- {{defaultSelectedText}} {{#each projectNames}}
- {{name}} {{/each}} {{#if newProjectText}}
-
{{newProjectText}}
{{/if}}
{{newProjectTitle}}
{{projectNameErrorText}}
MAX96751
文档
筛查
1 应用
-
全部
-
数据手册
-
用户手册
-
全部
-
英文
数据手册
1
用户手册
2
产品技术资料帮助
ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许，也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。
参考资料
ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。
| 产品型号 | 引脚/封装图-中文版 | 文档 | CAD 符号，脚注和 3D模型 |
|---|---|---|---|
| MAX96751GTN/V+ |
56-LFCSP-8X8X0.75
|
|
|
| MAX96751GTN/V+T |
56-LFCSP-8X8X0.75
|
|
|
| MAX96751GTN/VY+ |
56-LFCSP_SS-8X8X0.75
|
|
|
| MAX96751GTN/VY+T |
56-LFCSP_SS-8X8X0.75
|
|
- MAX96751GTN/V+
- 引脚/封装图-中文版
-
56-LFCSP-8X8X0.75
- 文档
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD 符号，脚注和 3D模型
-
Ultra Librarian
-
SamacSys
- MAX96751GTN/V+T
- 引脚/封装图-中文版
-
56-LFCSP-8X8X0.75
- 文档
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD 符号，脚注和 3D模型
-
Ultra Librarian
-
SamacSys
- MAX96751GTN/VY+
- 引脚/封装图-中文版
-
56-LFCSP_SS-8X8X0.75
- 文档
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD 符号，脚注和 3D模型
-
Ultra Librarian
-
SamacSys
- MAX96751GTN/VY+T
- 引脚/封装图-中文版
-
56-LFCSP_SS-8X8X0.75
- 文档
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD 符号，脚注和 3D模型
-
Ultra Librarian
-
SamacSys
根据型号筛选
产品型号
产品生命周期
PCN
4月 10, 2020
- 1950
ASSEMBLY
MAX96751GTN/V+
量产
MAX96751GTN/V+T
量产
根据型号筛选
产品型号
产品生命周期
PCN
4月 10, 2020
- 1950
ASSEMBLY
软件和型号相关生态系统
评估套件 1
MAX96751EVKIT
MAX96751EVKIT: Evaluation kit for MAX96751
特性和优点
- HDMI 2.0 Serializer EV Kit to Drive GMSL-2 Serial Data Outputs (50Ω FAKRA Coax or 100Ω HSD-STQ Connectors)
- 3Gbps or 6Gbps Forward Link Rates for System and Power Flexibility
- Configurable Power-Over-Coax (PoC) and Line Fault Circuits
- I2S Audio Interface
- Header for GPIO, I2C, UART and SPI Signals
- Windows 10-Compatible Software
- Tools to Characterize GMSL Channel Signal Integrity
- 12V DC Supply (Included), USB, PoC or Externally Powered
- Proven PCB Layout
- Fully Assembled and Tested
产品详情

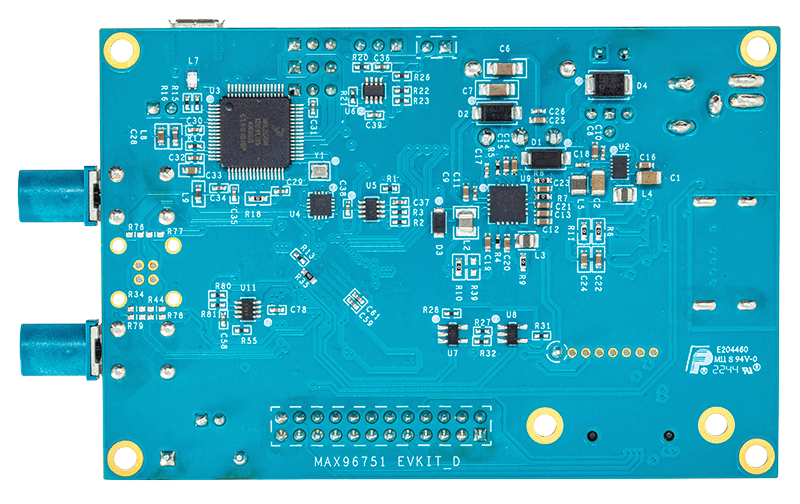

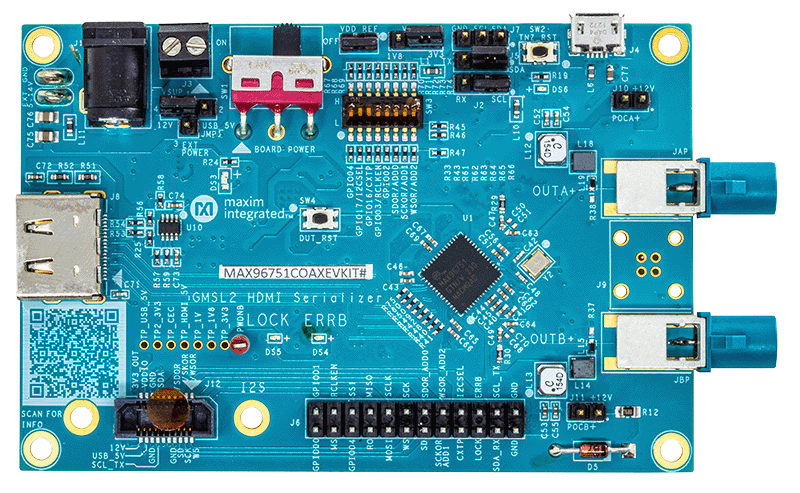

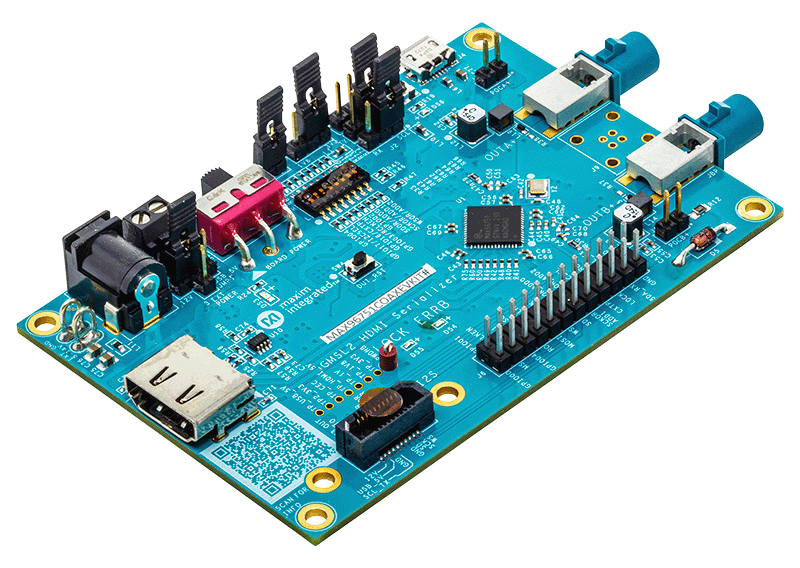

The MAX96751 evaluation kit (EV Kit) provides a proven design to evaluate the MAX96751 high-bandwidth gigabit multimedia serial-link (GMSL) serializer with spread spectrum and full-duplex control channel with the use of a standard FAKRA coaxial cable. The EV kit also includes Windows® 10 software to provide a simple graphical user interface (GUI) for exercising features of the device.
For complete GMSL evaluation, order the MAX96751 coax EV kit and a companion deserializer board (MAX96752 coax EV kit referenced in this document).
Note: In the following sections, serializer refers to MAX96751. Deserializer refers to MAX96752.
Note: This document applies to both coax and HSD-STQ evaluation kits, coax EV kit is referenced in this document.
