概览

优势和特点

  • AEC-Q100 Qualified for Automotive Applications
  • ± 0.5µV (typ) Input Offset Voltage
  • ± 0.05% (typ) Gain Error
  • 0 to +70V Input Voltage Range
  • -42V to +80V Protective Immunity
  • 65kHz, -3dB Bandwidth
  • 140dB DC CMRR
  • Gain Options: 20V/V, 50V/V
  • Rail-to-Rail Output
  • 2mm x 3mm, 8-Pin TDFN Package
  • -40°C to +125°C Automotive Temperature Range

产品详情

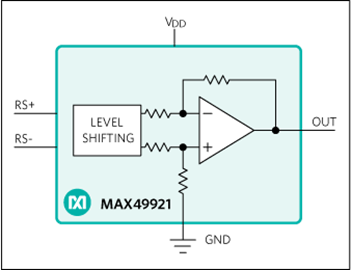

The MAX49921 is high-precision, unidirectional current-sense amplifier (CSA) with an operating input common-mode range from 0 to +70V, though the device is protected against input common-mode voltages down to -42V and up to +80V, thus providing protection against reverse-battery and high-voltage spikes. The MAX49921 is well-suited for current monitoring of inductive loads, such as DC motors and solenoids, where common-mode voltages can become negative due to inductive kickback, reverse-battery conditions, or transient events.

The low input offset of ±0.5µV (typ) and low gain error of ± 0.05% (typ) make this device best suited for high-precision current measurements.

The MAX49921 operates from a supply voltage of +2.7V to +5.5V with a typical quiescent supply at 0.7mA. This device is specified over the full -40°C to +125°C automotive temperature range and is AEC-Q100 qualified. The MAX49921 is offered in a 2mm x 3mm, 8-pin, side-wettable TDFN package with gain options of 20V/V and 50V/V.

Applications

  • Automotive Current Sensing
  • Battery Current Monitoring
  • Current Monitoring of Inductive Loads
  • High- and Low-Side Precision Current Sensing
  • Precision High-Voltage Current Monitoring
  • Solenoid Current Sensing
  • Supercapacitor Charge/Discharge Monitoring

产品生命周期 icon-recommended 推荐新设计使用

本产品已上市。数据手册包含所有最终性能规格和工作条件。ADI公司推荐新设计使用这些产品。

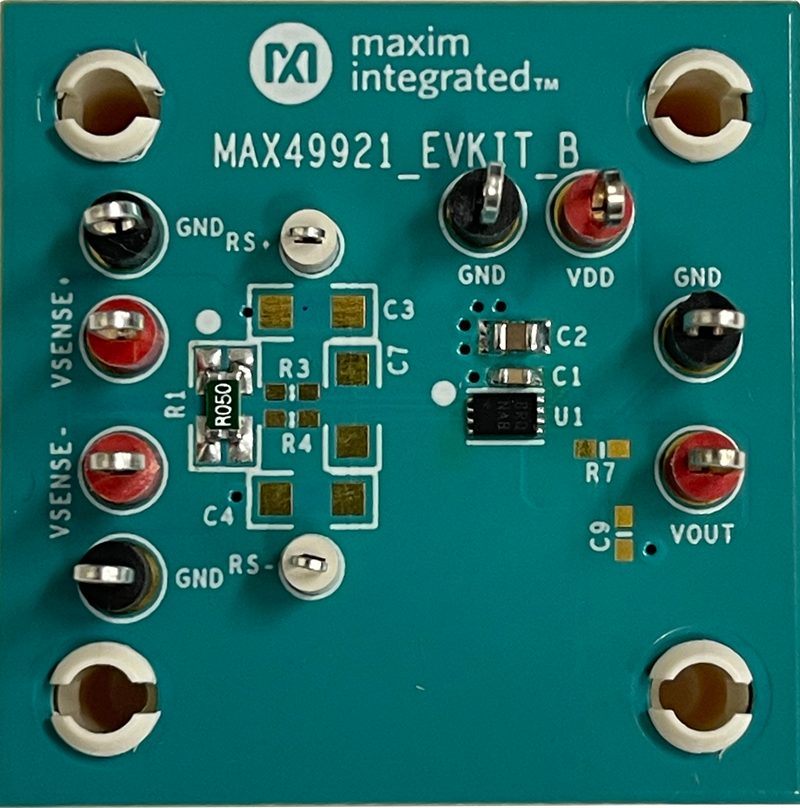

评估套件 (1)
