概览

优势和特点

  • Reduces Power and Heat Dissipation
    • 240mΩ (max) HS RON at TA = 125°C
    • Accurate Short-Circuit Current Limit
    • Accurate Internal Current Limiter for Types 1, Type 2, and Type 3 Digital Inputs
  • Enhances System Robustness
    • “Safe-Demagnetization” for Safe Turn-Off of Unlimited Inductance
    • 60V Supply Tolerance
    • Loss of GND Protection
    • Thermal Shutdown Protection
    • ±2kV IEC 61000-4-5 Surge Protection
    • ±20kV IEC 61000-4-2 Air-Gap ESD Protection
    • ±7kV IEC 61000-4-2 Contact ESD Protection
    • -40°C to +125°C Ambient Operating Temperature
  • Reduces BOM Count and PCB Space
    • Small 4x4 TQFN Package
    • Internal Clamps for Fast Inductive Load Turn-Off
    • On-Chip 5V Regulator
  • Provides Flexibility
    • Configurable as a Digital Input or a High-Side or Push-Pull Digital Output
    • Resistor Settable Current Limiting for the High-Side Switch (135mA - 1.3A)
    • 10V to 40V Operating Supply Range
  • Improves System Speed and Throughput
    • Propagation Delay of Less Than 2µSec

产品详情

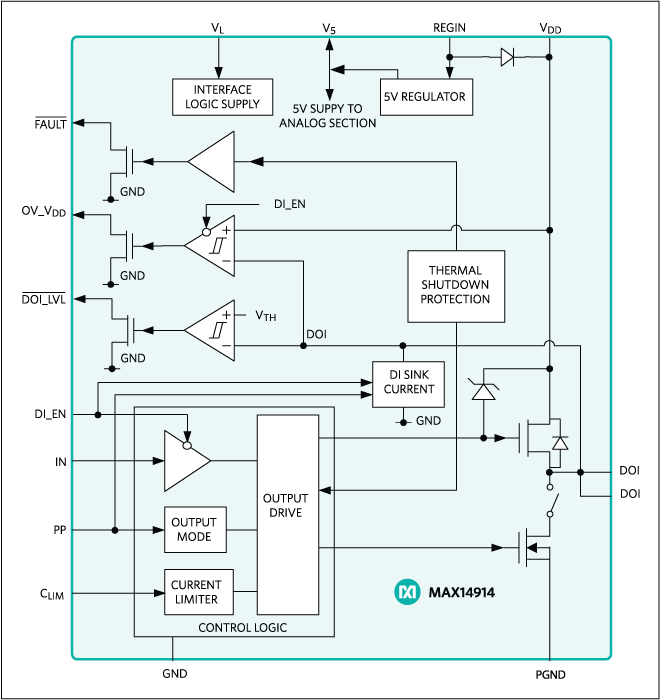

The MAX14914 is a high-side/push-pull driver that operates as both an industrial digital output (DO) and an industrial digital input (DI). The MAX14914 is specified for operation with supplies up to 40V. The high-side switch current is resistor settable from 135mA (min) to 1.3A (min). The high-side driver’s on-resistance is 120mΩ (typ) at 125°C ambient temperature. Optional push-pull operation allows driving of cables and fast discharge of load capacitance. The output voltage is monitored and indicated through the active-low DOI_LVL pin for safety applications.

The MAX14914 complies with Type 1, Type 2, or Type 3 input characteristics when configured for DI operation.

Design Solution: Finally – Digital IO Means Digital IO! ›
