MAX14906

四通道工业数字输出、数字输入

更多 showmore-icon

可靠、紧凑、完全可配置的多通道DIO,具有SafeDemagTM功能

Info: : 量产 tooltip
Info: : 量产 tooltip
产品详情
特性
  • 每通道可配置能力支持广泛的应用
    • 数字输出:高端(HS)开关或推挽(PP)驱动器
    • 数字输入:可通过软件选择1型和3型,或2型
    • 限流值可设置范围:130mA至1.2A
    • 串行(SPI)或使用引脚直接操作
    • 独立通道供电
  • 提供内置诊断功能,具有容错能力
    • 每通道诊断
    • 集成电源电压监控和短接VDD检测
    • 开路/开路负载检测
    • 热关断保护
    • 看门狗定时器
    • 5位CRC码生成和检查用于SPI错误检测
  • 高集成度减少BOM数量和PCB空间
    • 集成LDO与5V逻辑器件兼容
    • 内部有源箝位用于快速关断感性负载
    • DO和DI传播延迟分别为0.6μs(典型值)和1μs(典型值)
    • 可寻址SPI
    • 7mm x 7mm TQFN封装
  • 降低功耗和散热
    • 高端开关提供低RDSON,120mΩ(典型值)
    • 准确输出限流
    • 准确的输入灌电流,1型和3型,或2型
  • 稳定可靠的设计
    • 工作电源电压范围:10V至40V,可承受65V
    • SafeDemagTM 支持快速关断不受限制的电感
    • ±16kV气隙放电ESD和±8kV接触放电ESD保护
    • 具有±1kV浪涌耐受能力,VDD至GND之间使用TVS保护
    • 工作温度范围为-40°C至+125°C
更多细节
show more Icon

MAX14906为符合IEC 61131-2标准的四通道高速工业数字输出、数字输入器件,可按通道配置为高端(HS)开关、推挽(PP)驱动器或1型和3型数字输入,或2型数字输入。MAX14906可在高达40V的额定电源电压下工作,可承受65V。

通过使用2倍负载冲击电流选项,高端开关限流可设置为130mA至1.2A。高端驱动器在25°C环境温度下的导通电阻为120mΩ(典型值)。可选的推挽操作可实现电缆的高速驱动和负载电容的快速放电。针对数字输入操作,提供2.3mA(1型和3型)或7mA(2型)的灌电流。

SPI接口带有内置芯片寻址解码器,支持使用共享SPI通过通用片选低电平有效CS与多个MAX14906器件通信。SPI接口为全局和每个通道的配置和诊断提供了灵活性,包括电源过压和欠压检测、断路或开路检测、热过载和限流报告等。针对高速操作,可使用引脚直接监控和更改数字输入和输出状态,以提高系统速度和吞吐量。

当开关处于断开状态时,开路检测可监控开路/负载状况。LED驱动器可指示各通道故障、状态和电源欠压状况。内部有源箝位允许快速关断感性负载。集成的线对地和线对线浪涌保护仅要求VDD上有一个TVS。

MAX14906采用紧凑型48引脚7mm x 7mm QFN封装。



应用

  • 工业数字输出和输入模块
  • 可配置型数字输入/输出
  • 电机控制
  • PLC系统
  • 分布式控制系统(DCS)

产品技术资料帮助

close icon

ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许,也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。

参考资料

参考资料

视频

产品型号 引脚/封装图-中文版 文档 CAD 符号,脚注和 3D模型
MAX14906ATM+
  • HTML
  • HTML
MAX14906ATM+T
  • HTML
  • HTML
软件和型号相关生态系统

软件和型号相关生态系统

评估套件

评估套件 4

reference details image

MAX14906PMB

MAX14906评估套件

zoom

MAX14906PMB

MAX14906评估套件

MAX14906评估套件

特性和优点

  • 轻松评估MAX14906
  • 可配置为1/3型数字输入或2型数字输入,或者高端或推挽数字输出
  • SafeDemag™ 技术用于在数字输出模式下安全关断不受限制的电感
  • 准确的内部限流器用于1/3型或2型数字输入
  • 支持每通道高达1.2A的负载电流
  • 可与USB2PMB2#或USB2GPIO#适配器和Munich GUI软件配合使用
  • 装配完成且经过测试
  • 经过验证的PCB布局
  • 符合RoHS标准

产品详情

MAX14906外设模块提供用于评估MAX14906四通道可配置工业数字输入/输出(DIO)器件的硬件。详细的IC操作信息请参考MAX14906 IC数据手册。该模块利用MAX14906中的特性,允许将DOI_配置为高端或推挽数字输出,或者1/3型或2型数字输入。板上的外部pMOS允许DOI_高于24V现场电源,以完全兼容IEC 61131-2数字输入。

注:该模块提供了MAX14906的一部分功能。如需更大的灵活性,请参考MAX14906评估套件。

MAX14906PMB#具有用于SPI通信的12引脚Pmod兼容连接器。该外设模块有多种使用方式;ADI公司出售低成本USB2PMB2#和USB2GPIO#适配器板,以使用Munich GUI软件通过USB电缆进行SPI通信。其不包含在此板中,但可从ADI公司或其经销商处获得。或者,可以使用任何带有用于SPI通信的12引脚Pmod兼容连接器的微控制器或FPGA。

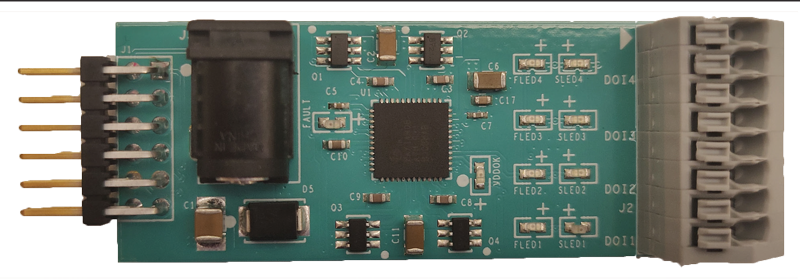

PCB尺寸仅为62mm x 22.6mm,宽度取决于DOI端子板J2的尺寸。图1所示为MAX14906PMB#电路板照片。



应用

  • 可配置型数字输入/输出
  • 分布式控制系统(DCS)
  • 工业数字输出和输入模块
  • 电机控制
  • PLC系统
reference details image

EVAL-AD74413R-DIOZ

Evaluating the AD74413R-DIOZ Quad-Channel Software Configurable Input and Output

zoom

EVAL-AD74413R-DIOZ

Evaluating the AD74413R-DIOZ Quad-Channel Software Configurable Input and Output

Evaluating the AD74413R-DIOZ Quad-Channel Software Configurable Input and Output

特性和优点

  • Quad-channel, software configurable input and output functionality for the AD74413R and the MAX14906
  • Single, 24 V external supply
  • On-board MAX14483, 6-channel, low power, 3.75 kV RMS SPI digital isolator
  • On-board MAX17552, 60 V, 100 mA, ultrasmall, high-efficiency, synchronous step-down DC-to-DC converter
  • Windows GUI for control

产品详情

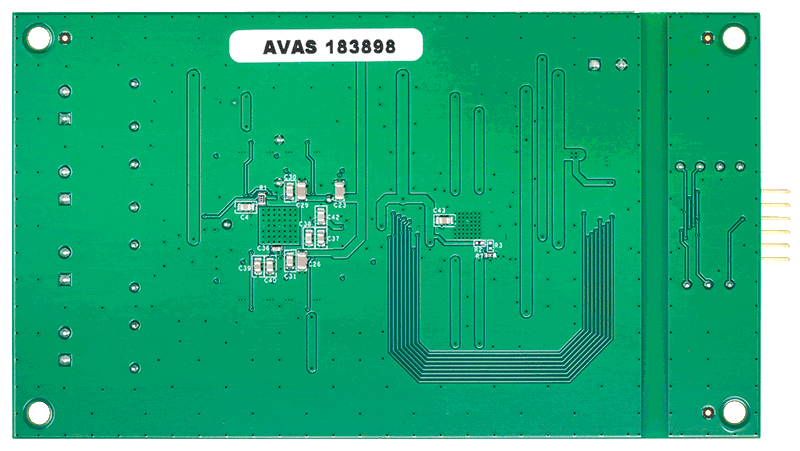

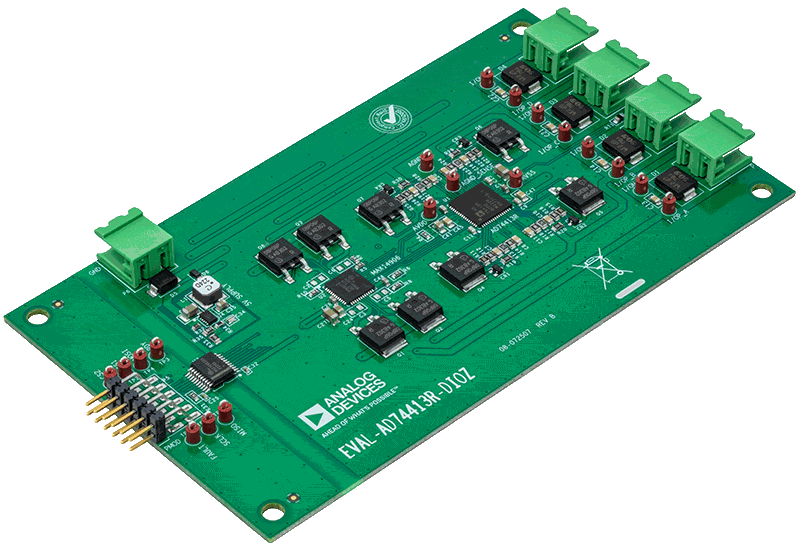

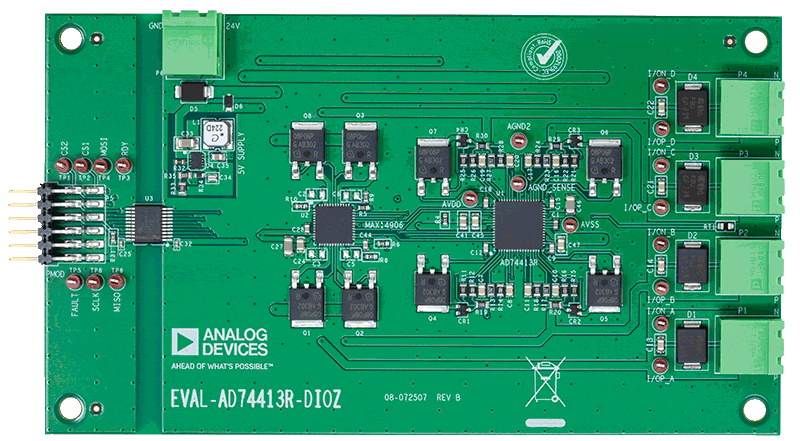

The EVAL-AD74413R-DIOZ (see Figure 1 in the user guide) is an evaluation board used to demonstrate and evaluate the full software configurable input and output (SWIO) features that the AD74413R and the MAX14906 provide when working together. The board has functionality for digital input, digital output, analog input, and analog output. The EVAL-AD74413R-DIOZ is controlled with a USB2PMB2 adapter board. The USB2PMB2 board controls the EVAL-AD74413R-DIOZ board via the USB port of a PC using the AD74413R-DIOZ demo software.

The EVAL-AD74413R-DIOZ requires an analog power (AVDD) operating supply of 14 V to 28.8 V. The USB2PMB2 board is supplied from the PC.

See the AD74413R data sheet for more information about the AD74413R, and see the MAX14906 data sheet for more information about the MAX14906. Users must consult both data sheets in conjunction with the user guide when using the EVAL-AD74413RDIOZ.

reference details image

AD-SWIOT1L-SL

Software-configurable Analog and Digital I/O with 10BASE-T1L Evaluation and Development Platform

zoom

AD-SWIOT1L-SL

Software-configurable Analog and Digital I/O with 10BASE-T1L Evaluation and Development Platform

Software-configurable Analog and Digital I/O with 10BASE-T1L Evaluation and Development Platform

特性和优点

  • Allows prototyping of intelligent, secure, and connected process control devices
  • Ultimate flexibility in I/O interface configurability through software
  • Embedded processing for implementing self-capable edge devices
  • Long-range single-pair 10BASE-T1L Ethernet interface
  • Power delivery via the 10BASE-T1L interface or from a field supply enabling both low and high power applications
  • Fully isolated design for safe operation
  • Industry standard form factor compatible with DIN rail mounts

产品详情

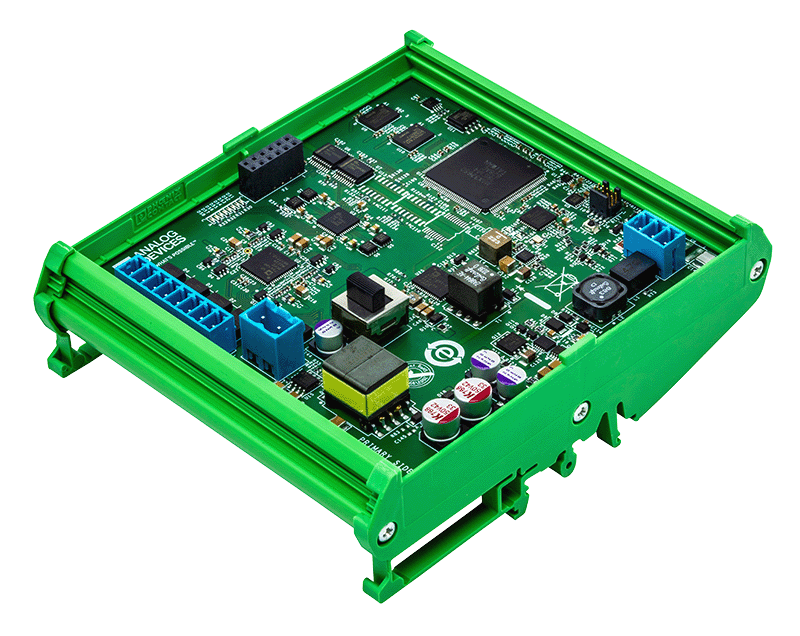

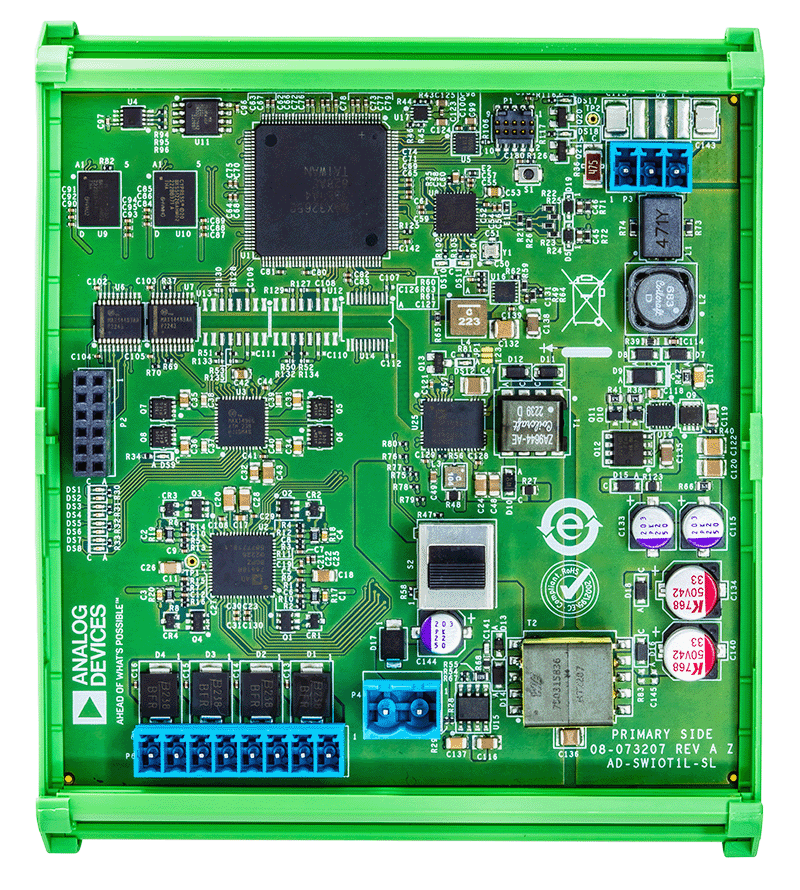

The AD-SWIOT1L-SL provides a complete software and hardware platform for prototyping intelligent, secure, network capable field devices.

The design incorporates the AD74413R Quad-Channel, Software Configurable Input and Output and the MAX14906 Quad-Channel Industrial Digital Output/Digital Input ICs, allowing the multiplexing of several analog and digital functions on four channels which can be independently configurable through software to act as:

  • voltage output / input
  • current output / input
  • digital input / output
  • RTD measurement

A 10 Mbps single-pair Ethernet link, using the ADIN1110 10BASE-T1L MAC/PHY, enables remote data acquisition and device configuration. The 10BASE-T1L interface can also be used for powering the system via the Single-pair Power over Ethernet (SPoE) technology using the LTC9111 Powered Device (PD) controller. This way, power and data for the system is provided over the same cable to significantly simplify the cabling infrastructure and cost.

For applications requiring high current capabilities, the system can be powered from an external 24 V supply and up to 1.2 A can be output on any of the channels configured as digital outputs. The power supply solution also includes the ADP1032 high performance, isolated micropower management unit (PMU) to provide power and digital control for software configurable I/O devices in one of the most compact formats. The LT8304 Micropower No-Opto Isolated Flyback Converter completes the power tree to provide isolated power to the digital part of the design.

The on-board MAX32650 Ultralow Power ARM® Cortex®-M4 Microcontroller exposes all the necessary debug and programming features to enable a complete software development experience with the system. It is coupled with a 1 Gb (128 MB) external RAM and a 64 Mb (8 MB) external flash memory to meet the most demanding applications and provide the flexibility to implement any protocol stack. Security features are enabled by the MAXQ1065 security coprocessor.

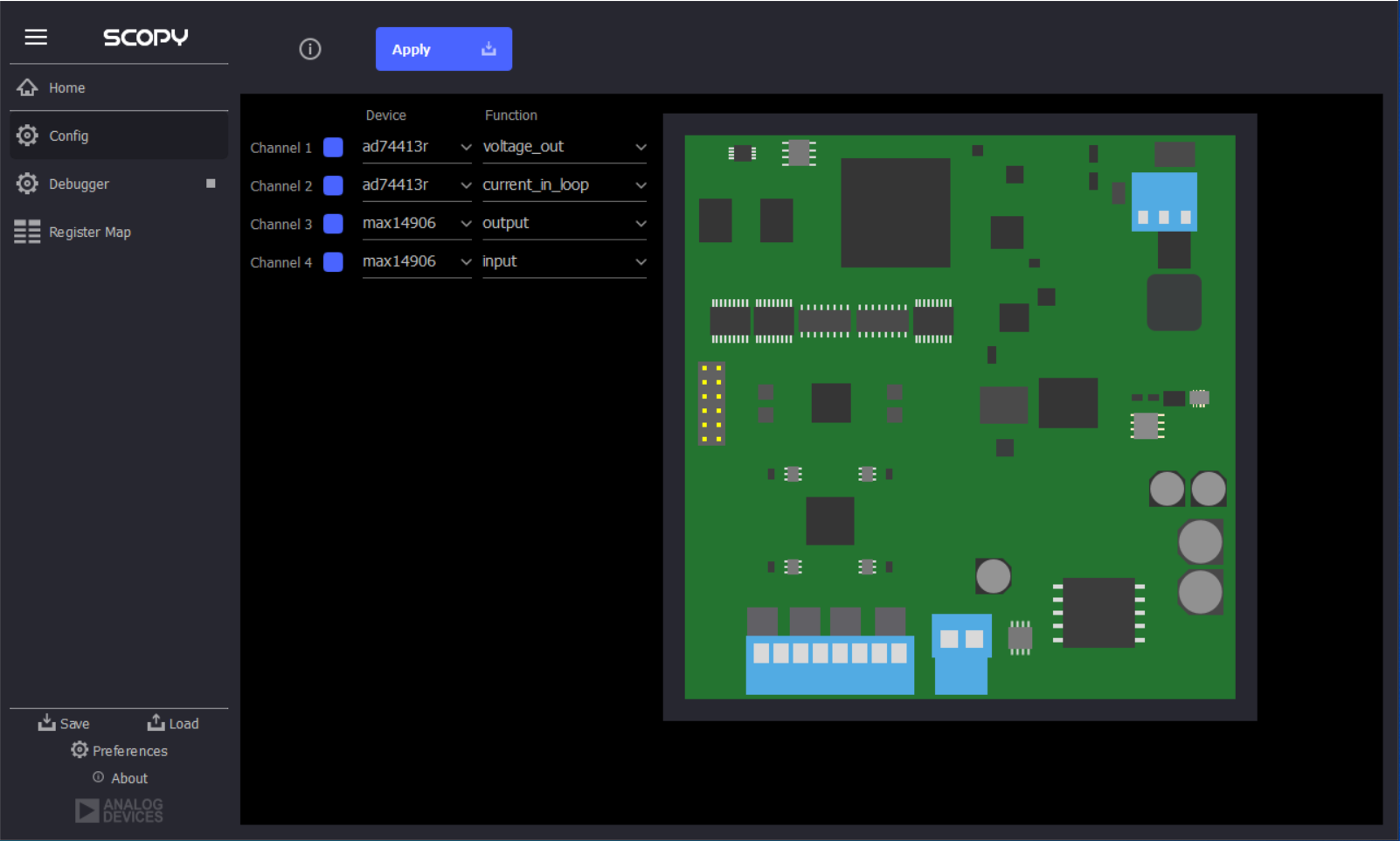

The system is accompanied by an open-source software stack and associated collateral, enabling a complete experience from evaluation and prototyping all the way to production firmware and applications development. An external programmer such as the MAX32625PICO MAXDAP Programming Adapter, or any other similar programmer supporting the SWD interface, is required to enable firmware programming and debug. The system’s firmware is based on Analog Devices’ open-source no-OS framework which includes all the tools required for embedded code development and debugging as well as libraries enabling host-side connectivity for system configuration and data transfer over the UART or the 10BASE-T1L interfaces. A PC application with a user-friendly graphical interface is provided to enable easy system configuration and displaying the acquired data in different ways.

Specifications
I/O
Channels 4 Software Configurable IO channels
Digital input Type 1 and 3, or Type 2
Digital output High-Side (HS) Switch or Push-Pull (PP) Driver
Analog input Voltage (0 V to 10 V), Current (0 mA to 25 mA)
Analog output Voltage (0 V to 11 V), Current (0 mA to 25 mA)
RTD measurements 2-wire RTD (0 Ω to 1 MΩ)
Computing Resources
CPU MAX32650 Ultra-Low-Power Arm Cortex-M4
with FPU-Based Microcontroller (MCU) with 3 MB Flash and 1MB SRAM
Memory 1 Gb RAM
Storage 64 Mb QSPI Flash
Connectivity
Ethernet 10BASE-T1L
Power Supply
External power 24 DC @ 6A
Power over Ethernet SPoE class 12
Operating Conditions
Temperature range -25°C to 60°C
reference details image

MAX14906EVKIT

MAX14906评估套件

zoom

MAX14906EVKIT

MAX14906评估套件

MAX14906评估套件

特性和优点

  • 通过每通道配置轻松评估MAX14906
  • SafeDemag™ 技术用于在数字输出模式下安全关断不受限制的电感
  • 可配置为IEC 61131-2 1型和3型数字输入,或2型数字输入
  • MAX14483和MAX14937支持高达3.75kVRMS电气隔离
  • 支持与外部微控制器或FPGA通信
  • 支持使用高速并行接口或SPI串行接口进行输出开关
  • 提供兼容Windows® 10、Windows 8.1和Windows 7的GUI软件
  • 经过验证的PCB布局
  • 装配完成且经过测试
  • 符合RoHS标准

产品详情

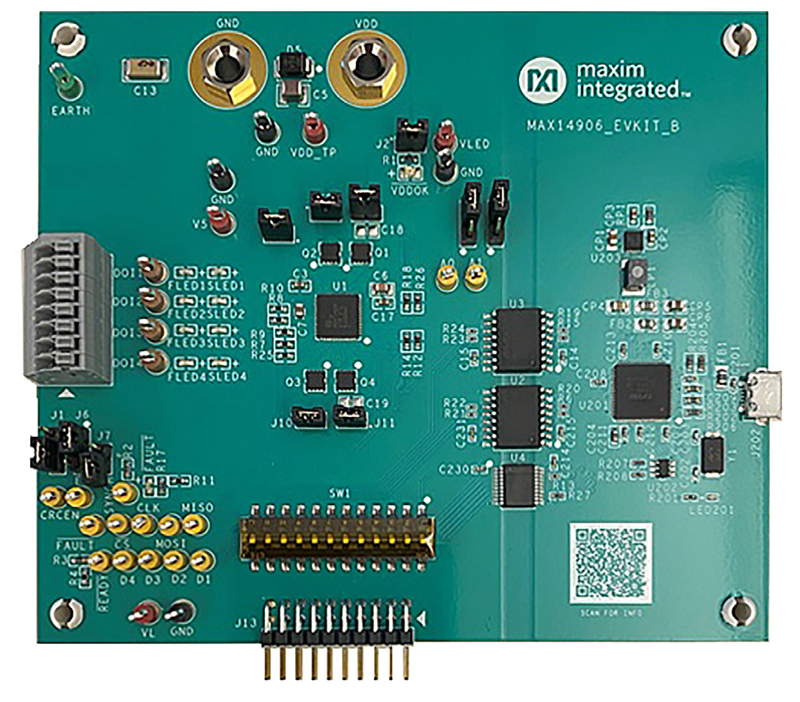

MAX14906评估套件(EV套件)设计可靠,用于评估四通道工业数字输出、数字输入器件MAX14906。该评估套件支持按通道将MAX14906配置为数字输出(在高端开关或推挽驱动器配置中)或1型和3型数字输入,或2型数字输入。该评估套件可监控MAX14906诊断信息,包括开路状态、输出通道状态、多个欠压警报、全局和每个通道的过温警报以及多个故障警报。

该评估套件必须由外部24V DC电源供电,当所有DOI_输出通道满载时,该电源可提供高达6.4A(最大值)的电流,具有2倍负载冲击电流选项。

MAX14906评估套件通过USB端口与PC上的图形用户界面(GUI)通信。该评估套件内置板载FT2232控制器,与MAX14906控制信号实现接口。或者,可以通过20针接头(J13)使用来自微控制器或FPGA的外部SPI接口。

MAX14906评估套件已安装MAX14906ATM+,采用48引脚、7mm x 7mm QFN封装。



应用

  • 可配置型数字输入/输出
  • 分布式控制系统(DCS)
  • 工业数字输出和输入模块
  • 电机控制
  • PLC系统
