概览

优势和特点

  • Single Gain Set Resistor: G = 1 to >1000
  • Excellent DC Precision
    • Input Offset Voltage: 60µV Max
    • Input Offset Voltage Drift: 0.6µV/°C Max
    • Low Gain Error: 0.01% Max (G = 1)
    • Low Gain Drift: 35ppm/°C Max (G > 1)
    • High DC CMRR: 86dB Min (G = 1)
  • Integrated Output Clamps
  • Integrated Output Level Shift
  • Input Bias Current: 800pA Max
  • 3.1MHz –3dB Bandwidth (G = 1)
  • Low Noise:
    • 0.1Hz to 10Hz Noise: 0.2µVP-P
    • 1kHz Voltage Noise: 7nV/√Hz
  • Integrated Input RFI Filter
  • Wide Supply Range 4.75V to 35V
  • Temperature Ranges: –40°C to 85°C and –40°C to 125°C
  • MS16E and 20-Lead 3mm × 4mm QFN Packages

产品详情

The LT6372-1 is a gain programmable, high precision instrumentation amplifier that delivers industry leading DC precision. This high precision enables smaller signals to be sensed and eases calibration requirements, particularly over temperature. The LT6372-1 incorporates features into the LT6370 which further improve accuracy and simplify interfacing to an ADC.

The LT6372-1 uses a proprietary high performance bipolar process which enables industry leading accuracy coupled with exceptional long-term stability. The LT6372-1 is laser trimmed for very low input offset voltage (60µV) and high CMRR (86dB, G = 1). Proprietary on-chip test capability allows the gain drift (35ppm/°C) to be guaran-teed with automated testing.

The LT6372-1’s difference amplifier uses a split reference configuration which simplifies level shifting the amplifier’s output to the center of the ADC’s input range. Output clamp pins are also provided to limit the voltage which can be applied to an ADC’s input. EMI filtering is integrated on the LT6372-1’s inputs to maintain accuracy in the presence of harsh RF interference.

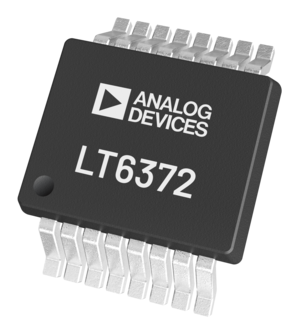

The LT6372-1 is available in a compact MS16E or a 20-pin 3mm × 4mm QFN. The LT6372-1 is fully specified over the –40°C to 85°C and –40°C to 125°C temperature ranges.

APPLICATIONS

  • Bridge Amplifier
  • Data Acquisition
  • Thermocouple Amplifier
  • Strain Gauge Amplifier
  • Medical Instrumentation
  • Transducer Interfaces
  • Differential to Single-Ended Conversion

产品分类

产品生命周期 icon-recommended 推荐新设计使用

本产品已上市。数据手册包含所有最终性能规格和工作条件。ADI公司推荐新设计使用这些产品。

评估套件 (1)

工具及仿真模型

LTspice

LTspice®是一款强大高效的免费仿真软件、原理图采集和波形观测器,为改善模拟电路的仿真提供增强功能和模型。

LTspice

LTspice中提供以下器件型号:

LT6372-0.2
LT6372-1

配套产品推荐

LT6372-1 配套产品

推荐 ADC Drivers

  • High Speed, Low Drift ADC Driver: ADA4945-1.
  • Precision, Low Power ADC Driver Family: LTC6363.

推荐 Analog to Digital Converters

推荐 Resistor Products

  • Matched Resistor Network for Precision Amplifiers: LT5401.
  • Precision Quad Resistor Network: LT5400.

推荐 References

  • 0.25ppm Noise, Low Drift Precision Reference: LTC6655.
