LT6372-0.2

Precision, Funneling Instrumentation Amplifier with Level Shift and Output Clamping

英文数据手册

Rev. 0

推荐新设计使用

顶部

新产品 (1)

用户手册

DC2746A - Demo Manual

概览

优势和特点
产品详情

优势和特点

Single Gain Set Resistor: G = 0.2 to >200
Excellent DC Precision

Input Offset Voltage: 60μV Max
Input Offset Voltage Drift: 0.6μV/°C Max
Low Gain Error: 0.012% Max (G = 0.2)
Low Gain Drift: 35ppm/°C Max (G > 0.2)
High DC CMRR: 80dB Min (G = 0.2)

Integrated Output Clamps
Integrated Output Level Shift
Input Bias Current: 800pA Max

4MHz –3dB Bandwidth (G = 0.2)
Low Noise:

0.1Hz to 10Hz Noise: 0.2μV_P-P
1kHz Voltage Noise: 7nV/√Hz

Integrated Input RFI Filter
Wide Supply Range 4.75V to 35V
Temperature Ranges: –40°C to 85°C and –40°C to 125°C
MS16E and 20-Lead 3mm × 4mm QFN Packages

产品详情

The LT6372-0.2 is a gain programmable, high precision funneling instrumentation amplifier that delivers industry leading DC precision. This high precision enables smaller signals to be sensed and eases calibration requirements, particularly over temperature. The LT6372-0.2 incorporates features into the LT6370 which further improve accuracy and simplify interfacing to an ADC.

The LT6372-0.2 uses a proprietary high performance bipolar process which enables industry leading accuracy coupled with exceptional long-term stability. The LT6372-0.2 is laser trimmed for very low input offset voltage (60μV) and high CMRR (80dB, G = 0.2). Proprietary on-chip test capability allows the gain drift (35ppm/°C) to be guaranteed with automated testing.

The LT6372-0.2’s difference amplifier uses a split reference configuration which simplifies level shifting the amplifier’s output to the center of the ADC’s input range. Output clamp pins are also provided to limit the voltage which can be applied to an ADC’s input. EMI filtering is integrated on the LT6372-0.2’s inputs to maintain accuracy in the presence of harsh RF interference.

The LT6372-0.2 is available in a compact MS16E or a 20-pin 3mm × 4mm QFN. The LT6372-0.2 is fully specified over the –40°C to 85°C and –40°C to 125°C temperature ranges.

APPLICATIONS

Bridge Amplifier
Data Acquisition
Thermocouple Amplifier
Strain Gauge Amplifier
Medical Instrumentation
Transducer Interfaces
Differential to Single-Ended Conversion

产品分类

放大器
- 仪表放大器

类似器件点击在参数搜索中查看所有

产品生命周期推荐新设计使用

本产品已上市。数据手册包含所有最终性能规格和工作条件。ADI公司推荐新设计使用这些产品。

评估套件 (1)

DC2746A

LT6372-1/LT6372-0.2 Precision, Low Drift, Low Noise Instrumentation Amplifiers

DC2746A

查看此评估套件详细信息

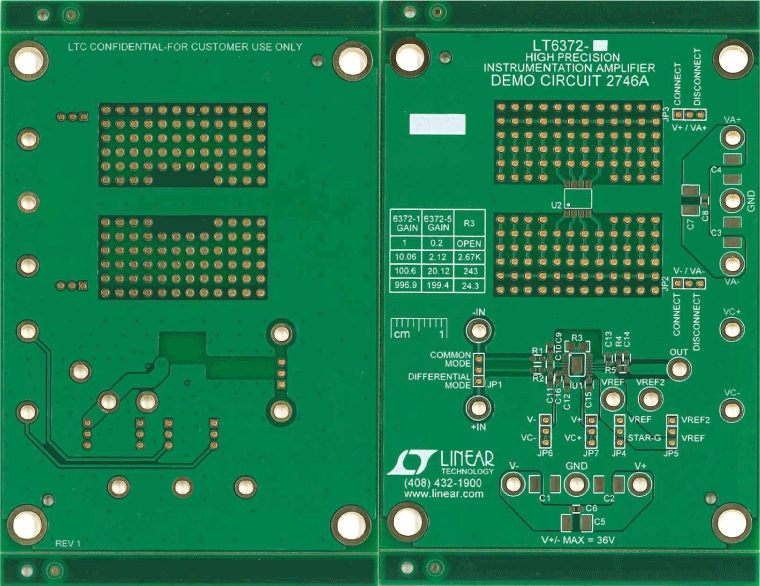

Demonstration circuit 2746A is a blank/un-stuffed evaluation board to be used to facilitate prototyping of LT6372-1 and LT6372-0.2 instrumentation amplifiers in the MSOP-16 package. The board is designed to be as flexible as possible by providing many stuffing options and jumpers to configure. This board can be used with either LT6372-1 (for gains ≥ 1V/V amplification) or LT6372-0.2 (for gains as low as 0.2V/V attenuation).

Below are some of the capabilities of the board using board jumper selection or stuffing option.

Single or dual supply operation.
Flexible connections of REF1 and REF2 instrumentation amplifier reference voltage inputs. Options are: Both references to be tied together or separately driven, or grounded.
Common mode or differential input.
Input CM and differential filtering caps if needed.
Upper and lower clamp pins driven externally or disabled.
Output drive filtering and isolation resistor and cap.
Prototyping area provided for SO-8 device to be used if needed. This prototype footprint can be run using the LT6372 power supplies or could be powered by different supply rails applied to the board.
