概览
优势和特点
- Passive: no dc bias required
- Conversion loss: 10 dB maximum
- Input IP3 up to 21 dBm typical
- LO to RF isolation: 37 dB typical
- Wide IF bandwidth: dc to 5 GHz

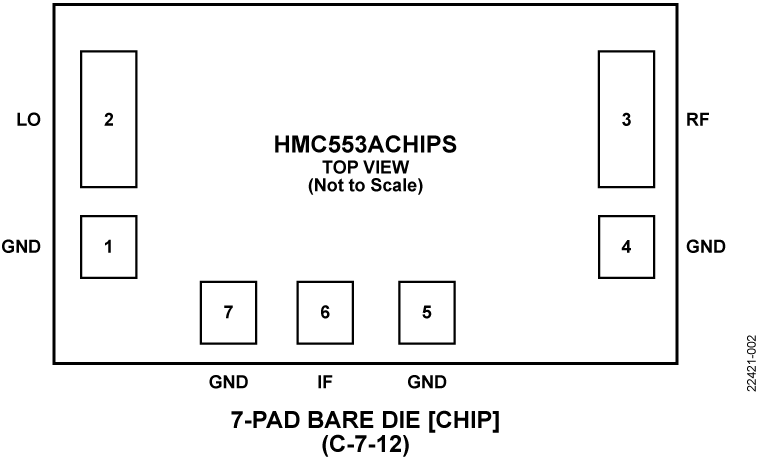

- 7-pad, 0.950 mm × 0.750 mm, RoHS compliant, bare die
产品详情
The HMC553ACHIPS is a general-purpose, double balanced, monolithic microwave integrated circuit (MMIC) mixer that can be used as an upconverter or a downconverter between 6 GHz and 14 GHz. This mixer is fabricated in a gallium arsenide (GaAs), metal semiconductor field effect transistor (MESFET) process and requires no external components or matching circuitry.
The HMC553ACHIPS provides high local oscillator (LO) to RF and LO to intermediate frequency (IF) suppression due to optimized balun structures for as low as 32 dB and 28 dB, respectively. The mixer operates with LO drive levels from 9 dBm to 15 dBm.
Applications
- Microwave and very small aperture terminal (VSAT) radios
- Test equipment
- Point to point radios
- Military electronic warfare (EW), electronic countermeasure (ECM), and command, control, communications and intelligence (C3I)
产品分类
产品生命周期
量产
该产品系列中至少有一个型号已量产并可供采购。该产品适合用于新设计，但也可能有更新的替代产品。
