HMC476MP86

过期

SiGe HBT Gain Block MMIC Amplifier, DC - 6 GHz

产品模型: 4

Viewing:

概述

P1dB Output Power: +12 dBm
Gain: 20 dB
Output IP3: +25 dBm
Cascadable 50 Ohm I/Os
Single Supply: +5V to +12V
Included in the HMC-DK001 Designer’s Kit

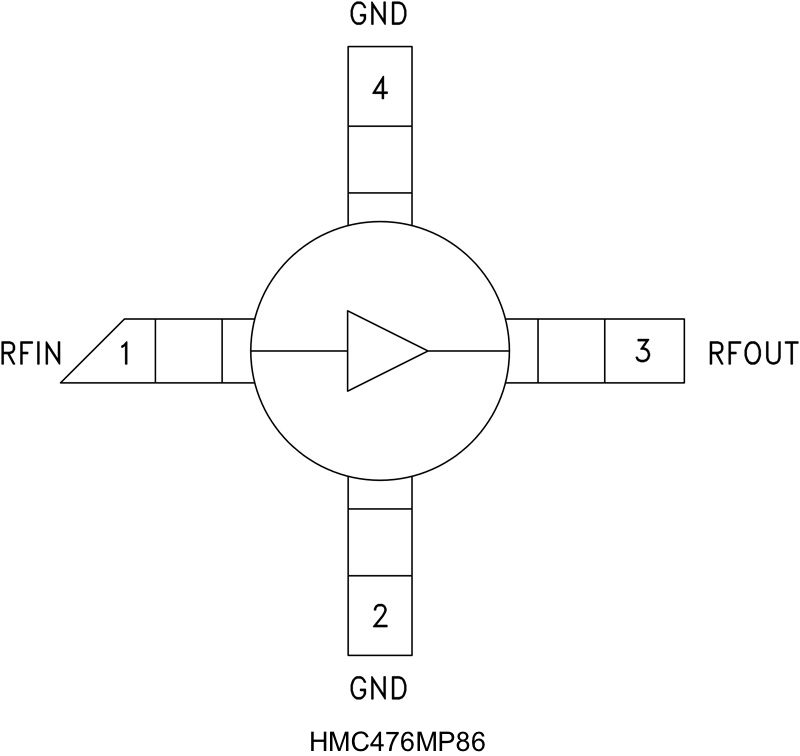

The HMC476MP86 & HMC476MP86E are SiGe Heterojunction Bipolar Transistor (HBT) Gain Block MMIC SMT amplifi ers covering DC to 6 GHz. This Micro-P packaged amplifi er can be used as a cascadable 50 Ohm RF/IF gain stage as well as a LO or PA driver with up to +13 dBm output power. The HMC476MP86 & HMC476MP86E offers 20 dB of gain with a +25 dBm output IP3 at 850 MHz whilevrequiring only 35 mA from a single positive supply.The Darlington feedback pair used results in reduced sensitivity to normal process variations and excellent gain stability over temperature while requiring a minimal number of external bias components.

Applications

Cellular / PCS / 3G
Fixed Wireless & WLAN
CATV, Cable Modem & DBS
Microwave Radio & Test Equipment

产品模型: 4

参考资料

数据手册 1

HMC476MP86: SiGe HBT Gain Block MMIC Amplifier, DC - 6 GHz Data Sheet Data Sheet 04/16/2015

应用笔记 2

AN-1604: Thermal Management Calculations for RF Amplifiers in LFCSP and Flange Packages 08/01/2019

AN-2591: When It Comes to Long-Term Reliability of RF Amplifier ICs, Focus First on Die Junction Temperature 08/05/2024
