DS21Q43A
searchIcon

DS21Q43A

四路、E1成帧器

更多 showmore-icon

产品详情
特性

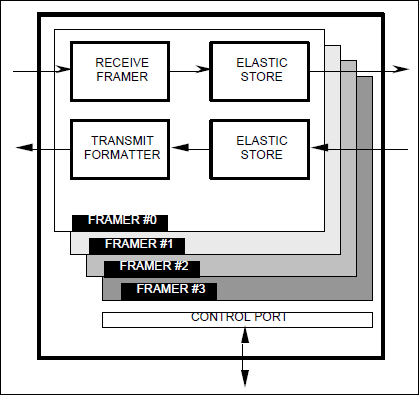

  • Four E1(CEPT or PCM-30)/ISDN-PRI framing transceivers
  • All four framers are fully independent; transmit and receive sections of each framer are fully independent
  • Frames to FAS, CAS, CCS, and CRC4 formats
  • 8-bit parallel control port that can be connected to either multiplexed or nonmultiplexed buses
  • Each of the four framers contains dual two-frame elastic stores that can connect to asynchronous or synchronous backplanes up to 8.192MHz
  • Easy access to Si and Sa bits
  • Extracts and inserts CAS signaling
  • Large counters for bipolar and code violations, CRC4 code word errors, FAS word errors, and E-bits
  • Programmable output clocks for fractional E1, per channel loopback, H0 and H12 applications
  • Detects and generates AIS, remote alarm, and remote multiframe alarms
  • Pin-compatible with DS21Q41B quad T1 framer
  • 5V supply; low power CMOS
  • Available in 128-pin TQFP
  • Industrial (-40°C to +85°C) grade version available (DS21Q43ATN)
