DS1210

非易失控制器芯片

数据手册 (Rev. 1)

Viewing:

产品详情

Converts CMOS RAMs into Nonvolatile Memories
Unconditionally Write Protects when V_CC is Out-of-Tolerance
Automatically Switches to Battery when Power-Fail Occurs

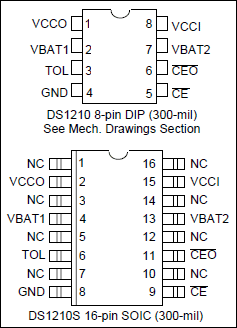

Space-Saving 8-Pin PDIP or 16-Pin SO Packages
Consumes Less Than 100nA of Battery Current
Tests Battery Condition on Power up
Provides for Redundant Batteries
Optional 5% or 10% Power-Fail Detection
Low Forward Voltage Drop on the V_CCSwitch
Optional Industrial (N) Temperature Range of -40°C to +85°C

参考资料

数据手册 2

DS1210: Nonvolatile Controller Chip Data Sheet (Rev.1) 07/18/2012

DS1210: 非易失控制器芯片 Data Sheet 01/01/1900

可靠性数据 1

DS1210 Reliability Data 01/12/2023

技术文章 1

NV SRAM Frequently Asked Questions 05/14/2002

这是最新版本的数据手册

工具及仿真模型

IBIS 模型 1

DS1210 IBIS Model
