特性
- Single positive supply (self biased)
- Resistor programmable bias setting
- Wideband operation: 30 kHz to 20 GHz
- Extended operating temperature range: −55°C to +125°C

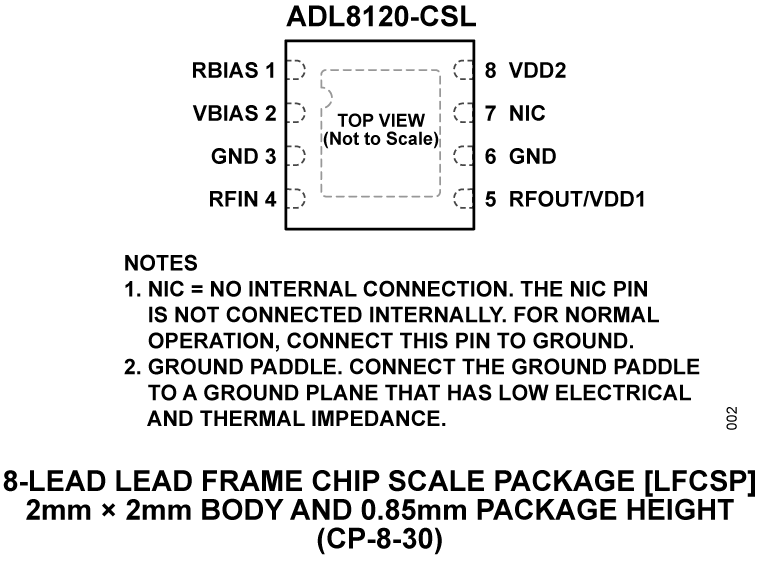

- RoHS-compliant, 2 mm × 2 mm, 8-lead LFCSP
.svg?rev=fd385c90e2cf4716ae9a8c8d20e6b8e3&la=zh&h=24&w=24&hash=7CDDC996281D9E966D391D97E93C6727){kind=icon}

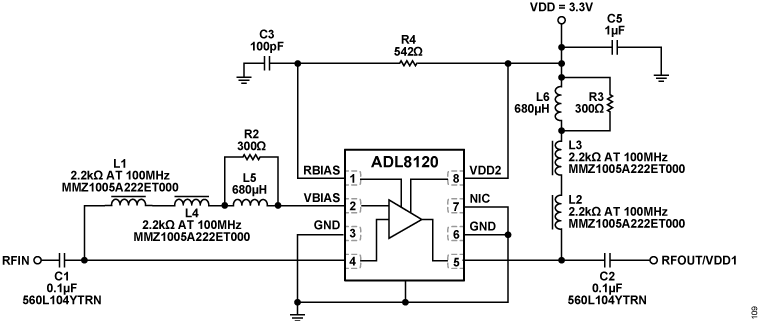

The ADL8120 is an ultra-wideband low noise amplifier (LNA) that operates from 30 kHz to 20 GHz. Typical gain and noise figure are 14 dB and 1.9 dB, respectively, from 30 kHz to 14 GHz. Output power for 1 dB compression (OP1dB), output third-order intercept (OIP3), and output second-order intercept (OIP2) are 16 dBm, 29.5 dBm and 33 dBm, respectively, from 30 kHz to 14 GHz. The nominal quiescent current (IDQ), which can be adjusted, is 55 mA from a 3.3 V supply voltage (VDD). The internally matched, DC-coupled RF input and output pins require external AC coupling capacitors along with a bias inductor on RFOUT. In addition, the RF input is biased through an external inductor connected between the VBIAS pin and the RFIN pin.
The ADL8120 is fabricated on a pseudomorphic high electron mobility transistor (pHEMT) process. It is housed in a RoHS-compliant, 2 mm × 2 mm, 8-lead LFCSP and is specified for operation from −55°C to +125°C.
- Telecommunications
- Instrumentation
- Radar
- Electronic warfare
提问
在下面提交您的问题，我们将从 ADI 的知识库中给出最佳答案:
搜索
您可以在其他地方找到帮助
{{modalTitle}}
{{modalDescription}}
{{dropdownTitle}}
- {{defaultSelectedText}} {{#each projectNames}}
- {{name}} {{/each}} {{#if newProjectText}}
-
{{newProjectText}}
{{/if}}
{{newProjectTitle}}
{{projectNameErrorText}}
产品技术资料帮助
ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许，也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。
参考资料
ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。
| 产品型号 | 引脚/封装图-中文版 | 文档 | CAD 符号，脚注和 3D模型 |
|---|---|---|---|
| ADL8120ACPZN |
8-lead LFCSP 2 mm × 2 mm × 0.85
|
|
|
| ADL8120ACPZN-R7 |
8-lead LFCSP 2 mm × 2 mm × 0.85
|
|
- ADL8120ACPZN
- 引脚/封装图-中文版
-
8-lead LFCSP 2 mm × 2 mm × 0.85
- 文档
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD 符号，脚注和 3D模型
-
Ultra Librarian
-
SamacSys
- ADL8120ACPZN-R7
- 引脚/封装图-中文版
-
8-lead LFCSP 2 mm × 2 mm × 0.85
- 文档
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD 符号，脚注和 3D模型
-
Ultra Librarian
-
SamacSys
软件和型号相关生态系统
评估套件 1
EVAL-ADL8120
Evaluating the ADL8120 30 kHz to 20 GHz, Ultra-Wideband, Low Noise Amplifier
产品详情

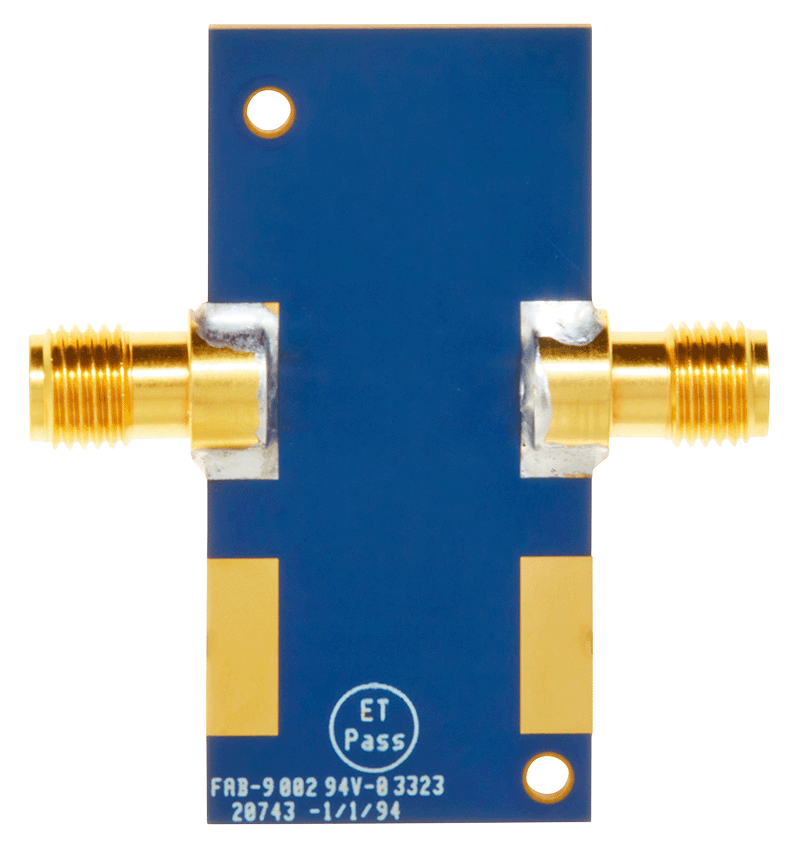

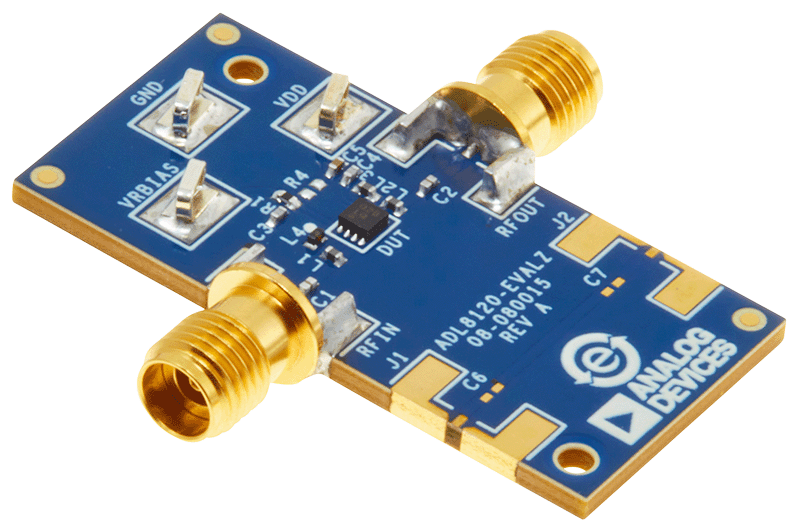

The ADL8120ACPZN-EVALZ and ADL8120ACPZN-EVAL1Z are 4-layer printed circuit boards (PCBs) fabricated from 0.254 mm (10 mil) thick, Isola 370HR, copper clad, forming a nominal thickness of 1.58 mm (62 mils). ADL8120ACPZN-EVALZ was designed to support operation from 10 MHz to 20 GHz, while ADL8120ACPZN-EVAL1Z was designed to extend frequency operation down to 30 kHz. ADL8120ACPZN-EVAL1Z still operates up to 20 GHz. The RFIN and RFOUT ports on the ADL8120ACPZNEVALZ and ADL8120ACPZN-EVAL1Z are populated with 2.9 mm, female coaxial connectors, and the respective RF traces have a 50 Ω characteristic impedance. The ADL8120ACPZN-EVALZ and ADL8120ACPZN-EVAL1Z are populated with components suitable for use over the entire −55°C to +125°C operating temperature range.
To calibrate out board trace losses, a through calibration path is provided between the J1 and J2 connectors. J1 and J2 must be populated with RF connectors to use the through calibration path. Refer to Figure 11 and Table 1 for the through calibration path performance for both the ADL8120ACPZN-EVALZ and ADL8120ACPZN-EVAL1Z.

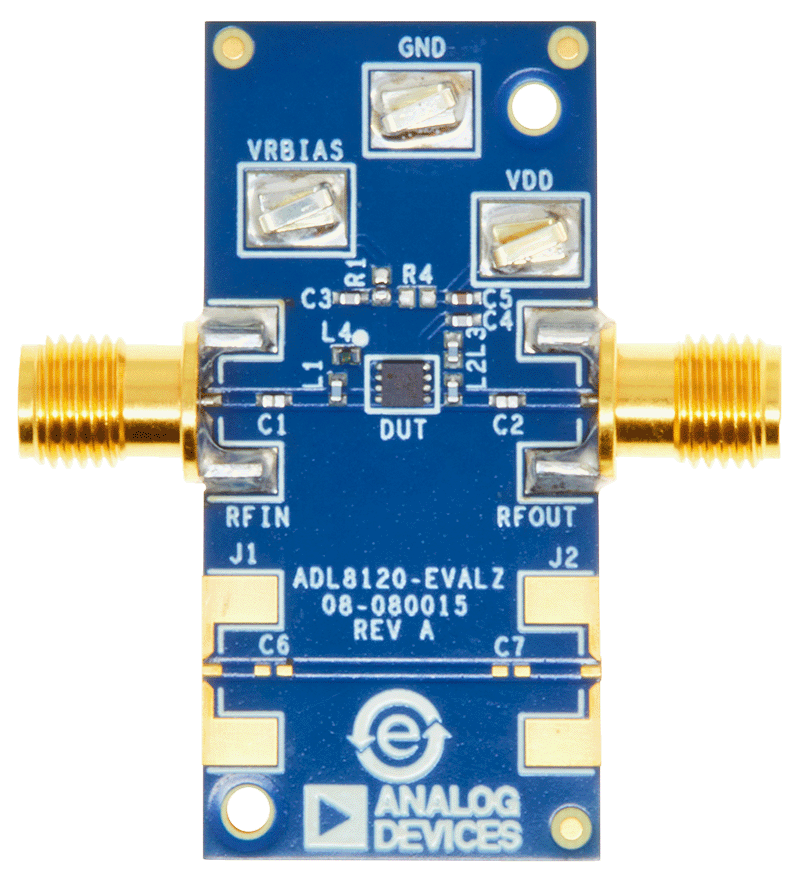

Access the ADL8120ACPZN-EVALZ and ADL8120ACPZN-EVAL1Z ground and drain voltage through the surface-mount technology (SMT) test point connectors, GND and VDD. A supplementary test point for VRBIAS is included for simple access on the RBIAS pin (see Figure 12 and Figure 14 for the test point locations).
The RF traces on the ADL8120ACPZN-EVALZ and ADL8120ACPZN-EVAL1Z are 50 Ω, grounded, coplanar waveguide. The package ground leads and the exposed pad connect directly to the ground plane. Multiple vias connect the top and bottom ground planes with particular focus on the area directly beneath the ground paddle to provide adequate electrical conduction and thermal conduction.
The power supply decoupling capacitors on the ADL8120ACPZNEVALZ and ADL8120ACPZN-EVAL1Z represent the configuration used to characterize and qualify the device.
For full details on the ADL8120, see the ADL8120 data sheet, which must be consulted in conjunction with this user guide when using the ADL8120ACPZN-EVALZ and ADL8120ACPZN-EVAL1Z.
