ADH952AS
推荐用于新设计Aerospace, GaAs, pHEMT, MMIC, 2 Watt Power Amplifier with Power Detector, 8 GHz to 14 GHz
- 产品模型
- 1
产品详情
- Psat: + 34.5 dBm @ 26 % PAE
- High P1dB Output Power: + 34 dBm
- High Gain: 32 dBm
- High Output IP3: +43 dBm
- Supply Voltage: Vdd = +6 V @ 1400 mA
- 24-Lead 5 mm x 5 mm LFCSP package
- Screened with guidelines to NASA/EEE-INST-002, Section M4, Level 2 applications.

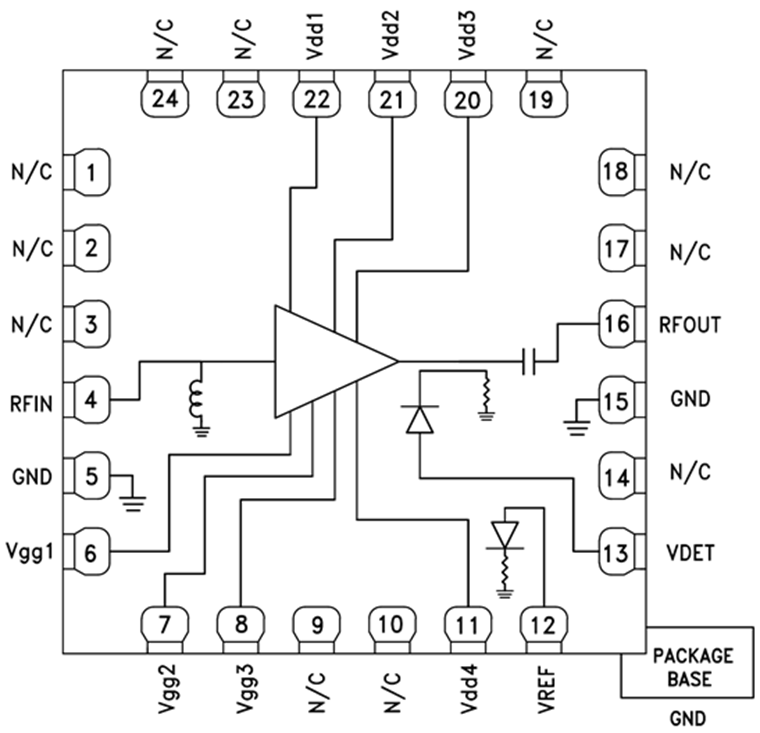

The ADH952AS is a four-stage GaAs, pHEMT, MMIC, Medium Power Amplifier with a temperature compensated on-chip power detector which operates between 8 GHz and 14 GHz. The amplifier provides 32 dB of gain and +34.5 dBm of saturated output power at 26% PAE from a +6 V supply. With up to +43 dBm IP3 the ADH952AS is ideal for linear applications such as point-to-point and point-to-multipoint radios or SATCOM applications demanding +34.5 dBm of efficient saturated output power. The RF I/Os are internally matched to 50 Ohms.
Applications
- Point-to-Point Radios
- Point-to-Multipoint Radios
- SATCOM
- Military & Space
参考资料
ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。
| 产品型号 | 引脚/封装图-中文版 | 文档 | CAD 符号，脚注和 3D模型 |
|---|---|---|---|
| HMC8825LP5GE | 24 ld LFCSP (5x5mm w/2.35mm EP) |
