ADH557AS
推荐用于新设计Aerospace, GaAs, MMIC, Fundamental Mixer, 2.5 GHz to 7 GHz
- 产品模型
- 1
概述
- Conversion Loss:
- 8 dB Typ. from 2.5 GHz to 5 GHz
- 8.5 dB Typ. from 5 GHz to 7 GHz
- LO to RF Isolation:
- 50 dB Typ. from 2.5 GHz to 5 GHz
- 43 dB Typ. from 5 GHz to 7 GHz
- LO to IF Isolation:
- 35 dB Typ. from 2.5 GHz to 5 GHz
- 33 dB Typ. from 5 GHz to 7 GHz
- Input Third-Order Intercept (IIP3): 18 dBm Typ. from 2.5 GHz to 7 GHz
- Input Second-Order Intercept (IIP2): 55 dBm Typ. from 2.5 GHz to 7 GHz
- LO Port Return Loss:
- 8 dB Typ. from 2.5 GHz to 5 GHz
- 12 dB Typ. from 5 GHz to 7 GHz
- RF Port Return Loss:
- 10 dB Typ. from 2.5 GHz to 5 GHz
- 12 dB Typ. from 5 GHz to 7 GHz
- Passive double-balanced topology
- Wide IF frequency range: DC to 3 GHz
- 12-Lead Hermetic SMT Package
- Screened in accordance with MIL-PRF-38535, Class Level S
The ADH557AS is a general-purpose, double balanced mixer in a 12-lead hermetic SMT package that can be used as an upconverter or downconverter from 2.5 GHz to 7 GHz. This mixer is fabricated in a gallium arsenide (GaAs) metal semiconductor field effect transistor (MESFET) process and requires no external components or matching circuitry. The ADH557AS provides excellent local oscillator (LO) to radio frequency (RF) and LO to intermediate frequency (IF) isolation due to optimized balun structures and operates with a LO drive level of 15 dBm Typ.
Applications
- Point-to-point Radios
- S & C-Band Communications
- Instrumentation
- Sensors
- Military & Space
参考资料
ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。

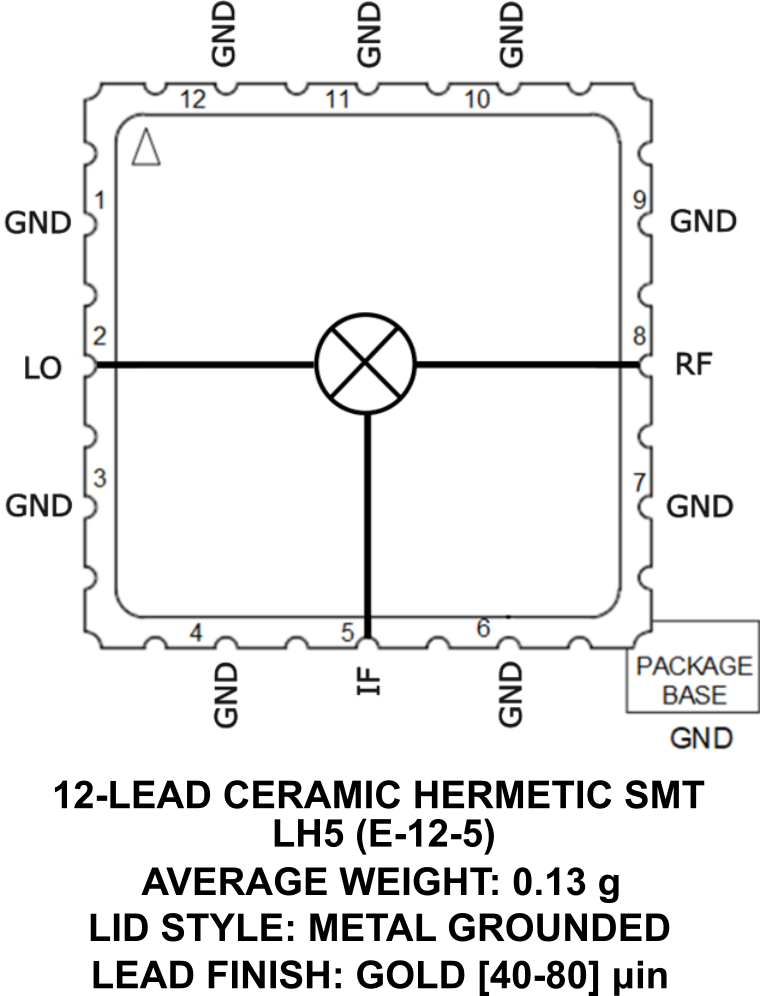

| 产品型号 | 引脚/封装图-中文版 | 文档 | CAD 符号，脚注和 3D模型 |
|---|---|---|---|
| HMC8517LH5 | 12-Lead LCC (5.08mmm x 5.08mm) |
