ADH514S

推荐用于新设计

Aerospace, GaAs, InGaP, HBT, MMIC, 11.17 GHz to 12.02 GHz, VCO with Fo/2 and Fo/4 Frequency Output.

产品模型: 1

Viewing:

概述

Dual Output:
- Fo = 11.17 GHz – 12.02 GHz
- Fo/2 = 5.58 GHz – 6.01 GHz
Pout: + 7 dBm Typ.
Phase Noise: -110 dBc/Hz @ 100 kHz Typ.

No External Resonator Needed
Screened in accordance with ADI Standard Space Products Program’s Enhanced Class Q model.

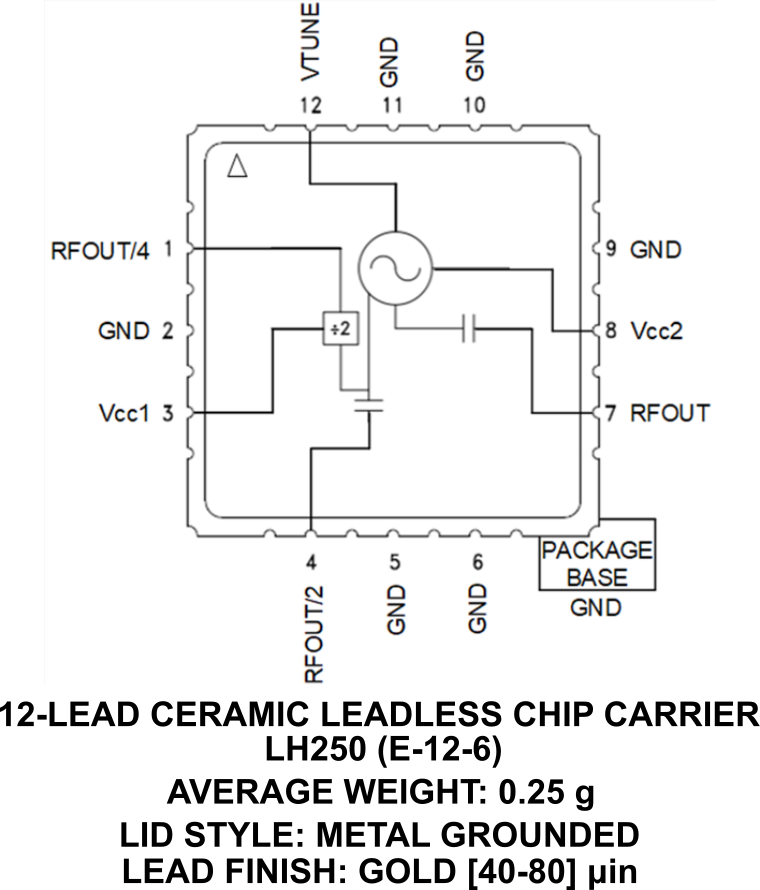

The ADH514S is a GaAs, InGaP, Heterojunction Bipolar Transistor (HBT), MMIC, VCO. The ADH514S integrates resonators, negative resistance devices, varactor diodes and feature half frequency and divide-by-4 outputs. The VCO’s phase noise performance is excellent over temperature, shock, and process due to the oscillator’s monolithic structure. Power output is +7 dBm typical from a +3 V supply voltage. The prescaler function can be disabled to conserve current if not required. The voltage-controlled oscillator requires no external matching components.

Applications
