特性
|
|
.svg?rev=fd385c90e2cf4716ae9a8c8d20e6b8e3&la=zh&h=24&w=24&hash=7CDDC996281D9E966D391D97E93C6727){kind=icon}
ADATE302-02是一款完整的单芯片解决方案，用于在ATE应用中执行驱动器、比较器和有源负载(DCL)、单引脚(Per Pin) PMU、直流电平的引脚电子功能。它还内置一个HVOUT驱动器和VHH缓冲器，能够产生最高13.5 V的电压。
驱动器提供三种有源状态：数据高电平状态、数据低电平状态和期限状态，以及一种抑制状态。抑制状态与集成动态箝位一起使用时，有利于实现高速有源端接。输出电压范围为−2.0 V至+6.0 V，支持多种测试设备。
ADATE302-02既可以用作双单端驱动/接收通道，也可以用作单差分驱动/接收通道。每个通道都提供用于功能测试的高速窗口比较器，以及带FV/FI和MV/MI功能的单引脚PMU。DCL功能所需的全部直流电平都由片内14位DAC产生。单引脚PMU具有一个片内16位DAC，用于实现高精度操作，并且集成范围设置电阻，以尽量减少所需的外部器件数量。
ADATE302-02通过串行总线对所有功能模块编程，并具有一个片上温度传感器，用于监控器件温度。
应用- 自动测试设备
- 半导体测试系统
- 电路板测试系统
- 仪器仪表和表征设备
提问
在下面提交您的问题，我们将从 ADI 的知识库中给出最佳答案:
搜索
您可以在其他地方找到帮助
{{modalTitle}}
{{modalDescription}}
{{dropdownTitle}}
- {{defaultSelectedText}} {{#each projectNames}}
- {{name}} {{/each}} {{#if newProjectText}}
-
{{newProjectText}}
{{/if}}
{{newProjectTitle}}
{{projectNameErrorText}}
产品技术资料帮助
ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许，也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。
参考资料
ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。
| 产品型号 | 引脚/封装图-中文版 | 文档 | CAD 符号，脚注和 3D模型 |
|---|---|---|---|
| ADATE302-02BBCZ |
84-Ball CSPBGA (6mm x 6mm x 1.26mm)
|
|
|
| ADATE302-02BSVZ |

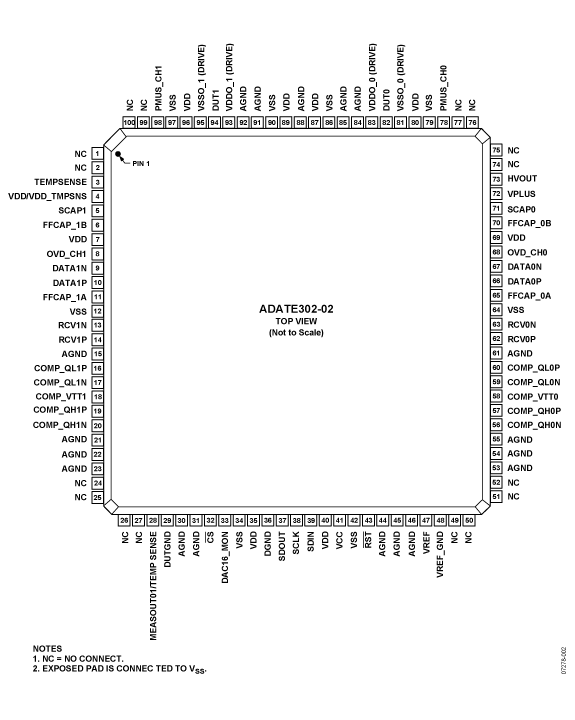

100-Lead TQFP (14mm x 14mm w/ EP)
|
|
- ADATE302-02BBCZ
- 引脚/封装图-中文版
-
84-Ball CSPBGA (6mm x 6mm x 1.26mm)
- 文档
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD 符号，脚注和 3D模型
-
Ultra Librarian
-
SamacSys
- ADATE302-02BSVZ
- 引脚/封装图-中文版
-
100-Lead TQFP (14mm x 14mm w/ EP)
- 文档
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD 符号，脚注和 3D模型
-
Ultra Librarian
-
SamacSys
根据型号筛选
产品型号
产品生命周期
PCN
3月 9, 2015
- 14_0249
Assembly Transfer of Select CSP_BGA Products to STATS ChipPAC Korea Plant 3
8月 27, 2013
- 13_0148
Flip Chip BGA 9x9 Shipping Tray Change
ADATE302-02BBCZ
量产
10月 28, 2010
- 10_0150
Wafer Bumping Changes at STATSChipPAC Singapore for AD53559 and ADATE30X
ADATE302-02BBCZ
量产
3月 15, 2016
- 14_0258
Assembly Transfer of Selected 14x14 LQFP, 14x14 LQFP_EP and 7x7,10x10,12x12,14x14 TQFP_EP Products to Amkor Philippines
6月 16, 2009
- 09_0027
Conversion to Laser Mark for the LQFP Packages (Single Grades)
ADATE302-02BSVZ
量产
根据型号筛选
产品型号
产品生命周期
PCN
3月 9, 2015
- 14_0249
Assembly Transfer of Select CSP_BGA Products to STATS ChipPAC Korea Plant 3
8月 27, 2013
- 13_0148
Flip Chip BGA 9x9 Shipping Tray Change
10月 28, 2010
- 10_0150
Wafer Bumping Changes at STATSChipPAC Singapore for AD53559 and ADATE30X
3月 15, 2016
- 14_0258
Assembly Transfer of Selected 14x14 LQFP, 14x14 LQFP_EP and 7x7,10x10,12x12,14x14 TQFP_EP Products to Amkor Philippines
6月 16, 2009
- 09_0027
Conversion to Laser Mark for the LQFP Packages (Single Grades)
软件和型号相关生态系统
评估套件 1
EVAL-ADATE302-02
Evaluating the ADATE302-02 500 MHz Dual Integrated DCL with Differential Drive/Receive, Level Setting DACs, and Per Pin PMU
特性和优点
- Full featured evaluation board for the ADATE302-02
- Supply voltages: +21 V and −10 V, on-board voltage regulators
- Breakout signal inputs and outputs through SMA connectors
- Differential pairs provided with 50 Ω controlled impedance traces with equal lengths
- LED indicators for read and write data
- PC software for control through USB
产品详情

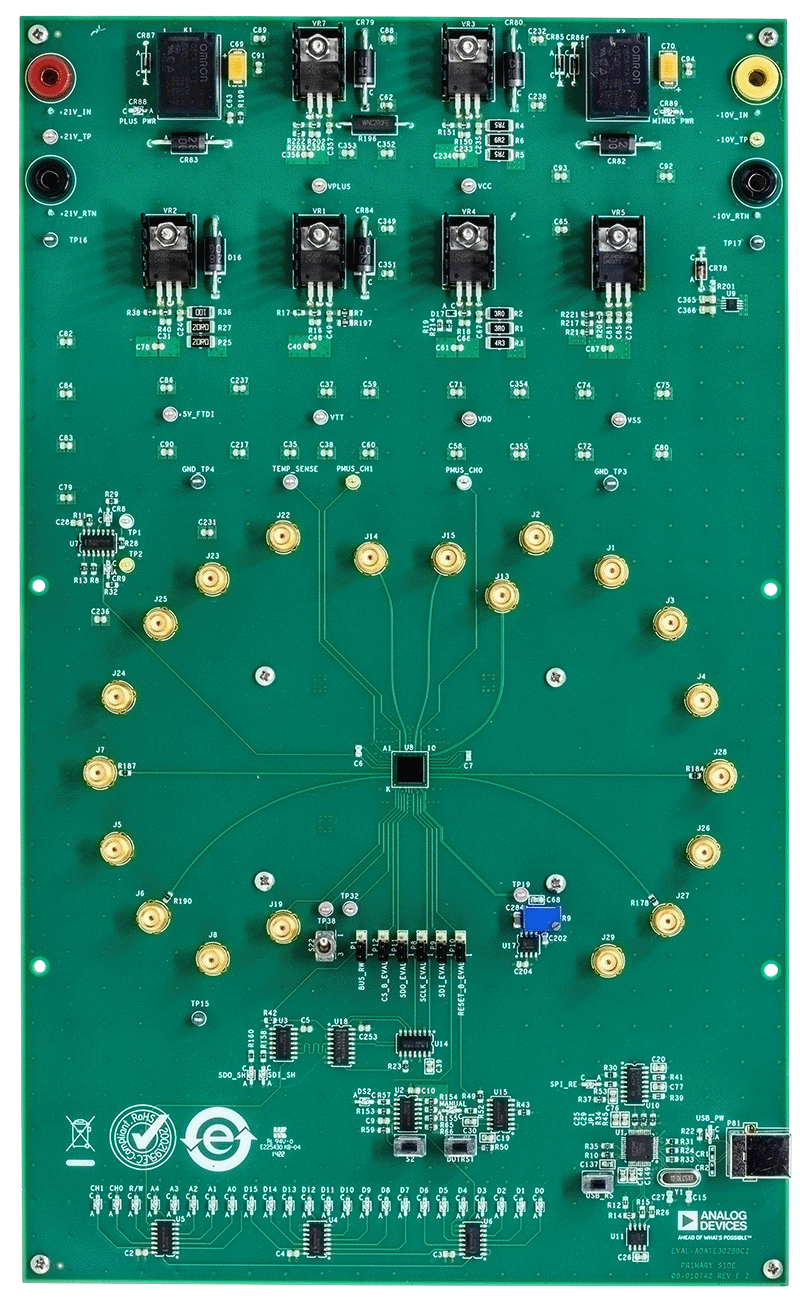

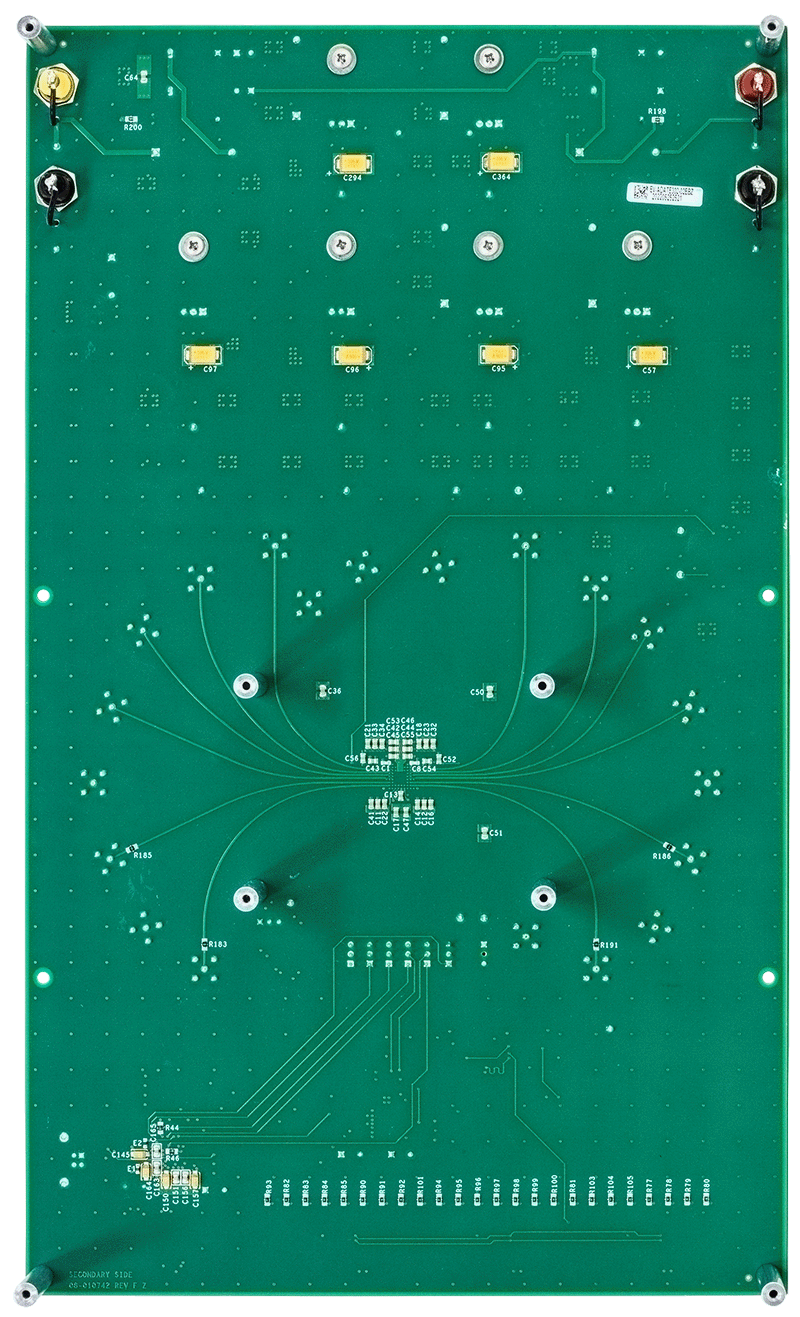

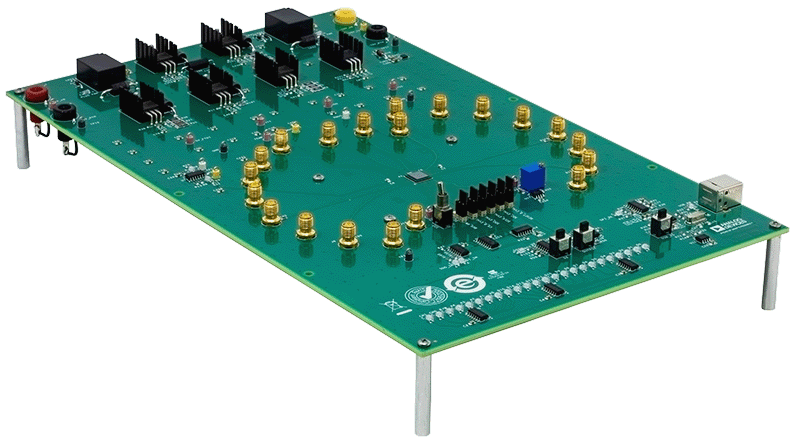

The EV-ADATE302-02EBZ is a full featured evaluation board designed to allow simple evaluation of all features of the ADATE302-02 dual-integrated driver, comparator, and active load (DCL) and four-quadrant per pin parametric measurement unit (PPMU). The EV-ADATE302-02EBZ features breakout connections through the Subminiature Version A (SMA) terminals for all the signal inputs and outputs. The differential pairs are provided with 50 Ω controlled impedance traces with equal lengths.
The EV-ADATE302-02EBZ only requires two power supplies, +21 V and −10 V. All other voltages required by the device are created by the on-board regulators. The EV-ADATE302-02EBZ serial peripheral interface (SPI) communications are provided by an onboard USB universal asynchronous receiver transmitter (UART) chip. SPI jumper connectors allow users to bypass the UART and connect their own SPI signals for evaluation (see Table 1). The default setup is for control through the USB port. Communication with the ADATE302-02 evaluation board software is through the USB, and the light emitting diode (LED) indicators on the EV-ADATE302-02EBZ provide displays for the read and write data.
The ADATE302-02 data sheet provides full details on all the features of the ADATE302-02 device, as well as the information on each of the registers within the ADATE302-02, and must be consulted when using the EV-ADATE302-02EBZ evaluation board.
