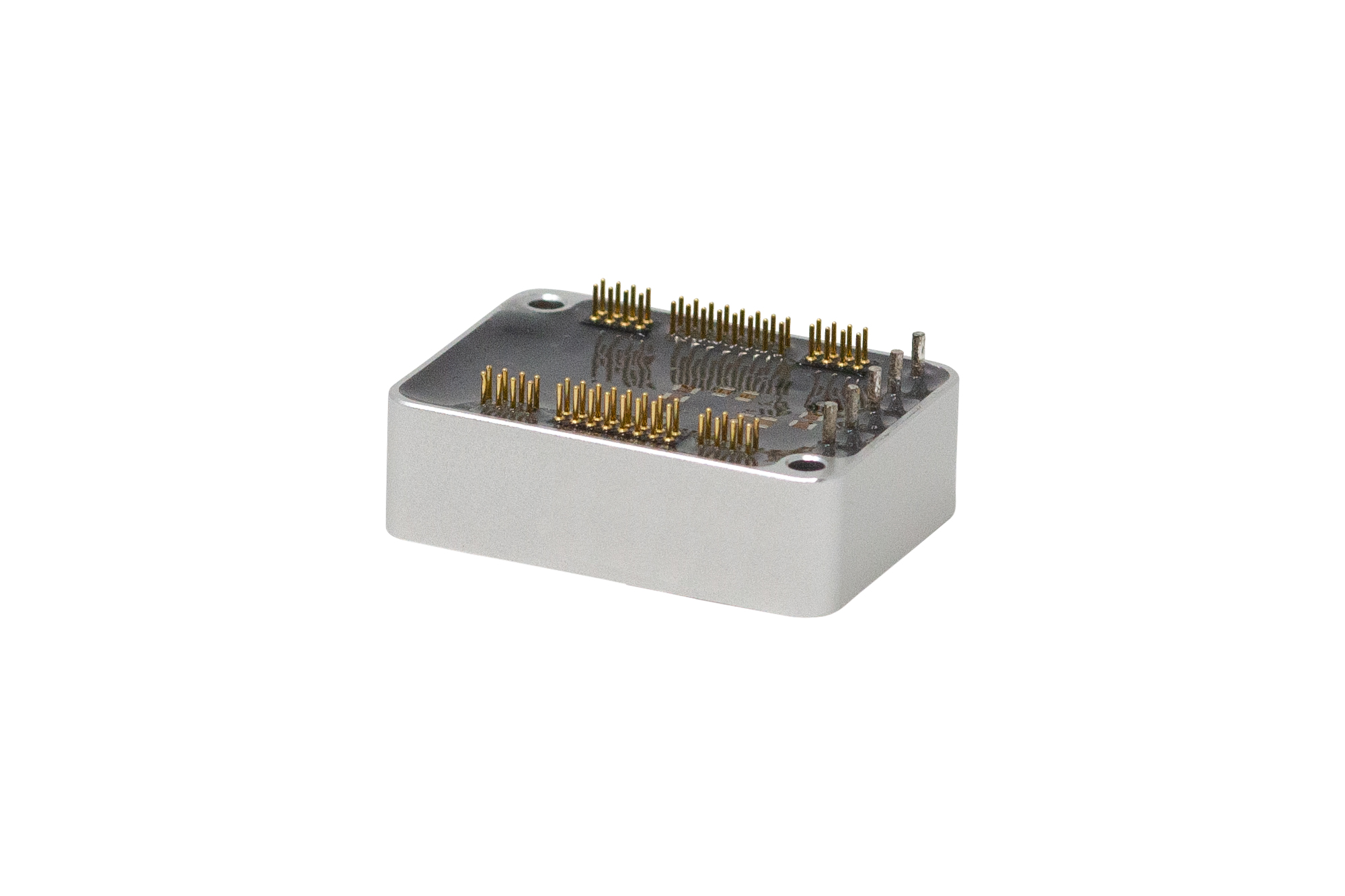

TMCM-1617

Low-weight miniaturized servo drive for 3-phase BLDC motors 8 to 28V, 18A, with CAN and RS485 Interface

更多 showmore-icon

Info : 推荐新设计使用 tooltip
Info : 推荐新设计使用 tooltip
产品详情
产品模型 4
特性
  • Servo drive for BLDC motors
  • +8 to 28V DC supply voltage
  • Up to 18A RMS max motor current
  • RS485, CAN & EtherCAT® interfaces
  • Incremental encoder feedback
  • Digital HALL sensor feedback
  • Reference switch inputs
  • Cooling via aluminum housing
  • L/W/H: 36.8mm x 26.8mm x 11.1mm
  • Weight: ca. 24g
  • Customization options
更多细节
show more Icon

The TMCM-1617 is a low-weight miniaturized single axis servo driver for 3-phase BLDC motors with up to 18A RMS motor current and +24V supply. With CAN, RS485, and EtherCAT® it offers various communication options. TMCM-1617 supports incremental encoders and digital hall sensors as position feedback. Housing is included for the standard modules, but customization options are possible.

All you need to get started is a power supply and ADI Trinamic's free and easy to use TMCL-IDE. This graphical user interface allows quick setup and supports the use of commands in direct mode, monitors real-time behavior visualized in graphs, and logs and stores data.

More about the TMCL-IDE

APPLICATIONS

  • Robotics
  • Laboratory Automation
  • Manufacturing
  • Factory Automation
  • Servo Drives
  • Low Inductance Motors

Technical Details

  TMCM-1617-CoE TMCM-1617-CANopen TMCM-1617-TMCL
Status Active Active Active
Axes 1 1 1
Motor Supply 8 to 28V 8 to 28V 8 to 28V
Phase Current, RMS 18.0A 18.0A 18.0A
a/b/n incremental
CAN
EtherCAT®
RS485
GPIO
Digital Hall
CoE
CANopen
TMCL
Closed Loop Control
FOC
Position Mode
Velocity Mode
Torque Mode
Width 27mm 27mm 27mm
Length 37mm 37mm 37mm
Height 11mm 11mm 11mm
产品模型 4

产品技术资料帮助

close icon

ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许,也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。

参考资料

参考资料

视频

产品型号 引脚/封装图-中文版 文档 CAD 符号,脚注和 3D模型
TMCM-1617-BB
  • HTML
  • HTML
TMCM-1617-CANOPEN
  • HTML
  • HTML
TMCM-1617-COE
  • HTML
  • HTML
TMCM-1617-TMCL
  • HTML
  • HTML

根据型号筛选

reset

重置过滤器

产品型号

产品生命周期

PCN

8月 16, 2022

- 2313

ELECTRICAL DATASHEET

TMCM-1617-CANOPEN

量产

8月 16, 2022

- 2314

ELECTRICAL DATASHEET

TMCM-1617-COE

量产

8月 16, 2022

- 2315

ELECTRICAL DATASHEET

TMCM-1617-TMCL

量产

根据型号筛选

reset

重置过滤器

产品型号

产品生命周期

PCN

8月 16, 2022

- 2313

arrow down

ELECTRICAL DATASHEET

TMCM-1617-CANOPEN

量产

8月 16, 2022

- 2314

arrow down

ELECTRICAL DATASHEET

TMCM-1617-COE

量产

8月 16, 2022

- 2315

arrow down

ELECTRICAL DATASHEET

TMCM-1617-TMCL

量产

软件和型号相关生态系统

软件和型号相关生态系统

评估套件

评估套件 2

reference details image

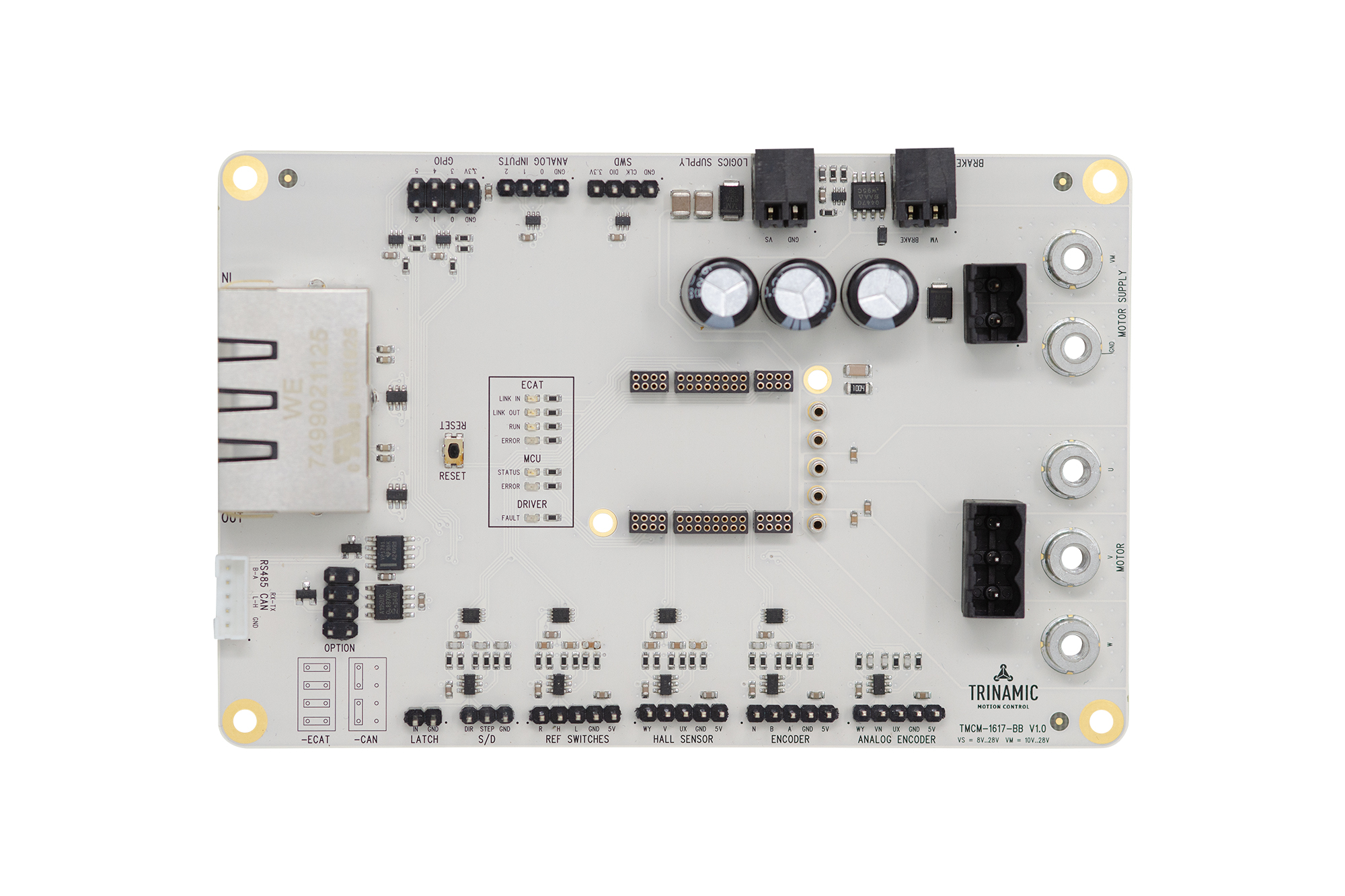

TMCM-1617-BB

Evaluation Board for TMCM-1617-BB

zoom

TMCM-1617-BB

Evaluation Board for TMCM-1617-BB

Evaluation Board for TMCM-1617-BB

特性和优点

  • TMCM-1617 Servo Drive base board for evaluation
  • Board supply voltage: +8V to +28V
  • Screw terminals and standard connectors
  • For EtherCAT and CAN version
  • Connectors and headers for all board IOs
  • CAD design files available for download
  • Accessibility

产品详情

The TMCM-1617-BB is designed for evaluating all features of the TMCM-1617 servo driver. It comes with all required communication interface connectors and I/O headers. Motor power supply and motors can be connected via M4 screw terminals or screw terminal blocks. Digital supply is provided separately.

reference details image

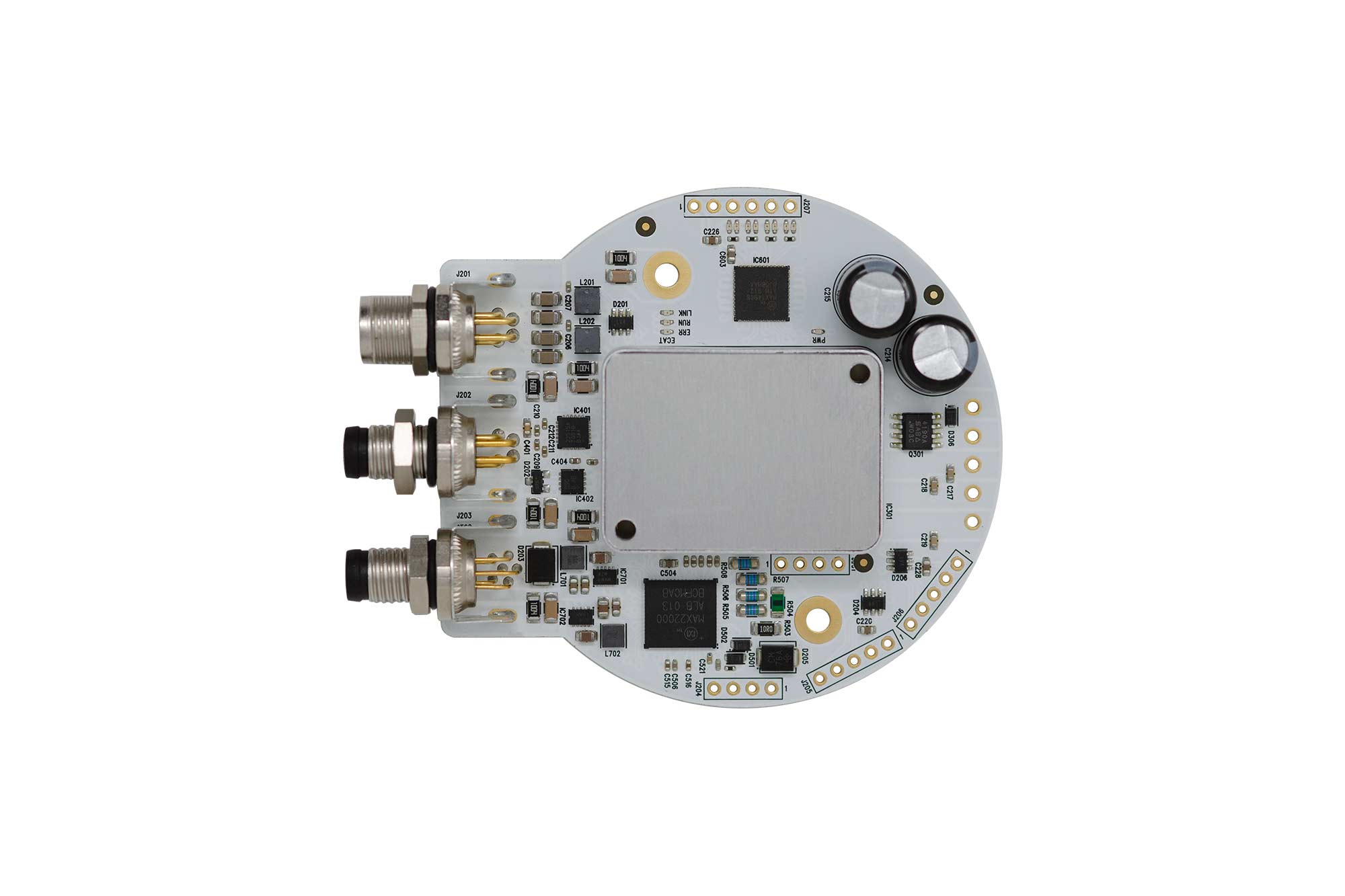

TMCM-1617-GRIP-REF

Evaluation Board for TMCM-1617-GRIP-REF

zoom

TMCM-1617-GRIP-REF

Evaluation Board for TMCM-1617-GRIP-REF

Evaluation Board for TMCM-1617-GRIP-REF

特性和优点

  • Single axis BLDC servo driver for up to 2.5 A RMS motor current
  • +24 V Nominal Supply Voltage (+20 V to +28 V)
  • Digital Hall sensor interface
  • ABN encoder interface
  • 4 Digital +24 V I/O (highside switch, push-pull driver, or a Type 1 and 3, or Type 2 digital input)
  • 1 Analog output (±12.5 V output voltage range, or ±25 mA or ±2.5 mA output current range)
  • 1 Differential analog input (±15 V, ±2.5 V, ±500 mV, ±250 mV, and ±125 mV input voltage ranges)
  • 2.5ARMS, 20 to 28V

产品详情

The TMCM-1617-GRIP-REF is an open-source hardware reference design for the TMCM-1617 BLDC servo driver. To be used in robotic gripper applications, the board is designed in a standard gripper electronics form-factor. It is able to control a BLDC motor via EtherCAT®, IO-Link®, or RS485 using ADI Trinamic's TMCL protocol. In addition, the board features 1 configurable analog output and 1 configurable analog input, using Maxim’s MAX22000 industrial configurable analog I0 device and 4 configurable digital input, digital outputs, using Maxim’s MAX14906 device.
