ADRF5062
推荐新设计使用100 MHz to 13 GHz, Differential SPDT Switch
- 产品模型
- 2
产品详情
- Frequency range: 100 MHz to 13 GHz
- Nonreflective, differential, 100 Ω impedance design
- Low insertion loss
- 0.9 dB to 10 GHz
- 1.0 dB to 13 GHz
- High isolation
- >45 dB to 10 GHz
- >40 dB to 13 GHz
- High input linearity
- P0.1dB: >34 dBm typical
- IP3: 65 dBm typical
- High power handling
- Through path: 33 dBm typical
- Terminated path: 30 dBm typical
- Hot switching: 27 dBm typical
- On and off time: 60 ns typical
- Positive control interface: CMOS-/LVTTL-compatible
- All off state control
- Pin-compatible with ADRF5063, low-frequency cutoff version
- 20-terminal, 3.0 mm × 3.0 mm LGA package
The ADRF5062 is a silicon, nonreflective, differential, SPDT switch.
The ADRF5062 operates from 100 MHz to 13 GHz with insertion loss of lower than 1.0 dB and isolation of higher than 40 dB. The ADRF5062 has a RF input power handling capability of differential 33 dBm for through paths, differential 30 dBm for terminated paths and differential 27 dBm hot switching at the RF common port.
The ADRF5062 can operate with dual-supply voltages of ±3.3 V or a single-supply voltage of +3.3V when VSS is connected to GND. The ADRF5062 employs complementary metal-oxide semiconductor (CMOS)-compatible and low voltage transistor logic (LVTTL)-compatible controls. The ADRF5062 has an enable control to feature all off states.
The ADRF5062 can also operate with a single positive supply voltage (VDD) applied while the negative supply voltage (VSS) is connected to ground. In this operating condition, the small signal performance is maintained while the switching characteristics, linearity, and power handling performance is derated.
The ADRF5062 is pin-compatible with the ADRF5063, low-frequency cutoff version, which operates from 9 kHz to 13 GHz.
The ADRF5062 comes in a 20-terminal, 3.0 mm × 3.0 mm LGA package and can operate from −40°C to +105°C.
APPLICATIONS
- Test instrumentation
- Data converter interfaces
- High data rate interfaces
参考资料
数据手册 1
用户手册 1
ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。
| 产品型号 | 引脚/封装图-中文版 | 文档 | CAD 符号，脚注和 3D模型 |
|---|---|---|---|
| ADRF5062BCCZN | 20-terminal LGA (3 mm x 3 mm x 0.71 mm w/EP) | ||
| ADRF5062BCCZN-R7 | 20-terminal LGA (3 mm x 3 mm x 0.71 mm w/EP) |
这是最新版本的数据手册
软件资源
找不到您所需的软件或驱动?
申请驱动/软件工具及仿真模型
S-参数 1
评估套件

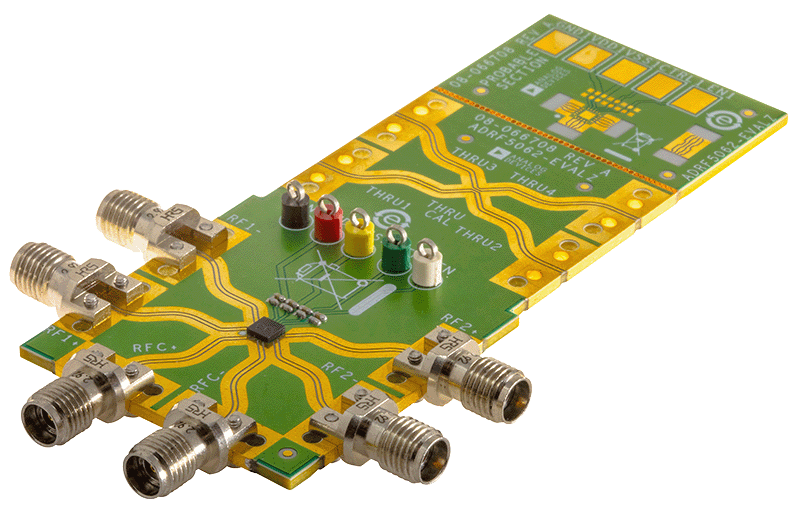

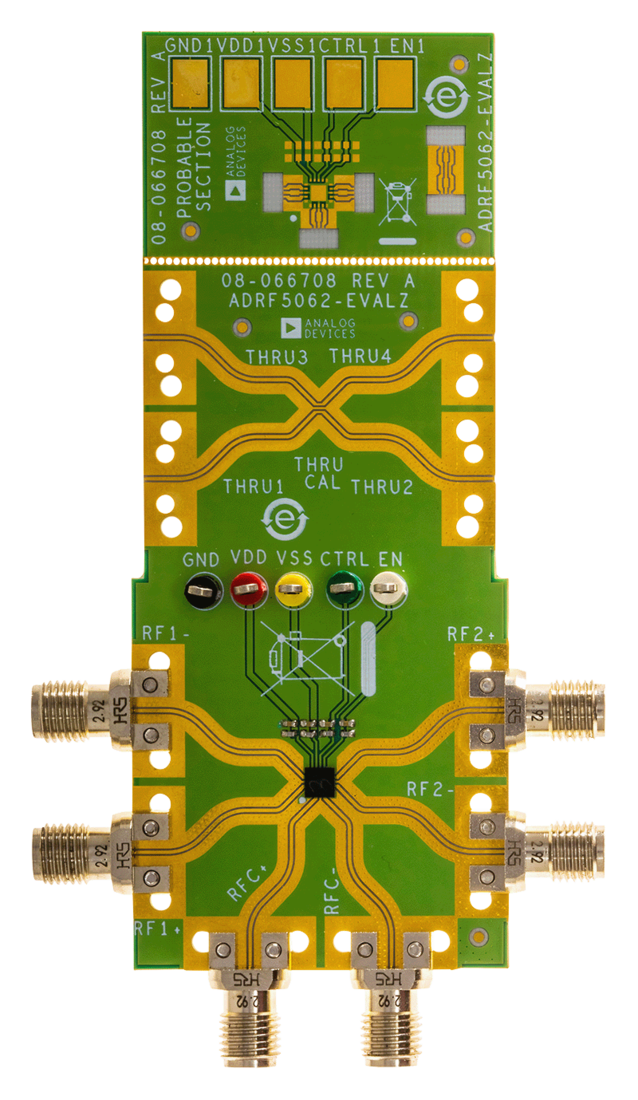

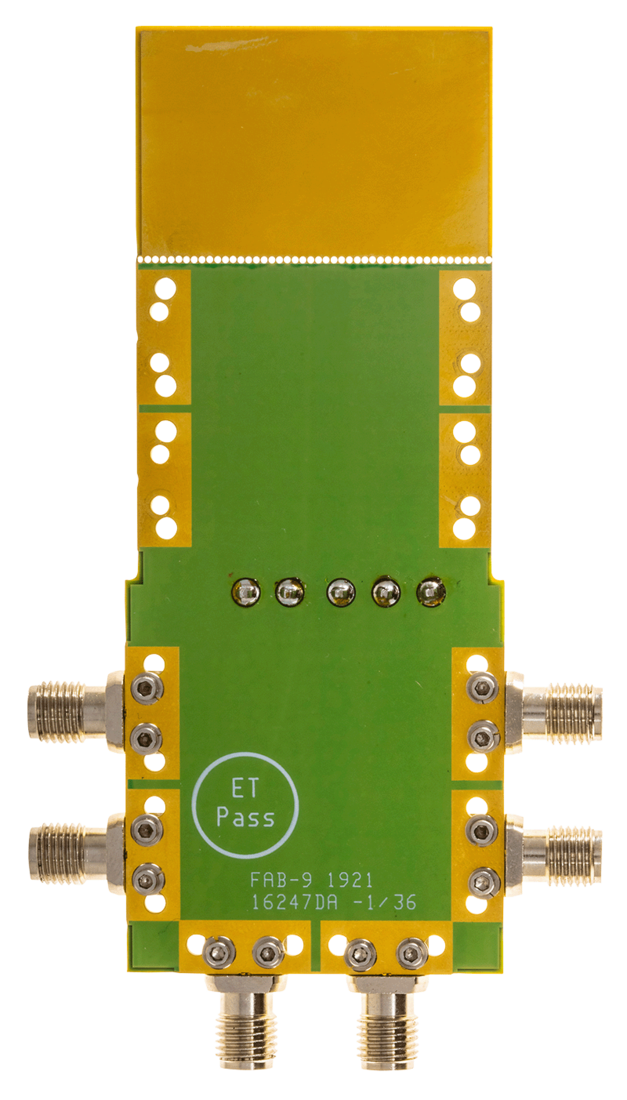

评估 ADRF5062 100 MHz 至 13 GHz 差分 SPDT 开关
