製品概要

機能と利点

  • 1:2 2-Wire Multiplexer/Switch
  • Connect SDA and SCL Lines with 2-Wire Bus
    Commands
  • Supply Independent Bidirectional Buffer for SDA
    and SCL Lines Increases Fan-Out
  • Programmable Disconnect from Stuck Bus
  • Compatible with I2C and SMBus Standards
  • Rise Time Accelerator Circuitry
  • SMBus Compatible ALERT Response Protocol
  • Prevents SDA and SCL Corruption During Live Board
    Insertion and Removal from Backplane
  • ±10kV Human Body Model ESD Ruggedness

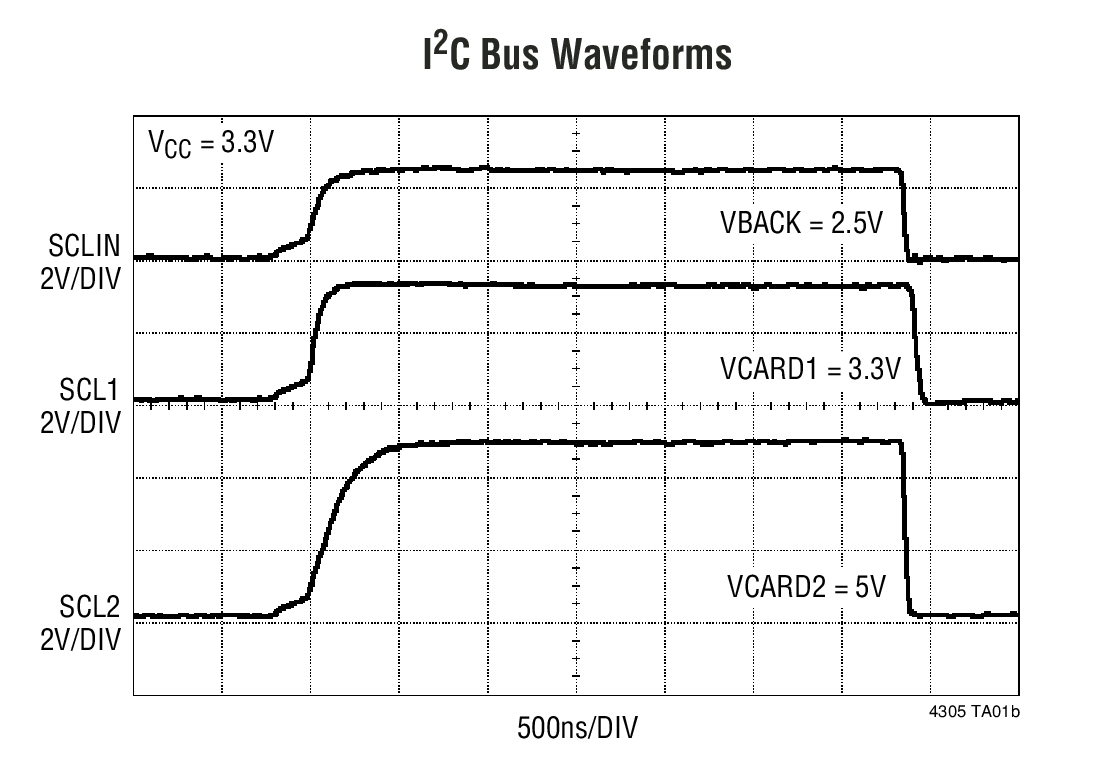

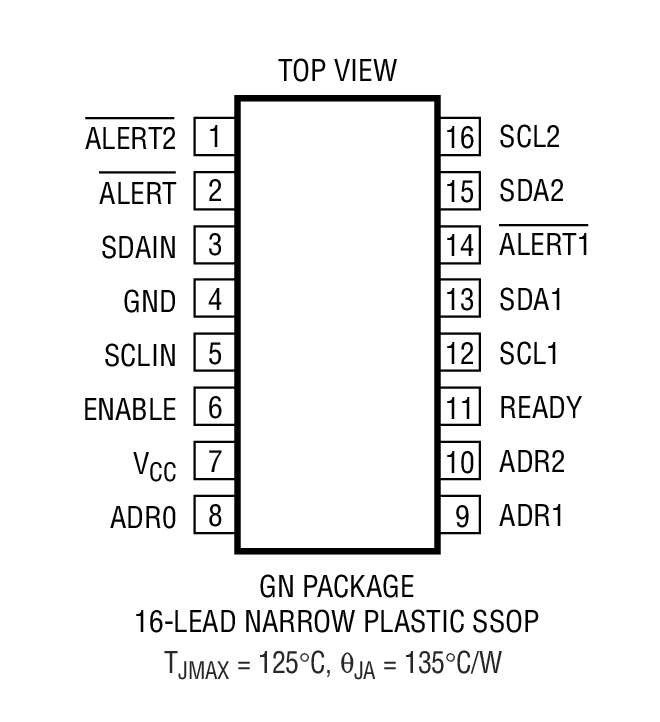

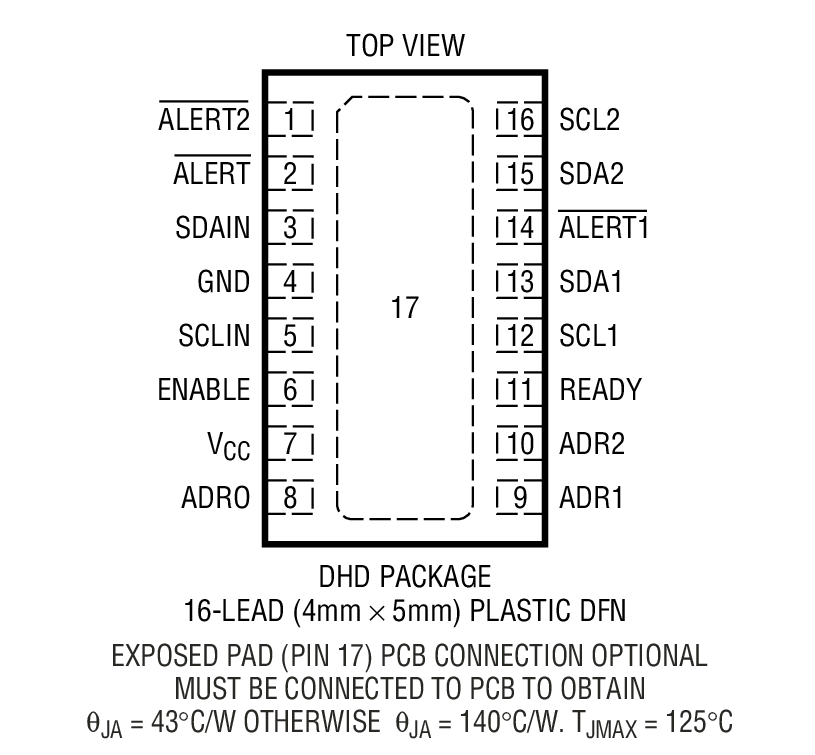

  • 16-Lead (4mm × 5mm) DFN and SSOP Packages

製品概要

The LTC4305 is a 2-channel, 2-wire bus multiplexer with bus buffers to provide capacitive isolation between the upstream bus and downstream buses. Through software control, the LTC4305 connects the upstream 2-wire bus to any desired combination of downstream channels. Each channel can be pulled up to a supply voltage ranging from 2.2V to 5.5V, independent of the LTC4305 supply voltage. The downstream channels are also provided with an ALERT1-ALERT2 inputs for fault reporting.

Programmable timeout circuitry disconnects the downstream buses if the bus is stuck low. When activated, rise time accelerators source currents into the 2-wire bus pins to reduce rise time. Driving the ENABLE pin low restores all features to their default states. Three address pins provide 27 distinct addresses.

The LTC4305 is available in 16-lead (4mm × 5mm) DFN and SSOP packages.

Applications

  • Nested Addressing
  • 5V/3.3V Level Translator
  • Capacitance Buffer/Bus Extender

製品ライフサイクル icon-recommended 製造中

この製品ファミリーの1つ以上の型番が生産/供給中です。新規の設計に適していますが、より新しい代替製品を提供している場合があります。

ツール

IBIS Models

LTC4305 IBIS Model GN Package

16 Lead Plastic SSOP

LTC4305 IBIS Model DHD Package

16 Lead (4mm x 5mm) Plastic DFN
