LTC3621

• Allows evaluation and prototyping of 60 GHz wireless data links to replace traditional mechanical connectors in moving joints
• 1 Gbps Ethernet interface on both sides of the wireless data link
• Fully programmable system allowing ultimate flexibility for custom developments
• Open-source software stack for firmware development
• Open-source GUI for system configuration, monitoring, and control

The ADMV96S-WGBE-EK1 is a complete evaluation and prototyping system for 60 GHz wireless data links. It consists of a pair of receiver and transmitter boards with a 1Gbp Ethernet interface on each side of the wireless link.

The 60 GHz wireless link is implemented by the ADMV9615 and ADMV9525 modules. These are coupled with a SerDes device which translates the modules’ SGMII interface to RGMII so that it can be connected to an ADIN1300 industrial low latency and low power 1 Gbps Ethernet PHY. This enables each side of the wireless link to act as an Ethernet port and essentially create a seamless wire-like connection between two ends of an Ethernet cable.

The on-board MAX32650 ultralow power ARM^® Cortex^®-M4 microcontroller controls the system’s operation and implements the algorithms to configure the wireless link in real time so that optimal link quality is constantly maintained over temperature and various operating conditions. An open-source software stack is provided for firmware development as well as reference applications. The MAX32650 can be programmed through a programming port which can also be used for firmware debugging.

The two sides of the wireless link are mounted on an adjustable rail so that the system can be configured and tested for various distances between the links. Each side of the link is powered from an external 12 V power supply.

An open-source GUI is provided for system configuration, monitoring, and control from a host PC.

APPLICATIONS

• 60 GHz wireless data links for industrial and medical high data rate applications
• High speed data for rotating applications, such as slip rings and magnetic resonance imaging systems
• Autonomous guided vehicles
• Mechanical Connector replacement

Demonstration circuit 1864A is a step-down converter, capable of delivering up to 1A of output current from a minimum input voltage of 2.7V. The DC1864A uses the power-saving LTC3621-2 2.25MHz monolithic synchronous buck regulator that comes in a tiny 2mm × 3mm 6-lead DFN package. The LTC3621-2 IC quiescent currents can be as low as 3.5μA in normal operation, and less than 0.1μA in shutdown. The output voltage range of the DC1864A is from as low as 0.6V, the reference voltage of the LTC3621‑2, to as high as the maximum input voltage, 17V.

• FMC対応のフォーム・ファクタ
• FMCコネクタから給電、外部電源も使用可能
• レベル変換と各種電源電圧を提供
• RaspberryPi X-MWコントローラに適合

AD-FMCXMWBR1-EBZは、FMC対応のフォーム・ファクタを備えたレベル変換器および電源ボードです。FMCコネクタから給電され、外部電源を追加することができるため、大きい負荷電流が必要なアプリケーションにも適しています。この場合は、外部電源が優先されます。

AD-FMCXMWBR1-EBZによって、コントローラ／FPGAデバイスとX-MWブロックとの間に、レベル変換を行った複数のデジタル・コミュニケーション・パスが可能となります。モジュールは、高い電流出力能力を持つ複数の電源電圧を提供します。それらを使用して、プロトタイプ設計内のX-MWブロックやその他のICにバイアスをかけることができます。

アプリケーション

• RFおよびマイクロ波の設計
• 電圧レベル変換
• 汎用ソフトウェア無線
• レーダー・システム
• ポイントtoポイント通信システム
• 多重入力／多重出力（MIMO）無線
• ATE（自動試験装置）

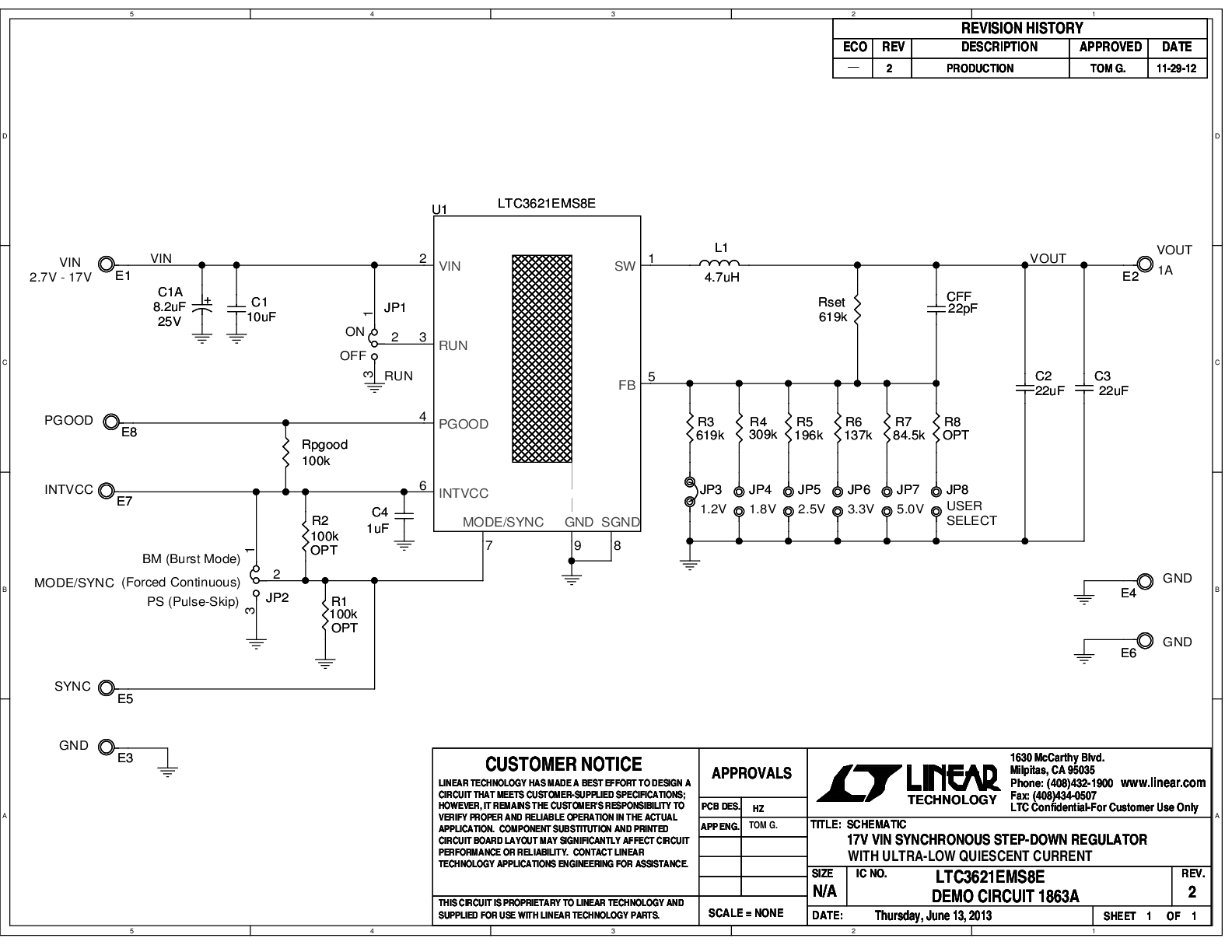

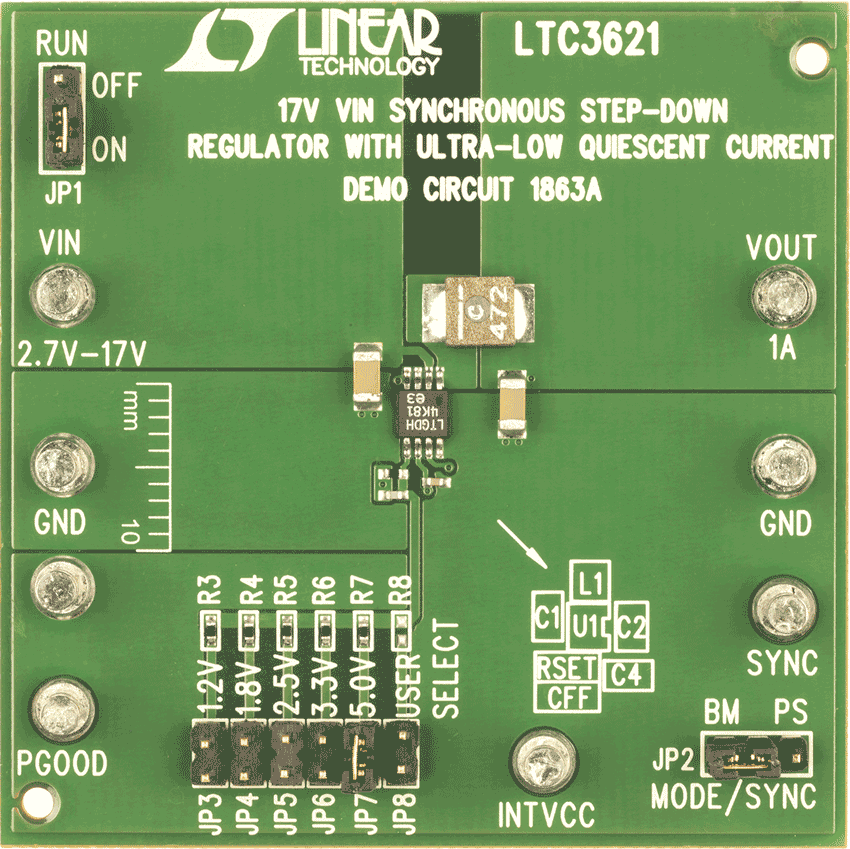

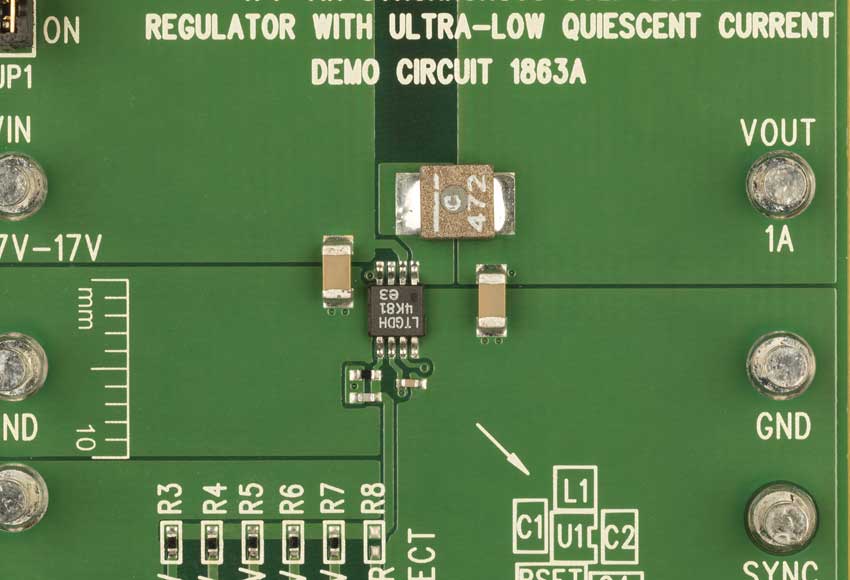

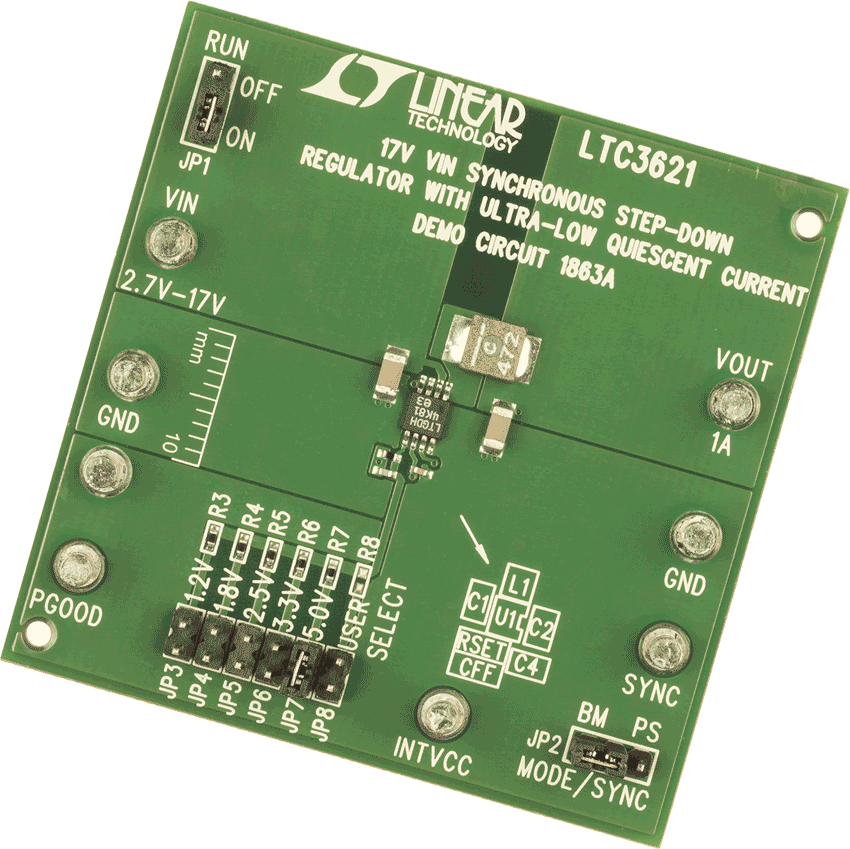

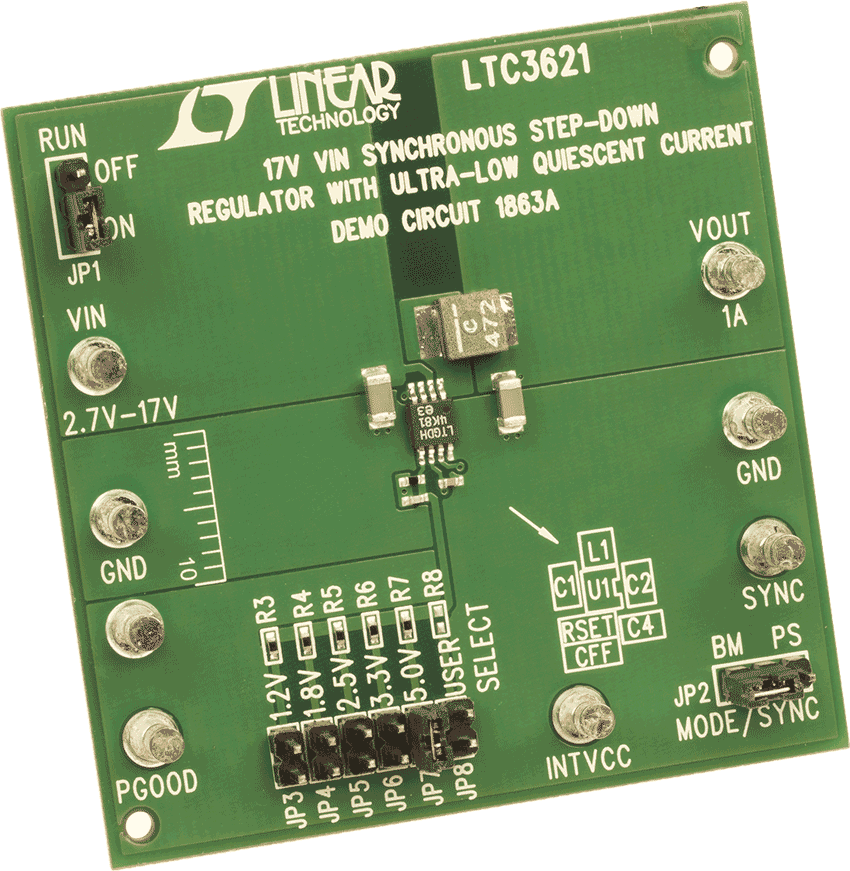

Demonstration circuit 1863 is a step-down converter, capable of delivering up to 1A of output current from a minimum input voltage of 2.7V. The DC1863A uses the power-saving LTC3621 1MHz monolithic synchronous buck regulator in a small 8-lead MS8 package. The LTC3621 IC quiescent currents can be as low as 3.5μA in normal operation, and less than 0.1μA in shut down. The output voltage range of the DC1863A is from as low as 0.6V, the reference voltage of the LTC3621, to as high as the maximum input voltage, 17V.

• Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications
• Our reference designs are supported by an intuitive design tool set and IP
• Our team can provide designs for quick prototypes that can speed time to market in the most complex applications
