製品概要
機能と利点
- 15Msps Throughput Rate
- No Pipeline Delay, No Cycle Latency
- 93.8dB SNR (Typ) at fIN = 1MHz
- 102dB SFDR (Typ) at fIN = 1MHz
- Nyquist Sampling Up to 7.5MHz Input
- Guaranteed 16-Bit, No Missing Codes
- ±0.8LSB INL (Max)
- 8.192VP-P Differential Inputs
- 5V and 2.5V Supplies
- Internal 20ppm/°C (Max) Reference
- Serial LVDS Interface
- 125mW Power Dissipation
- 32-Pin (5mm × 5mm) QFN Package
製品概要
The LTC2387-16 is a low noise, high speed, 16-bit 15Msps successive approximation register (SAR) ADC ideally suited for a wide range of applications. The combination of excellent linearity and wide dynamic range makes the LTC2387-16 ideal for high speed imaging and instrumentation applications. No-latency operation provides a unique solution for high speed control loop applications. The very low distortion at high input frequencies enables communications applications requiring wide dynamic range and significant signal bandwidth.
To support high speed operation while minimizing the number of data lines, the LTC2387-16 features a serial LVDS digital interface. The LVDS interface has one-lane and two-lane output modes, allowing the user to optimize the interface data rate for each application.
Applications
- High Speed Data Acquisition
- Imaging
- Communications
- Control Loops
- Instrumentation
- ATE
製品ライフサイクル
新規設計にお薦めします
発売済みの製品です。データシートには、最終的な仕様と動作条件がすべて記載されています。新規の設計には、これらの製品の使用を推奨します。

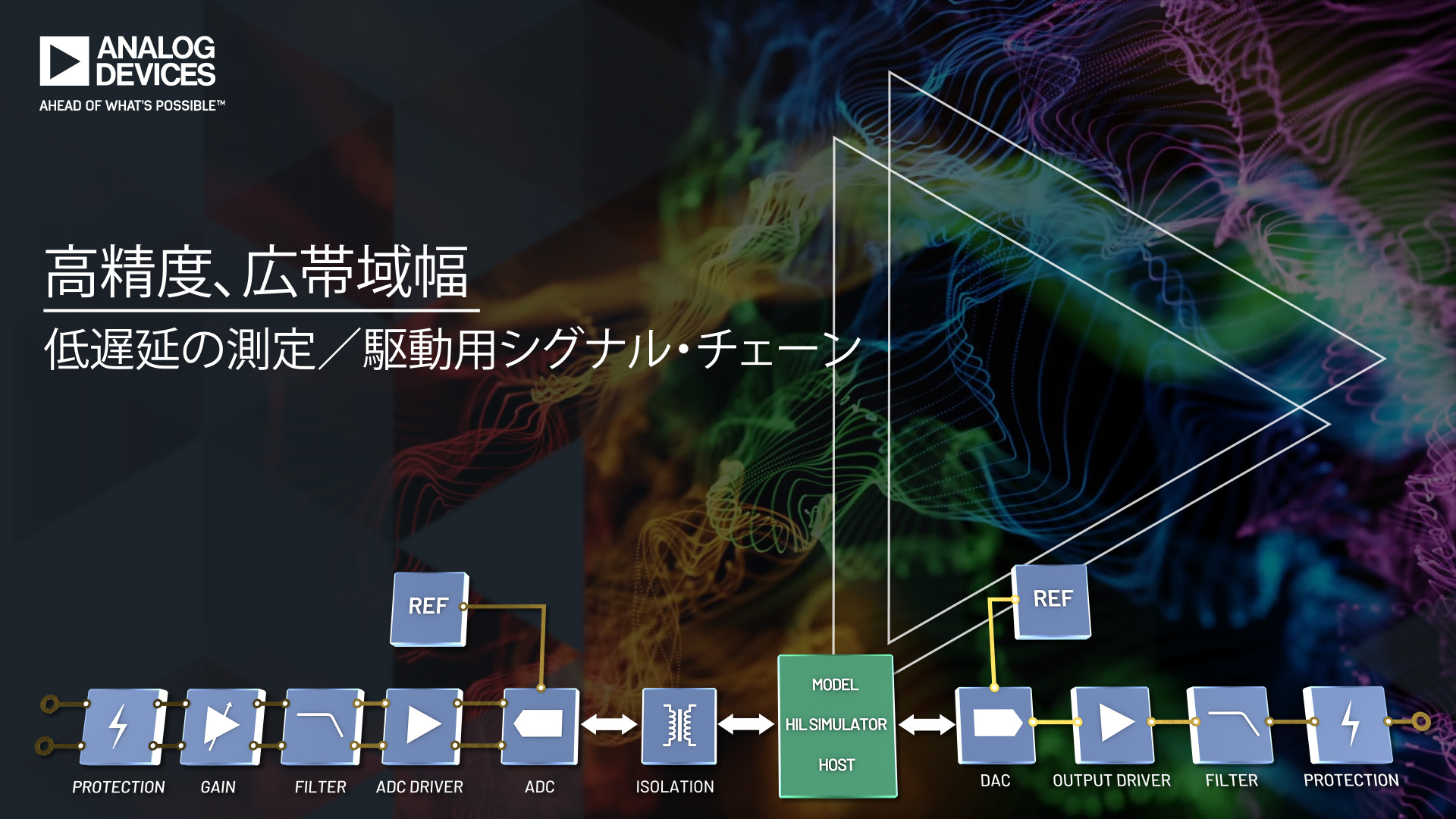

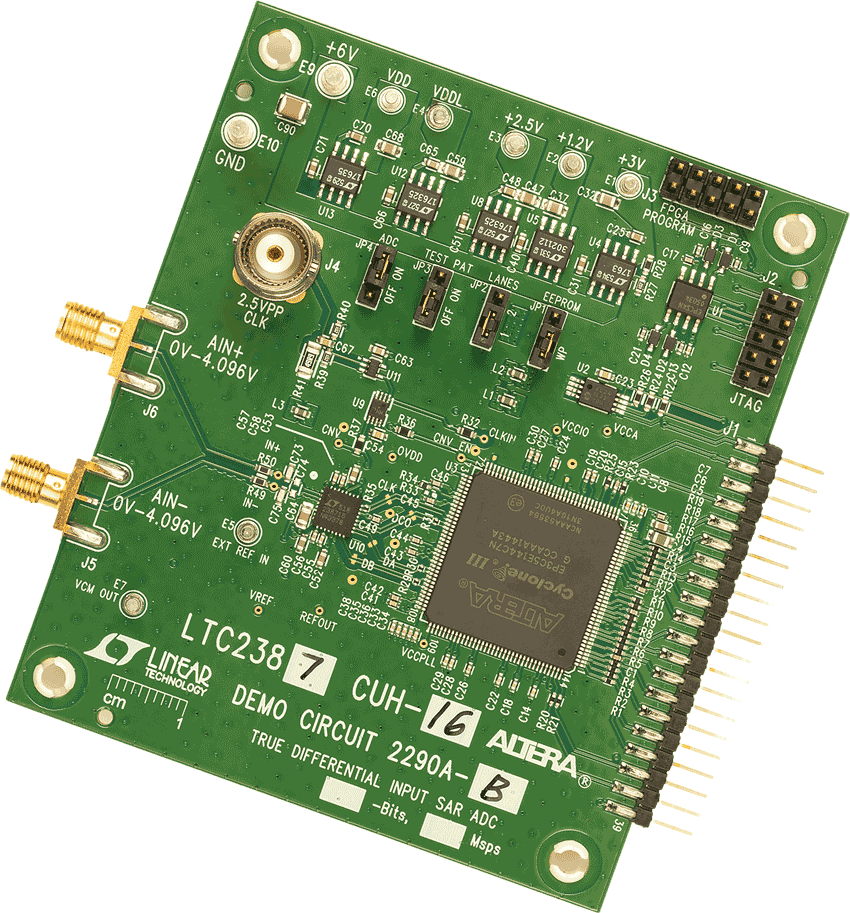

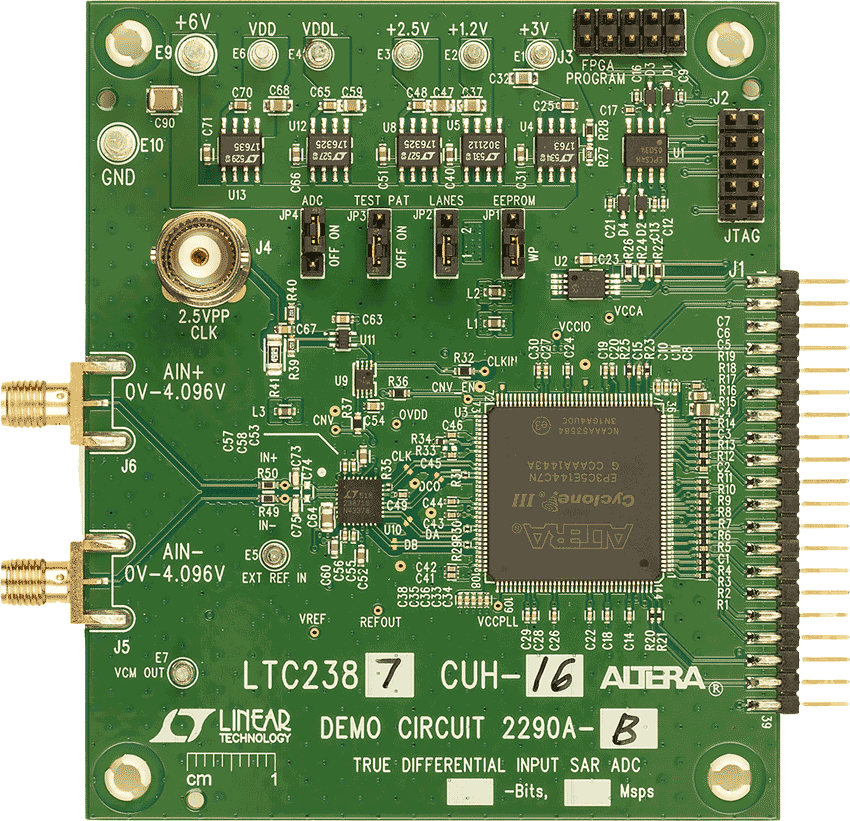

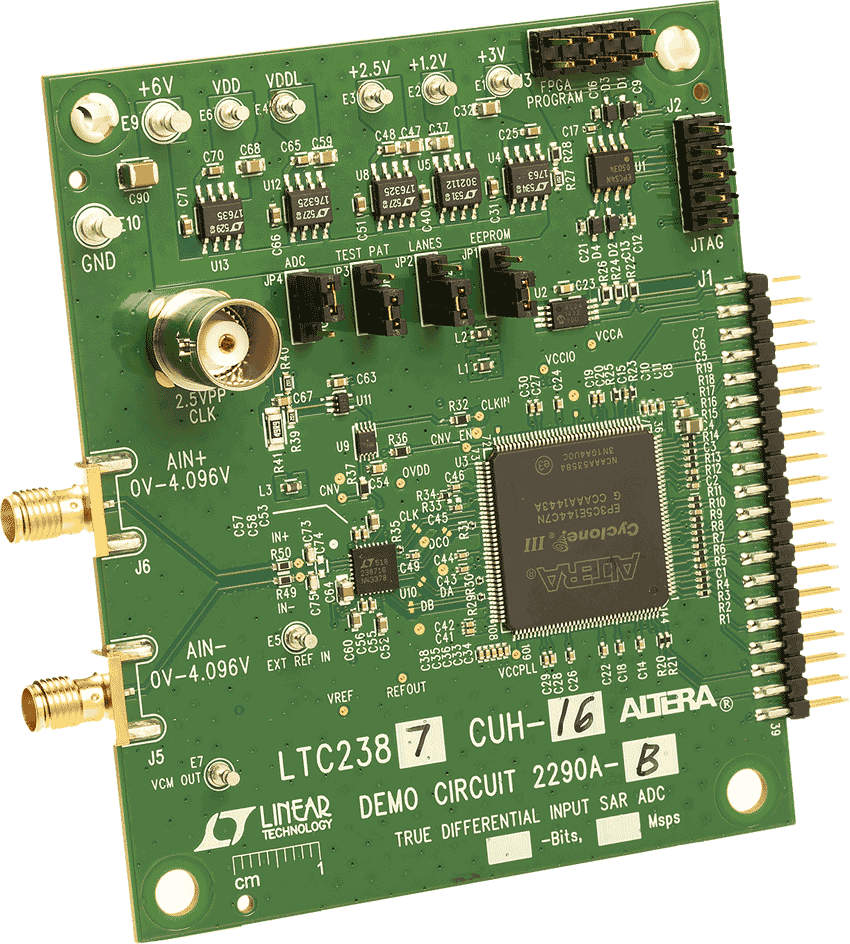

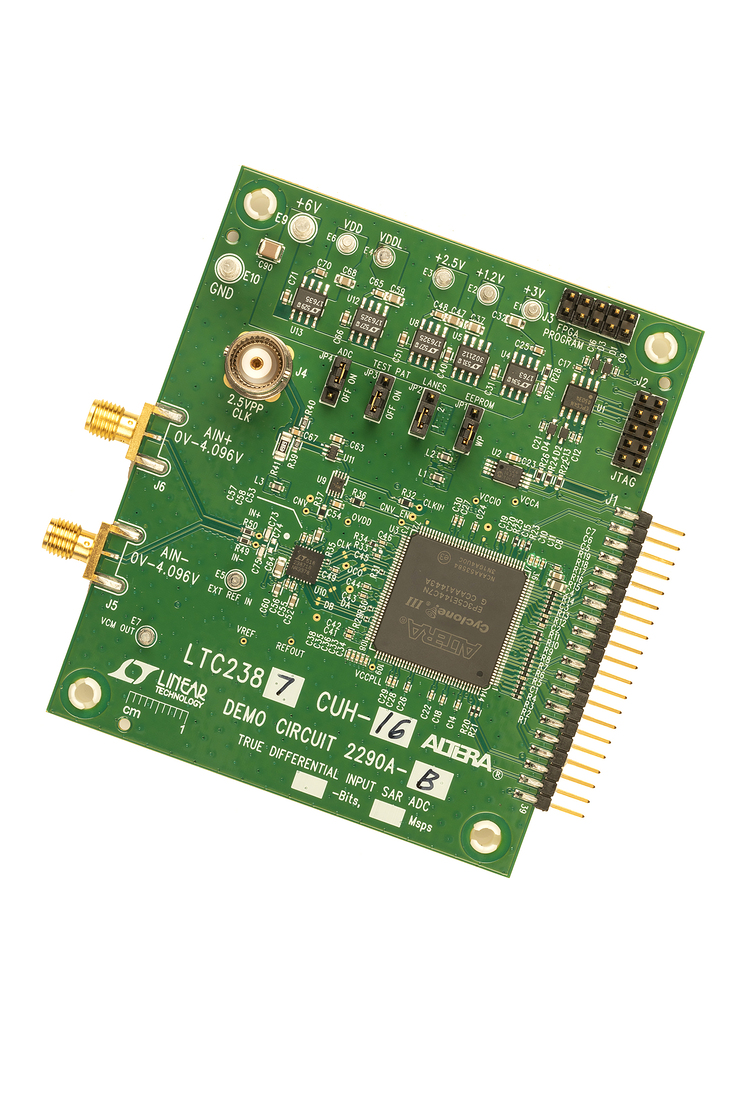

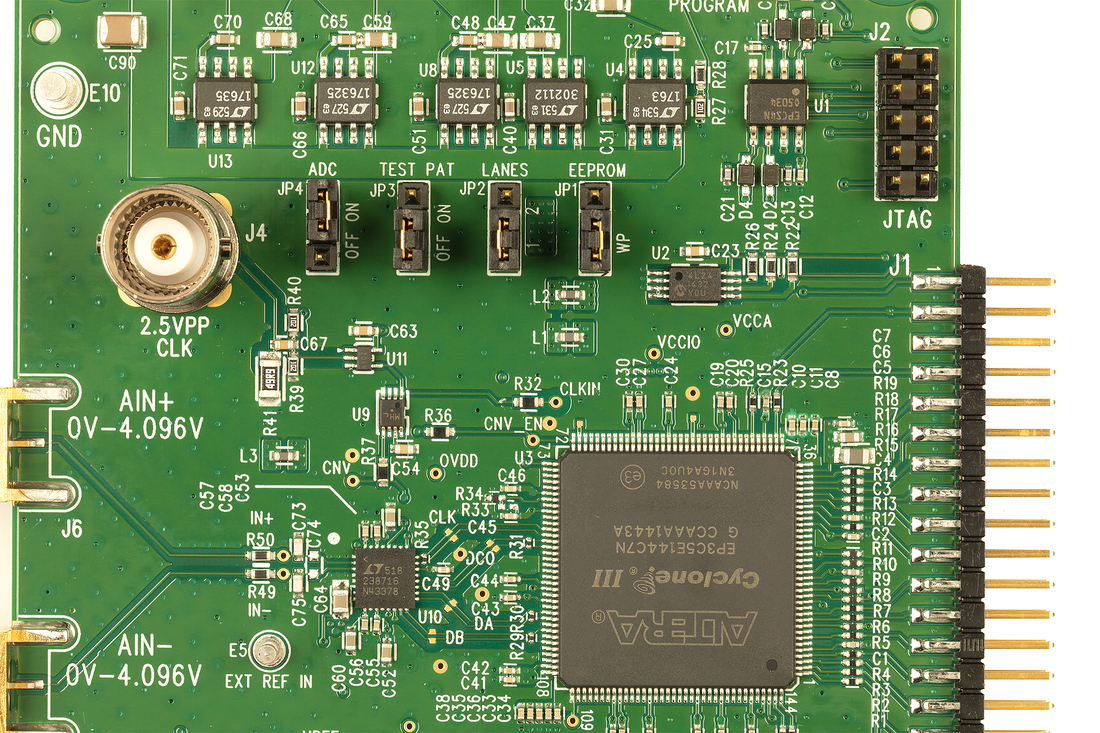

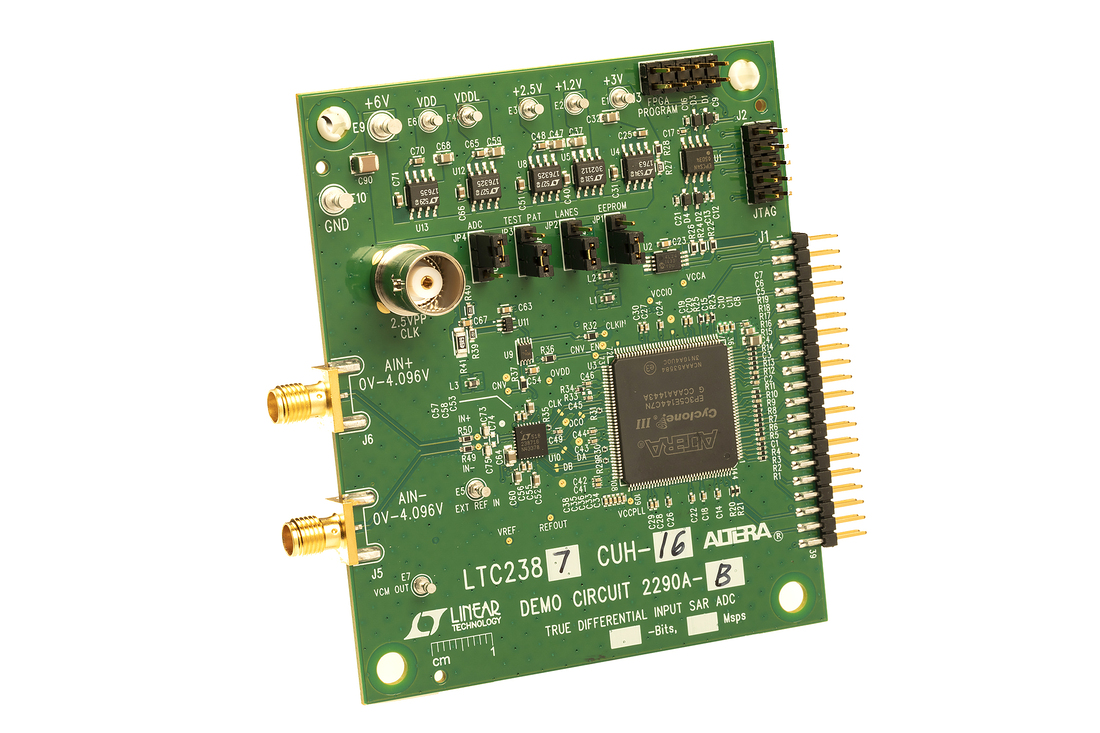

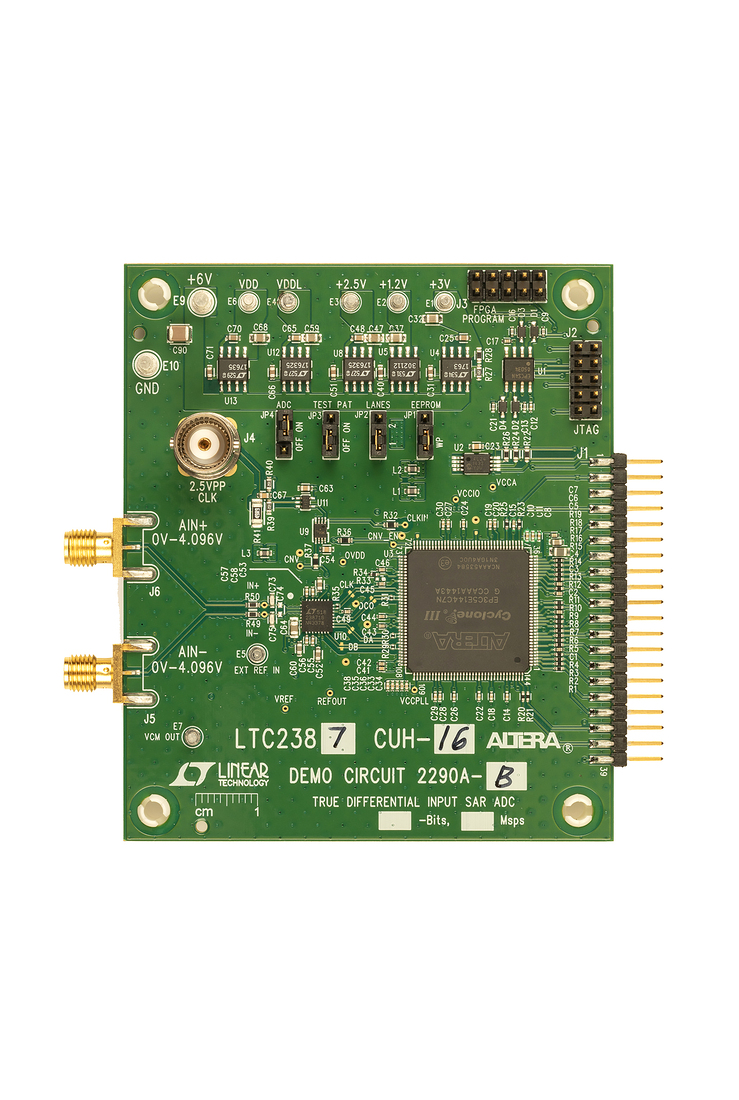

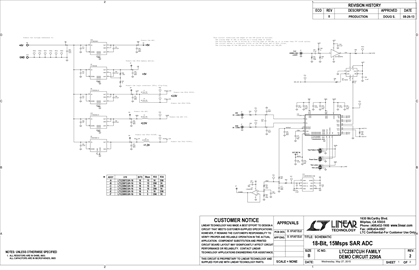

評価キット (1)
ドキュメント
Reliability Data (1)
評価用キット マニュアル (1)
ソフトウェア & システム
Evaluation Code
評価用ソフトウェア
LinearLab ツール
PScope
ツール
LTspice
LTspice®は、無料で提供される強力で高速な回路シミュレータと回路図入力、波形ビューワに改善を加え、アナログ回路のシミュレーションを容易にするためのモデルを搭載しています。
LTspiceデモ用回路集の実行方法
ステップ1: LTSpiceをダウンロードし、インストールしてください。
ステップ2: 下のセクションのリンクをクリックし、デモ用回路をダウンロードしてください。
ステップ3: 下のリンクをクリックしてもLTSpice が自動的に開かない場合は、リンクを右クリックし、“Save Target As”(対象をファイルに保存)を選択する方法でもシミュレーションを実行できます。ファイルを保存したら、LTSpiceを起動し、"File"メニューから"Open"を選択してデモ用回路を開いてください。

高精度ADC ドライバ・ツール
高精度ADCドライバ・ツールは、高精度ADCとドライバを組み合わせたときの性能をシミュレートするWebアプリケーションです。ドライバの選択、キックバックのセトリング、歪みの潜在的な問題を明らかにし、設計のトレードオフを短時間で評価できます。システム・ノイズ、歪み、ADC入力のセトリングについてシミュレーションと計算ができます。
