ADXRS290

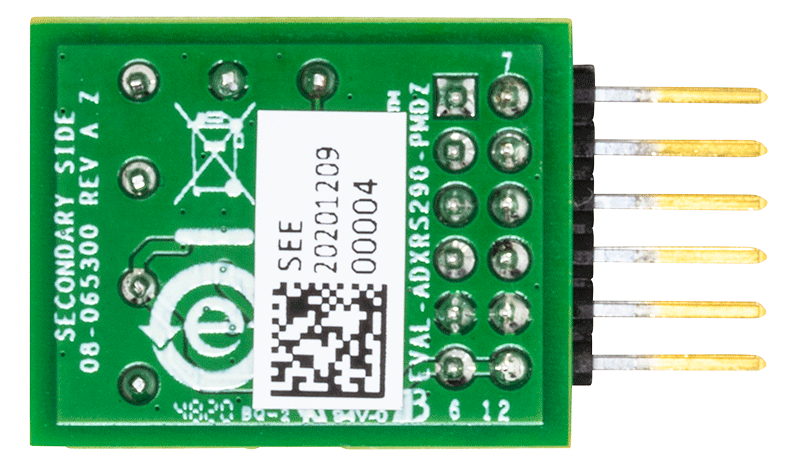

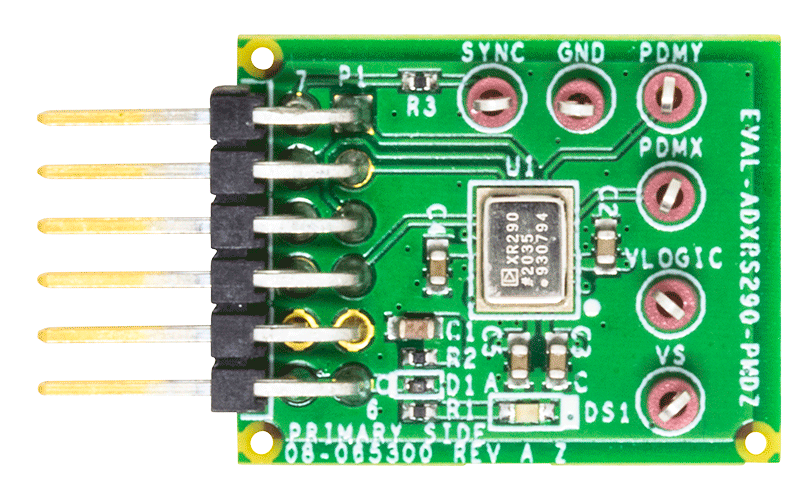

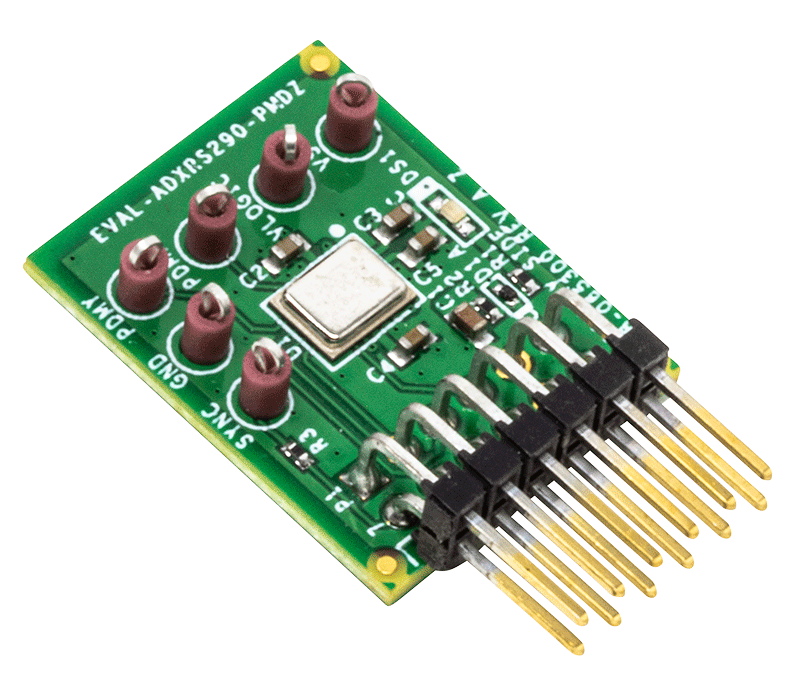

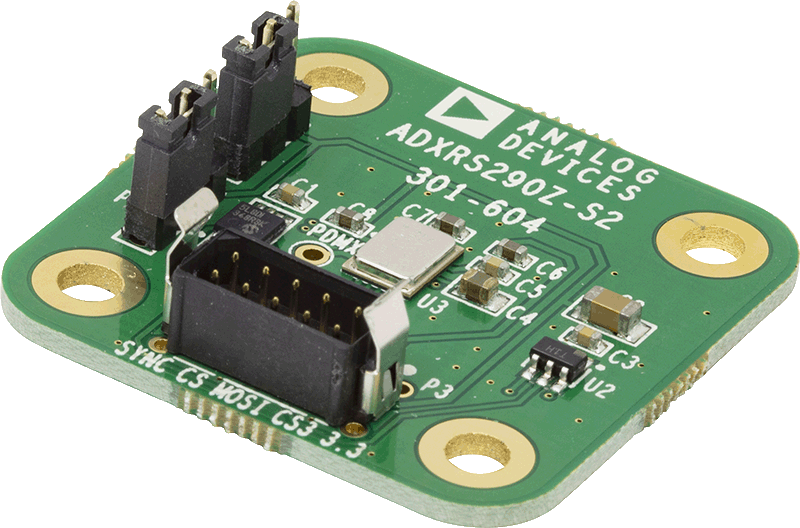

PMOD互換のADXRS290評価用／プロトタイピング・ボードは、小型で低価格の2軸ジャイロ・センサー測定ボードです。プロトタイピングの際、このボードはADICUP3029開発プラットフォームと組み合わせて使用​​します。電気的および物理的に直接接続できるため、ハードウェアとソフトウェアをすぐに使い始めることができ、ソリューションの開発に役立ちます。

SPI PMODペリフェラル・コネクタは、多くのサード・パーティ製MCUまたはFPGA開発ボードにも搭載されています。ADXRS290-PMDZは、これらのシステムに直接接続できるほか、提供されるADI参照コードを使用して独自のアプリケーション・コードを開発できます。

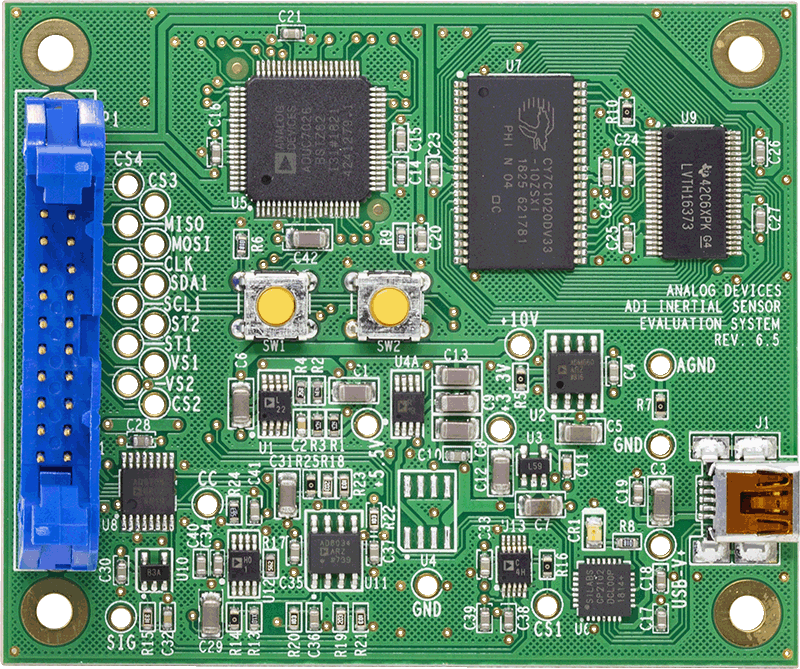

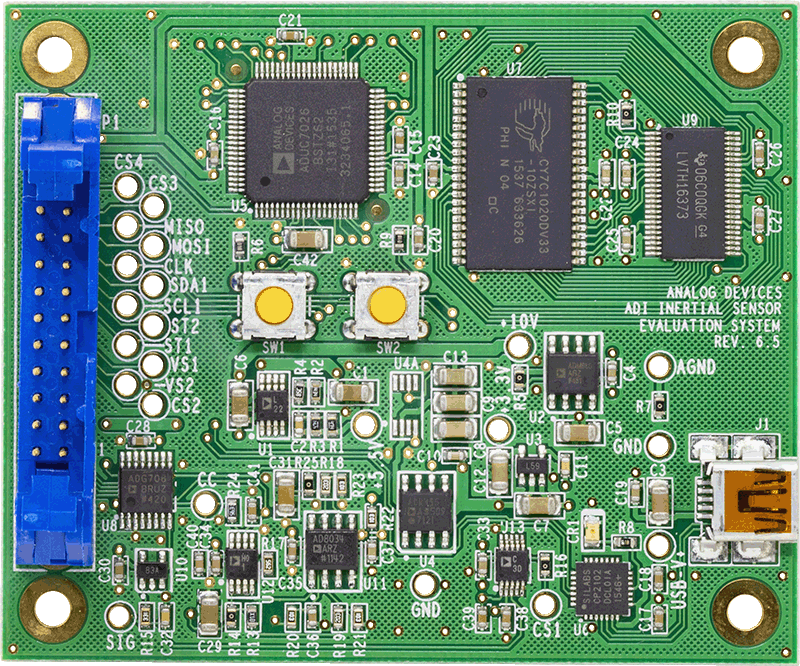

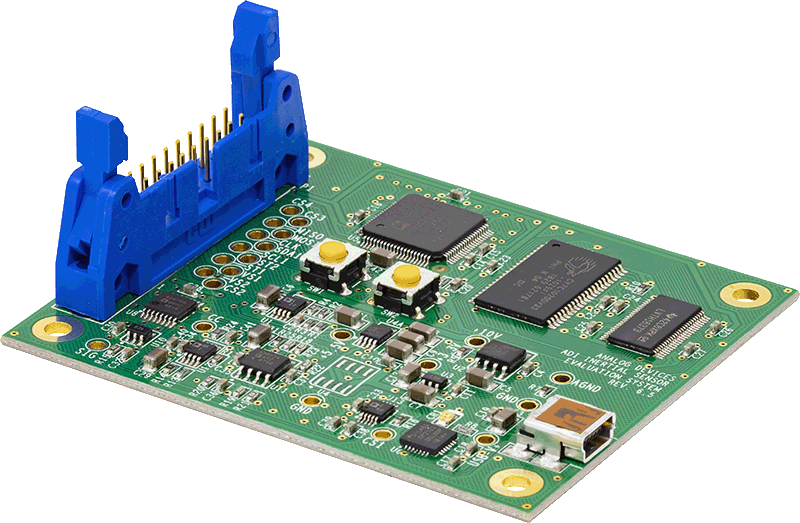

The iMEMS^® ADXRS290 inertial sensor evaluation system is an easy-to-use evaluation tool targeting bench or desktop characterization of Analog Devices, Inc., inertial sensor products. The system consists of the inertial sensor evaluation board (ISEB), or main board, for any Analog Devices inertial sensor product. The ISEB connects directly to a PC via an USB cable, with the USB connection providing both communications and power to the board. The ISEB is connected to the satellite board through a ribbon cable. This cable allows the satellite to be easily manipulated for testing or separately placed into an environmental chamber for temperature or humidity testing. Separating the boards mitigates corruption of data due to the temperature and humidity effects of other components.

The ISEB is an universal main board and is intended to be used with various satellites of Analog Devices inertial sensors, including analog and digital accelerometers, as well as gyroscopes. The different products are evaluated by means of separate GUIs that are customized for performance and characterization measurements relevant to the inertial sensor being evaluated. Since the power consumption of gyro is relatively high compared with the accelerometers, different shunt resistor have to be used to detect its power consumption, the difference between ADXRS290 –M with other –M is just the circuits for detecting the power consumption of the gyroscope.

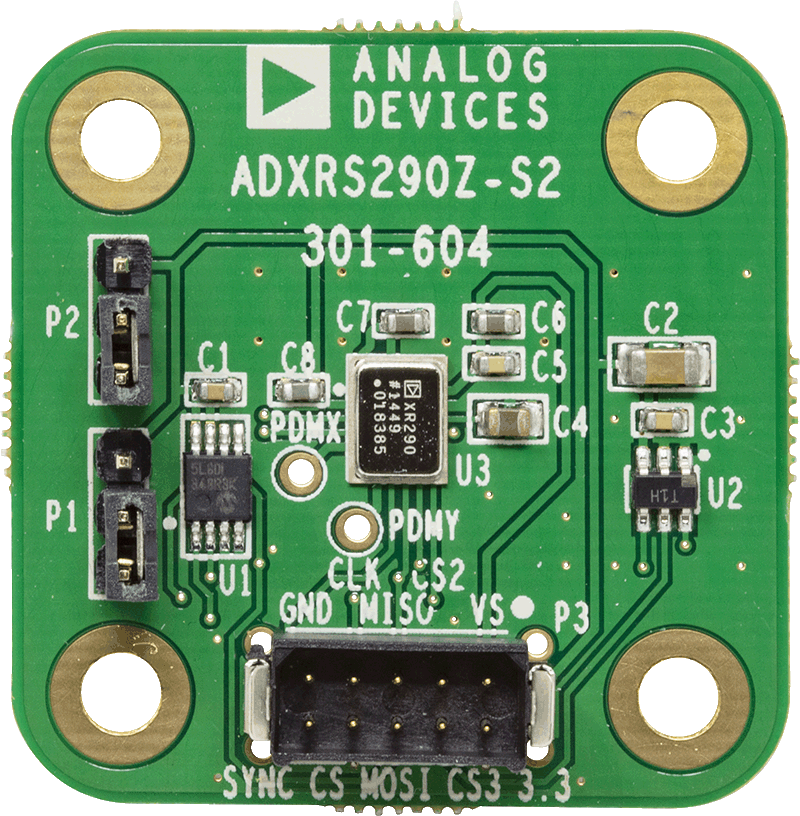

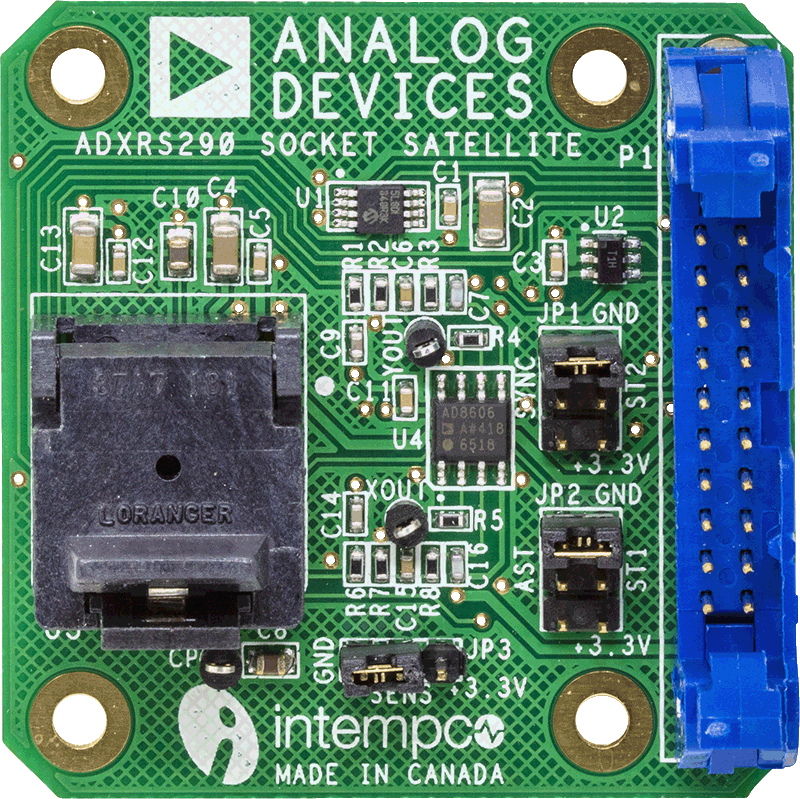

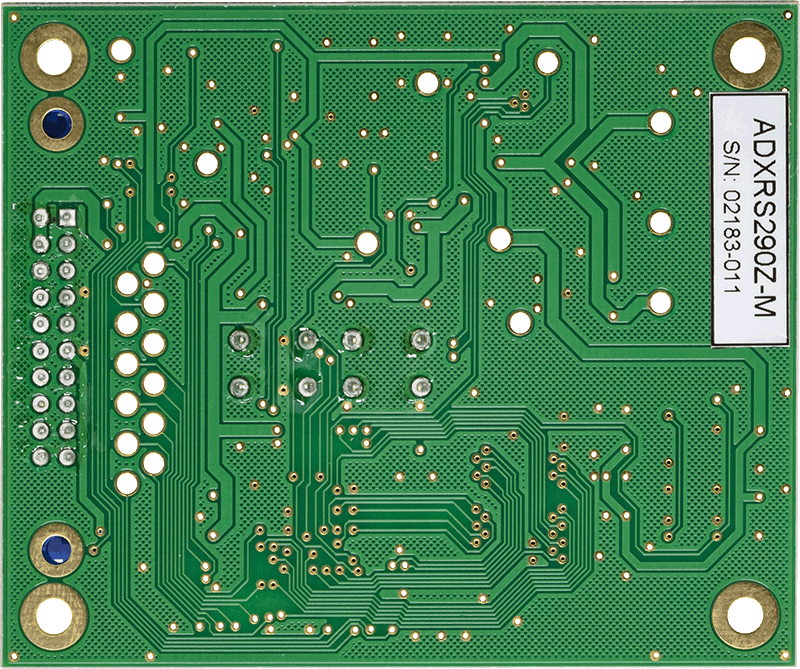

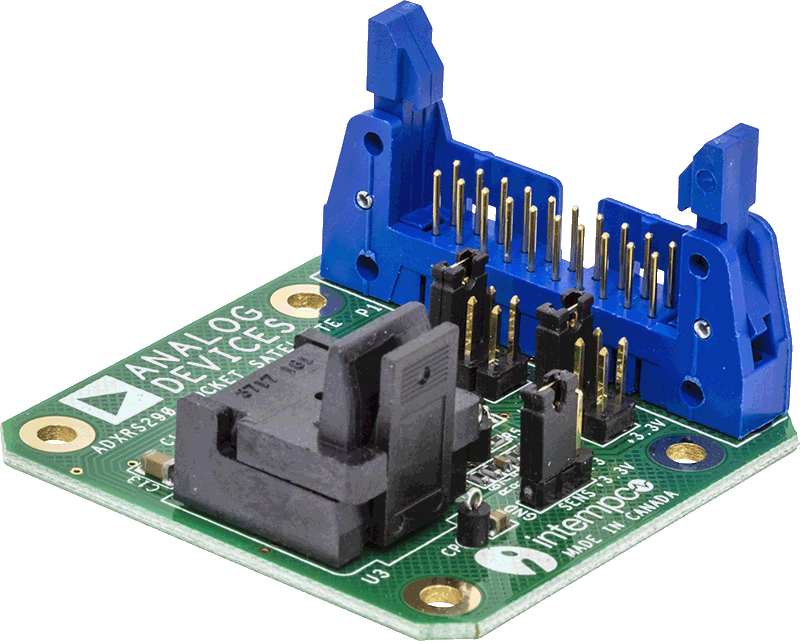

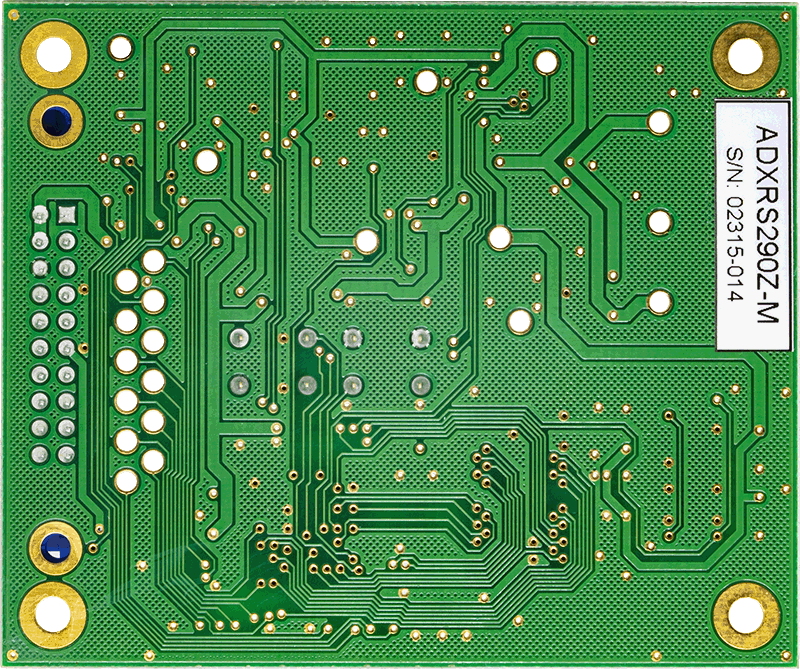

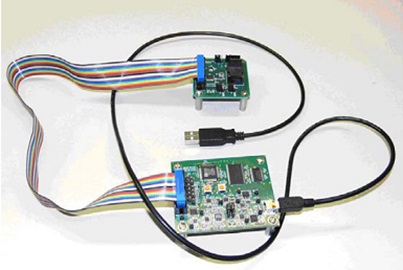

The EVAL-ADXRS290Z-M system contains the ISEB and the EVAL-ADXRS290Z-S satellite board. Also included is an USB A to Mini-B cable to connect the ISEB to a PC and an 18-inch, 20-pin ribbon cable to connect the ISEB to the satellite.

Online Resources

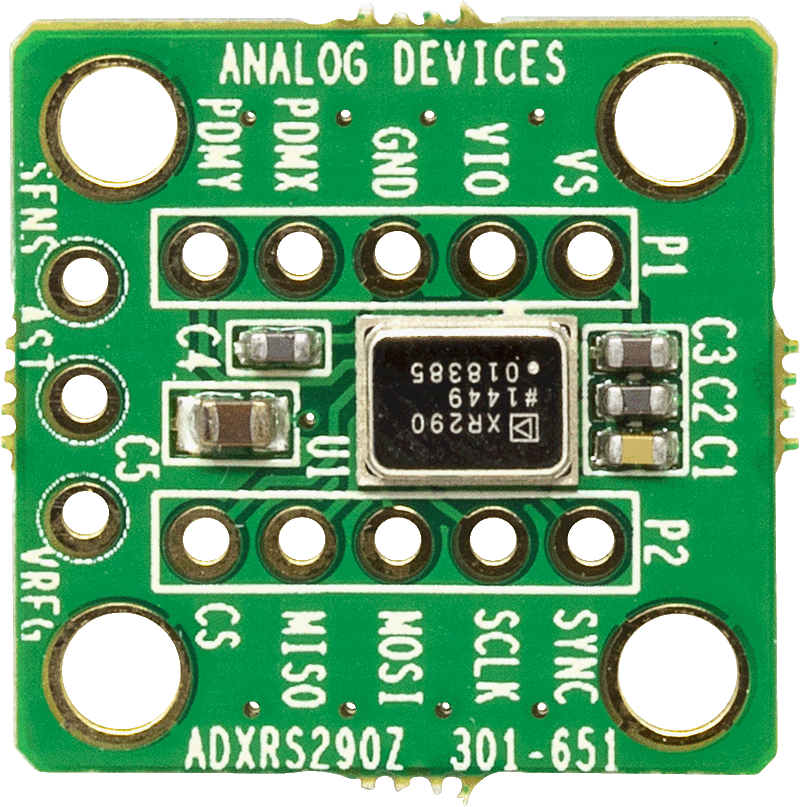

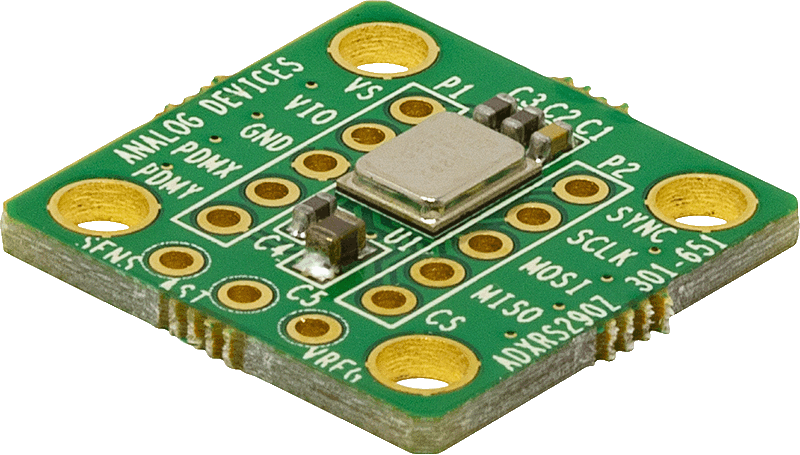

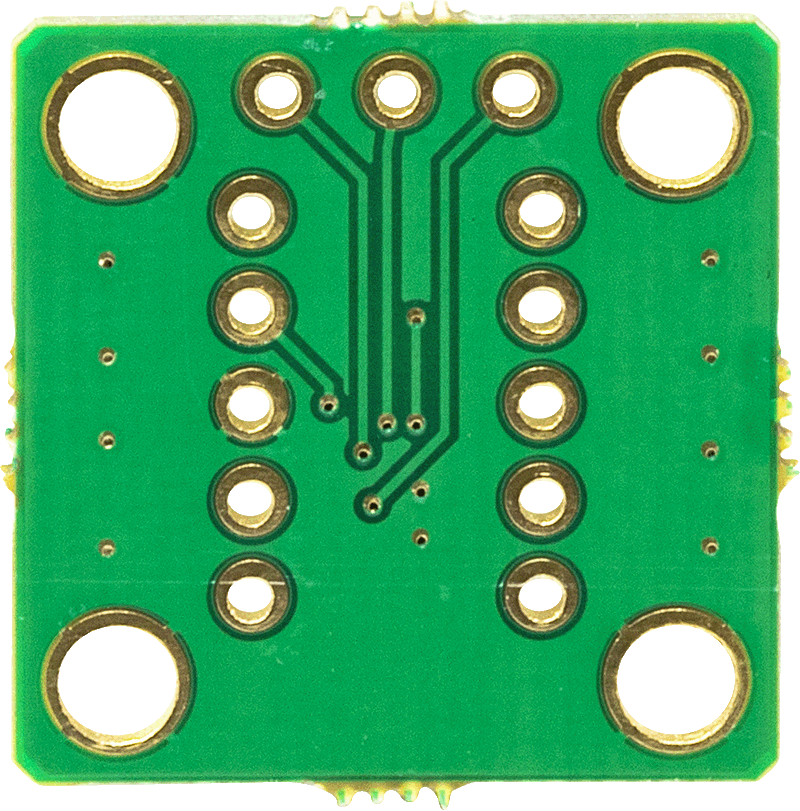

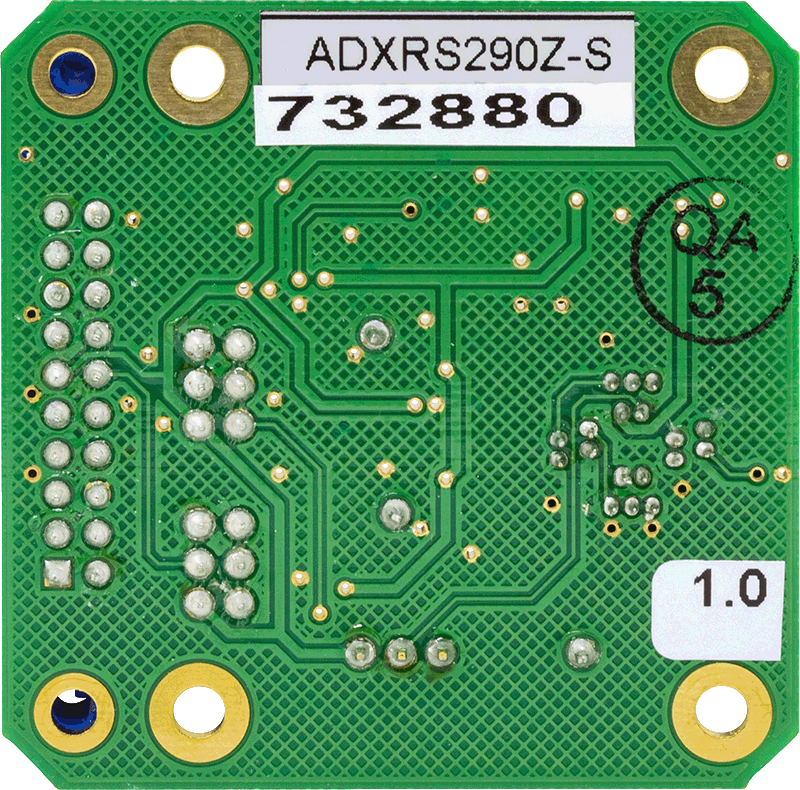

The EVAL-ADXRS290Z is a simple evaluation board that allows quick evaluation of the performance of the ADXRS290 dual-axis angular rate sensor (gyroscope). The EVAL-ADXRS290Z has two sets of 0.1 inch spaced vias, for population of 5-pin headers, for access to all power and signal lines. The vias or headers allow the evaluation board to be attached to a prototyping board (breadboard). Four holes are provided for mechanical attachment of the EVAL-ADXRS290Z to the application. An external host processor is required for communication to the part.

The dimensions of the EVAL-ADXRS290Z are 20 mm × 20 mm with mounting holes set 15 mm × 15 mm at the corners of the printed circuit board (PCB).

Circuit Description

See the ADXRS290 data sheet for configuration of the accelerometer after it is connected to the application host processor.

The EVAL-ADXRS290Z has five factory installed capacitors The primary communications port is the 4-wire SPI interface.  For this device, external pull-up/pull-down resistors are not required for the SPI interface, and these pins can be connected directly to the system micro controller.

Handling Considerations

The EVAL-ADXRS290Z is not reverse polarity protected. Reversing the V_S or V_DD I/O supply and GND pins can cause damage to the ADXRS290.
Dropping the EVAL-ADXRS290Z on a hard surface can generate several thousand g’s of acceleration, which may exceed the data sheet absolute maximum limits. See the ADXRS290 data sheet for more information.

The iMEMS^® Real Time Eval System is an easy-to-use evaluation tool targeting bench or desktop characterization of Analog Devices, Inc., inertial sensor products. The system consists of the inertial sensor evaluation board (ISEB), or main board, and a satellite board for any Analog Devices inertial sensor product. The ISEB connects directly to a PC via an USB cable, with the USB connection providing both communications and power to the board. The ISEB is connected to the satellite board through a ribbon cable. This cable allows the satellite to be easily manipulated for testing or separately placed into an environmental chamber for temperature or humidity testing. Separating the boards mitigates corruption of data due to the temperature and humidity effects of other components.
