製品概要
機能と利点
- 高い瞬時ダイナミック・レンジ
- 低ノイズ指数(NF): 13dB
- 低ノイズ・スペクトル密度(NSD): −159 dBFS/Hz
- IIP3: 最大 36.9 dBm(スプリアス・トーン): <-99 dBFS)
- 調整可能バンドパス Σ-Δ A/D コンバータ(ADC)
- 信号帯域幅: 20 MHz ~ 160 MHz
- IF 中心周波数: 70 MHz ~ 450 MHz
- 設定可能な入力フルスケール・レベル: -2 dBm ~ -14 dBm
- 駆動が容易な抵抗性 IF 入力
- ゲイン平坦度: 1 dB @ 帯域外ピーキング 0.5 dB以下
- エイリアス除去: 50 dB 以上
- ADCのクロック・レート: 2.0 GSPS ~ 3.2 GSPS
- オンチップ PLL クロック逓倍器
- 16ビット I/Q レート: 最大 266 MSPS
- デジタル信号処理を内蔵
- NCO と直交デジタル・ダウン・コンバータ(QDDC)
- デシメーション係数は12、16、24、32から選択可能
- 自動ゲイン(AGC)制御機能有り
- スパン27 dB 、ステップ1dBの減衰器を内蔵
- 設定可能なAGCデータポートを介した高速減衰器制御
- プログラマブル・スレシュホールドを備えたピーク検出フラッグ
- シングル・レーン又はデュアル・レーンのJESD204Bに対応
- 低消費電力:1.20 W
- 電源:1.1 V と 2.5 V
- TDD 省電力:最大60%
- 4.3 mm × 5.0 mm WLCSP

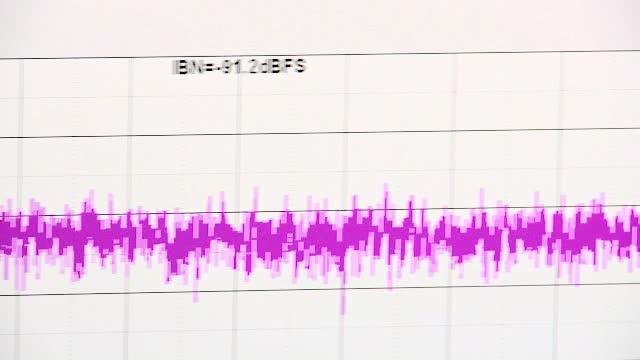

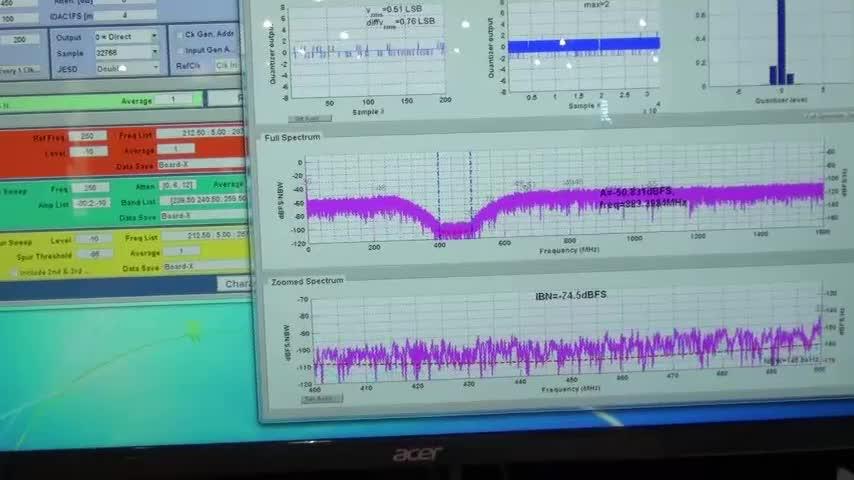

製品概要
時間が限られている場合には、私どものREMOTE EVALUATION SOFTWAREを使用してAD6676の動作試験を行ってください。
AD6676は70MHz~450MHzの中間周波数(IF)を中心とする最大160MHz幅の無線周波数(RF)帯域をデジタル化できる高集積度IFサブシステムです。従来のナイキストIFサンプリングADCとは違い、AD6676は帯域に特定したIF SAWフィルタとゲイン段の要求を軽減するために高いオーバーサンプリング比をもった調整可能なバンドパスΣ-Δ ADCを採用しているので、広帯域無線レシーバの回路構成を大幅に簡略化できます。オンチップ直交デジタル・ダウン・コンバータの後段の選択可能なデシメーション・フィルタは複雑なデータレートを62.5MSPS~266.7MSPSの間の扱い易いレートに低減します。16ビット複素出力データは最大5.333Gbpsのラインレートに対応するシングル・レーン又はデュアル・レーンのJESD204Bインターフェースを介してホストに転送されます。
アプリケーション
- 広帯域携帯電話インフラ機器
- ポイントtoポイント・マイクロウェーブ装置
- 工業用
- スペクトラム・アナライザと通信解析装置
- ソフトウェア定義による無線
Sample orders for small quantities may be coordinated by contacting highspeed.converters@analog.com.
※英語でお問い合わせください。
製品ライフサイクル
新規設計にお薦めします
発売済みの製品です。データシートには、最終的な仕様と動作条件がすべて記載されています。新規の設計には、これらの製品の使用を推奨します。

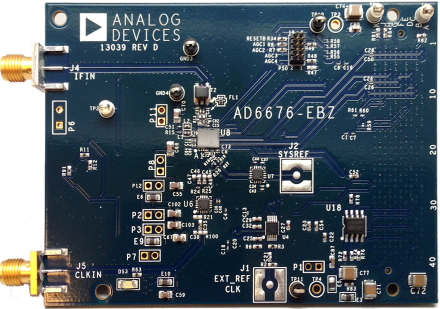

評価キット (1)
