MAX9263

HDCP Gigabit Multimedia Serial Link Serializer/Deserializer

Single-Link Serializer/Deserializer Chipset with Integrated Control Channel is Ideal for Digital Video Applications

Buy Now

Production

Top

Overview

Features and Benefits
Product Details

Features and Benefits

Ideal for HDCP Video Applications
- Supports Up to XGA (1280 x 768) or Dual-View WVGA (2x 854 x 480)
- Pre/Deemphasis and Equalization Allows 15m Cable at Full Speed
- Up to 192kHz, 32-Bit/Sample I²S
- Multiple Data Rates for System Flexibility
  - Up to 3.12Gbps Serial-Bit Rate
  - 6.25MHz to 104MHz Pixel Clock
  - 100kbps to 1Mbps UART and UART-to-I²C Control Channel
- Reduces EMI and Shielding Requirements
  - Serial Output Programmable for 100mV to 400mV
  - Programmable Spread Spectrum Reduces EMI
  - Bypassable Input PLL for Jitter Attenuation
- Peripheral Features for System Power-Up and Verification
  - Built-In PRBS Tester for BER Testing of the Serial Link
  - Interrupt Transmission from Deserializer to Serializer
- Meets Rigorous Automotive and Industrial Requirements
  - -40°C to +105°C Operating Temperature
  - ISO 10605 and IEC 61000-4-2 ESD Tolerance

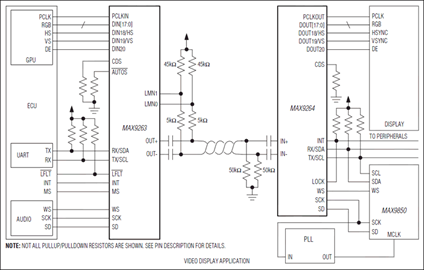

Product Details

The MAX9263/MAX9264 chipset extends Maxim’s gigabit multimedia serial link (GMSL) technology to include high-bandwidth digital content protection (HDCP) encryption of video and audio data. The MAX9263 serializer, or any HDCP-GMSL serializer, pairs with the MAX9264 deserializer, or any HDCP-GMSL deserializer, for the transmission of control data and HDCP encrypted video and audio data.

The parallel interface operates with a pixel clock up to 104MHz. Three inputs are for I²S audio, supporting a sampling frequency to 192kHz and a sample depth to 32 bits. The embedded control channel forms a fullduplex differential 9.6kbps to 1Mbps UART link between the serializer and deserializer. A microcontroller (µC), can be located on the serializer side of the link, on the deserializer side of the link, or on both sides. The control channel enables µC control of peripherals on the remote side, such as backlight control, touch screen, and perform HDCP-related operations.

For driving longer cables, the serializer has programmable pre/deemphasis, and the deserializer has a programmable channel equalizer. The GMSL devices have programmable spread spectrum on the serial (serializer) and parallel (deserializer) output. The serial link input and output meet ISO 10605 and IEC 61000-4-2 ESD standards. The serializer core supply is 1.8V and the deserializer core supply is 3.3V. The I/O supply is 1.8V to 3.3V. Both devices are available in a 64-pin TQFP package with an exposed pad and are specified over the -40°C to +105°C automotive temperature range.

Applications

High-Resolution Automotive Navigation
Megapixel Camera Systems
Rear-Seat Infotainment

Product Categories

Interface and Isolation
- I/O Port Expanders

High Speed Logic and Data Path Management
- Serializer/Deserializer (SerDes) and Selector Muxes

Comparable Parts Click to see all in Parametric Search

Product Lifecycle Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

Evaluation Kits (3)

MAX9263EVKIT

Evaluation Kit for the MAX9263 and MAX9264

MAX9265EVKIT

Evaluation Kit for the MAX9264 and MAX9265

MAX9264EVKIT

Evaluation Kit for the MAX9263 and MAX9264

MAX9263EVKIT

View Detailed Evaluation Kit Information

The MAX9263 evaluation kit (EV kit) provides a proven design to evaluate the MAX9263 high-bandwidth digital-content protection (HDCP) gigabit multimedia serial link (GMSL) serializer with spread spectrum and full-duplex control channel. The EV kit also includes Windows XP®-, Windows Vista®-, and Windows® 7-compatible software that provides a simple graphical user interface (GUI) for exercising the features of the device.

The EV kit comes with a MAX9263GCB/V+ installed.

For complete GMSL evaluation, order both the MAX9263 EV kit and its companion board, the MAX9264 EV kit.

Applications

High-Resolution Automotive Navigation
Megapixel Camera Systems
Rear-Seat Infotainment

Features & Benefits

Accepts 29-Bit Parallel Video and I²S Audio
On-Board S/PDIF-to-I²S Audio Converter
Windows XP-, Windows Vista-, and Windows 7-Compatible Software
USB-PC Connection (Cable Included)
USB Powered
Proven PCB Layout
Fully Assembled and Tested

MAX9265EVKIT

View Detailed Evaluation Kit Information

The MAX9265 evaluation kit (EV kit) provides a proven design to evaluate the MAX9265 high-bandwidth digital-content protection (HDCP) gigabit multimedia serial link (GMSL) serializer with LVDS system interface and spread spectrum and full-duplex control channel. The EV kit also includes Windows XP®-, Windows Vista®-, and Windows® 7-compatible software that provides a simple graphical user interface (GUI) for exercising the features of the MAX9265.

The MAX9265 EV kit comes with a MAX9265GCM/V+ installed.

For complete GMSL evaluation, order both the MAX9265 EV kit and its companion board, the MAX9264 EV kit.

Applications

High-Resolution Automotive Navigation
Megapixel Camera Systems
Rear-Seat Infotainment

Features & Benefits

Accepts 29-Bit Parallel Video and I²S Audio
On-Board S/PDIF-to-I²S Audio Converter
Windows XP-, Windows Vista-, and Windows 7-Compatible Software
USB-PC Connection (Cable Included)
USB Powered
Proven PCB Layout
Fully Assembled and Tested

MAX9264EVKIT

View Detailed Evaluation Kit Information

The MAX9264 evaluation kit (EV kit) provides a proven design to evaluate the MAX9264 high-bandwidth digital-content protection (HDCP) gigabit multimedia serial link (GMSL) deserializer with spread spectrum and full-duplex control channel. The EV kit also includes Windows XP®-, Windows Vista®-, and Windows® 7-compatible software that provides a simple graphical user interface (GUI) for exercising the features of the MAX9264.

The MAX9264 EV kit comes with a MAX9264GCB/V+ installed.

For complete GMSL evaluation, order both the MAX9264 EV kit and its companion board, the MAX9263 EV kit.

Applications

High-Resolution Automotive Navigation
Megapixel Camera Systems
Rear-Seat Infotainment

Features & Benefits

Drives 29-Bit Parallel Video and I²S Audio
On-Board I²S Audio DAC (MAX9850)
On-Board Class D Audio Power Amplifier (MAX9701)
Windows XP-, Windows Vista-, and Windows 7-Compatible Software
USB-PC Connection (Cable Included)
USB Powered
Proven PCB Layout
Fully Assembled and Tested
