MAX9217

27-Bit, 3MHz-to-35MHz DC-Balanced LVDS Serializer

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Details
Part Models 6
1ku List Price Starting From $7.56
Features
  • Proprietary Data Encoding for DC Balance and Reduced EMI
  • Control Data Sent During Video Blanking
  • Five Control Data Inputs Are Single-Bit-Error Tolerant
  • Output Common-Mode Filter Reduces EMI
  • Greater than 10m STP Cable Drive
  • Wide ±2% Reference Clock Tolerance
  • ISO 10605 ESD Protection
  • Separate Input Supply Allows Interface to 1.8V to 3.3V Logic
  • +3.3V Core Supply
  • Space-Saving Thin QFN and LQFP Packages
  • -40°C to +85°C Operating Temperature
Additional Details
show more Icon

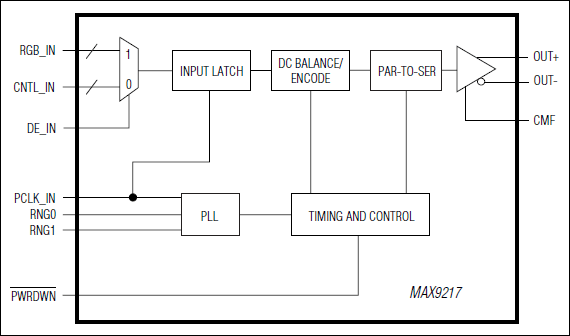

The MAX9217 digital video parallel-to-serial converter serializes 27 bits of parallel data into a serial data stream. Eighteen bits of video data and 9 bits of control data are encoded and multiplexed onto the serial interface, reducing the serial data rate. The data enable input determines when the video or control data is serialized.

The MAX9217 pairs with the MAX9218 deserializer to form a complete digital video serial link. Interconnect can be controlled-impedance PCB traces or twisted-pair cable. Proprietary data encoding reduces EMI and provides DC balance. DC balance allows AC-coupling, providing isolation between the transmitting and receiving ends of the interface. The LVDS output is internally terminated with 100Ω.

ESD tolerance is specified for ISO 10605 with ±10kV contact discharge and ±30kV air discharge.

The MAX9217 operates from a +3.3V core supply and features a separate input supply for interfacing to 1.8V to 3.3V logic levels. This device is available in 48-lead Thin QFN and LQFP packages and is specified from -40°C to +85°C.

Applications

  • In-Vehicle Entertainment Systems
  • LCD Displays
  • Navigation System Display
  • Video Cameras
Part Models 6
1ku List Price Starting From $7.56

close icon
Documentation

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
MAX9217ECM+
  • HTML
  • HTML
MAX9217ECM+T
  • HTML
  • HTML
MAX9217ECM/V+
  • HTML
  • HTML
MAX9217ECM/V+T
  • HTML
  • HTML
MAX9217ETM+
  • HTML
  • HTML
MAX9217ETM+T
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Dec 3, 2021

- 2218E

ASSEMBLY

MAX9217ECM+

PRODUCTION

MAX9217ECM+T

PRODUCTION

MAX9217ECM/V+

PRODUCTION

MAX9217ECM/V+T

PRODUCTION

Aug 28, 2015

- 1567

ELECTRICAL DATASHEET

MAX9217ECM+

PRODUCTION

MAX9217ECM+T

PRODUCTION

MAX9217ECM/V+

PRODUCTION

MAX9217ECM/V+T

PRODUCTION

MAX9217ETM+

PRODUCTION

Mar 13, 2015

- 1519

TEST

MAX9217ECM+

PRODUCTION

MAX9217ECM+T

PRODUCTION

MAX9217ECM/V+

PRODUCTION

MAX9217ECM/V+T

PRODUCTION

MAX9217ETM+

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Dec 3, 2021

- 2218E

arrow down

ASSEMBLY

MAX9217ECM+

PRODUCTION

MAX9217ECM+T

PRODUCTION

MAX9217ECM/V+

PRODUCTION

MAX9217ECM/V+T

PRODUCTION

Aug 28, 2015

- 1567

arrow down

ELECTRICAL DATASHEET

MAX9217ECM+

PRODUCTION

MAX9217ECM+T

PRODUCTION

MAX9217ECM/V+

PRODUCTION

MAX9217ECM/V+T

PRODUCTION

MAX9217ETM+

PRODUCTION

Mar 13, 2015

- 1519

arrow down

TEST

MAX9217ECM+

PRODUCTION

MAX9217ECM+T

PRODUCTION

MAX9217ECM/V+

PRODUCTION

MAX9217ECM/V+T

PRODUCTION

MAX9217ETM+

PRODUCTION

Software & Part Ecosystem

Software & Part Ecosystem

Evaluation Kit

Evaluation Kits 2

MAX9218EVKIT

Evaluation Kit for the MAX9217 and MAX9218

zoom

MAX9218EVKIT

Evaluation Kit for the MAX9217 and MAX9218

Evaluation Kit for the MAX9217 and MAX9218

Features and Benefits

  • 27-Bit Parallel Interface
  • Rosenberger Connector (Cable Included)
  • Independent Evaluation of the MAX9217/MAX9218 Serializer/Deserializer (SerDes)
  • Proven PCB Layout
  • Fully Assembled and Tested

Product Detail

The MAX9217/MAX9218 evaluation kit (EV kit) provides a proven design to evaluate the MAX9217 27-bit, 3MHz to 35MHz DC-balanced LVDS serializer and the MAX9218 27-bit, 3MHz to 35MHz DC-balanced LVDS deserializer. The MAX9217 serializes 27 bits of parallel input data, 18 bits of video, and 9 bits of control to a serial data stream. The MAX9218 deserializes the LVDS serial input, which converts to 18 bits of parallel video data and 9 bits of parallel control data.

The MAX9217/MAX9218 EV kit PCB has a MAX9217ECM+ and a MAX9218ECM+ installed.

Applications

  • In-Vehicle Entertainment Systems
  • LCD Displays
  • Navigation System Display
  • Video Cameras

MAX9217EVKIT

Evaluation Kit for the MAX9217 and MAX9218

zoom

MAX9217EVKIT

Evaluation Kit for the MAX9217 and MAX9218

Evaluation Kit for the MAX9217 and MAX9218

Features and Benefits

  • 27-Bit Parallel Interface
  • Rosenberger Connector (Cable Included)
  • Independent Evaluation of the MAX9217/MAX9218 Serializer/Deserializer (SerDes)
  • Proven PCB Layout
  • Fully Assembled and Tested

Product Detail

The MAX9217/MAX9218 evaluation kit (EV kit) provides a proven design to evaluate the MAX9217 27-bit, 3MHz to 35MHz DC-balanced LVDS serializer and the MAX9218 27-bit, 3MHz to 35MHz DC-balanced LVDS deserializer. The MAX9217 serializes 27 bits of parallel input data, 18 bits of video, and 9 bits of control to a serial data stream. The MAX9218 deserializes the LVDS serial input, which converts to 18 bits of parallel video data and 9 bits of parallel control data.

The MAX9217/MAX9218 EV kit PCB has a MAX9217ECM+ and a MAX9218ECM+ installed.

Applications

  • In-Vehicle Entertainment Systems
  • LCD Displays
  • Navigation System Display
  • Video Cameras
