MAX7409

5th-Order, Lowpass, Switched-Capacitor Filters

Show More showmore-icon

Smallest, Low-Power 5th-Order Filters

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Viewing: Part Details
arrow-icon

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet (Rev.1)
Documentation View All Documentation
Part Models 5
1ku List Price Starting From $4.07
Features
  • 5th-Order Lowpass Filters
    • Bessel Response (MAX7409/MAX7413)
    • Butterworth Response (MAX7410/MAX7414)
  • Clock-Tunable Corner Frequency (1Hz to 15kHz)
  • Single-Supply Operation
    • +5V (MAX7409/MAX7410)
    • +3V (MAX7413/MAX7414)
  • Low Power
    • 1.2mA (operating mode)
    • 0.2µA (shutdown mode)
  • Available in 8-Pin µMAX®/DIP Packages
  • Low Output Offset: ±4mV
  • Single 5th-order, Bessel and Butterworth switched-capacitor filters. 15kHz maximum F (c)

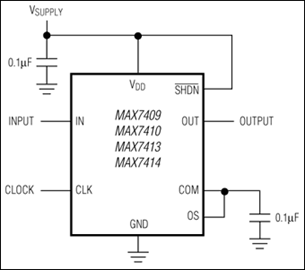

Additional Details
show more Icon

The MAX7409/MAX7410/MAX7413/MAX7414 5th-order, lowpass, switched-capacitor filters (SCFs) operate from a single +5V (MAX7409/MAX7410) or +3V (MAX7413/ MAX7414) supply. These devices draw only 1.2mA of supply current and allow corner frequencies from 1Hz to 15kHz, making them ideal for low-power post-DAC filtering and anti-aliasing applications. They feature a shutdown mode, which reduces the supply current to 0.2µA.

Two clocking options are available on these devices: self-clocking (through the use of an external capacitor) or external clocking for tighter corner-frequency control. An offset adjust pin allows for adjustment of the DC output level.

The MAX7409/MAX7413 Bessel filters provide low overshoot and fast settling, while the MAX7410/MAX7414 Butterworth filters provide a maximally flat passband response. Their fixed response simplifies the design task to selecting a clock frequency.

Applications

  • ADC Anti-Aliasing
  • Air-Bag Electronics
  • CT2 Base Stations
  • DAC Post-Filtering
  • Speech Processing
Show More Arrow image
file View Data Sheet (Rev.1)
Documentation View All Documentation
Part Models 5
1ku List Price Starting From $4.07
