MAX7415

PRODUCTION

5th Order, Lowpass, Elliptic, Switched-Capacitor Filters

Smallest, Low-Power 5th-Order Filters

Data Sheet (Rev. 1) Product Selection Table

Part Models: 4
1ku List Price: Starting From $2.23

Viewing:

Overview

5th-Order, Elliptic Lowpass Filters
Low Noise and Distortion: -80dB THD + Noise
Clock-Tunable Corner Frequency (1Hz to 15kHz)
Single-Supply Operation
- +5V (MAX7408/MAX7411)
- +3V (MAX7412/MAX7415)
Low Power
- 1.2mA (operating mode)
- 0.2µA (shutdown mode)
Available in 8-Pin µMAX®/DIP Packages
Low Output Offset: ±4mV

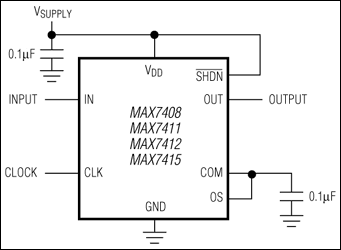

The MAX7408/MAX7411/MAX7412/MAX7415 5th-order, lowpass, elliptic, switched-capacitor filters (SCFs) operate from a single +5V (MAX7408/MAX7411) or +3V (MAX7412/MAX7415) supply. The devices draw only 1.2mA of supply current and allow corner frequencies from 1Hz to 15kHz, making them ideal for low-power post-DAC filtering and anti-aliasing applications. They can be put into a low-power mode, reducing supply current to 0.2µA.

Two clocking options are available: self-clocking (through the use of an external capacitor) or external clocking for tighter cutoff-frequency control. An offset-adjust pin allows for adjustment of the DC output level.

The MAX7408/MAX7412 deliver 53dB of stopband rejection and a sharp rolloff with a transition ratio of 1.6. The MAX7411/MAX7415 achieve a sharper rolloff with a transition ratio of 1.25 while still providing 37dB of stop-band rejection. Their fixed response limits the design task to selecting a clock frequency.

Applications

ADC Anti-Aliasing
CT2 Base Stations
Post-DAC Filtering
Speech Processing

Part Models: 4
1ku List Price: Starting From $2.23

Documentation

Data Sheet 1

MAX7408-MAX7415: 5th Order, Lowpass, Elliptic, Switched-Capacitor Filters Data Sheet (Rev.1) 10/01/1998

Technical Articles 4

Filter Basics: Anti-Aliasing 01/11/2002

A Filter Primer 09/18/2002

Integrated solutions make analog filter design easy 11/04/2009

Reduce the Chances of Human Error: Part 2, Super Amps and Filters for Analog Interface 03/08/2011

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
MAX7415CPA+	Plastic Dual-In-Line, Narrow (0.3in)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX7415CUA+	Micro-MAX, Thin Shrink Small-Outline	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX7415EUA+	Micro-MAX, Thin Shrink Small-Outline	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX7415EUA+T	Micro-MAX, Thin Shrink Small-Outline	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Sep 19, 2018 - 1753N ASSEMBLY
		pcn_1753n
MAX7415CUA+	PRODUCTION	pcn_1753n

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Hardware Ecosystem

Parts	Product Life Cycle	Description
Active Filters 7
MAX7400	PRODUCTION	8th-Order, Lowpass, Elliptic, Switched-Capacitor Filters
MAX7403	PRODUCTION	8th-Order, Lowpass, Elliptic, Switched-Capacitor Filters
MAX7404	PRODUCTION	8th-Order, Lowpass, Elliptic, Switched-Capacitor Filters
MAX7407	PRODUCTION	8th-Order, Lowpass, Elliptic, Switched-Capacitor Filters

MAX293	PRODUCTION	8th-Order, Lowpass, Elliptic, Switched-Capacitor Filters
MAX294	PRODUCTION	8th-Order, Lowpass, Elliptic, Switched-Capacitor Filters
MAX297	PRODUCTION	8th-Order, Lowpass, Elliptic, Switched-Capacitor Filters

Evaluation Kits

Evaluation Kit for the MAX7408, MAX7409, MAX7410, MAX7411, MAX7412, MAX7413, MAX7414, MAX7415, MAX7418, MAX7419, MAX7420, MAX7421, MAX7422, MAX7423, MAX7424, and MAX7425

Buy Now View Details

Features and Benefits

CLK Pad for External Clock Frequency
Lead(Pb)-Free and RoHS Compliant
Proven PCB Layout

Product Details

The MAXFILTERBRD is an unpopulated PCB design to evaluate the MAX7408–MAX7415/MAX7418–MAX7425 5th-order, lowpass, switched-capacitor filters (SCFs).

Contact the factory for free samples of the pin-compatible MAX7408–MAX7415/MAX7418–MAX7425 SCFs to evaluate these devices.
