MAX7405
8th-Order, Lowpass, Bessel, Switched-Capacitor Filters
Show MoreSmallest, Lowest-Power 8th-Order Bessel Filters
Info: :
PRODUCTION
Info: :
PRODUCTION
Not the part you were looking for?
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
Part Models
5
1ku List Price
Starting From $4.19
Features
- 8th-Order, Lowpass Bessel Filters
- Low Noise and Distortion: -82dB THD + Noise
- Clock-Tunable Corner Frequency (1Hz to 5kHz)
- 100:1 Clock-to-Corner Ratio
- Single-Supply Operation
- +5V (MAX7401)
- +3V (MAX7405)
- Low Power
- 2mA (Operating Mode)
- 0.2µA (Shutdown Mode)
- Available in 8-Pin SO/DIP Packages
- Low Output Offset: ±5mV

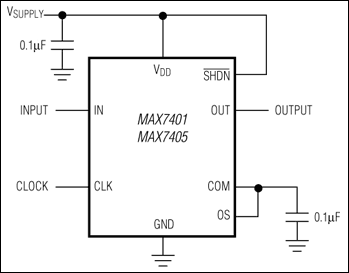

Additional Details
The MAX7401/MAX7405 8th-order, lowpass, Bessel, switched-capacitor filters (SCFs) operate from a single +5V (MAX7401) or +3V (MAX7405) supply. These devices draw only 2mA of supply current and allow corner frequencies from 1Hz to 5kHz, making them ideal for low-power post-DAC filtering and anti-aliasing applications. They feature a shutdown mode that reduces supply current to 0.2µA.
Two clocking options are available on these devices: self-clocking (through the use of an external capacitor) or external clocking for tighter corner-frequency control. An offset adjust pin allows for adjustment of the DC output level.
The MAX7401/MAX7405 Bessel filters provide low overshoot and fast settling. Their fixed response simplifies the design task to selecting a clock frequency.
Applications
- ADC Anti-Aliasing
- Air-Bag Electronics
- CT2 Base Stations
- Post-DAC Filtering
- Speech Processing
