MAX44246
36V, Low-Noise, Precision, Single/Quad/Dual Op Amps
Precision, Low-Noise Performance in High-Voltage Applications
Top

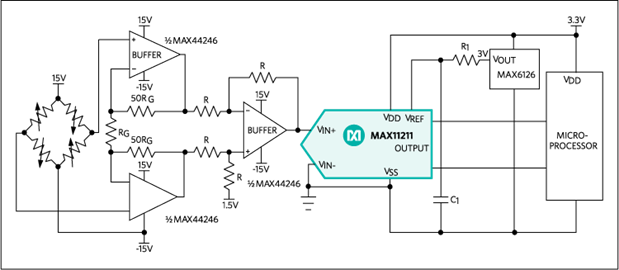

Overview
Features and Benefits
- Reduces Noise-Sensitive Precision Applications
- Low 9nV/√Hz Noise at 1kHz
- Integrated EMI Filter
- Eliminates Cost of Calibration with Increased Accuracy and Patented Auto-Zero Circuitry
- Ultra-Low Input VOS: 5µV (max)
- Low 20nV/°C (max) of Offset Drift
- Suitable for High-Bandwidth Applications
- 1µs Fast Settling Time
- 5MHz Gain-Bandwidth Product
- Low 0.55mA Per Channel (max) Quiescent Current
- Wide Supply for High-Voltage Front-Ends
- 2.7V to 36V Supply Range
- Rail-to-Rail Output
Product Details
The MAX44241/MAX44243/MAX44246 are 36V, ultra- precision, low-noise, low-drift, single/quad/dual opera- tional amplifiers that offer near-zero DC offset and drift through the use of patented chopper stabilized and auto-zeroing techniques. This method constantly mea- sures and compensates the input offset, eliminating drift over time and temperature and the effect of 1/f noise. These single/quad/dual devices feature rail-to-rail out- puts, operate from a single 2.7V to 36V supply or dual ±1.35V to ±18V supplies, and consume only 0.42mA per channel, with only 9nV/√Hz input-referred voltage noise.
The ICs are available in 8-pin µMAX® or SO packages and are rated over the -40°C to +125°C temperature range.
Applications
- Battery-Powered Equipment
- Load Cell Amplifiers
- PLC Analog I/O Modules
- Precision Instrumentation
- Transducer Amplifiers
Product Lifecycle
Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
