MAX44285

Dual-Channel, High-Precision, High-Voltage, Current-Sense Amplifier

Show More showmore-icon

Unique Combination of High-Accuracy and High-Voltage Operation at 76V

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Details
Part Models 14
1ku List Price Starting From $2.74
Features
  • 2.7V to 76V Input Common Mode
  • Low 12µV (max) Input Offset Voltage
  • Low 0.1% (max) Gain Error
  • Gain Options
    • G = 12.5V/V (MAX44285L)
    • G = 20V/V (MAX44285T)
    • G = 50V/V (MAX44285F)
    • G = 100V/V (MAX44285H)
  • 1mm x 2mm 8-Bump WLP and 8-Pin µMAX Packages
Additional Details
show more Icon

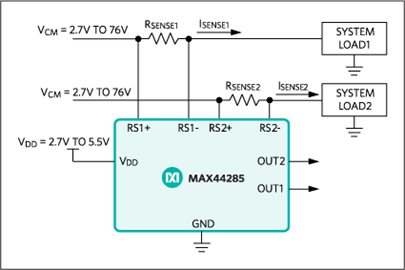

The MAX44285 dual-channel high-side current-sense amplifier has precision accuracy specifications of VOS less than 10µV (max) and gain error less than 0.1% (max).

The MAX44285 features an input common-mode voltage range from 2.7V to 76V with 80kHz of small-signal bandwidth, which makes it ideal for interfacing with a SAR ADC for multichannel multiplexed data acquisition systems.

The MAX44285 operates over the -40°C to +125°C temperature range. The MAX44285 is offered in 8-bump WLP and 8-pin µMAX® packages.

Applications

  • Base Stations and Communication Equipment
  • Industrial Control and Automation
  • Power Management Systems
  • Server Backplanes
Part Models 14
1ku List Price Starting From $2.74

close icon
Documentation

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
MAX44285FAUA+
  • HTML
  • HTML
MAX44285FAUA+T
  • HTML
  • HTML
MAX44285FAWA+
  • HTML
  • HTML
MAX44285FAWA+T
  • HTML
  • HTML
MAX44285HAUA+
  • HTML
  • HTML
MAX44285HAUA+T
  • HTML
  • HTML
MAX44285HAWA+
  • HTML
  • HTML
MAX44285HAWA+T
  • HTML
  • HTML
MAX44285LAUA+
  • HTML
  • HTML
MAX44285LAUA+T
  • HTML
  • HTML
MAX44285TAUA+
  • HTML
  • HTML
MAX44285TAUA+T
  • HTML
  • HTML
MAX44285TAWA+
  • HTML
  • HTML
MAX44285TAWA+T
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Sep 19, 2018

- 1753N

ASSEMBLY

MAX44285FAUA+

PRODUCTION

MAX44285FAUA+T

PRODUCTION

Apr 24, 2018

- 1663

WAFER FAB

MAX44285FAUA+

PRODUCTION

MAX44285FAUA+T

PRODUCTION

MAX44285HAUA+

PRODUCTION

MAX44285HAWA+

PRODUCTION

MAX44285HAWA+T

PRODUCTION

MAX44285LAUA+

PRODUCTION

MAX44285TAUA+

PRODUCTION

MAX44285TAUA+T

PRODUCTION

MAX44285TAWA+T

PRODUCTION

Dec 21, 2016

- 1671A

ASSEMBLY

MAX44285TAWA+T

PRODUCTION

Jul 19, 2016

- 1594_AMENDED

ASSEMBLY

MAX44285TAWA+T

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Sep 19, 2018

- 1753N

arrow down

ASSEMBLY

MAX44285FAUA+

PRODUCTION

MAX44285FAUA+T

PRODUCTION

Apr 24, 2018

- 1663

arrow down

WAFER FAB

MAX44285FAUA+

PRODUCTION

MAX44285FAUA+T

PRODUCTION

MAX44285HAUA+

PRODUCTION

MAX44285HAWA+

PRODUCTION

MAX44285HAWA+T

PRODUCTION

MAX44285LAUA+

PRODUCTION

MAX44285TAUA+

PRODUCTION

MAX44285TAUA+T

PRODUCTION

MAX44285TAWA+T

PRODUCTION

Dec 21, 2016

- 1671A

arrow down

ASSEMBLY

MAX44285TAWA+T

PRODUCTION

Jul 19, 2016

- 1594_AMENDED

arrow down

ASSEMBLY

MAX44285TAWA+T

PRODUCTION

Software & Part Ecosystem

Software & Part Ecosystem

Evaluation Kit

Evaluation Kits 1

MAX44285EVKIT

Evaluation Kit for the MAX44285

zoom

MAX44285EVKIT

Evaluation Kit for the MAX44285

Evaluation Kit for the MAX44285

Features and Benefits

  • Precision Real-Time Current Monitoring
  • +2.7V to +76V Input Common-Mode Range
  • Proven PCB Layout
  • Fully Assembled and Tested

Product Detail

The MAX44285 evaluation kit (EV kit) provides a proven design to evaluate the MAX44285 dual-channel, high-precision, high-voltage, current-sense amplifier. This EV kit demonstrates the MAX44285 in an ultra-small, 1mm x 2mm, 8-bump WLP package.

The EV kit PCB comes with a MAX44285TAWA+ installed, which is the 20V/V gain version. Other gain options are available. Contact the factory for the pin-compatible MAX44285LAWA+ (G = 12.5V/V), MAX44285FAWA+ (G = 50V/V), and MAX44285HAWA+ (G = 100V/V).

Applications

  • Base Stations and Communication Equipment
  • Industrial Control and Automation
  • Power Management Systems
  • Server Backplanes
Reference Designs

Reference Designs 2

MAXREFDES77 Connected to Munich Board

Dual-Channel Current Sense Peripheral Module

Connections of the MAXREFDES39# board with the PTMA210152M EV kit

MAXREFDES39#: Power Amplifier Biasing through MAX11300 PIXI IC
