MAX32672

High-Reliability, Tiny, Ultra-Low-Power Arm Cortex-M4F Microcontroller with 12-Bit 1MSPS ADC

Show More showmore-icon

Cost-Effective, Highly Integrated, and Highly Reliable MCU that Enables Designs withComplex Sensor Processing

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Part Details
Part Models 6
1ku List Price Starting From $4.01
Features
  • High-Efficiency Microcontroller for Low Power High Reliability Devices
    • Arm Cortex-M4 Processor with FPU up to 100MHz
    • 1MB Dual-Bank Flash with Error Correction
    • 200KB SRAM (160KB with ECC enabled),Optionally Preserved in Lowest Power Modes
    • EEPROM Emulation on FLASH
    • 16KB Unified Cache with ECC
    • Resource Protection Unit (RPU) and Memory Protection Unit (MPU)
    • Dual or Single Supply Operation, 1.7V to 3.6V
    • Wide Operating Temperature: -40°C to +105°C
  • Flexible Clocking Schemes
    • Internal High-Speed 100MHz Oscillator
    • Internal Low-Power 7.3728MHz and Ultra Low Power 80kHz Oscillators
    • 14MHz-32MHz oscillator (external crystal required)
    • 32.768kHz oscillator (external crystal required)
    • External Clock Input for CPU, LPUART, LPTMR
  • Power Management Maximizes Uptime for Battery Applications
    • 59.8µA/MHz ACTIVE at 0.9V up to 12MHz (CoreMark®)
    • 56.6µA/MHz ACTIVE at 1.1V up to 100MHz (While(1))
    • 3.09µA Full Memory Retention Power in BACKUP Mode at VDD = 1.8V
    • 350nA Ultra-Low Power RTC at VDD = 1.8V
    • Wake from LPUART or LPTMR
  • Optimal Peripheral Mix Provides Platform Scalability
    • Up to 42 General-Purpose I/O Pins
    • Up to Three SPI Master/Slave (up to 50Mbps)
    • Up to Three 4-Wire UART
    • One Low Power UART (LPUART)
    • Up to Three I2C Master/Slave 3.4Mbps High Speed
    • Ten-Channel Standard DMA Controller
    • Up to Four 32-Bit Timers (TMR)
    • Up to Two Low Power 32-Bit Timers (LPTMR)
    • Two Windowed Watchdog Timers
    • One I2S Master/Slave for Digital Audio Interface
    • 12-Channel, 12-Bit, 1Msps SAR ADC with On-Die Temperature Sensor
  • Security and Integrity
    • Optional ECDSA-Based Cryptographic Secure Bootloader in ROM
    • Secure Cryptographic Accelerator for Elliptic Curve
    • AES-128/192/256 Hardware Acceleration Engine
Additional Details
show more Icon

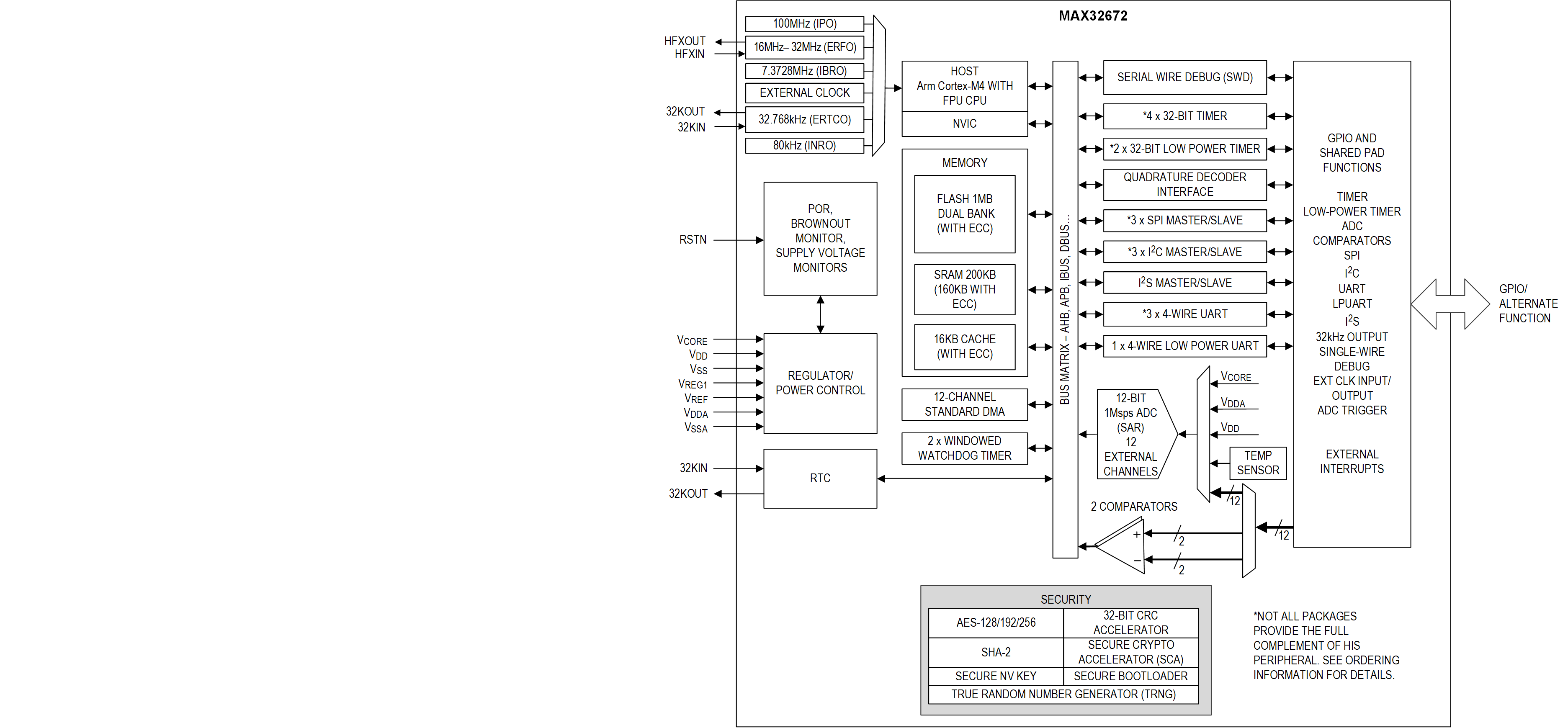

In the DARWIN family, the MAX32672 is an ultra-low-power, cost-effective, highly integrated, and highly reliable 32-bit microcontroller enabling designs with complex sensor processing without compromising battery life. It combines a flexible and versatile power management unit with the powerful Arm® Cortex®-M4 processor with a floating-point unit (FPU). The MAX32672 also offers legacy designs an easy and cost-optimal upgrade path from 8- or16-bit microcontrollers.

The device integrates 1MB of flash and 200KB of SRAM to accommodate application and sensor code. Error correction coding (ECC) is implemented on the entire flash, RAM, and cache to ensure extremely reliable code execution even in the harshest of environments. Brownout detection ensures proper operation during power-down and power-up events and unexpected supply transients. The flash is organized into two equal-size physical banks to allow execute-while-write and facilitate "live upgrades."

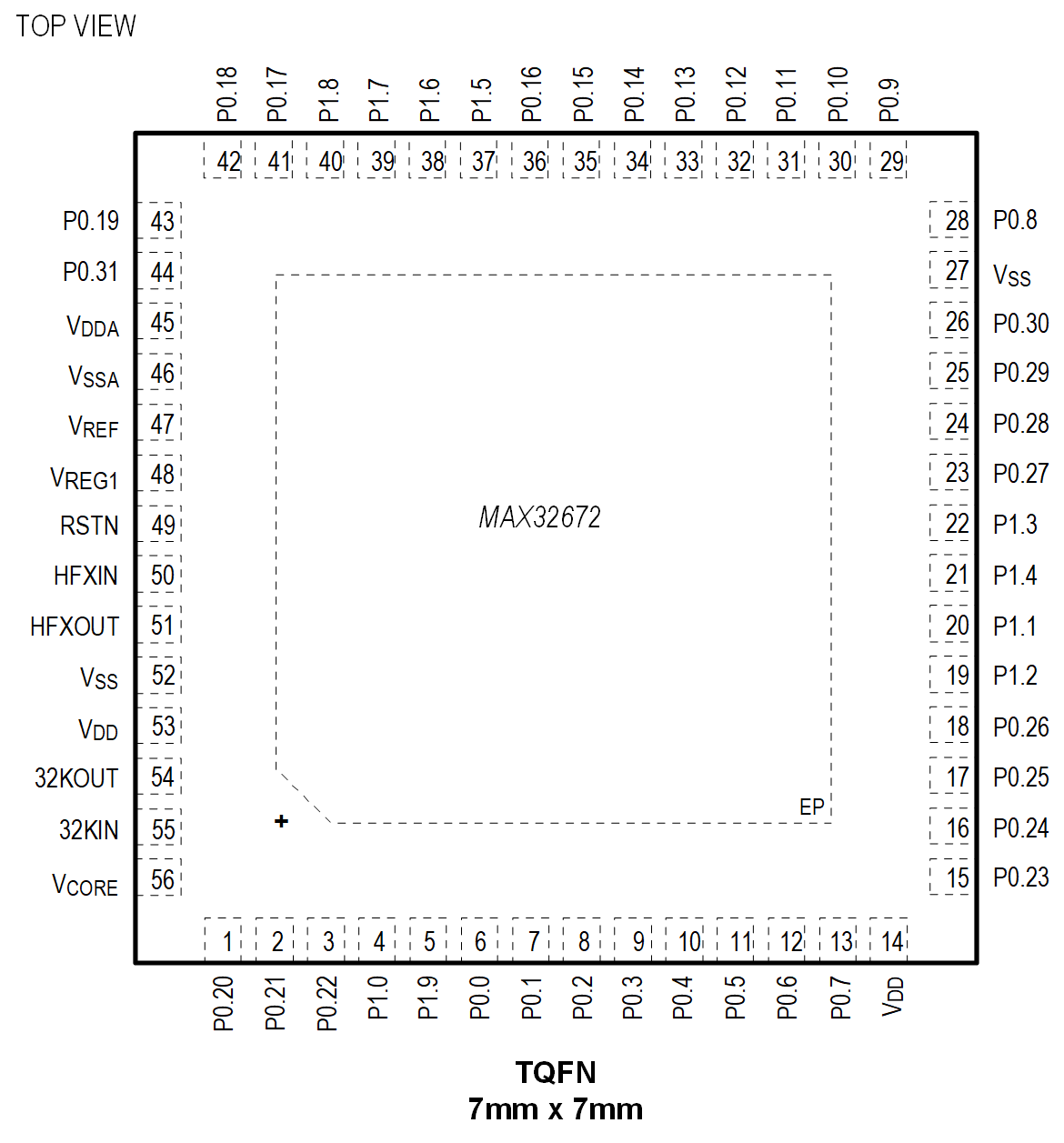

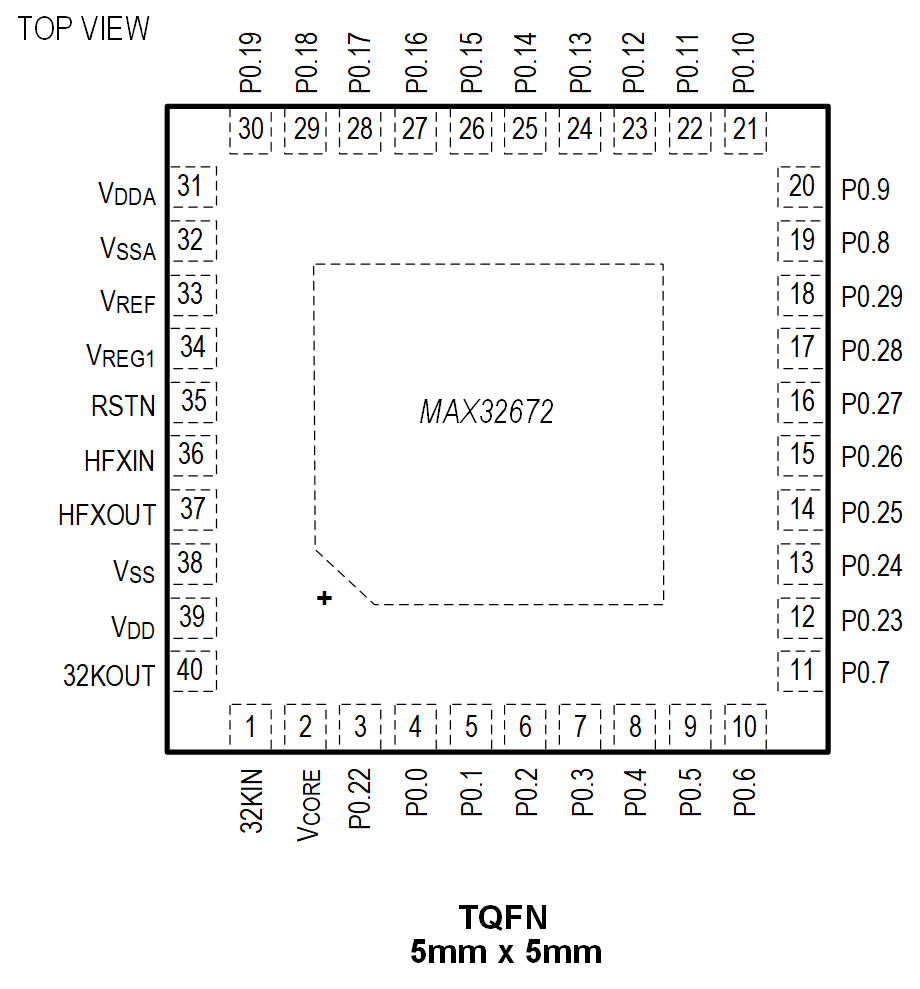

Multiple high-speed peripherals such as 3.4MHz I2C, 50MHz SPI, and UART are included to maximize communication bandwidth. In addition, a low-power UART (LPUART) is available for operation in the lowest power sleep modes to facilitate wake-up activity without any loss of data. A total of six timers with I/O capability are provided, including two low-power timers to enable pulse counting, capture/compare, and pulse-width modulation (PWM) generation, even in the lowest power sleep modes. An incremental/quadrature encoder interface with multiple diagnostics is included specifically for motor control applications. A 1Msps, 12-channel, 12-bit successive approximation register (SAR) ADC is integrated for the digitization of analog sensor signals or other analog measurements. Two low-power comparators, available in all low-power modes, allow energy-efficient monitoring and wake-up on external analog signals. An Elliptic Curve Digital Signature Algorithm (ECDSA)-based cryptographic secure bootloader is available in ROM. The device is available in a 5mm x 5mm, 40-pin TQFN-EP or 7mm x 7mm, 56-pin TQFN.

Applications

  • Battery-Powered Medical Devices
  • Motion/Motor Control, Industrial Sensors
  • Optical Communication Modules, Secure Radio Modem Controller
Part Models 6
1ku List Price Starting From $4.01

close icon
Documentation

Documentation

Video

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
MAX32672GTL+
  • HTML
  • HTML
MAX32672GTL+T
  • HTML
  • HTML
MAX32672GTLBL+
  • HTML
  • HTML
MAX32672GTLBL+T
  • HTML
  • HTML
MAX32672GTNBL+
  • HTML
  • HTML
MAX32672GTNBL+T
  • HTML
  • HTML
Software & Part Ecosystem

Software & Part Ecosystem

Evaluation Kit

Evaluation Kits 2

reference details image

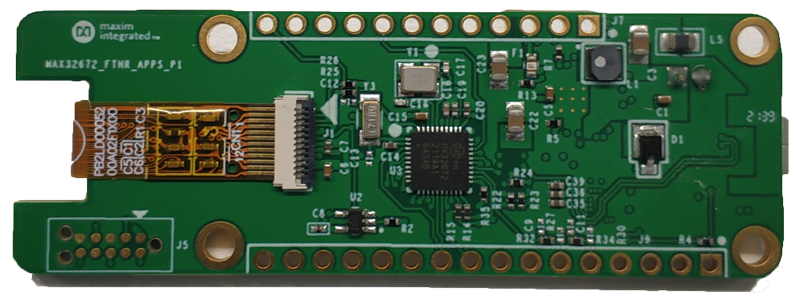

MAX32672FTHR

Evaluation Kit for the MAX32672

zoom

MAX32672FTHR

Evaluation Kit for the MAX32672

Evaluation Kit for the MAX32672

Features and Benefits

  • MAX32672 Microcontroller
    • Arm Cortex-M4 Processor with FPU up to 100MHz
    • 1MB Dual-Bank Flash with Error Correction
    • 200KB SRAM (160KB with ECC Enabled)
    • 16KB Unified Cache with ECC
    • Resource Protection Unit (RPU)
    • Memory Protection Unit (MPU)
  • Integrated Peripherals
    • MAX8819 PMIC with Integrated Charger
    • On-Board DAPLink Debug and Programming
    • Interface for Arm Cortex-M4
    • Breadboard-Compatible Headers
    • Micro USB Connector
    • RGB Indicator LED
    • User Pushbutton
    • OLED Display
    • SWD Debugger
    • Virtual UART Console

Product Detail

The MAX32672FTHR is a rapid development platform that helps engineers quickly implement complex sensor solutions using the MAX32672 Arm® Cortex®-M4. The board also includes the MAX8819 PMIC for battery and power management. The form factor is a small, 0.9in by 2.6in, dual row header footprint that is compatible with Adafruit® FeatherWing peripheral expansion boards. The board includes an OLED display, a RGB indicator LED, and a user pushbutton. The MAX32672FTHR provides a power-optimized flexible platform for quick proof-ofconcepts and early software development to enhance time to market.

Refer to the MAX32672FTHR product page to get started developing with this board.

Applications

  • Battery-Powered Medical Devices
  • Motion/Motor Control, Industrial Sensors
  • Optical Communication Modules, Secure Radio Modem Controller
reference details image

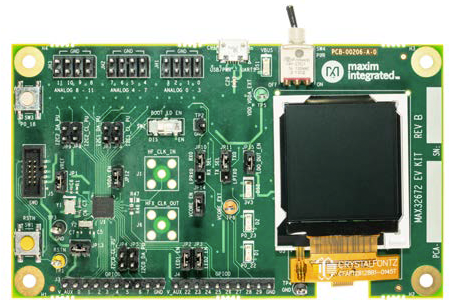

MAX32672EVKIT

Evaluation Kit for the MAX32672

zoom

MAX32672EVKIT

Evaluation Kit for the MAX32672

Evaluation Kit for the MAX32672

Features and Benefits

  • Selectable, On-Board, High-Precision Voltage Reference
  • 128 x 128 (1.45in) Color TFT Display with SPI Interface
  • USB 2.0 Micro B-to-Serial UARTs
  • UART0 and LPUART0 Interface Is Selectable through On-Board Jumpers
  • All GPIOs Signals Accessed through 0.1in Headers
  • 12 Analog Inputs Accessed through 0.1in Headers with Optional Filtering
  • 10-Pin Arm® Cortex® SWD Connector
  • Board Power Provided by USB Port
  • On-Board, 3.3V LDO Regulator
  • Test Loops Provided to Supply Optional VCORE Power Externally
  • Individual Power Measurement on All IC Rails through Jumpers
  • Two General-Purpose LEDs and One General- Purpose Pushbutton Switch

Product Detail

The MAX32672 evaluation kit (EV kit) provides a platform for evaluating the capabilities of the MAX32672 microcontroller, which is a small, high-reliability, ultra-low power, 32-bit microcontroller. The MAX32672 is a secure and cost-effective solution for motion/motor control, industrial sensors, and battery-powered medical devices and offers legacy designs an easy, cost-optimal upgrade path from 8-bit or 16-bit microcontrollers.

Applications

  • Battery Powered Medical Devices
  • Industrial Sensors
  • Motion/Motor Control
  • Optical Communication Modules
  • Secure Radio Modem Controller
