MAX30101

High-Sensitivity Pulse Oximeter and Heart-Rate Sensor for Wearable Health

High-Sensitivity Pulse Oximeter and Heart-Rate Sensor for Fitness & Healthcare

Buy Now

Production

Top

Overview

Features and Benefits
Product Details

Features and Benefits

Heart-Rate Monitor and Pulse Oximeter Sensor in LED Reflective Solution
Tiny 5.6mm × 3.3mm × 1.55mm 14-Pin Optical Module
- Integrated Cover Glass for Optimal, Robust Performance
Ultra-Low Power Operation for Mobile Devices
- Programmable Sample Rate and LED Current for Power Savings
- Low-Power Heart-Rate Monitor (< 1mW)
- Ultra-Low Shutdown Current (0.7μA, typ)
Fast Data Output Capability
- High Sample Rates
Robust Motion Artifact Resilience
- High SNR
-40°C to +85°C Operating Temperature Range

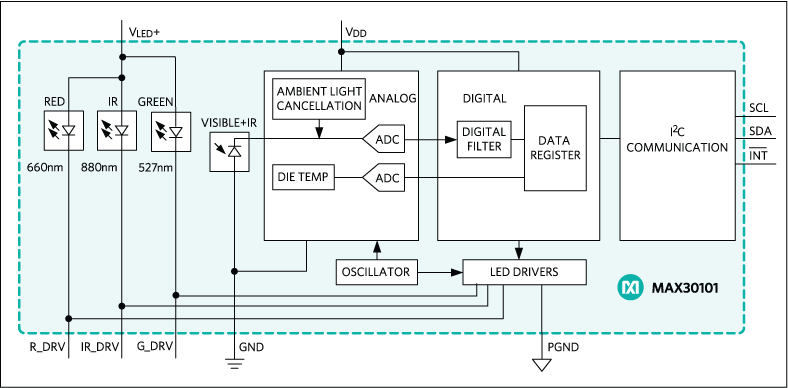

Product Details

The MAX30101 is an integrated pulse oximetry and heart-rate monitor module. It includes internal LEDs, photodetectors, optical elements, and low-noise electronics with ambient light rejection. The MAX30101 provides a complete system solution to ease the design-in process for mobile and wearable devices.

The MAX30101 operates on a single 1.8V power supply and a separate 5.0V power supply for the internal LEDs. Communication is through a standard I²C-compatible interface. The module can be shut down through software with zero standby current, allowing the power rails to remain powered at all times.

Applications

Fitness Assistant Devices
Smartphones
Tablets
Wearable Devices

Product Categories

Sensors and MEMS
- Optical AFEs

Comparable Parts Click to see all in Parametric Search

Product Lifecycle Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

Evaluation Kits (3)

MAX30101ACCEVKIT

Evaluation Kit for the MAX30101

MAX30101WING

Expansion Board for the MAX30101

MAXIOTKIT

Evaluation Kit for the MAX32630, MAX11301, MAX30003, MAX30101, MAX30205, MAX30205EVSYS, MAX32630FTHR, MAX11301WING, MAX30003WING, MAX30101WING

MAX30101ACCEVKIT

View Detailed Evaluation Kit Information

The MAX30101 evaluation kit (EV kit) provides a proven design to evaluate the MAX30101 integrated pulse-oximetry and heart-rate monitor integrated circuit (IC). The EV kit consist of two boards. USBOSMB is the mother board and MAX30101DBEVKIT is the daughter board that includes the MAX30101 and an accelerometer. The EV kit is powered using the USB supply to generate +1.8V for the sensor and +4.5V for the internal LEDs of the MAX30101, and +3.3V for the accelerometer.

The EV kit comes with a MAX30101EFD+ installed in a 14-pin OESIP package.

Applications

Fitness Assistant Devices
Wearable Devices

Features & Benefits

Real-Time Monitoring
Flexible PCB Design
USB-Powered
On-Board Accelerometer
Proven PCB Layout
Fully Assembled and Tested
Windows^® 7-, and Windows 8/8.1-Compatible Software

Resources

MAX30101ACCEVKIT Gerber File - Design Files

ZIP

9.29M

MAX30101WING

View Detailed Evaluation Kit Information

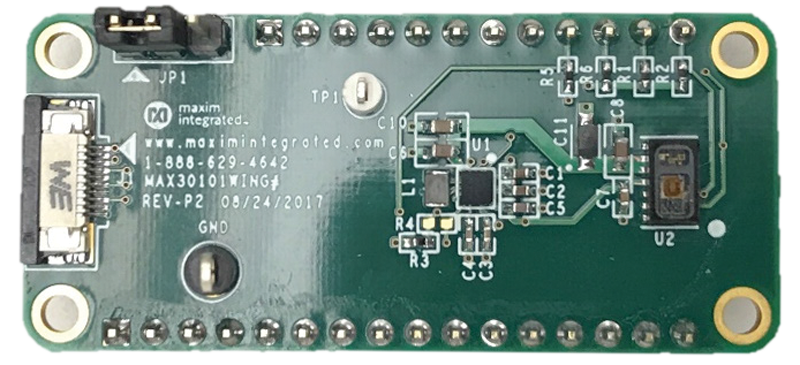

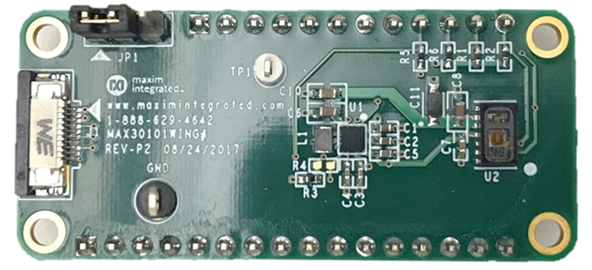

The MAX30101WING board is a rapid development board designed to quickly develop application firmware for the MAX30101 pulse oximetry sensor. The MAX30101WING contains the MAX14750A power management IC (PMIC) that supplies a +1.8V power rail (1V8) to the MAX30101 along with a programmable +2.5V to +5V rail (VLED) to drive the MAX30101 internal LEDs. The board is compatible with +1.8V and +3.3V logic (VIO), selectable through jumper JP1. The ZIF Flat Flexible Cable Connector allows integration of the MAX30205EVSYS, which features the MAX30205 silicon-based human body temperature sensor. The board seamlessly integrates with the MAX32630FTHR to enable rapid prototyping and development.

Applications

Fitness Assistant Devices
Smartphones
Tablets
Wearable Devices

Features & Benefits

Convenient Expansion Board
- 0.9in x 2.0in DIP Form Factor
  - Breadboard Compatible
  - Feather Compatible
- Integrated PMIC to Supply LED Drive Voltage
- +1.8V and +3.3V Logic VIO Compatibility
- ZIF Flat Flex Cable Connector
  - Compatible with the MAX30205EVSYS
MAX30101 High-Sensitivity Pulse Oximeter and Heart-Rate Sensor Features
- Noninvasive Reflective LED Solution
- 5.6mm x 3.3mm x 1.55mm 14-Pin Optical Module
  - Integrated Cover Glass for Optimal, Robust Performance
- Ultra-Low Power Operation for Mobile Devices
  - Programmable Sample Rate and LED Current for Power Savings
  - Low-Power Heart-Rate Monitor (< 1mW)
  - Ultra-Low Shutdown Current (0.7µA, typ)
- Fast Data Output Capability
  - Sample Rates up to 3200sps
- Robust Motion Artifact Resilience
- -40°C to +85°C Operating Temperature Range
MAX14750A PMIC Features
- Micro-I_Q 250mW Buck-Boost Regulator
  - Supplies VLED to the MAX30101
  - Output Voltage Programmable from 2.5V to 5V
  - 1.1µA Quiescent Current
  - Programmable Current Limit
  - Input Voltage from 1.8V to 5.5V
- Micro-I_Q 100mA LDO
  - Supplies 1V8 Rail for the MAX30101
  - Input Voltage From 1.71V to 5.5V
  - Output Programmable from 0.09V to 4.0V
  - 0.9µA Quiescent Current
  - Configurable as a Load Switch
  - Individual Enable Pins
  - I²C Control Interface

MAXIOTKIT

View Detailed Evaluation Kit Information

Maxim Integrated brings the convenience of remote health monitoring to your fingertips. The modular architecture allows for a variety of systems to be assembled quickly and easily within a couple of minutes. The system flexibility stems from the FeatherWing^® form factor that provides a plug-and-play interface by adding or removing desired sensors, enabling or disabling a particular sensor, and the frequency data transmission to an online dashboard. The system is built on a Maxim Integrated low-power microcontroller to ensure minimum power consumption for designs on the go.

Applications

Fitness Monitors
Portable Medical Devices
Sensor Hubs
Sports Watches
Wearable Medical Patches

Features & Benefits

MAX32630FTHR Feather Board
- MAX32630 Low-Power Microcontroller
- MicroSD Card Connector
- Mbed™ HDK Debug Interface
- Bluetooth Compatible
MAX11301WING Feather Wing
- 20 Configurable Mixed-Signal Ports
- Analog Switch Between Adjacent PIXI^® Ports
MAX30003WING Feather Wing
- Clinical-Grade ECG AFE with High-Resolution Data Converter
- Built-In Heart Rate Detection
MAX30101WING Feather Wing
- High-Sensitivity Pulse Oximeter and Heart-Rate Sensor
MAX30205EVSYS
- Human Body Temperature Sensor

Documentation & Resources

3rd Party Solutions

MIKROE-2510, Click Board, Heart rate 4 Click
3/15/2023

Data Sheet

MAX30101: High-Sensitivity Pulse Oximeter and Heart-Rate Sensor for Wearable Health Data Sheet (Rev. 3)
6/19/2020
PDF

User Guide

Design Note

Video

How to Use the MAXREFDES220# for Blood Pressure Trending
11/29/2022

Application Note

How to Interface the MAX30101WING Pulse Oximeter with the MAX32630FTHR
12/19/2017
How to Interface the MAX30205EVSYS with the MAX32630FTHR
12/19/2017

Technical Article

Wearable Optical Measurement Solution Based on the MAX32664
3/11/2021
Guidelines for SpO2 Measurement
3/26/2019
Penetration Depth Guide For Biosensor Applications
3/30/2018

Reference Designs (3)

MAXREFDES100

Health Sensor Platform

MAXREFDES1044

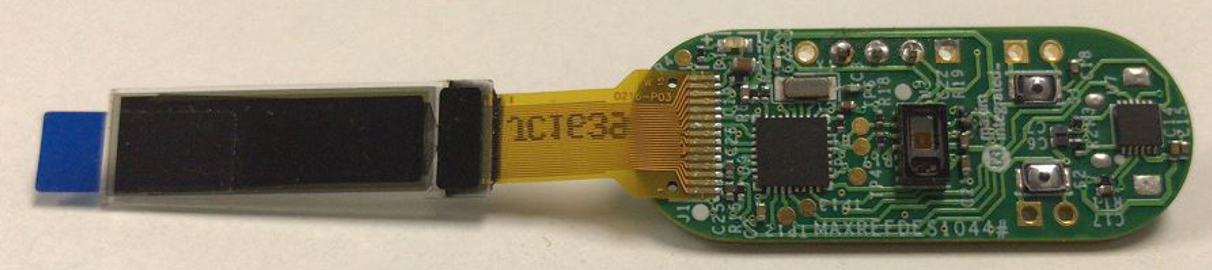

Heart-Rate Monitor Using the MAX30101

MAXREFDES220

Finger Heart Rate and Pulse Oximeter Smart Sensor with Digital Signal Processing

MAXREFDES220

Finger Heart Rate and Pulse Oximeter Smart Sensor with Digital Signal Processing

MAXREFDES220

Finger Heart Rate and Pulse Oximeter Smart Sensor with Digital Signal Processing

View Detailed Reference Design Information

Features & Benefits

MAX30101 Heart Rate Monitor and Pulse Oximeter

Tiny, 5.6mm × 3.3mm × 1.55mm 14-Pin Optical Module
Integrated Cover Glass for Optimal, Robust Performance
Ultra-Low Power Operation for Mobile Devices (<1mW)
Programmable Sample Rate and LED Current for Power Savings
High SNR (Signal-to-Noise) Ratio, >80dB (typ)

MAX32664 Sensor Hub

Maxim-Licensed Firmware for Complete Algorithmic Support of: 1) Finger Heart-Rate and Blood Oxygen Saturation Calculations or 2) BPT, Heart-Rate, and Blood Oxygen Saturation Calculations
Industry-Standard I2C Interface for Communication with Host Controller
Dedicated Bootloader Authenticates Secure Firmware Updates

3-Axis Accelerometer

Provides Greater Accuracy
Compensates for Motion Artifacts

Parts Used

Resources

MAXREFDES220 Design and Software Files

ZIP

3.54 M

Product Recommendations

MAX30101 Companion Parts

Recommended Related Parts

MAX32664, MAX30102.
