MAX30102

High-Sensitivity Pulse Oximeter and Heart-Rate Sensor for Wearable Health

Show More showmore-icon

High-Sensitivity Pulse Oximeter and Heart-Rate Biosensor for Fitness & Healthcare

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Details
Part Models 2
1ku List Price Starting From $5.41
Features
  • Heart-Rate Monitor and Pulse Oximeter Biosensor in LED Reflective Solution
  • Tiny 5.6mm x 3.3mm x 1.55mm 14-Pin Optical Module
    • Integrated Cover Glass for Optimal, Robust Performance
  • Ultra-Low Power Operation for Mobile Devices
    • Programmable Sample Rate and LED Current for Power Savings
    • Low-Power Heart-Rate Monitor (< 1mW)
    • Ultra-Low Shutdown Current (0.7µA, typ)
  • Fast Data Output Capability
    • High Sample Rates
  • Robust Motion Artifact Resilience
    • High SNR
  • -40°C to +85°C Operating Temperature Range
Additional Details
show more Icon

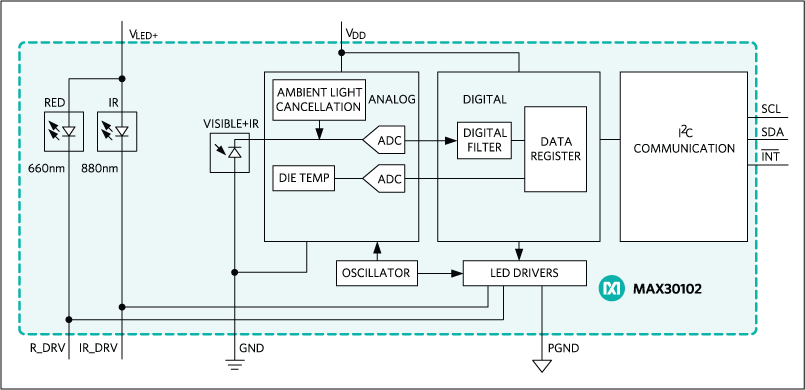

The MAX30102 is an integrated pulse oximetry and heart-rate monitor biosensor module. It includes internal LEDs, photodetectors, optical elements, and low-noise electronics with ambient light rejection. The MAX30102 provides a complete system solution to ease the design-in process for mobile and wearable devices.

The MAX30102 operates on a single 1.8V power supply and a separate 3.3V power supply for the internal LEDs. Communication is through a standard I2C-compatible interface. The module can be shut down through software with zero standby current, allowing the power rails to remain powered at all times.

Applications

  • Fitness Assistant Devices
  • Smartphones
  • Tablets
  • Wearable Devices
Part Models 2
1ku List Price Starting From $5.41

close icon
Documentation

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
MAX30102EFD+
  • HTML
  • HTML
MAX30102EFD+T
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

May 9, 2019

- 1951

ASSEMBLY

MAX30102EFD+

PRODUCTION

MAX30102EFD+T

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

May 9, 2019

- 1951

arrow down

ASSEMBLY

MAX30102EFD+

PRODUCTION

MAX30102EFD+T

PRODUCTION

Software & Part Ecosystem

Software & Part Ecosystem

Can't find the software or driver you need?

Request a Driver/Software
Evaluation Kit

Evaluation Kits 1

MAX30102ACCEVKIT

Evaluation Kit for the MAX30102

zoom

MAX30102ACCEVKIT

Evaluation Kit for the MAX30102

Evaluation Kit for the MAX30102

Features and Benefits

  • Real-Time Monitoring
  • Flexible PCB Design
  • USB-Powered
  • On-Board Accelerometer
  • Proven PCB Layout
  • Fully Assembled and Tested
  • Windows® 7-, and Windows 8/8.1-Compatible Software

Product Detail

The MAX30102 evaluation kit (EV kit) provides a proven design to evaluate the MAX30102 integrated pulse-oximetry and heart-rate monitor integrated circuit (IC). The EV kit consist of two boards. USBOSMB is the mother board and MAX30102DBEVKIT is the daughter board that includes the MAX30102 and an accelerometer. The EV kit is powered using the USB supply to generate +1.8V for the sensor and +4.5V for the internal LEDs of the MAX30102, and +3.3V for the accelerometer.

The EV kit comes with a MAX30102EFD+ installed in a 14-pin OESIP package.

Applications

  • Fitness Assistant Devices
  • Wearable Devices
Tools & Simulations

Tools & Simulations 1

Reference Designs

Reference Designs 2

maxrefdes117fig00

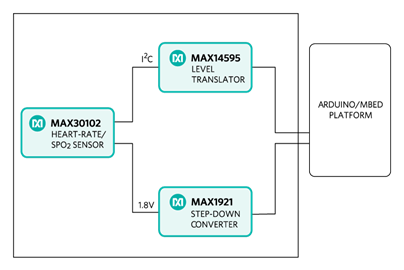

Heart-Rate and Pulse-Oximetry Monitor

zoomopens a dialog

MAXREFDES117

Heart-Rate and Pulse-Oximetry Monitor

Heart-Rate and Pulse-Oximetry Monitor

Features and Benefits

  • Optical Heart-Rate Monitor and Pulse Oximetry Solution
  • Tiny 12.7mm x 12.7mm (0.5in x 0.5in) Board Size
  • Low Power
  • Device Drivers
  • Free Algorithm
  • Example C Source Code For Arduino And mbed Platforms
  • Test Data

Competitive Advantages

  • Highly-integrated, small-size sensor
  • Non-chest based heart-rate/SpO2 detection
  • Ultra-low power consumption
View Detailed Reference Design external link

Design & Integration Tools

pdf icon

ZIP

19.03 M

MAXREFDES1043

MAXREFDES1043: How to Monitor SpO2 Levels Using the MAX30102
