MAX20360

PMIC with Ultra-Low IQ Regulators, Charger, Fuel Gauge, and Haptic Driver for Small Li+ System

Show More showmore-icon

Industry's Most Highly Integrated PMIC for 24/7 Monitoring Systems Such as Wearables and IoT

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Viewing: Part Details
arrow-icon
Part Details

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet (Rev.10)
Open Interactive Page external-link
Documentation View All Documentation
Part Models 22
1ku List Price Starting From $6.03
Features
  • Extend Battery-Use Time Between Battery Charging
    • 2 x Micro-IQ, 400mA Buck Regulators (330nA IQ typ each)
      • 0.550V to 1.180V in 10mV Steps
      • 0.550V to 2.125V in 25mV Steps
      • 0.550V to 3.700V in 50mV Steps
    • Micro-IQ, 600mA Buck Regulator (330nA IQ typ)
      • 0.550V to 1.180V in 10mV Steps
      • 0.550V to 2.125V in 25mV Steps
      • 0.550V to 3.700V in 50mV Steps
    • Micro-IQ LV LDO/Load Switch (1μA IQ typ)
      • 1.0V to 2.0V Input Voltage
      • 50mA Output
      • 0.5V to 1.95V Output, 25mV Steps
    • Micro-IQ LDO/Load Switch (1μA IQ typ)
      • 1.71V to 5.5V Input Voltage
      • 100mA Output
      • 0.9V to 4V, 100mV Steps
    • Micro-IQ Buck-Boost Regulator (2μA IQ typ)
      • 1.5W Output
      • 2.6V to 5V in 50mV Steps
  • Easy-to-Implement Li+ Battery Charging
    • Wide Fast Charge Current Range: 5mA to 500mA
    • 28V/-5.5V Tolerant Input
      • Programmable JEITA Current/Voltage Profiles
  • Minimize Solution Footprint through High Integration
    • 3.3V or 5.0V Safe Output LDO
      • 15mA When CHGIN Present
    • ERM/LRA Haptic Driver
      • Automatic Braking (LRA Only)
      • Automatic Resonance Tracking (LRA Only)
  • Supports a Wide Variety of Display Options
    • Micro-IQ Boost Regulator (2.4μA IQ typ)
      • 300mW Output
      • 5V to 20V in 250mV Steps
    • 3-Channel Current Sinks
      • 20V Tolerant
      • Programmable from 0.6mA to 30mA
    • Optimize System Control
      • Programmable Push-Button Controller
      • Programmable Supply Sequencing
      • Factory Shelf Mode
      • On-Chip Voltage/Charge Current Monitor Mux and Analog-to-Digital Converter (ADC)
Additional Details
show more Icon

The MAX20360 is a highly integrated and programmable power management solution designed for ultra-low-power wearable applications. It is optimized for size and efficiency to enhance the value of the end product by extending battery life and shrinking the overall solution size. A flexible set of power-optimized voltage regulators, including multiple buck, boost and buck-boost converters, and linear regulators, provides a high level of integration and the ability to create a fully optimized power architecture. The quiescent current of each regulator is ultra-low targeted at extending battery life in always-on applications.

The MAX20360 includes a complete battery management solution with battery seal, charger, power path, and fuel gauge. Both thermal management and input protection are built into the charger. The device also includes a factory programmable button controller with multiple inputs that are customizable to fit specific product UX requirements.

Three integrated LED current sinks are included for indicator or backlighting functions, and an ERM/LRA driver with automatic resonance tracking is capable of providing sophisticated haptic feedback to the user. A low noise, 1.5W buck-boost converter provides a clean way to power LEDs commonly used in optical heart-rate systems. The device is configurable through an I2C interface that allows for programming various functions and reading the device status, including the ability to read temperature and supply voltages with the integrated ADC. This device is available in a 72-bump, 0.5mm pitch, 4.88mm x 4.19mm, wafer-level package (WLP) and operates over the -40°C to +85°C extended temperature range.

Applications

  • Wearable Devices
  • IoT
Show More Arrow image
file View Data Sheet (Rev.10)
Documentation View All Documentation
Part Models 22
1ku List Price Starting From $6.03
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

MAX20360

Documentation

2
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • Data Sheet
  • All
    TickIcon
  • English
  • Japanese
resetfilter

Reset Filters

Data Sheet

2

PDF Vector

PDF

PDF Vector

HTML

UPDATED 05/11/2022
English

MAX20360: PMIC with Ultra-Low IQ Regulators, Charger, Fuel Gauge, and Haptic Driver for Small Li+ System Data Sheet (Rev.10)

Open PDF File

redirect
4.41 M

Open Interactive Page

redirect
download

Download PDF

PDF Vector

PDF

UPDATED 05/11/2022
Japanese

MAX20360: 超低 IQレギュレータ、チャージャ、残量ゲージ、およびハプティック・ドライバを内蔵した小型リチウムイオン・システム用 PMIC データシート

Open PDF File

redirect
4.41 M
download

Download PDF

There are no results matching this criteria. Try resetting your filters or searching for a different term

close icon
Documentation

Documentation

Video

1

Thumbnail Image

Video

2022-10-04

07:19

Introduction to the MAX20360 Wearable Power Management Solution

Learn More
Show More Arrow image

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
MAX20360AEWZ+ 72-WLCSP-N/A external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
MAX20360AEWZ+T 72-WLCSP-N/A external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
MAX20360BEWZ+ 72-WLCSP-N/A external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
MAX20360BEWZ+T 72-WLCSP-N/A external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
MAX20360CEWZ+ 72-WLCSP-N/A external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
MAX20360CEWZ+T 72-WLCSP-N/A external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
MAX20360FEWZ+ 72-WLCSP-N/A external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
MAX20360FEWZ+T 72-WLCSP-N/A external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
MAX20360IEWZ+ 72-WLCSP-N/A external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
MAX20360IEWZ+T 72-WLCSP-N/A external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
MAX20360JEWZ+ 72-WLCSP-N/A external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
MAX20360JEWZ+T 72-WLCSP-N/A external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
MAX20360KEWZ+ 72-WLCSP-N/A external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
MAX20360KEWZ+T 72-WLCSP-N/A external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
MAX20360LEWZ+ 72-WLCSP-N/A external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
MAX20360LEWZ+T 72-WLCSP-N/A external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
MAX20360MEWZ+ 72-WLCSP-N/A external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
MAX20360MEWZ+T 72-WLCSP-N/A external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
MAX20360OEWZ+ 72-WLCSP-N/A external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
MAX20360OEWZ+T 72-WLCSP-N/A external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
MAX20360PEWZ+ 72-WLCSP-N/A external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
MAX20360PEWZ+T 72-WLCSP-N/A external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Dec 20, 2021

- 2112

WAFER FAB

MAX20360AEWZ+

PRODUCTION

MAX20360AEWZ+T

PRODUCTION

MAX20360BEWZ+

PRODUCTION

MAX20360BEWZ+T

PRODUCTION

MAX20360CEWZ+

PRODUCTION

MAX20360CEWZ+T

PRODUCTION

MAX20360FEWZ+

PRODUCTION

MAX20360IEWZ+T

PRODUCTION

MAX20360JEWZ+T

PRODUCTION

pdf

pcn_2112

external-icon

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Dec 20, 2021

- 2112

arrow down

WAFER FAB

MAX20360AEWZ+

PRODUCTION

MAX20360AEWZ+T

PRODUCTION

MAX20360BEWZ+

PRODUCTION

MAX20360BEWZ+T

PRODUCTION

MAX20360CEWZ+

PRODUCTION

MAX20360CEWZ+T

PRODUCTION

MAX20360FEWZ+

PRODUCTION

MAX20360IEWZ+T

PRODUCTION

MAX20360JEWZ+T

PRODUCTION

pdf

pcn_2112

external-icon
Software & Part Ecosystem

Software & Part Ecosystem

Parts Product Life Cycle Description

Internal Power Switch Buck-Boost Regulators1
MAX20343
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

Ultra-Low Quiescent Current, Low Noise 3.5W Buck-Boost Regulator

PMIC (DC/DC, PowerPath, and Battery Charger)3
MAX20345
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

PMIC with Ultra-Low IQ Voltage Regulators, Buck-Boost for Optical Sensing and Charger for Small Lithium Ion Systems

MAX20335
popup image
Cart

PRODUCTION

PMIC with Ultra-Low IQ Voltage Regulators and Battery Chargers for Small Lithium Ion Systems

MAX20353
popup image
Cart

PRODUCTION

PMIC with Ultra-Low IQ Regulators, Charger, Fuel Gauge, and Haptic Driver for Small Li+ Systems

Evaluation Kit

Evaluation Kits 2

MAX20360EVKIT

Evaluation Kit for the MAX20360

zoom

MAX20360EVKIT

Evaluation Kit for the MAX20360

download icon

Download

 print icon

Print
MAX20360EVKIT
Evaluation Kit for the MAX20360

Features and Benefits

  • USB Power Option
  • Flexible Configuration
  • On-Board LED Current Sink and Battery Simulation
  • Sense Test Point for Output-Voltage Measurement
  • Filter Test Point for Haptic-Waveform Measurement
  • Windows® 8/Windows 10-Compatible GUI Software
  • Fully Assembled and Tested
Buy Now View Details

Product Detail

The MAX20360 evaluation kit (EV kit) is a fully assembled and tested circuit board that demonstrates the MAX20360 ultra low-power wearable power management integrated circuit (PMIC). The MAX20360 includes voltage regulators such as bucks, boost, buck-boost, and linear regulators, and a complete battery management solution with battery seal, charger, power path, and fuel gauge.

The device is configurable through an I2C interface that allows for programming various functions and reading device status. The EV kit GUI application sends commands to the MAXPICO2PMB# adapter board to configure the device.

The MAX20360EVKIT# has no harvester feature. The MAX20360HEVKIT# has a harvester feature enabled and can be connected to MAX20361EVKIT# to evaluate the interaction between the two devices.

Applications

  • IoT
  • Wearable Devices

Resources

pdf icon

ZIP

MAX20360EVKIT Design Files Download

1.4 M

Show More Arrow image

MAX20360HEVKIT

Evaluation Kit for the MAX20360

zoom

MAX20360HEVKIT

Evaluation Kit for the MAX20360

download icon

Download

 print icon

Print
MAX20360HEVKIT
Evaluation Kit for the MAX20360

Features and Benefits

  • USB Power Option
  • Flexible Configuration
  • On-Board LED Current Sink and Battery Simulation
  • Sense Test Point for Output-Voltage Measurement
  • Filter Test Point for Haptic-Waveform Measurement
  • Windows® 8/Windows 10-Compatible GUI Software
  • Fully Assembled and Tested
Buy Now View Details

Product Detail

The MAX20360 evaluation kit (EV kit) is a fully assembled and tested circuit board that demonstrates the MAX20360 ultra low-power wearable power management integrated circuit (PMIC). The MAX20360 includes voltage regulators such as bucks, boost, buck-boost, and linear regulators, and a complete battery management solution with battery seal, charger, power path, and fuel gauge.

The device is configurable through an I2C interface that allows for programming various functions and reading device status. The EV kit GUI application sends commands to the MAXPICO2PMB# adapter board to configure the device.

The MAX20360EVKIT# has no harvester feature. The MAX20360HEVKIT# has a harvester feature enabled and can be connected to MAX20361EVKIT# to evaluate the interaction between the two devices.

Applications

  • IoT
  • Wearable Devices

Evaluation Kits2

MAX20360EVKIT

Evaluation Kit for the MAX20360

MAX20360HEVKIT

Evaluation Kit for the MAX20360
Reference Designs

Reference Designs 1

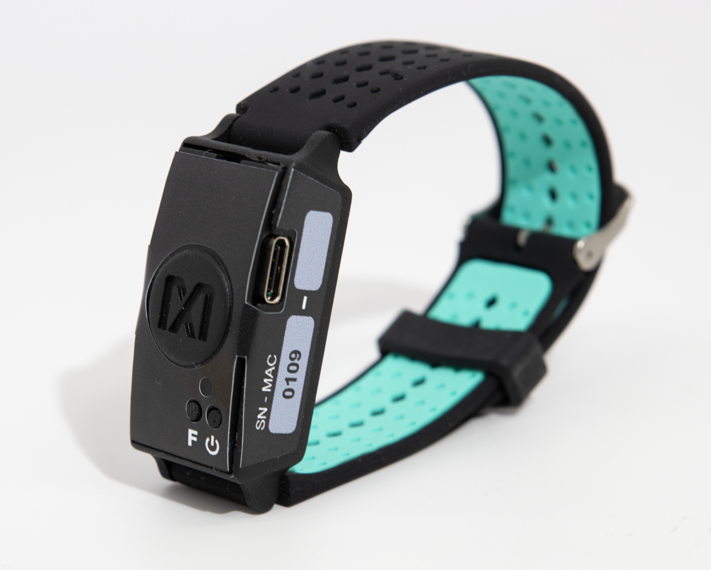

Health Sensor Platform 3.0

MAXREFDES104

Health Sensor Platform 3.0

zoomopens a dialog

MAXREFDES104

Health Sensor Platform 3.0

download icon

Download

 print icon

Print
MAXREFDES104
Health Sensor Platform 3.0

Features and Benefits

Features

  • Photoplethysmography (PPG)
  • Biopotential measurement (ECG)
  • Skin temperature measurement
  • Embedded heart-rate (HRM) and oxygen saturation (SpO2) algorithms
  • Motion and acceleration
  • Wearable form factor

What's in the Box

  • Complete Assembled Wearable
  • BLE USB Dongle (CY5677)
  • USB-A to USB-C cable
  • USB-A to Micro-USB cable
  • Programmer Board (MAXDAP-USB-C)
View Detailed Reference Design external link

Part Used 4

MAX86176 reference design link

MAX30208 reference design link

MAX32666 reference design link

MAX20360 reference design link

Design & Integration Tools

pdf icon

ZIP

Download Design Files link icon

50.66 M

Videos

Thumbnail Image

2022-10-04

02:35

MAXREFDES104: Health Sensor Platform 3.0

Reference Designs1

Health Sensor Platform 3.0

MAXREFDES104

Health Sensor Platform 3.0

Recently Viewed

Part Details
Documentation
Software & Part Ecosystem
Evaluation Kit
Reference Designs
Latest Discussions
