MAX17330

AccuCharge + ModelGauge 1-Cell Charger, Fuel Gauge, and Protector

Show More showmore-icon

Industry's Most Flexible Stand-Alone Fuel Gauge with Integrated Precision Charger and Protector

warning : NOT RECOMMENDED FOR NEW DESIGNS tooltip
warning : NOT RECOMMENDED FOR NEW DESIGNS tooltip
Viewing: Part Details
arrow-icon

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet (Rev.1)
Documentation View All Documentation
Part Models 2
1ku List Price Starting From $2.65
Features
  • Non-Volatile Programmable Stand-Alone AccuCharge Charger
    • 0.2% Charge Voltage 3.6V to 4.8V, Configurable
    • 1% Charge Current, 256 Current Settings
    • FET Temperature Limit and Heat Regulation
    • Prequal and Step-Charging Options
    • JEITA—6 Temperature Regions
  • Battery Health + Programmable Safety/Protection
    • Overvoltage/Overcharge-Current
      •  Temperature Region Dependent
    • Overcharge/Discharge/Short-Circuit Current
    • Over/Under Temperature
    • Zero-Volt or Greater than 1.8V Charging Option
    • Undervoltage + SmartEmpty
  • Pushbutton Wakeup/Factory Ship Mode (0.5μA)
  • ModelGauge m5 EZ Algorithm
    • Percent, Capacity, Time-to-Empty/Full, Age
    • Cycle+™ Age Forecast
  • Dynamic Power—Estimates Power Capability
  • SHA-256 Authentication to Prevent Cloning
  • Precision Measurement Without Calibration
    • ​Current, Voltage, Power, Time, Cycles
    • Die Temperature​ and two Thermistors>
  • History Logging, User Data
  • Low Quiescent Current
    • FETs Enabled: 28µA Active, 21µA Hibernate>
    • FETs Disabled: 8µA Ship, 0.5µA/0.1µA Shutdown
  • 2-wire (I2C/SMBus™)

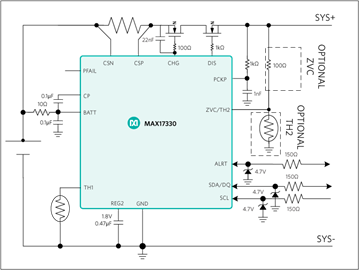

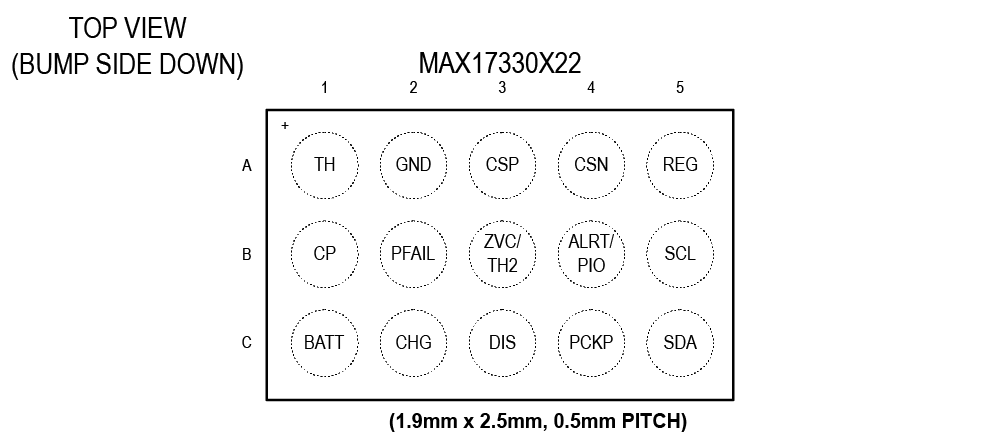

  • 1.9mm x 2.5mm 15-bump 0.5mm pitch WLP
Additional Details
show more Icon

The MAX17330 is not recommended for new designs. The replacement part is the MAX17332.

The MAX17330 is a 28μA IQ stand-alone charger, fuel gauge, protector, and battery internal self-discharge detection IC for 1-cell lithium-ion/polymer batteries. When a voltage source is present, the MAX17330 regulates charging by modulating the charge N-FET, using AccuCharge™ charger technology. The MAX17330 regulates charge voltage, current, and FET temperature. Stand-alone charging is supported by flexible configuration in nonvolatile memory. The IC supports the following:

  • Low-Power Charging
    • 1mA to 500mA directly from universal 5V USB
    • No USB identification/coordination needed

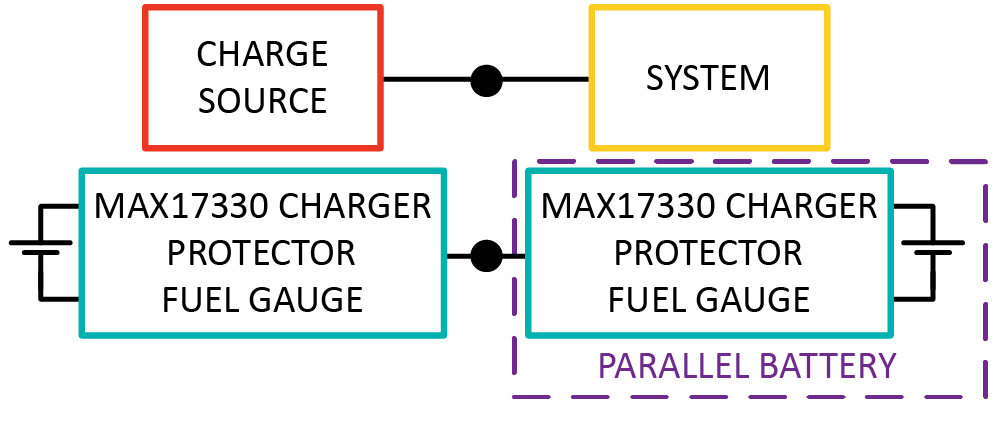

  • High-Power Parallel Packs (>1000mA)
    • Independently charges parallel packs
    • Prevents cross-charging for parallel batteries
    • Coordinates external DC-DC with alerts
    • Minimizes dropout and heat
  • Protection and Charging Control —pack or host side

The MAX17330 ideal diode circuit supports a quick response to system transients and adapter removal with low voltage drop across the CHG FET.

The IC uses the ModelGauge™ m5 EZ algorithm that combines the short-term accuracy and linearity of a coulomb counter with the long-term stability of a voltage-based fuel gauge to provide industry-leading accuracy. The IC automatically compensates for cell aging, temperature, and discharge rate while providing accurate state-of-charge (SOC) in milliampere-hours (mAh) or percentage (%) over a wide range of operating conditions.

The IC monitors the voltage, current, temperature, and state of the battery to provide protection against over/undervoltage, overcurrent, short-circuit, over/undertemperature and overcharge conditions, and internal self-discharge protection using external high-side N-FETs to ensure that the lithium-ion/polymer battery operates under safe conditions which prolongs the life of the battery.



Applications

  • Dual Screen Smartphones, Tablets
  • Handheld Radios, Computers, Accessories
  • Hearables, Wearables, Smartwatches
  • Home/Building Automation, Sensors, Cameras
  • Medical Devices, Health, Fitness Monitors
  • Parallel Battery AR/VR Systems
  • Smart Batteries and Hybrid Supercap Batteries
  • USB PPS and Direct Charging
Show More Arrow image
file View Data Sheet (Rev.1)
Documentation View All Documentation
Part Models 2
1ku List Price Starting From $2.65
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

MAX17330

Documentation

1
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • Data Sheet
  • All
    TickIcon
  • English
resetfilter

Reset Filters

Data Sheet

1

PDF Vector

PDF

UPDATED 06/12/2023
English

MAX17330: AccuCharge + ModelGauge 1-Cell Charger, Fuel Gauge, and Protector Data Sheet (Rev.1)

Open PDF File

redirect
3.82 M
download

Download PDF

There are no results matching this criteria. Try resetting your filters or searching for a different term

close icon

Documentation

Webcast 1

Simplifying Battery Management Complexity with AccuCharge™

Video

1

Thumbnail Image

Video

2022-10-04

11:18

Introduction to the MAX17330 ModelGauge+AccuCharge 1-Cell Charger, Fuel Gauge and Protector

Learn More
Show More Arrow image

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
MAX17330X22+ 15-WLCSP-N/A external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
MAX17330X22+T 15-WLCSP-N/A external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link

Software & Part Ecosystem

Parts Product Life Cycle Description

Battery Fuel Gauge and Coulomb Counter1
MAX17301
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

1-Cell ModelGauge m5 EZ Fuel Gauge with Protector, Internal Self-Discharge Detection and SHA-256 Authentication

Switching Battery Chargers2
MAX8971
popup image
Cart

PRODUCTION

Industry's Smallest 1.55A 1-Cell Li+ DC-DC Charger

MAX77751
popup image
Cart

PRODUCTION

3.15A USB Type-C Autonomous Charger for 1-Cell Li+ Batteries

Parts Product Life Cycle Description
MAX17332
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

AccuCharge + ModelGauge m5 EZ 1-Cell Charger, Fuel Gauge, and Protector


MAX17330 EV KIT GUI
Info:False
  • file-icon HTML MAX17330 EV KIT GUI external icon
    NEW tooltip

    This resource was released within the last 6 months.

    RELEASED Aug 08,2024

    • Evaluation Kits 1

    MAX17330X2EVKIT

    Evaluation Kit for the MAX17330

    zoom

    MAX17330X2EVKIT

    Evaluation Kit for the MAX17330

    download icon

    Download

     print icon

    Print
    MAX17330X2EVKIT
    Evaluation Kit for the MAX17330

    Features and Benefits

    • ModelGauge m5 Algorithm
    • Charges, Monitors, and Protects a 1S Battery
    • Full Protection Solution On-Board for Evaluation
    • Battery Voltage (VBATT) Range of +2.16V to +4.9V with Default Hardware
    • Input Voltage up to 5.7V
    • Default Current Range -5A (Discharge) to +2.56A (Charge) with 10mΩ Sense Resistor (Higher Currents can be Supported by Changing to a Smaller Sense Resistor)
    • 2 Thermistor Measurements
    • On-Board I2C Communication Interface with Built-In MAXUSB Interface
    • Windows 7 or Newer Compatible Software
    • Proven PCB Layout
    • Fully Assembled and Tested
    Buy Now View Details

    Product Detail

    The MAX17330 evaluation kit is a fully assembled and tested surface-mount PCB that evaluates the stand-alone charger, fuel gauge IC with protector and optional SHA-256 authentication for 1 cell lithium-ion/polymer batteries.

    The MAX17330 EV kits include the IC evaluation board with integrated I2C interface and USB micro-B cable. Windows® based graphical user interface (GUI) software is available for use with the EV kit and can be downloaded from MAX17330 product page under Design Resources tab. Windows 7 or newer Windows operating system is required to use with the EV kit GUI software.

    Applications

    • Dual Screen Smartphones, Tablets
    • Handheld Radios, Computers, Accessories
    • Hearables, Wearables, Smartwatches
    • Home/Building Automation, Sensors, Cameras
    • Medical Devices, Health, Fitness Monitors
    • Parallel Battery AR/VR Systems
    • Smart Batteries and Hybrid Supercap Batteries
    • USB PPS and Direct Charging

    Resources

    pdf icon

    ZIP

    MAX17330X2EVKIT ODB File - Design Files Download

    1.05 M

    Show More Arrow image

    Software

    pdf icon

    ZIP

    MAX17330 EV KIT GUI reference design link

    Evaluation Kits1

    MAX17330X2EVKIT

    Evaluation Kit for the MAX17330
