LTM8052
LTM8052A

Name: LTM8052
Brand: Analog Devices
Price: 19.62 USD
Availability: InStock

RECOMMENDED FOR NEW DESIGNS

36V_IN, 5A, 2-Quadrant CVCC Step-Down μModule Regulator

Data Sheet Product Selection Table

Part Models: 16
1ku List Price: Starting From $19.62

Viewing:

Overview

Complete Step-Down Switch Mode Power Supply
CVCC: Constant-Voltage Constant-Current
2-Quadrant: Sources and Sinks Output Current
Adjustable Output Current
Wide Input Voltage Range: 6V to 36V
1.2V to 24V Output Voltage

Forced Continuous Operation
Selectable Switching Frequency: 100kHz to 1MHz
(e4) RoHS Compliant Package with Gold Pad Finish
Programmable Soft-Start
Compact (11.25mm × 15mm × 2.82mm) Surface Mount LGA and (11.25mm × 15mm × 3.42mm) BGA Packages

The LTM8052/LTM8052A is a 36V_IN, 5A, 2-quadrant constant-voltage, constant-current (CVCC) step-down μModule^® (power module) regulator. Included in the package are the switching controller, power switches, inductor and support components. Operating over an input voltage range of 6V to 36V, the LTM8052/LTM8052A supports an output voltage range of 1.2V to 24V. The LTM8052/LTM8052A is able to sink or source current to maintain voltage regulation up to the positive and negative current limits. This output current limit can be set by a control voltage, a single resistor or a thermistor. LTM8052 features a 125% output overvoltage protection, while LTM8052A does not, allowing operation when the output is above the target regulation point.

The LTM8052/LTM8052A is packaged in a compact (11.25mm × 15mm × 2.82mm) overmolded land grid array (LGA) and ball grid array (BGA) package suitable for automated assembly by standard surface mount equipment. The LTM8052/LTM8052A are available with SnPb (BGA) or RoHS compliant terminal finish.


PART NUMBER	BEST FOR
LTM8052	Sinking and sourcing output current for voltage regulation primarily.
LTM8052A	Sinking and sourcing output current for current regulation primarily.
LTM8026	Sourcing more than 3A of output current. (Less than 3A maximum consider LTM8025.)

Applications

Constant-Frequency Voltage Regulation Even at No Load
Peltier Driver
Battery Tester
Battery/Supercap Charging and Cell Balancing
Motor Drive Power Regulator
High Power LED Drive

Part Models: 16
1ku List Price: Starting From $19.62

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
LTM8052AEV#PBF	81-Lead LGA (15mm x 11.25mm x 2.82mm)	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
LTM8052AEY#PBF	81-Lead BGA (15mm x 11.25mm x 3.42mm)	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
LTM8052AIV#PBF	81-Lead LGA (15mm x 11.25mm x 2.82mm)	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
LTM8052AIY	81-Lead BGA (15mm x 11.25mm x 3.42mm)	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
LTM8052AIY#PBF	81-Lead BGA (15mm x 11.25mm x 3.42mm)	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
LTM8052AMPV#PBF	81-Lead LGA (15mm x 11.25mm x 2.82mm)	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
LTM8052AMPY	81-Lead BGA (15mm x 11.25mm x 3.42mm)	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
LTM8052AMPY#PBF	81-Lead BGA (15mm x 11.25mm x 3.42mm)	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
LTM8052EV#PBF	81-Lead LGA (15mm x 11.25mm x 2.82mm)	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
LTM8052EY#PBF	81-Lead BGA (15mm x 11.25mm x 3.42mm)	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
LTM8052IV#PBF	81-Lead LGA (15mm x 11.25mm x 2.82mm)	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
LTM8052IY	81-Lead BGA (15mm x 11.25mm x 3.42mm)	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
LTM8052IY#PBF	81-Lead BGA (15mm x 11.25mm x 3.42mm)	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
LTM8052MPV#PBF	81-Lead LGA (15mm x 11.25mm x 2.82mm)	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
LTM8052MPY	81-Lead BGA (15mm x 11.25mm x 3.42mm)	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
LTM8052MPY#PBF	81-Lead BGA (15mm x 11.25mm x 3.42mm)	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Jul 21, 2021 - 21_0159 Ink Mark to Laser Mark Conversion for µModule
		PCN21_0159_Form Material_Report
LTM8052AEV#PBF	PRODUCTION
LTM8052AEY#PBF	PRODUCTION
LTM8052AIV#PBF	PRODUCTION
LTM8052AIY	PRODUCTION
LTM8052AIY#PBF	PRODUCTION
LTM8052AMPV#PBF	PRODUCTION
LTM8052AMPY	PRODUCTION
LTM8052AMPY#PBF	PRODUCTION
LTM8052EV#PBF	PRODUCTION
LTM8052EY#PBF	PRODUCTION
LTM8052IV#PBF	PRODUCTION
LTM8052IY	PRODUCTION
LTM8052IY#PBF	PRODUCTION
LTM8052MPV#PBF	PRODUCTION
LTM8052MPY	PRODUCTION
LTM8052MPY#PBF	PRODUCTION
Feb 28, 2020 - 20_0123 Micro-Module, Test Site Transfer from Analog Devices Singapore to Analog Devices Penang, Malaysia
		PCN20_0123_Form Material_Report Test Correlation Report Other Qualification Results Summary
LTM8052AEV#PBF	PRODUCTION
LTM8052AEY#PBF	PRODUCTION
LTM8052AIV#PBF	PRODUCTION
LTM8052AIY	PRODUCTION
LTM8052AIY#PBF	PRODUCTION
LTM8052AMPV#PBF	PRODUCTION
LTM8052AMPY	PRODUCTION
LTM8052AMPY#PBF	PRODUCTION
LTM8052EV#PBF	PRODUCTION
LTM8052EY#PBF	PRODUCTION
LTM8052IV#PBF	PRODUCTION
LTM8052IY	PRODUCTION
LTM8052IY#PBF	PRODUCTION
LTM8052MPV#PBF	PRODUCTION
LTM8052MPY	PRODUCTION
LTM8052MPY#PBF	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Hardware Ecosystem

Parts	Product Life Cycle	Description
Battery Charger ICs 1
LTM8026	RECOMMENDED FOR NEW DESIGNS	36V_IN, 5A CVCC Step-Down μModule (Power Module) Regulator
Circuit Monitors 1
LTC2960	RECOMMENDED FOR NEW DESIGNS	36V Nano-Current Two-Input Voltage Monitor
Hot Swap Controllers 1
LTC4364	RECOMMENDED FOR NEW DESIGNS	Surge Stopper with Ideal Diode
Power System Management (PSM) & Sequencers 1
LTC2974	RECOMMENDED FOR NEW DESIGNS	4-Channel PMBus Power System Manager Featuring Accurate Output Current Measurement

Switching Regulators & Controllers 1
LTM4612	RECOMMENDED FOR NEW DESIGNS	EN55022B Compliant 36V_IN, 15V_OUT, 5A, DC/DC μModule (Power Module) Regulator

Tools & Simulations

LTspice 1

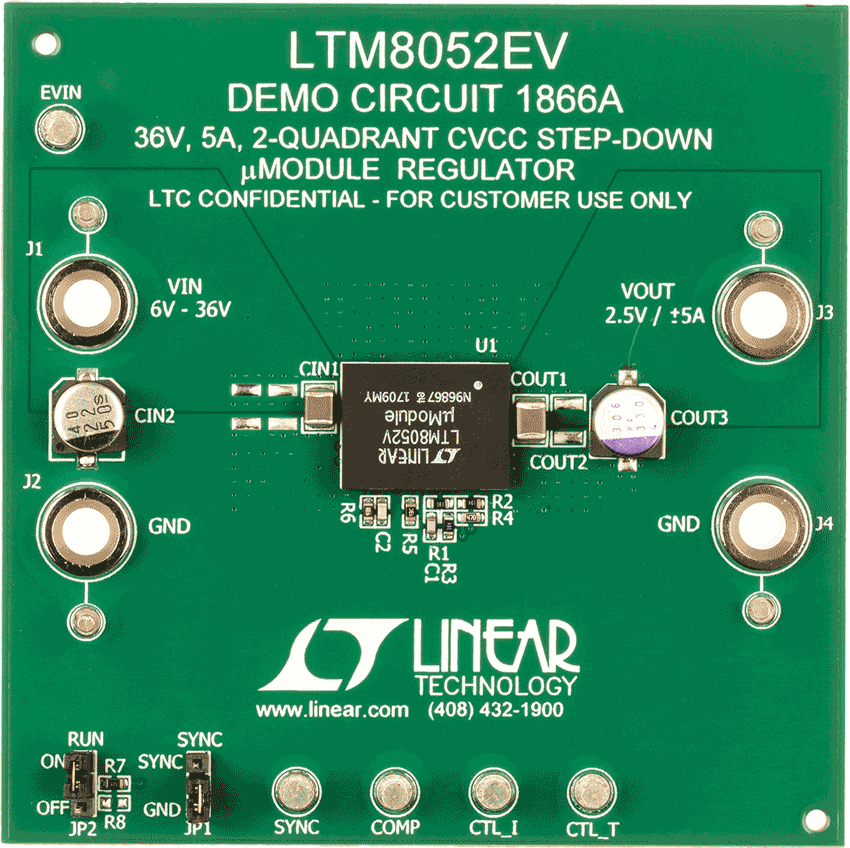

LTM8052 Demo Circuit - 36V, 5A, 2-Quadrant CVCC Step-Down µModule Regulator (6-36V to 2.5V @ ±5A)

Models for the following parts are available in LTspice:

LTM8052
LTM8052A

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
