LTM4613
EN55022B Compliant 36VIN, 15VOUT, 8A, DC/DC μModule (Power Module) Regulator
Top
Overview
Features and Benefits
- Complete Low EMI Switch Mode Power Supply
- EN55022 Class B Compliant
- Wide Input Voltage Range: 5V to 36V
- 8A Output Current
- 3.3V to 15V Output Voltage Range
- Low Input and Output Referred Noise
- Output Voltage Tracking and Margining
- PLL Frequency Synchronization
- 2% Maximum Total DC Error
- Power Good Tracks with Margining
- Current Foldback Protection
- Parallel/Current Sharing
- Ultrafast Transient Response
- Current Mode Control
- Programmable Soft-Start
- Output Overvoltage Protection
- –55°C to 125°C Operating Temperature Range (LTM4613MPV, LTM4613MPY)

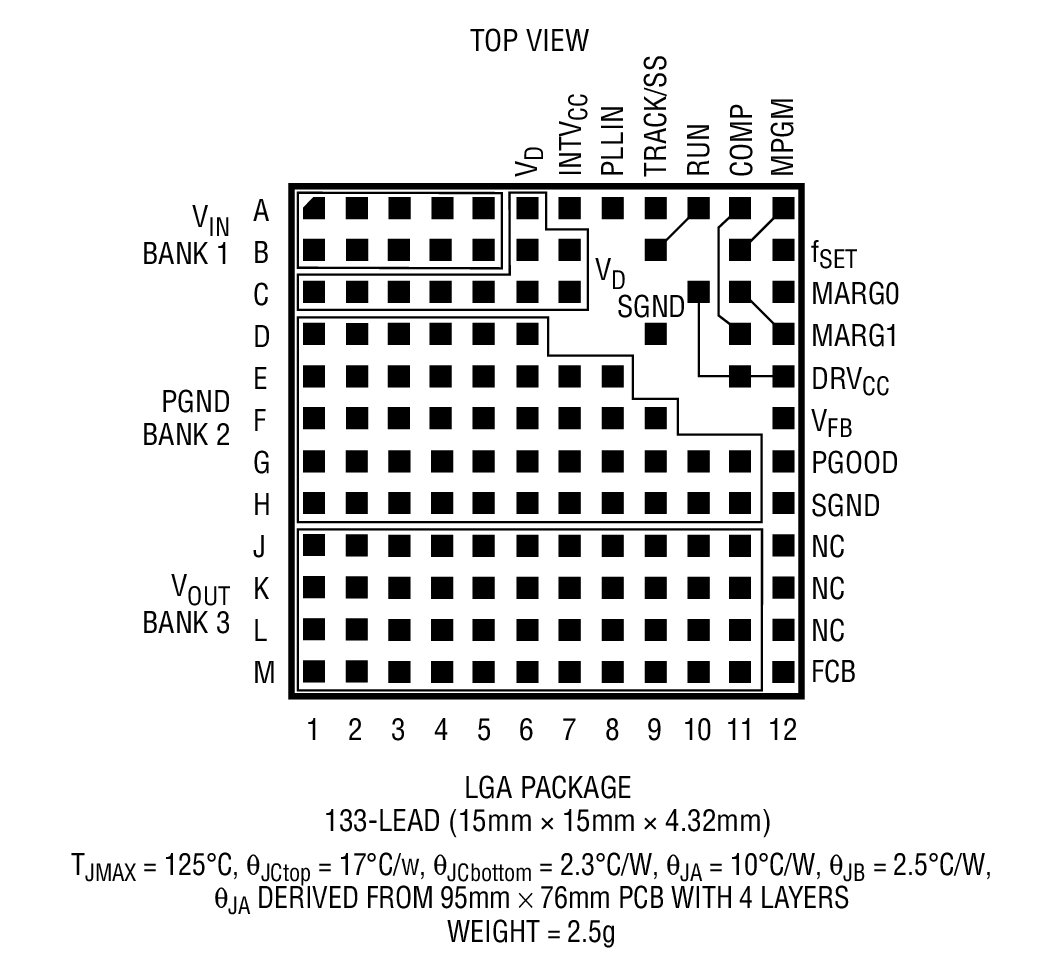

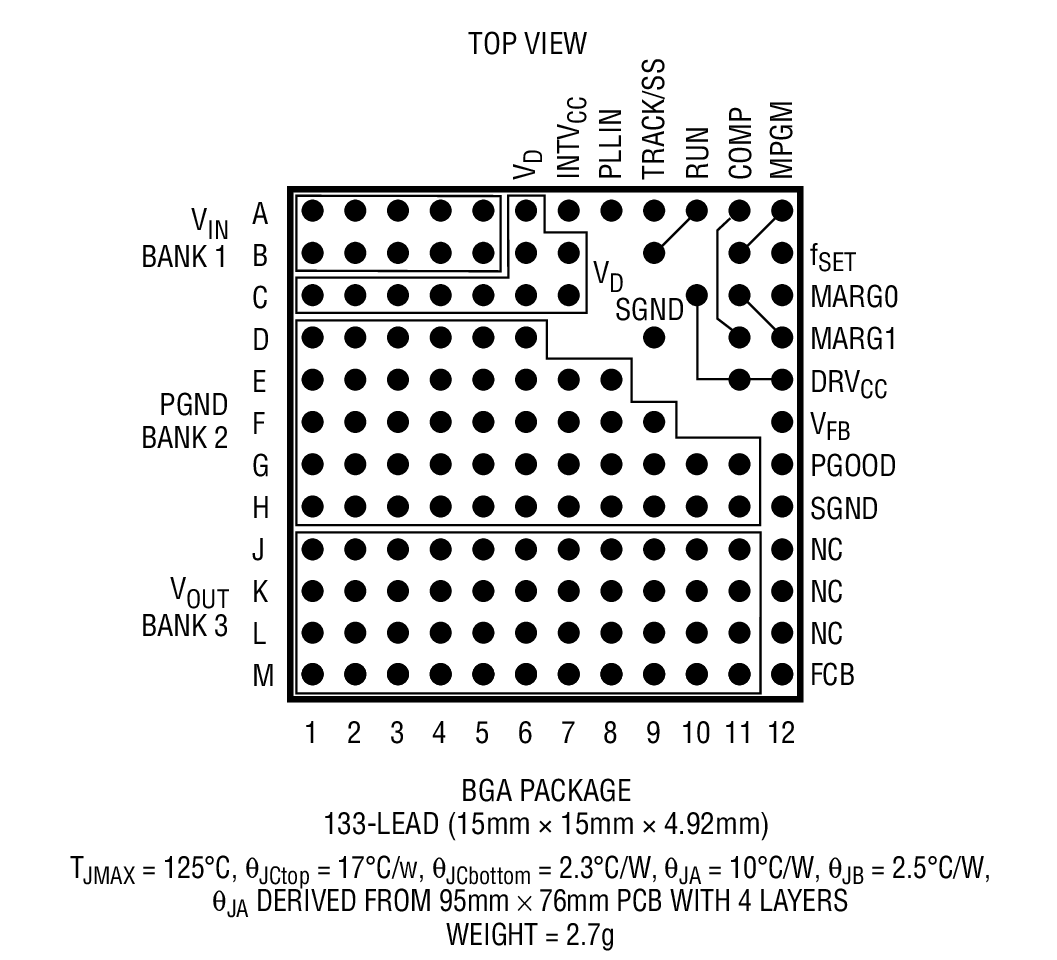

- Small Surface Mount Footprint, Low Profile (15mm × 15mm × 4.32mm) LGA Package
Product Details

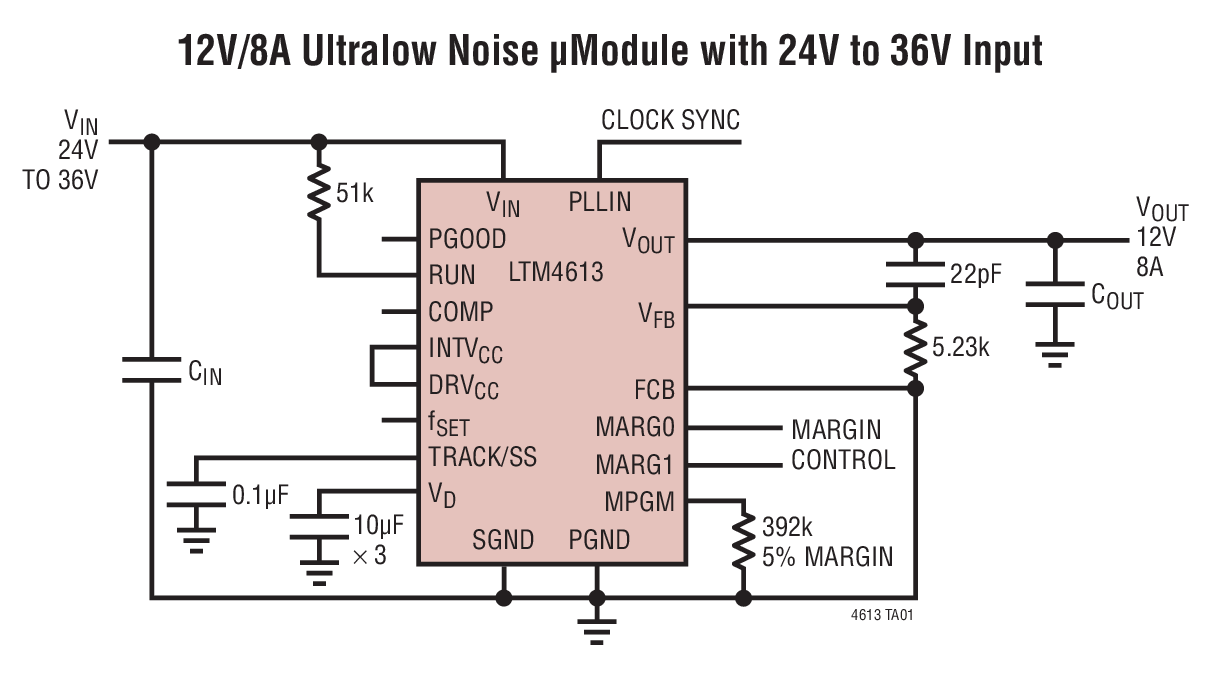

The LTM4613 is a complete, ultralow noise, 8A switch mode DC/DC power supply. Included in the package are the switching controller, power FETs, inductor and all support components. Operating over an input voltage range of 5V to 36V, the LTM4613 supports an output voltage range of 3.3V to 15V, set by a single external resistor. Only bulk input and output capacitors are needed to finish the design.
High switching frequency and an adaptive on-time current mode architecture enables a very fast transient response to line and load changes without sacrificing stability.
The on-board input filter and noise cancellation circuits achieve low noise coupling, thus effectively reducing the electromagnetic interference (EMI)—see Figure 7. Furthermore, the DC/DC μModule® regulator can be synchronized with an external clock to reduce undesirable frequency harmonics and allow PolyPhase® operation for high load currents.
The LTM4613 is offered in a space saving and thermally enhanced 15mm × 15mm × 4.32mm LGA package, which enables utilization of unused space on the bottom of PC boards for high density point-of-load regulation. The LTM4613 is Pb-free and RoHS compliant.
Applications
- Telecom and Networking Equipment
- Industrial and Avionic Equipment
- RF Systems
Product Categories
Markets and Technologies
Product Lifecycle
Recommended for New Designs
This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.
Evaluation Kits (1)
Documentation & Resources
-
R504 Reliability Data3/26/2018PDF347 K
-
EMI Test Report (LTM4613/EN55022B)3/23/2018PDF1 M
-

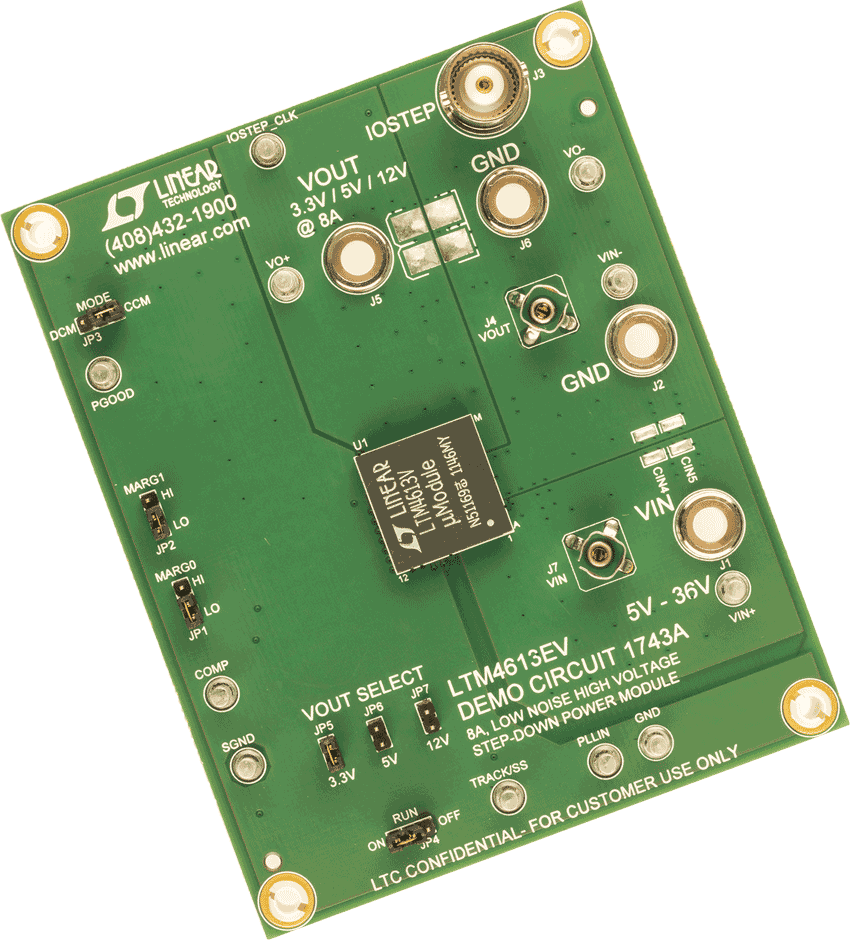

DC1743A - Demo Manual5/13/2011PDF376K
-
