LTC7130

20V 20A Monolithic Buck Converter with Ultralow DCR Sensing

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Part Models 2
1ku List Price Starting From $5.95
Features
  • Wide VIN Range: 4.5V to 20V
  • Optimized for Low Duty Cycle Applications

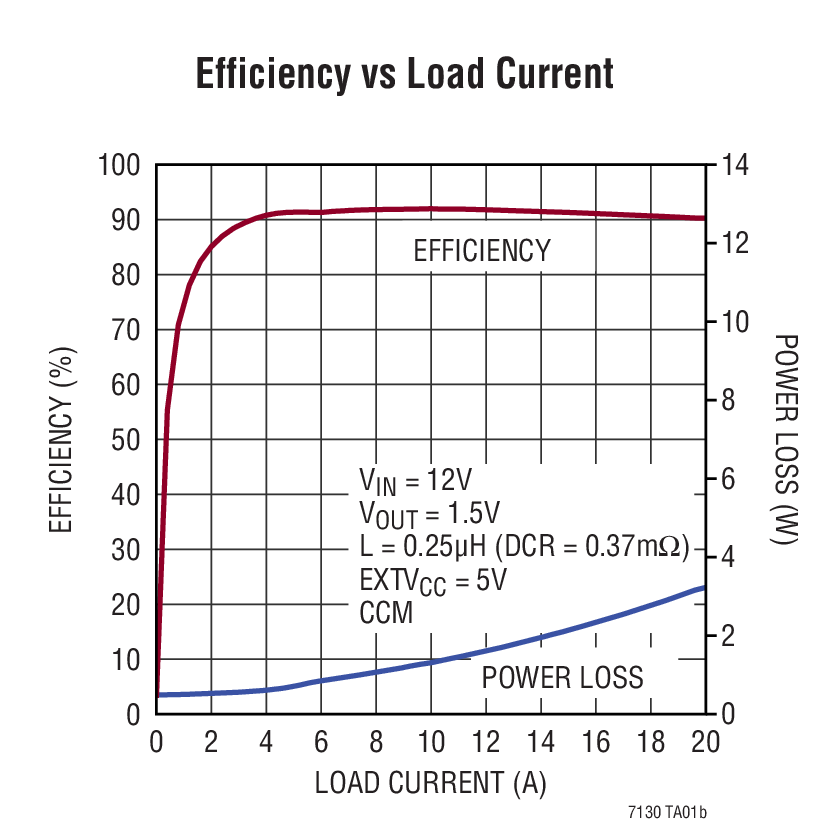

  • High Efficiency: Up to 95%
  • LTC Proprietary Current Mode Architecture
  • High Current Parallel Operation
  • Ultralow DCR Current Sensing with Temperature Compensation
  • Programmable Output Current Limit
  • High Speed Differential Remote Sense Amplifier
  • ±0.5% Output Voltage Regulation Accuracy
  • Output Short-Circuit Protection with Soft Recovery
  • Programmable Soft-Start, Tracking
  • Programmable Fixed Frequency: 250kHz to 770kHz
  • EXTVCC for Reduced Power Dissipation
  • Fault Indicator for Output UV/OV Conditions

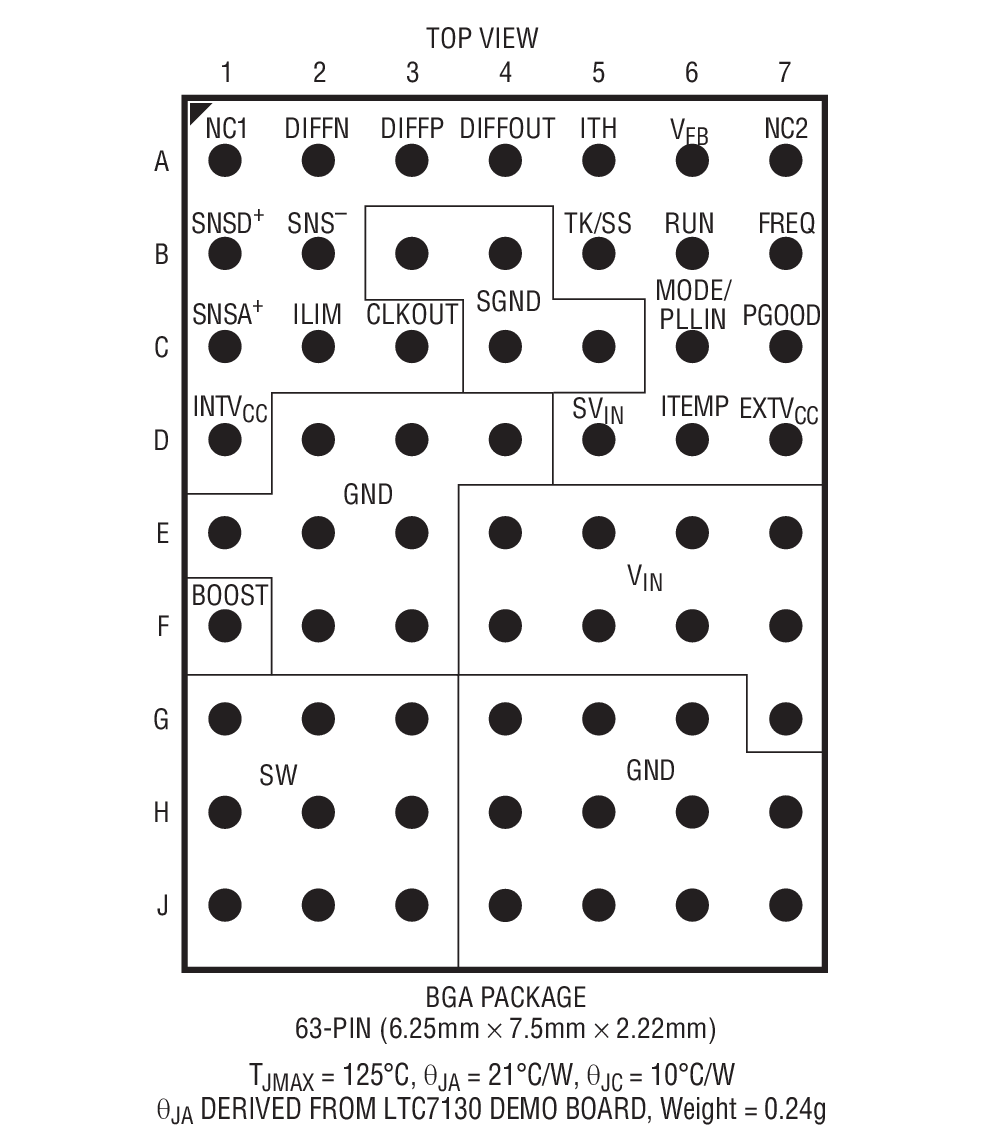

  • 6.25mm × 7.5mm × 2.22mm BGA Package
Additional Details
show more Icon

The LTC7130 is a current mode synchronous step-down monolithic converter that can deliver up to 20A continuous load current. It employs a unique architecture which enhances the signal-to-noise ratio of the current sense signal, allowing the use of a very low DC resistance power inductor to maximize efficiency in high current applications. This feature also reduces the switching jitter commonly found in low DCR applications. The LTC7130 also includes a high speed differential remote sense amplifier and a programmable current sense limit that can be selected from 10mV to 30mV to set the output current limit up to 20A. In addition, the DCR temperature compensation feature limits the maximum output current precisely over temperature.

The LTC7130 also features a precise 0.6V reference with a guaranteed limit of ±0.5% that provides an accurate output voltage. A 5V to 20V input voltage range supports a wide variety of bus voltages and various types of batteries.

The LTC7130 is offered in a compact and low profile BGA package available with SnPb/RoHS compliant terminal finishes.

Applications

  • DSP, FPGA, ASIC Reference Designs
  • Telecom/Datacom Systems
  • Distributed High Power Density Systems
Part Models 2
1ku List Price Starting From $5.95

close icon

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LTC7130EY#PBF
  • HTML
  • HTML
LTC7130IY#PBF
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Apr 25, 2020

- 20_0123

Micro-Module, Test Site Transfer from Analog Devices Singapore to Analog Devices Penang, Malaysia

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Apr 25, 2020

- 20_0123

arrow down

Micro-Module, Test Site Transfer from Analog Devices Singapore to Analog Devices Penang, Malaysia

Software & Part Ecosystem

Evaluation Kits 1

reference details image

DC2341A

LTC7130EY Demo Board | Monolithic 20A Buck with mΩ DCR Sensing; 4.5V ≤ VIN ≤ 20V, VOUT = 1.5V @ 20A

zoom

DC2341A

LTC7130EY Demo Board | Monolithic 20A Buck with mΩ DCR Sensing; 4.5V ≤ VIN ≤ 20V, VOUT = 1.5V @ 20A

LTC7130EY Demo Board | Monolithic 20A Buck with mΩ DCR Sensing; 4.5V ≤ VIN ≤ 20V, VOUT = 1.5V @ 20A

Product Detail

Demonstration circuit 2341A is a high efficiency synchronous buck DC/DC converter with 4.5V to 20V input range. It can supply 20A maximum load current at 1.5V output. The demo board features the LTC7130 regulator. No external MOSFETs are required. It employs an LTC proprietary current sensing, current mode architecture, allowing the use of a very low DC resistance (DCR) power inductor to maximize efficiency in high current applications. Differential output voltage sensing along with a precision internal reference combine to offer accurate output regulation. The LTC7130 is housed in a 6.25mm × 7.5mm × 2.22mm 63-pin BGA package.

Tools & Simulations 2

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

To launch ready-to-run LTspice demonstration circuits for this part:

Step 1: Download and install LTspice on your computer.

Step 2: Click on the link in the section below to download a demonstration circuit.

Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.
