Overview
Features and Benefits
- 12A Output Current
- Wide VIN Range = 4V to 24V
- Internal N-Channel MOSFETs
- True Current Mode Control
- Optimized for High Step-Down Ratios
- tON(MIN) ≤100ns
- Extremely Fast Transient Response
- Stable with Ceramic COUT
- ±1% 0.6V Voltage Reference
- Power Good Output Voltage Monitor
- Adjustable On-Time/Switching Frequency
- Adjustable Current Limit
- Programmable Soft-Start
- Output Overvoltage Protection
- Optional Short-Circuit Shutdown Timer
- Low Shutdown IQ: 15μA
- Available in a 9mm × 9mm 64-Pin QFN Package
Product Details
The LTC3610 is a high efficiency, monolithic synchronous step-down DC/DC converter that can deliver up to 12A output current from a 4V to 24V (28V maximum) input supply. It uses a valley current control architecture to deliver very low duty cycle operation at high frequency with excellent transient response. The operating frequency is selected by an external resistor and is compensated for variations in VIN and VOUT.
The LTC3610 can be configured for discontinuous or forced continuous operation at light load. Forced continuous operation reduces noise and RF interference while discontinuous mode provides high efficiency by reducing switching losses at light loads.
Fault protection is provided by internal foldback current limiting, an output overvoltage comparator and an optional short-circuit shutdown timer. Soft-start capability for supply sequencing is accomplished using an external timing capacitor. The regulator current limit is user programmable. A power good output voltage monitor indicates when the output is in regulation. The LTC3610 is available in a compact 9mm × 9mm QFN package.
Applications
- Point of Load Regulation
- Distributed Power Systems
Product Categories
Product Lifecycle
Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
Evaluation Kits (1)
Documentation & Resources
-
R546 Reliability Data3/23/2018
-

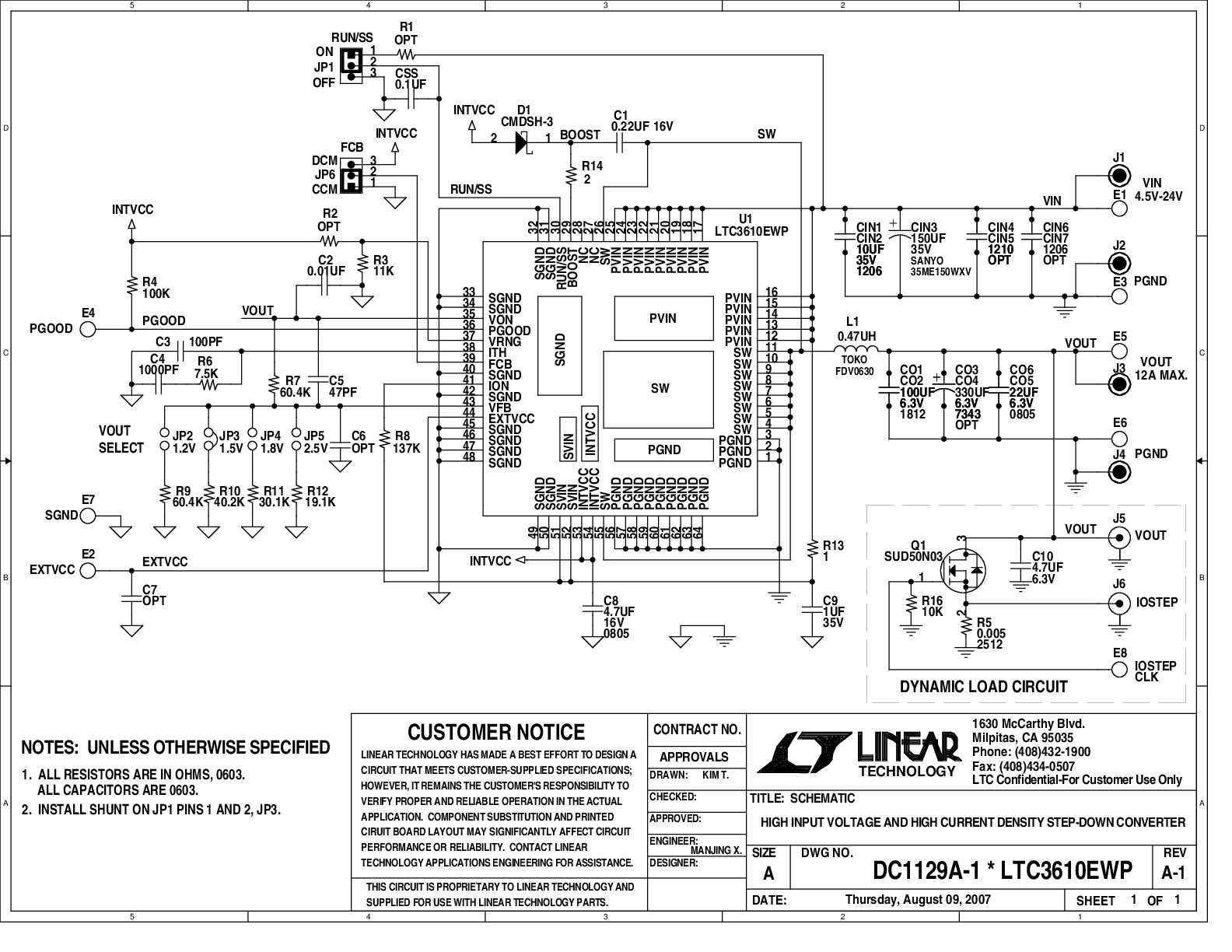

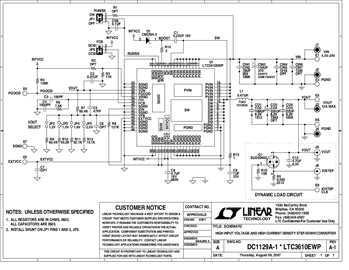

DC1129A - Demo Manual9/24/2009
-
24V, 15A Step-Down Regulator in Sub-1mm Height Package Pushes Monolithic Performance Limits7/1/2012 LT Journal
-
32VIN Synchronous Buck Regulators with Integrated FETs Deliver up to 12A from Sub-1mm Height Packages9/1/2008 LT Journal
-
12A Monolithic Synchronous Buck Regulator Accepts Inputs up to 24V6/1/2007 LT Journal
Tools & Simulations
LTspice
LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
To launch ready-to-run LTspice demonstration circuits for this part:
Step 1: Download and install LTspice on your computer.
Step 2: Click on the link in the section below to download a demonstration circuit.
Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.
Models for the following parts are available in LTspice:
LTC3610
Product Recommendations
LTC3610 Companion Parts
Design Resources
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
| Part Number | Material Declaration | Reliability Data | Pin/Package Drawing | CAD Symbols, Footprints & 3D Models |
|---|---|---|---|---|
| LTC3610EWP#PBF | Material Declaration | Reliability Data | 64-Lead QFN (9mm x 9mm x 0.9mm w/ EP) | |
| LTC3610EWP#TRPBF | Material Declaration | Reliability Data | 64-Lead QFN (9mm x 9mm x 0.9mm w/ EP) | |
| LTC3610IWP#PBF | Material Declaration | Reliability Data | 64-Lead QFN (9mm x 9mm x 0.9mm w/ EP) | |
| LTC3610IWP#TRPBF | Material Declaration | Reliability Data | 64-Lead QFN (9mm x 9mm x 0.9mm w/ EP) | |
| Wafer Fabrication Data | R546 Reliability Data |
