LTC4274

Single PoE+ PSE Controller

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Viewing: Part Details
arrow-icon
Part Details

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet
Documentation View All Documentation
LTspice LTC4265 - Power-over-Ethernet (PoE) Interface Controllers, LTC4274 - Power-over-Ethernet (PoE) Interface Controllers Download 3.61 KB
Part Models 4
1ku List Price Starting From $5.37
Features
  • Compliant with IEEE 802.3at Type 1 and 2
  • 0.34Ω Total Channel Resistance
    • 130mW/Port at 600mA
  • Advanced Power Management
    • 8-Bit Programmable Current Limit (ILIM)
    • 7-Bit Programmable Overload Currents (ICUT)
    • Fast Shutdown
    • 14.5-Bit Port Current/Voltage Monitoring
    • 2-Event Classification
  • Very High Reliability 4-Point PD Detection
    • 2-Point Forced Voltage
    • 2-Point Forced Current
  • High Capacitance Legacy Device Detection
  • LTC4259A-1 and LTC4266 SW Compatible
  • 1MHz I2C Compatible Serial Control Interface
  • Midspan Backoff Timer
  • Supports Proprietary Power Levels Above 25W
  • Available in 38-Pin 5mm × 7mm QFN Package
Additional Details
show more Icon

The LTC4274 is a single power sourcing equipment controller designed for use in IEEE 802.3 Type 1 and Type 2 (high power) compliant Power over Ethernet systems. External power MOSFETs enhance system reliability and minimize channel resistance, cutting power dissipation and eliminating the need for heatsinks even at Type 2 power levels. External power components also allow use at very high power levels while remaining otherwise compatible with the IEEE standard. 80V-rated port pins provide robust protection against external faults.

The LTC4274 includes advanced power management features, including current and voltage readback and programmable ICUT and ILIM thresholds. Available C libraries simplify software development; an optional AUTO pin mode provides fully IEEE-compliant standalone operation with no software required. Proprietary 4-point PD detection circuitry minimizes false PD detection while supporting legacy phone operation. Midspan operation is supported with built-in 2-event classification and backoff timing. Host communication is via a 1MHz I2C serial interface.

The LTC4274 is available in a 5mm × 7mm QFN package that significantly reduces board space compared with competing solutions.

Applications

  • PSE Switches/Routers
  • PSE Midspans
Show More Arrow image
file View Data Sheet
Documentation View All Documentation
LTspice LTC4265 - Power-over-Ethernet (PoE) Interface Controllers, LTC4274 - Power-over-Ethernet (PoE) Interface Controllers Download 3.61 KB
Part Models 4
1ku List Price Starting From $5.37
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

LTC4274

Documentation

4
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • Reliability Data
  • Data Sheet
  • User Guide
  • All
    TickIcon
  • English
  • Japanese
resetfilter

Reset Filters

Data Sheet

2

PDF Vector

PDF

UPDATED 07/13/2017
English

LTC4274: Single PoE+ PSE Controller Data Sheet

Open PDF File

redirect
395.00K
download

Download PDF

PDF Vector

PDF

UPDATED 04/18/2012
Japanese

LTC4274: シングルPoE+ PSE コントローラ データシート

Open PDF File

redirect
658.00K
download

Download PDF

Reliability Data

1

PDF Vector

PDF

UPDATED 03/26/2018
English
R547 Reliability Data redirect icon

146.93 K

download

Download PDF

User Guide

1

PDF Vector

PDF

UPDATED 10/05/2015
English
DC1567B - Demo Manual (Rev.B) redirect icon

436.00K

download

Download PDF

There are no results matching this criteria. Try resetting your filters or searching for a different term

close icon
Documentation

Documentation

Product Selector Card 4

PoE PD Controllers
PoE+ for the Power Hungry
LTPoE++ PSE Controllers
Power over Ethernet Solutions

Video

2

Thumbnail Image

Video

2018-08-20

02:51

Next Generation Power Over Ethernet

Learn More
Thumbnail Image

Video

2017-09-18

PoE++ Video Product Brief

Learn More
Show More Arrow image

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LTC4274CUHF#PBF 38-Lead QFN (5mm x 7mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC4274CUHF#TRPBF 38-Lead QFN (5mm x 7mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC4274IUHF#PBF 38-Lead QFN (5mm x 7mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC4274IUHF#TRPBF 38-Lead QFN (5mm x 7mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Dec 28, 2020

- 20_0245

Notification of Wafer Fab Location Change for 0.6µm BICMOS Process Devices from ADI Milpitas (Hillview) to Vanguard Int. (Taiwan)

LTC4274CUHF#PBF

PRODUCTION

LTC4274CUHF#TRPBF

PRODUCTION

LTC4274IUHF#PBF

PRODUCTION

LTC4274IUHF#TRPBF

PRODUCTION

pdf

PCN20_0245_Form

external-icon

xls

Material_Report

Download

xlsm

Delta Qualification Matrix

Download

pdf

Other

external-icon

pdf

Qualification Results Summary

external-icon

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Dec 28, 2020

- 20_0245

arrow down

Notification of Wafer Fab Location Change for 0.6µm BICMOS Process Devices from ADI Milpitas (Hillview) to Vanguard Int. (Taiwan)

LTC4274CUHF#PBF

PRODUCTION

LTC4274CUHF#TRPBF

PRODUCTION

LTC4274IUHF#PBF

PRODUCTION

LTC4274IUHF#TRPBF

PRODUCTION

pdf

PCN20_0245_Form

external-icon

xls

Material_Report

Download

xlsm

Delta Qualification Matrix

Download

pdf

Other

external-icon

pdf

Qualification Results Summary

external-icon
Software & Part Ecosystem

Software & Part Ecosystem

Parts Product Life Cycle Description

PoE Power Sourcing Equipment (PSE)1
LTC4274A
LTC4274C
popup image
Cart

Single PoE/PoE+/LTPoE++ PSE Controller

Serial Bus Buffers, Extenders, and Accelerators1
LTC4310
popup image
Cart

PRODUCTION

Hot-Swappable I2C Isolators

Parts Product Life Cycle Description
LTC4279
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

Single Port PoE/PoE+/LTPoE++ PSE Controller

Evaluation Kit

Evaluation Kits 2

reference details image

DC1567B

LTC4274 Demo Board | IEEE802.3at Power Over Ethernet PSE

zoom

DC1567B

LTC4274 Demo Board | IEEE802.3at Power Over Ethernet PSE

download icon

Download

 print icon

Print
DC1567B
LTC4274 Demo Board | IEEE802.3at Power Over Ethernet PSE
Buy Now View Details

Product Detail

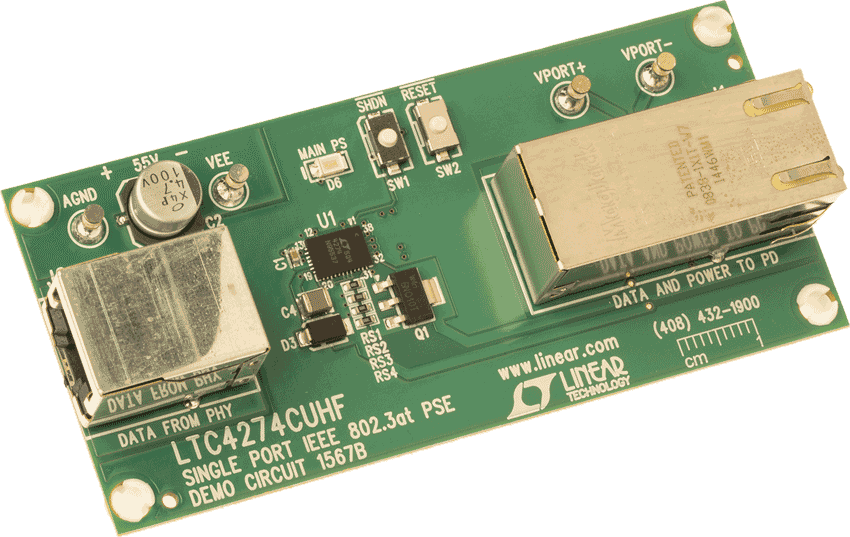

Demonstration circuit 1567B features the LTC4274, a single power sourcing equipment (PSE) controller designed for use in IEEE 802.3 Type 1 and Type 2 (high power) compliant Power over Ethernet (PoE) systems. The LTC4274 is configured in the DC1567B as a midspan power injector where data comes in from an existing network system and out, along with power, to a powered device (PD). The LTC4274 autonomously detects and classifies a PD, turns power on to the port, and disconnects port power without the need for a microcontroller. A two second backoff timer supports the midspan configuration. A 55V nomical supply is recommended to power the demo board.
